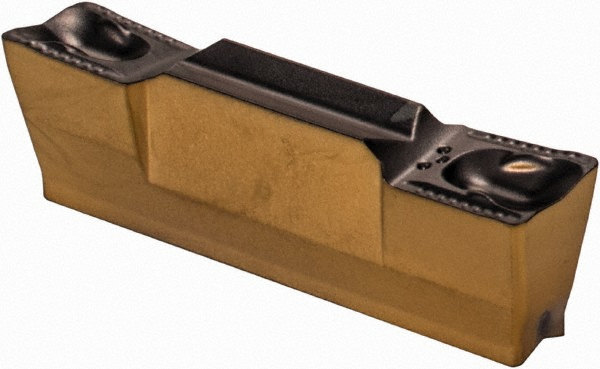

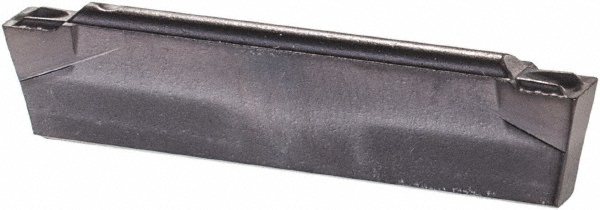

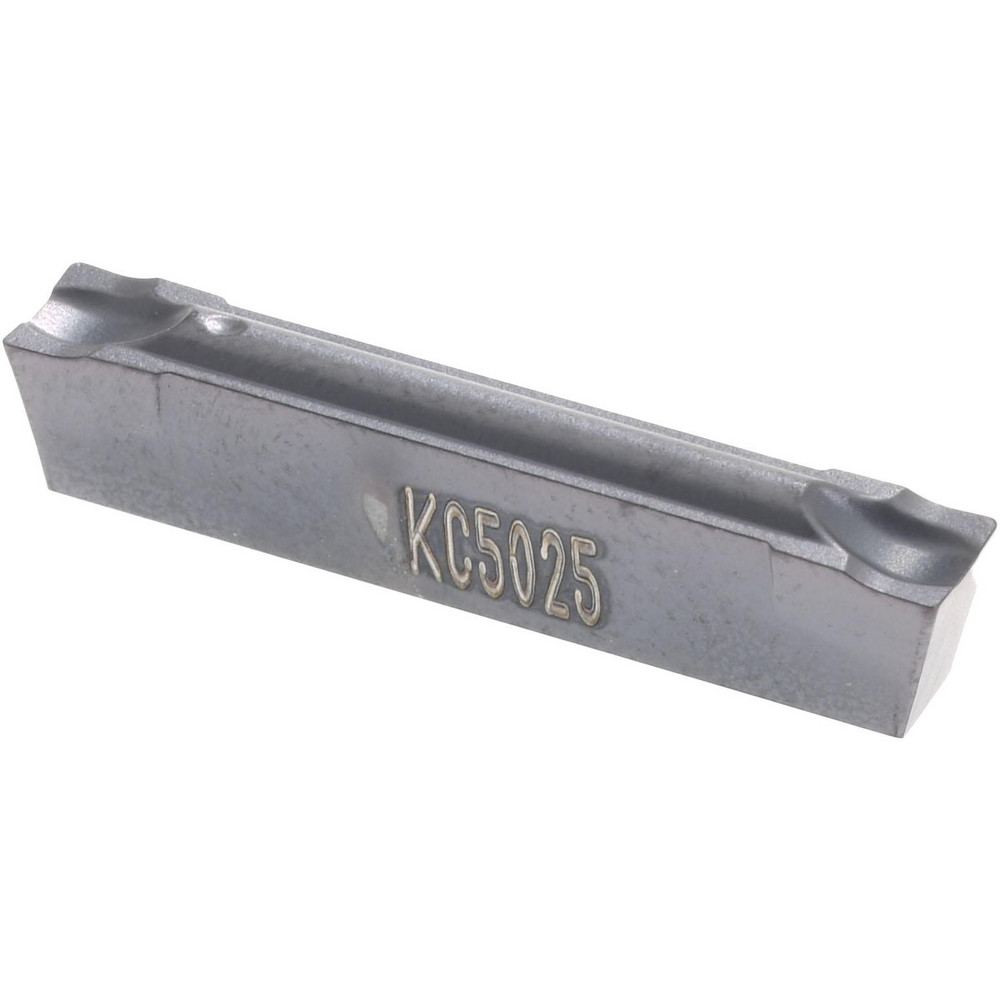

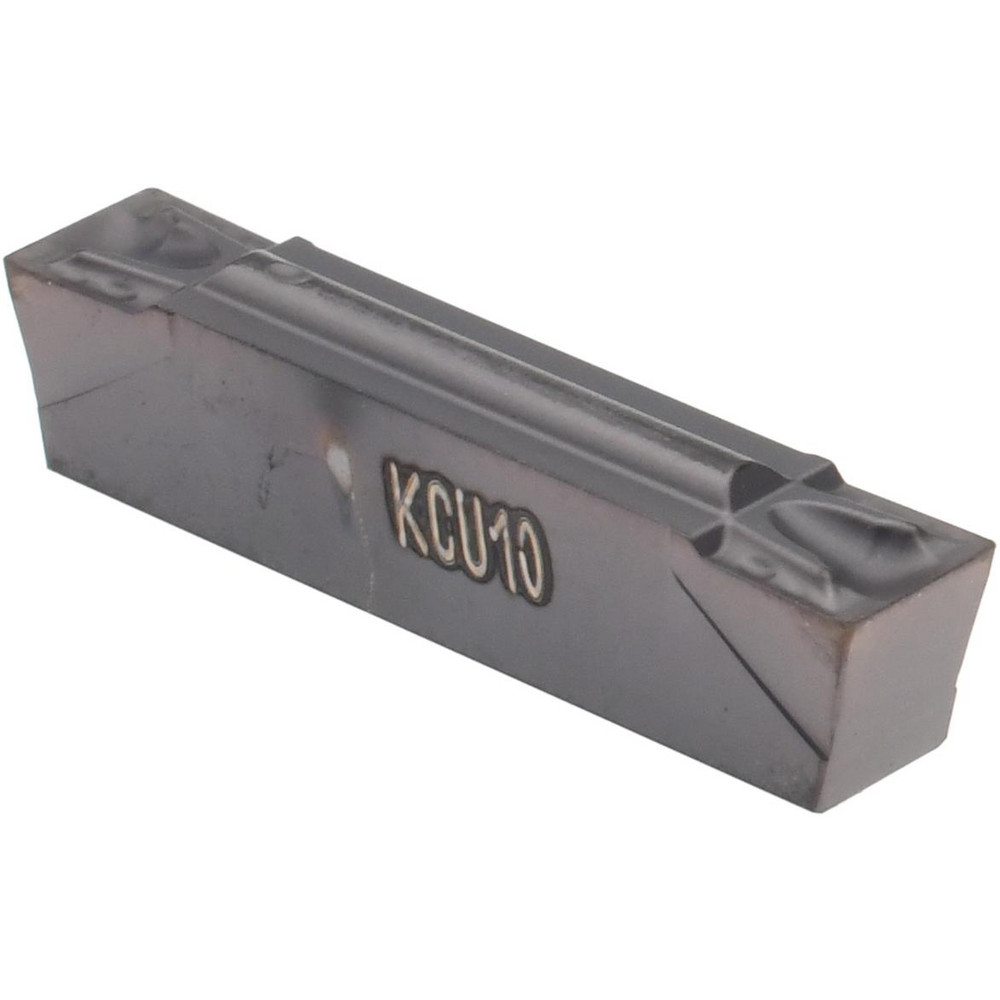

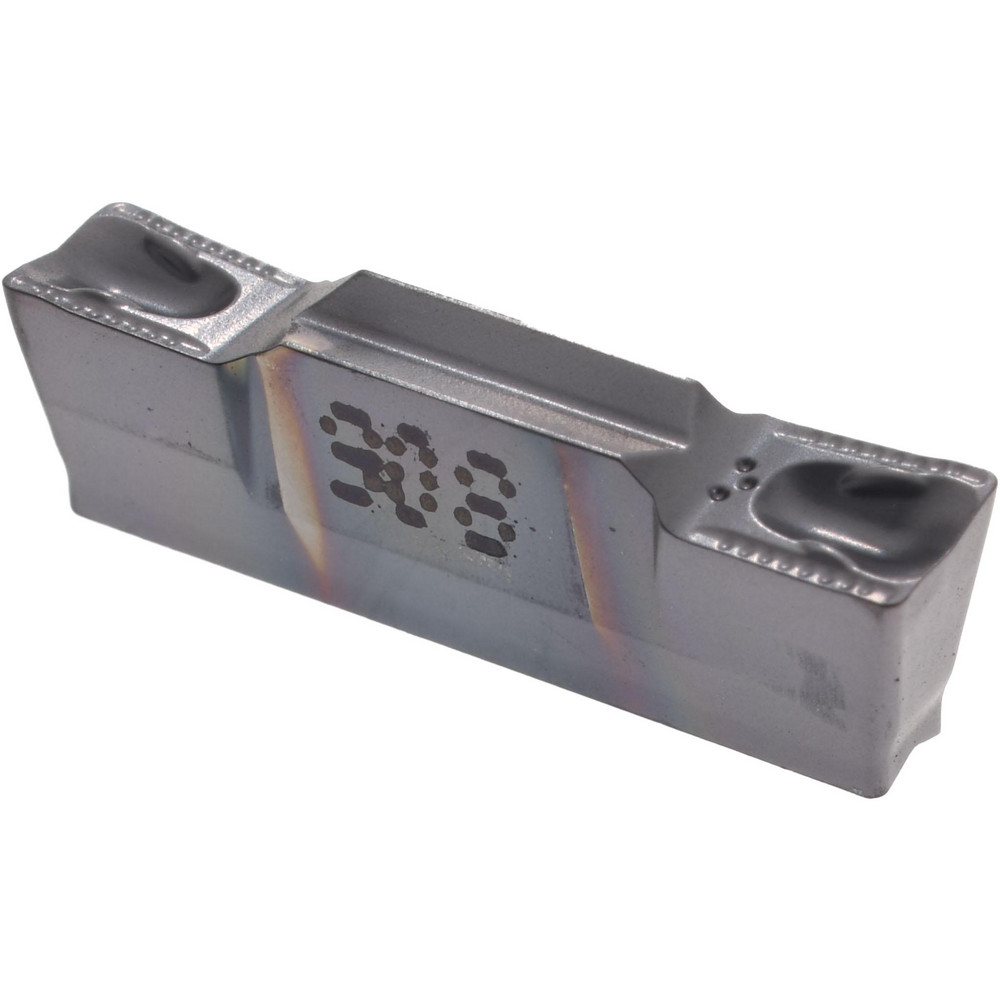

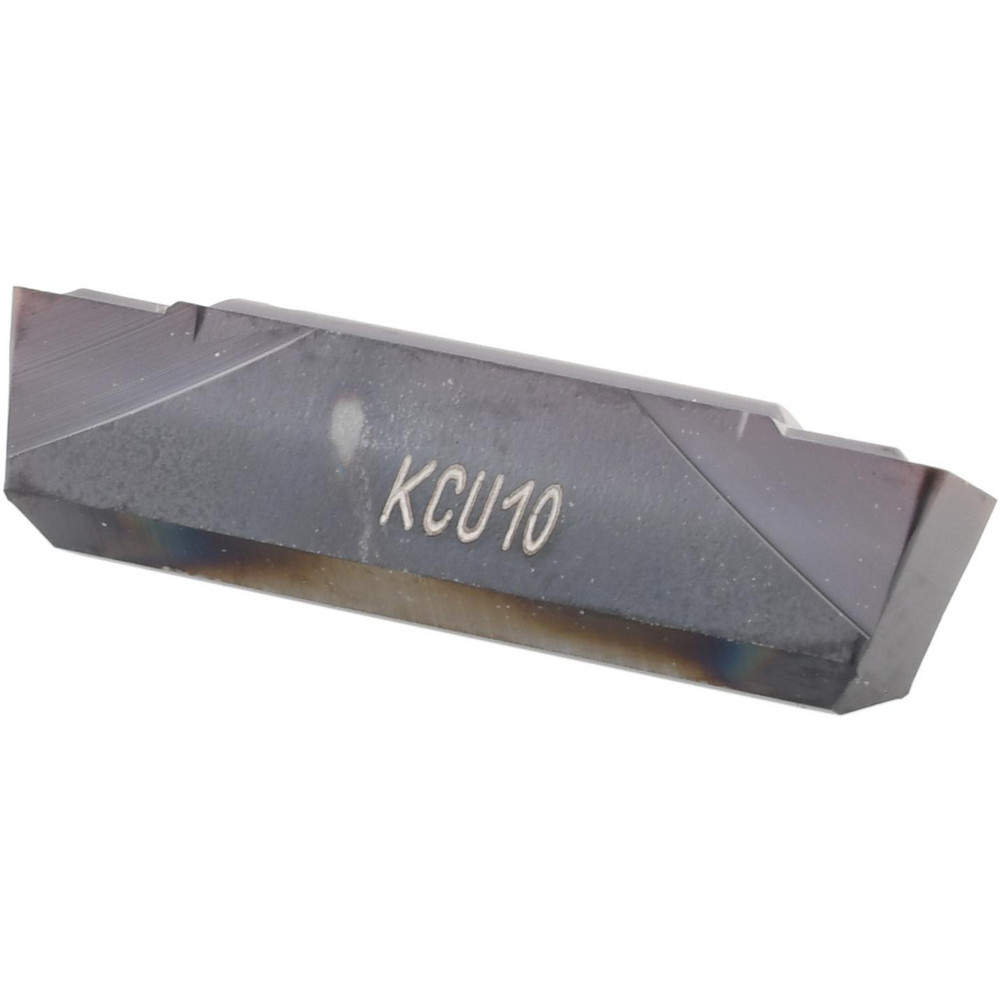

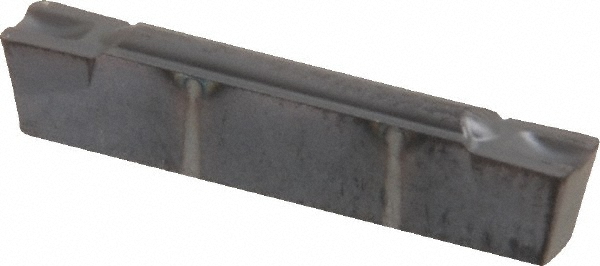

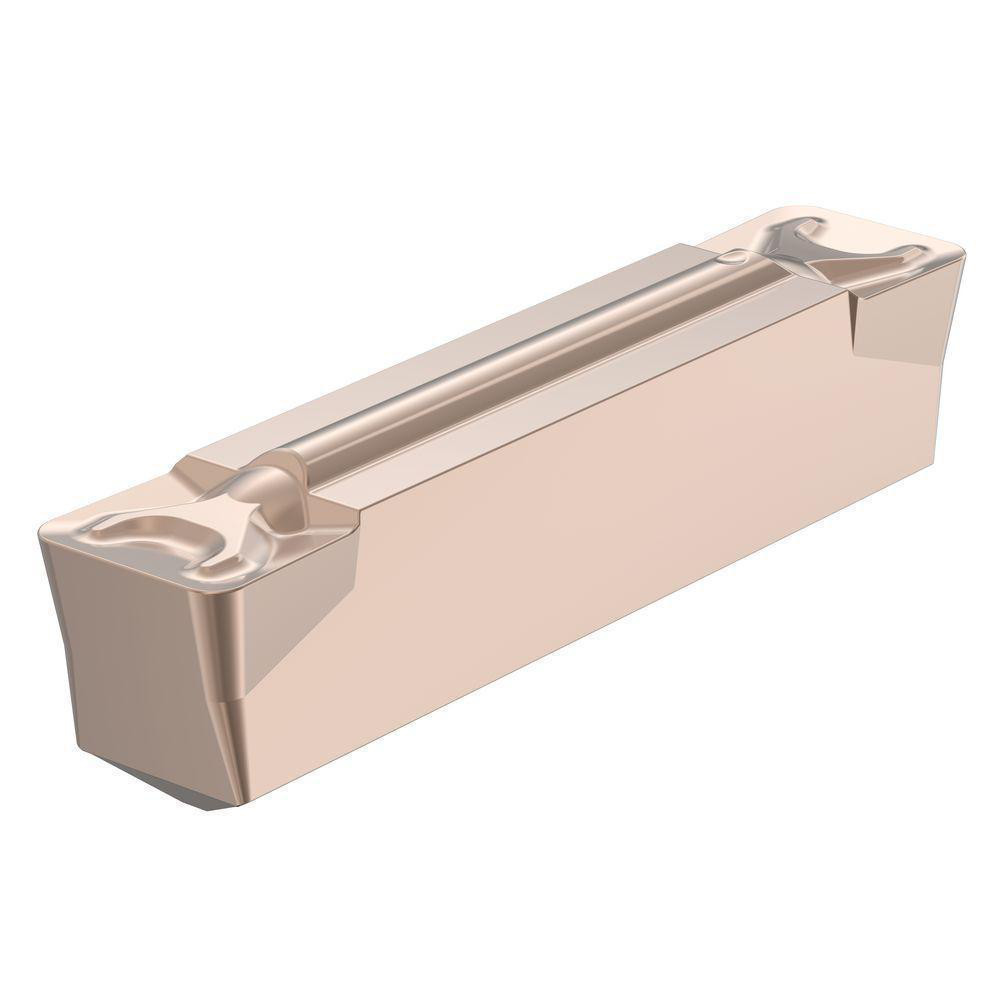

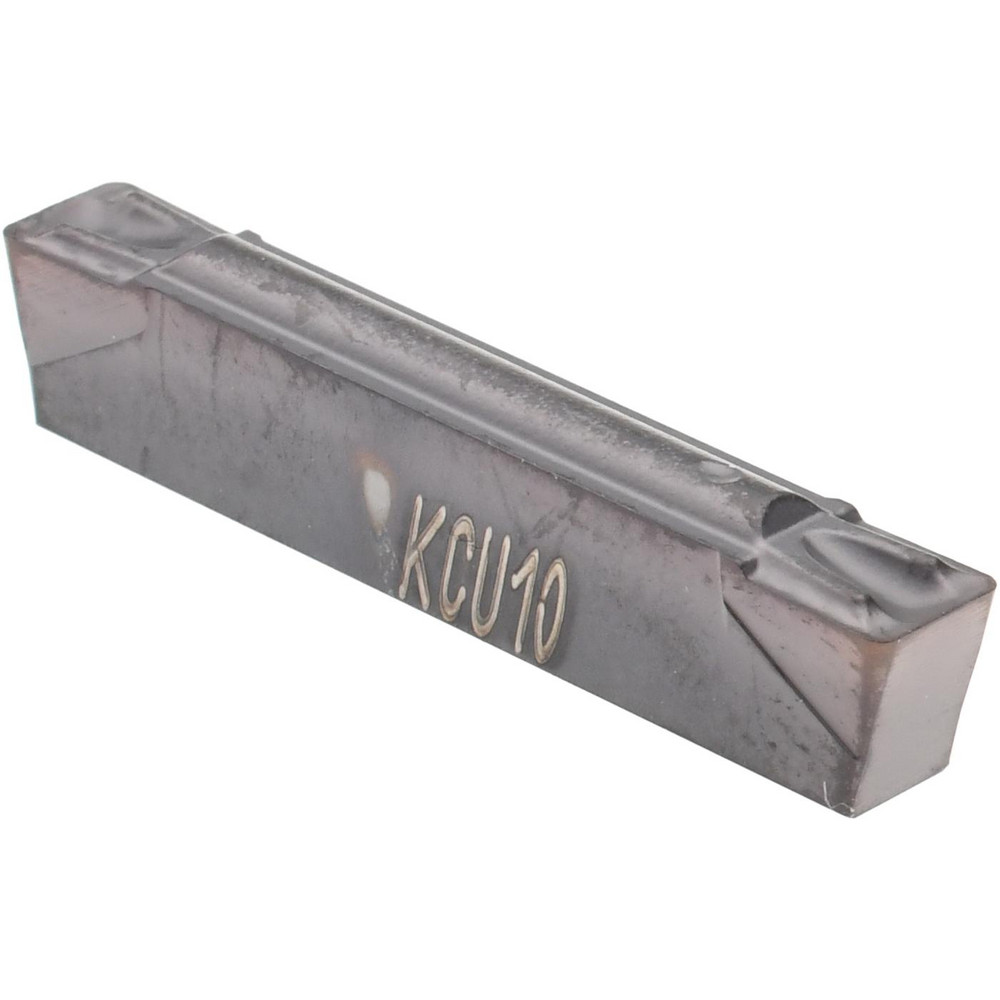

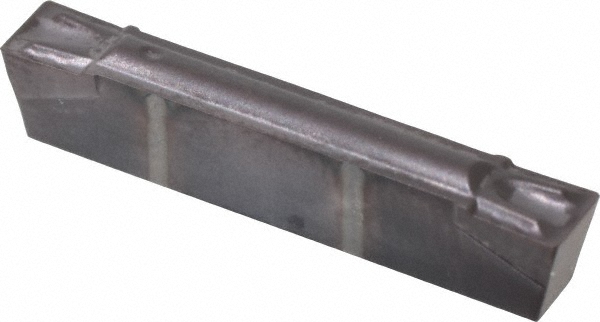

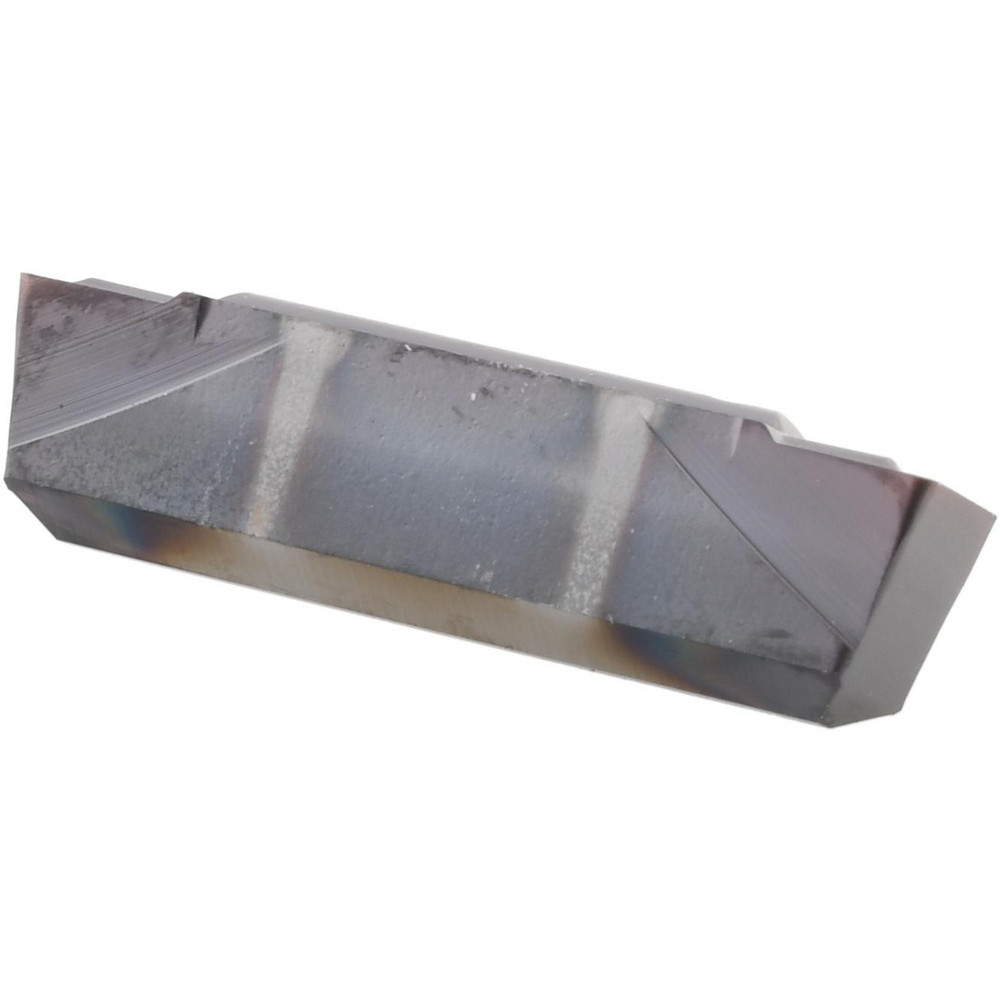

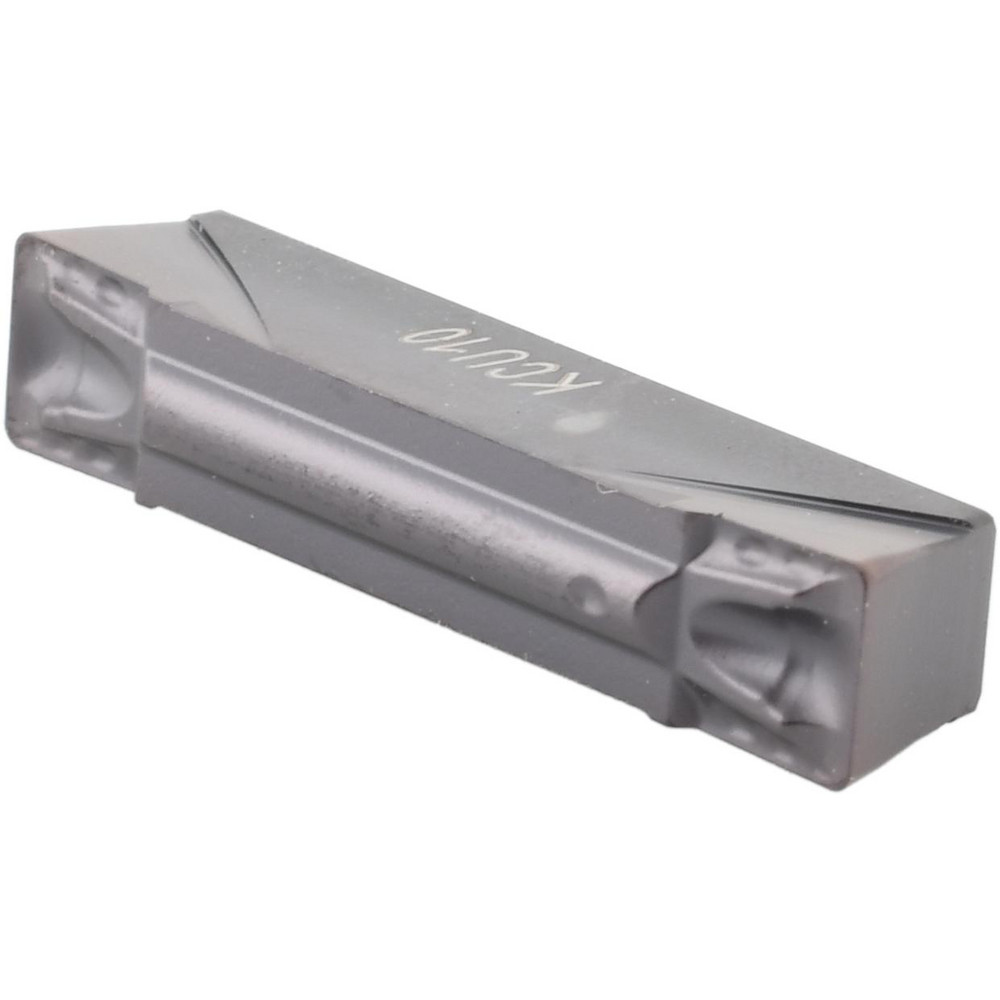

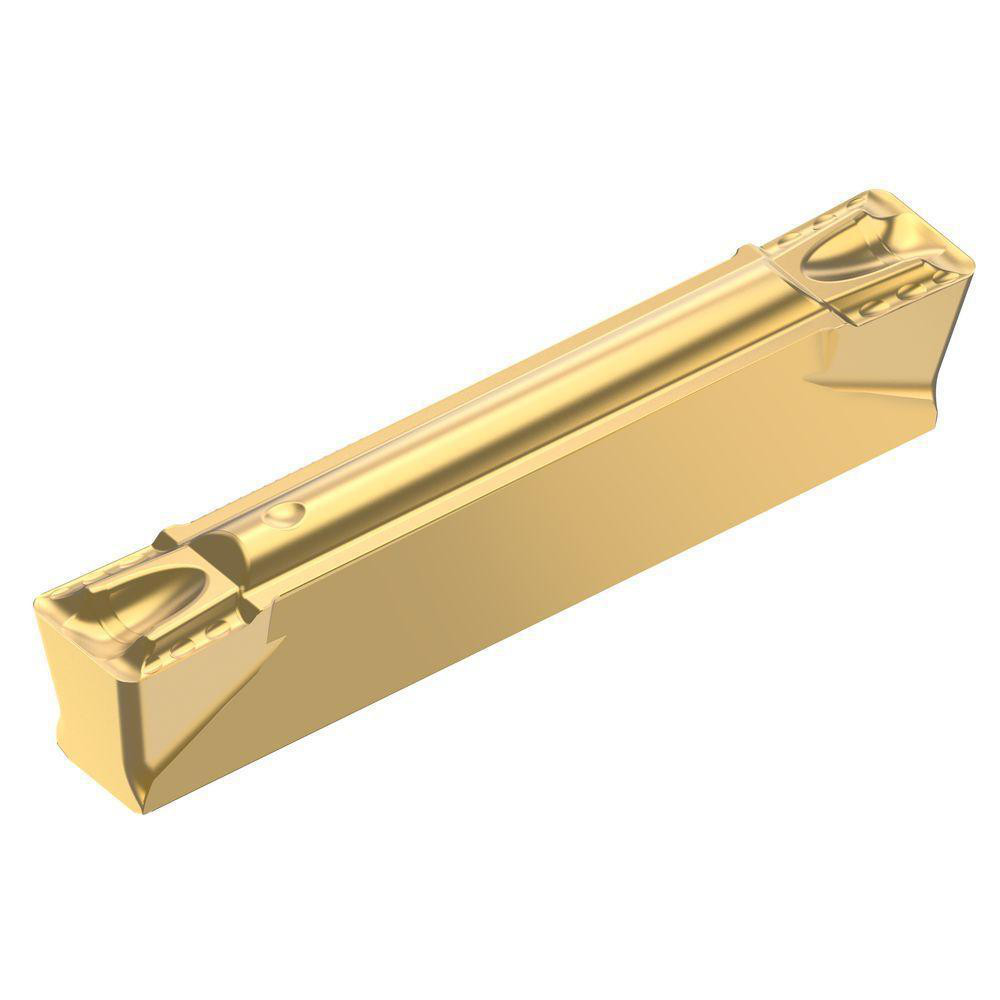

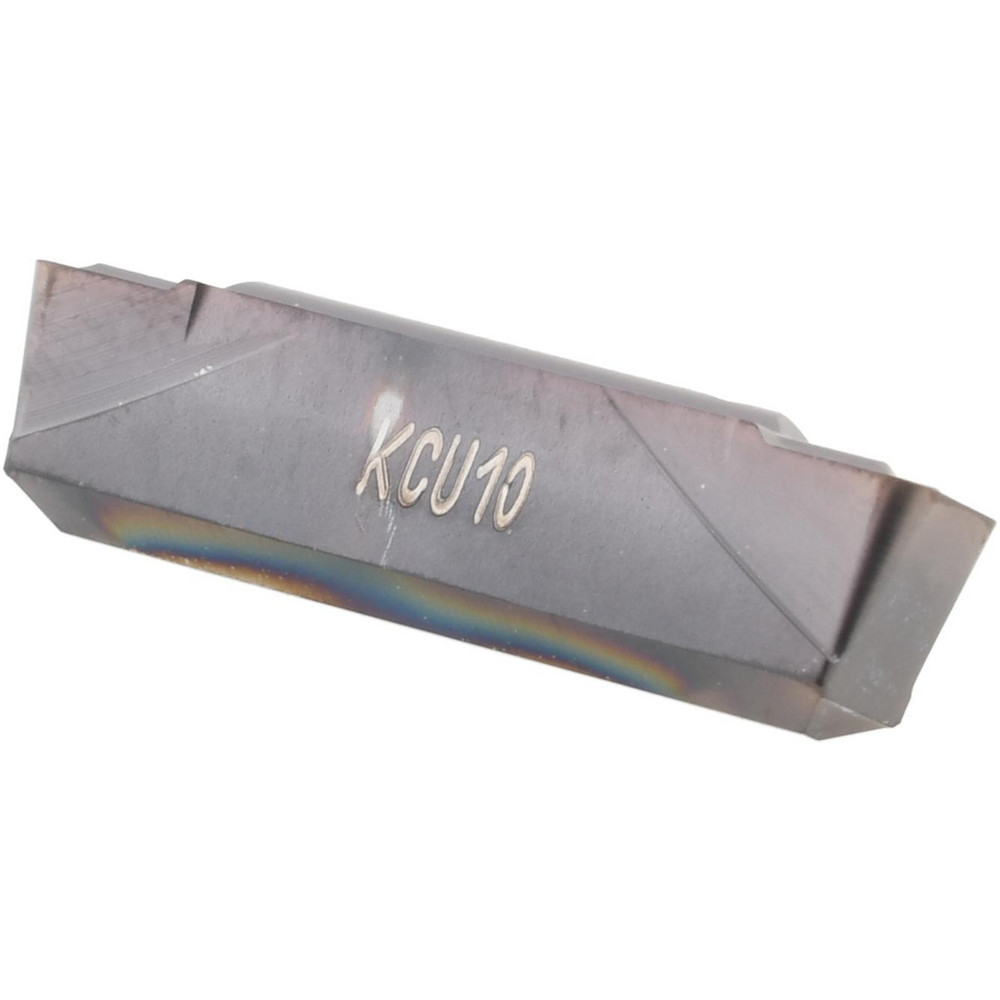

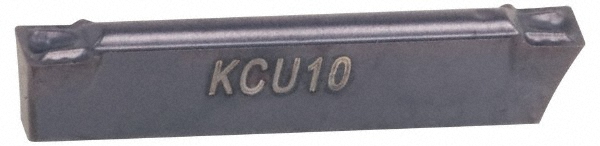

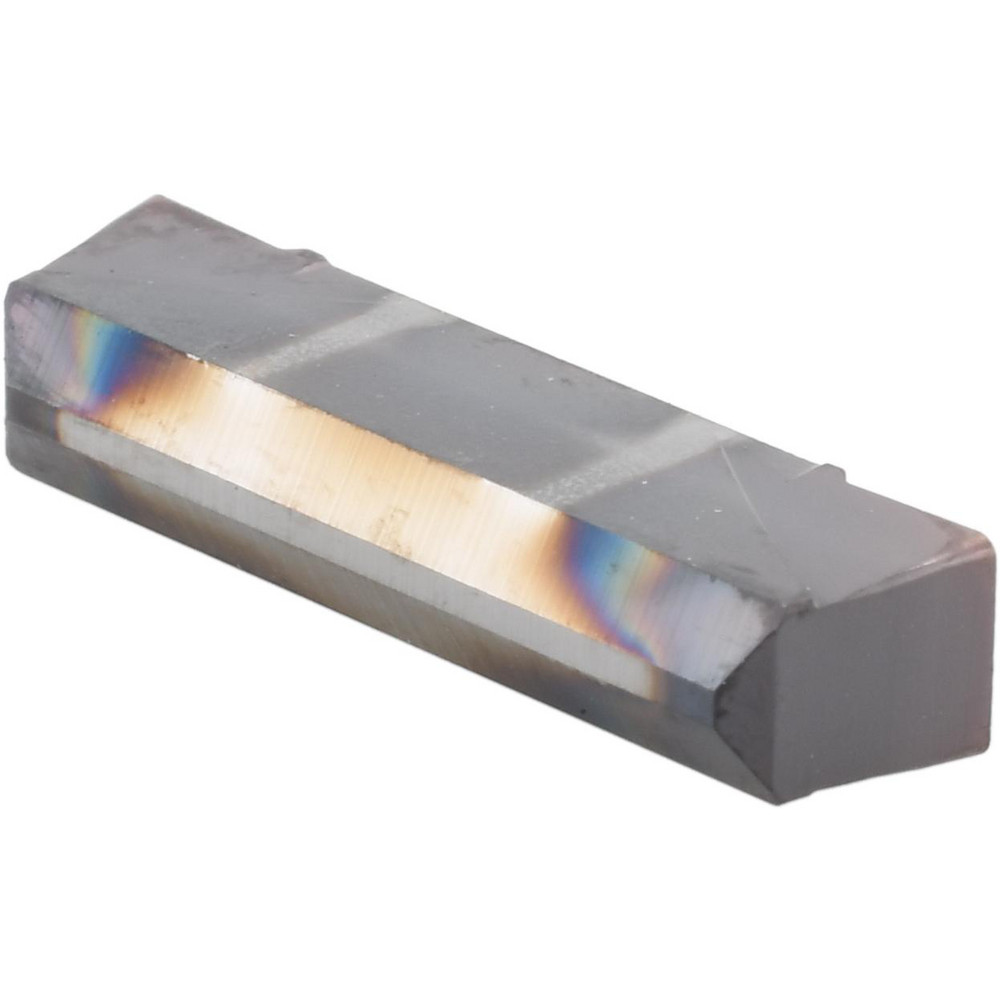

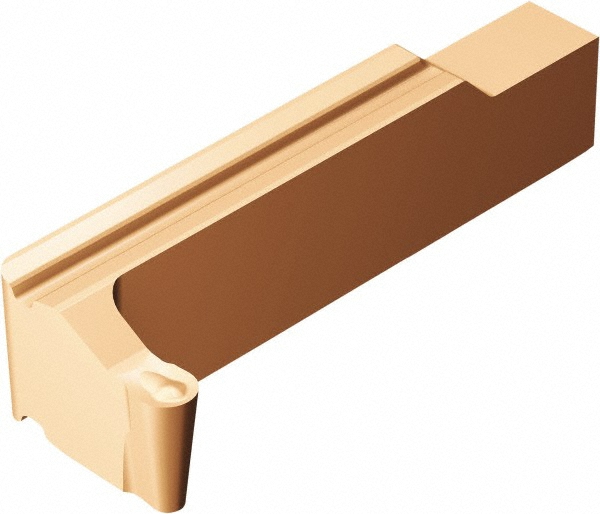

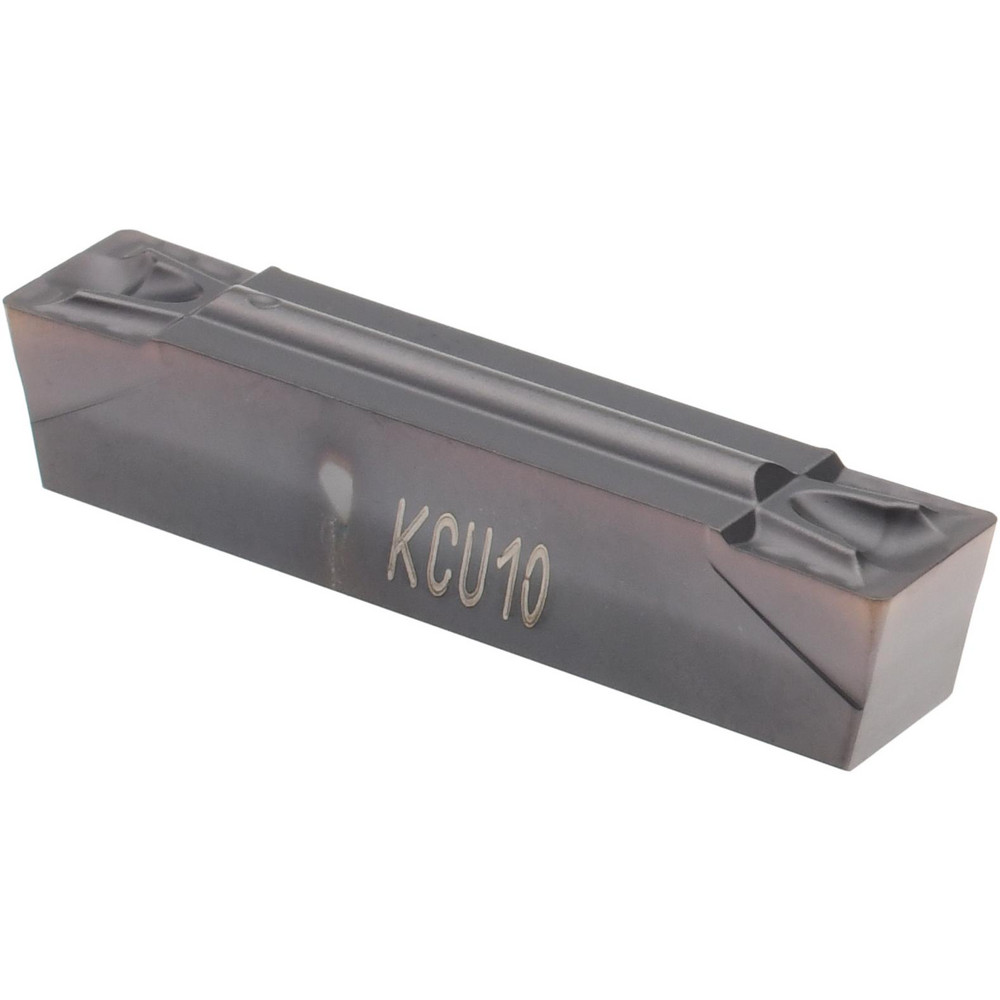

AlTiN Finish, Neutral, 4.00 mm Cutting Width, 3.30 mm Max Depth, Series A4
| Insert Style | A4G |
|---|---|
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1299 |
| Maximum Depth of Cut (mm) | 3.30 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Size | 0400 |
| Material Grade | C3; C4 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Multi-use Tool | No |
| Series | A4 |
| Coating Process | BY; PVD |
| Overall Length (Decimal Inch) | 0.7874 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUP |
| Insert Seat Size | 4 |
| Coating/Finish | AlTiN |
| Country of Origin | Germany |
| MSC Number | MSC# 89538599 |
