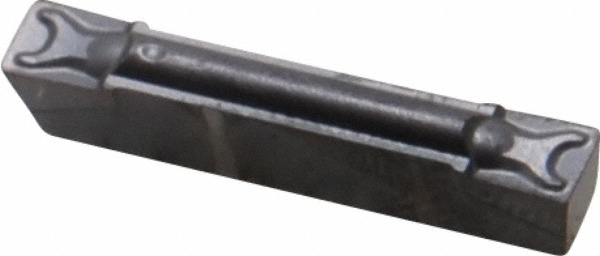

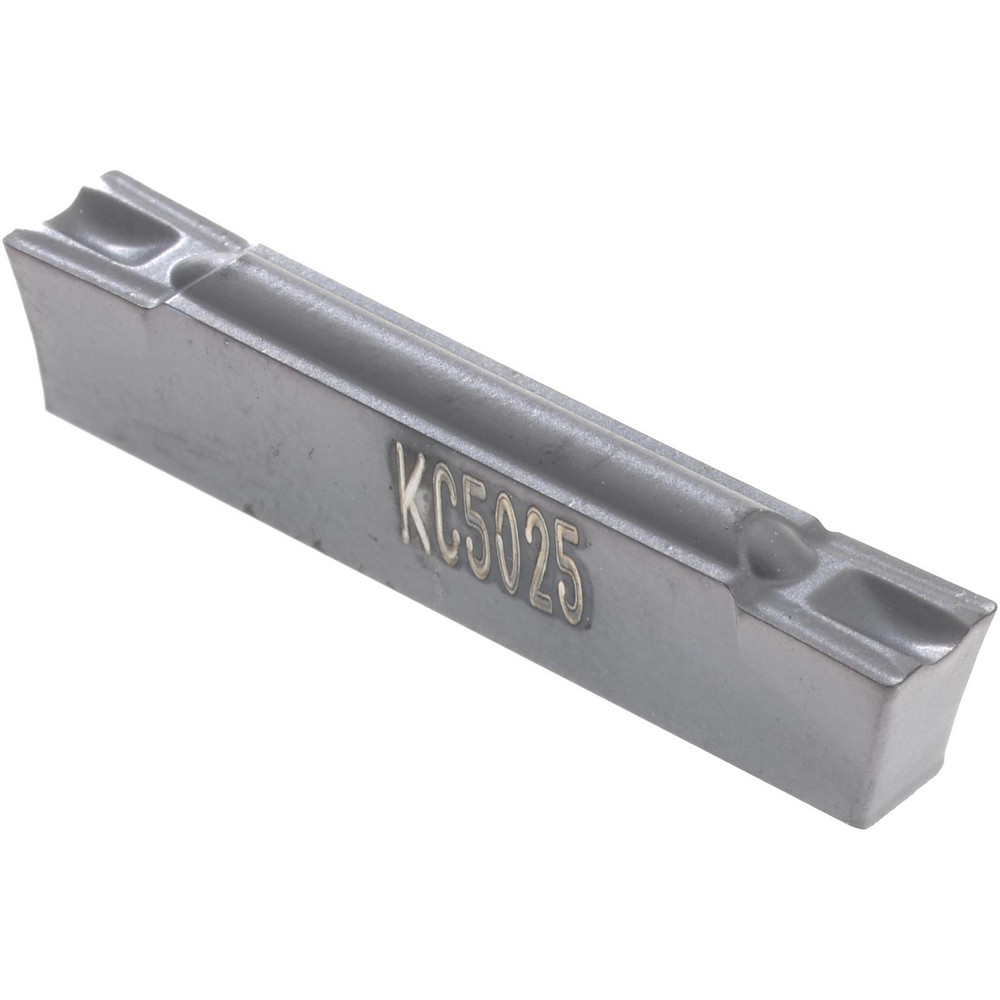

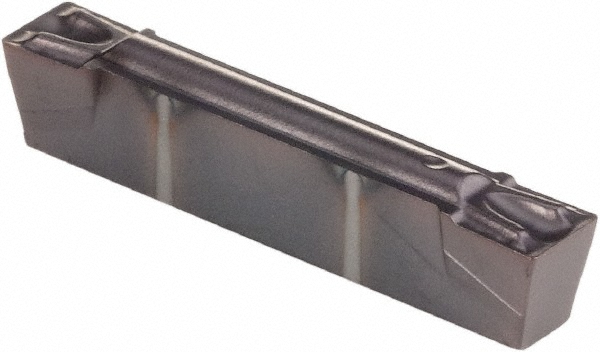

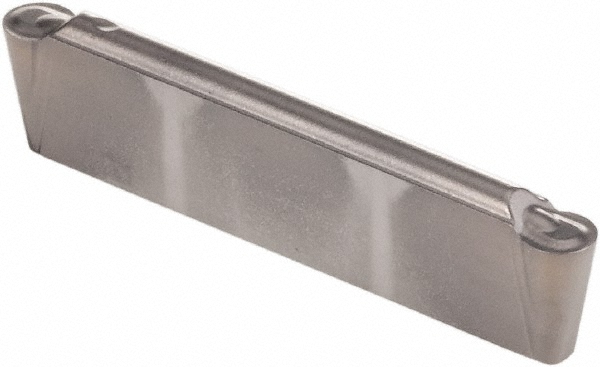

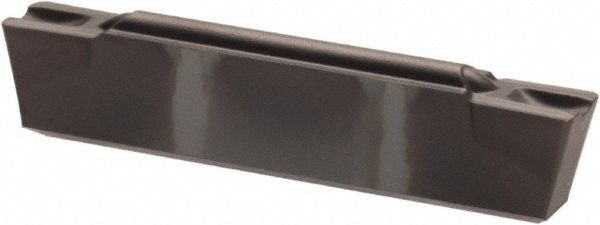

AlTiN Finish, Neutral, 3.18 mm Cutting Width, 2.92 mm Max Depth, Series A4
| Insert Style | G |
|---|---|

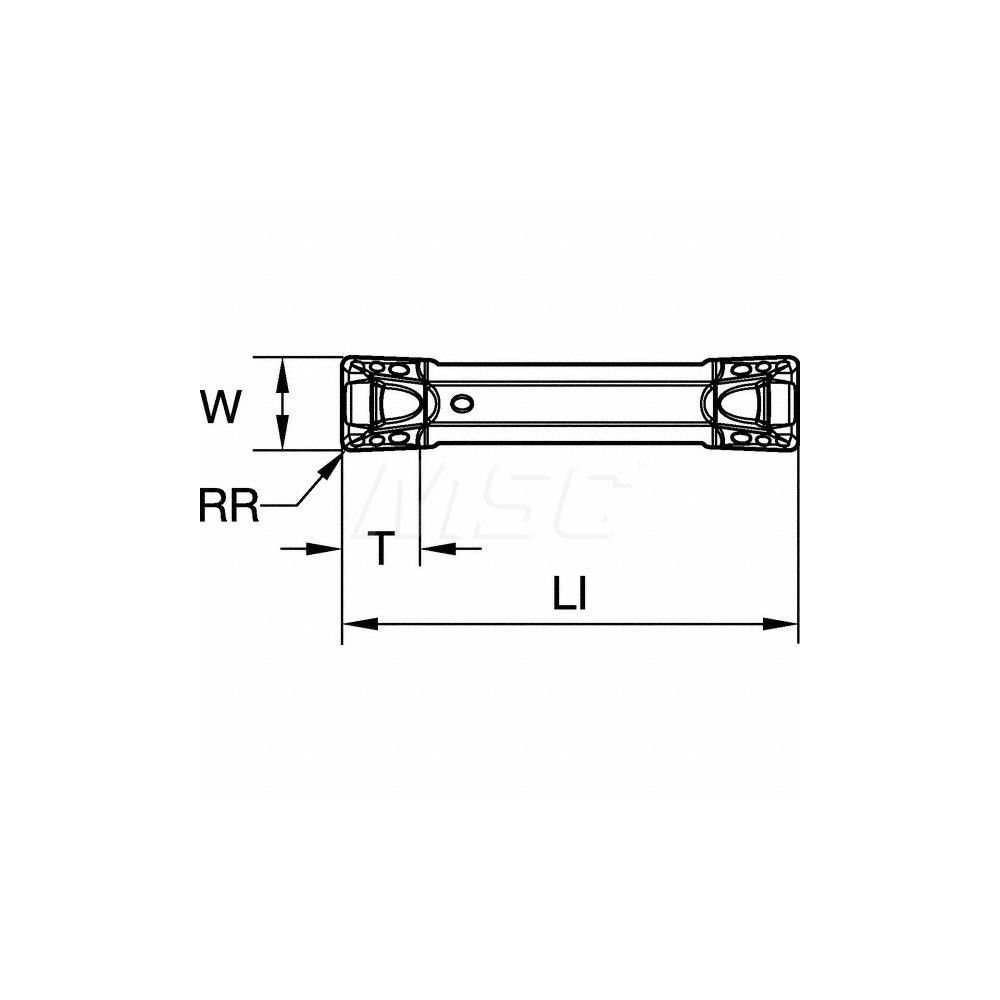

| Cutting Width (Decimal Inch) | 0.1250 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1150 |
| Maximum Depth of Cut (mm) | 2.92 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU25 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Size | 125 |
| Material Grade | C6; C2 |
| Cutting Height (mm) | 4.06 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.1600 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | A4 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7874 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUP |
| Included Angle Degree | 90 |
| Coating/Finish | AlTiN |
| Country of Origin | Canada |
| MSC Number | MSC# 70627765 |
