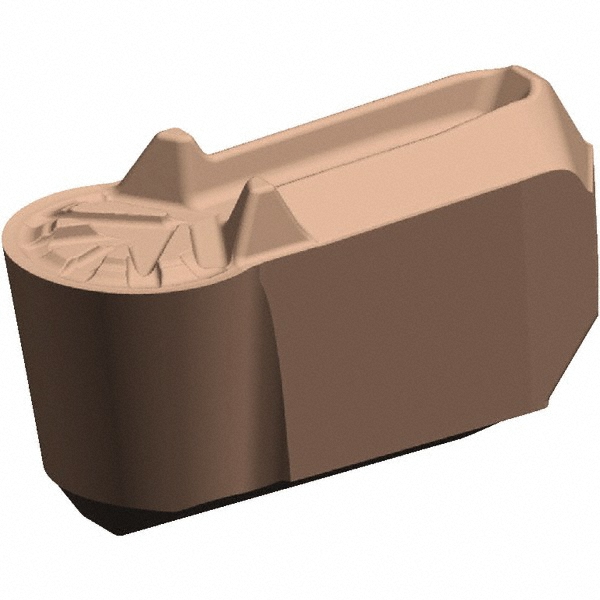

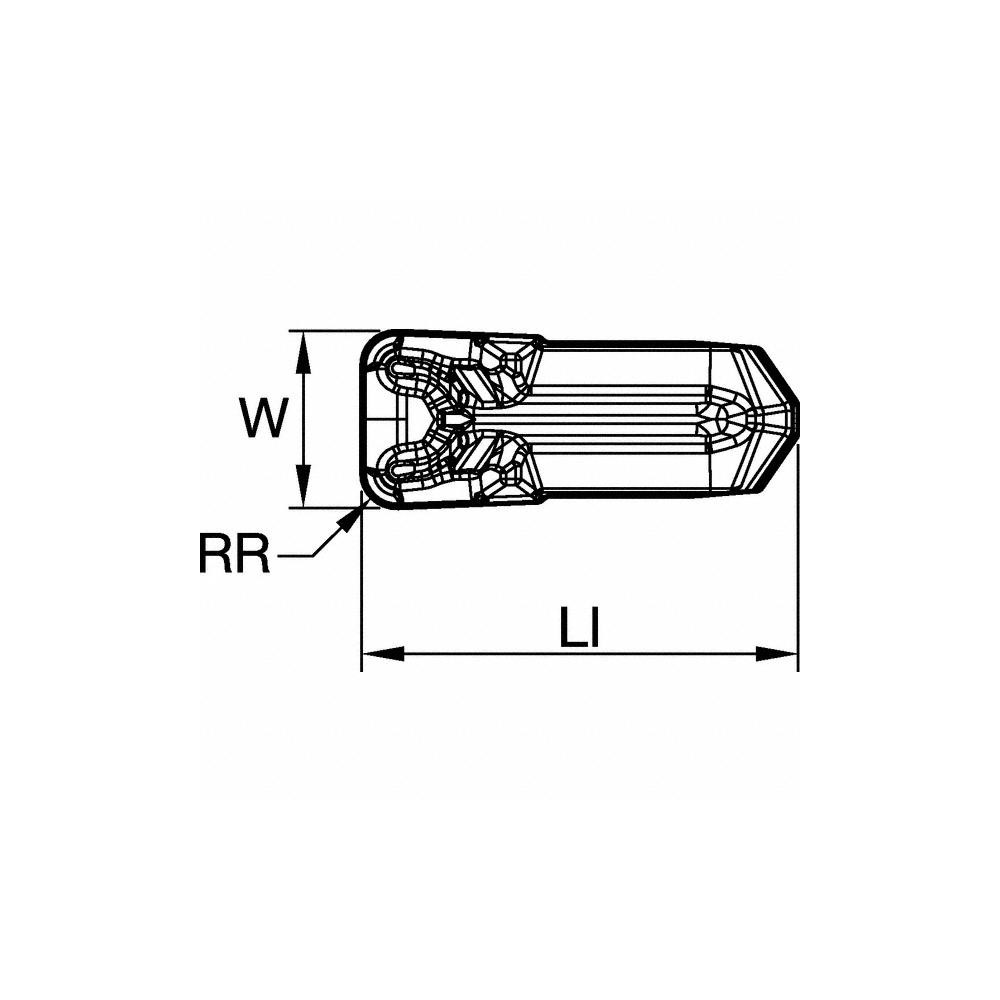

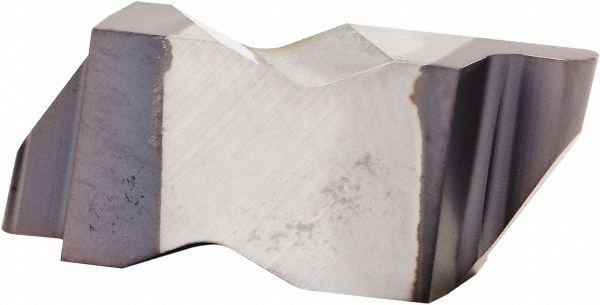

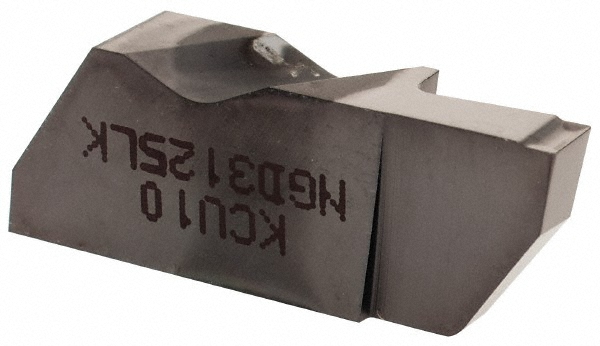

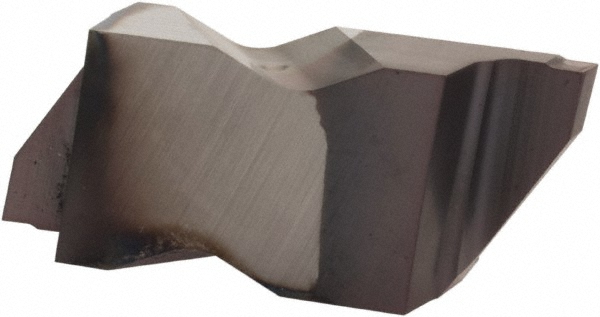

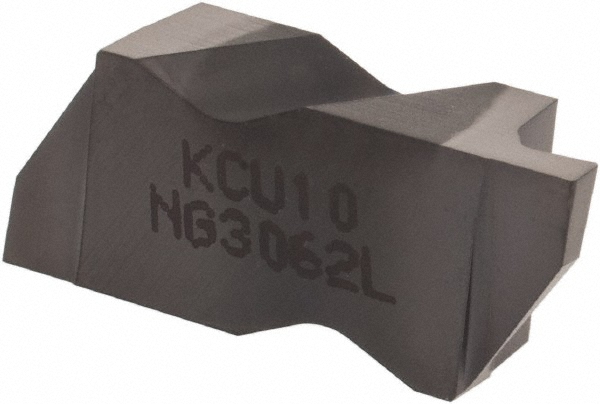

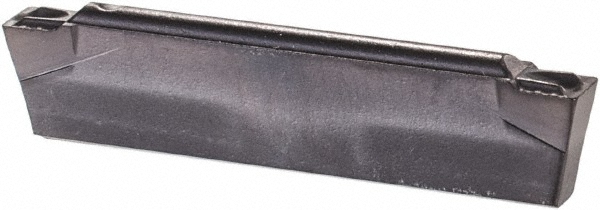

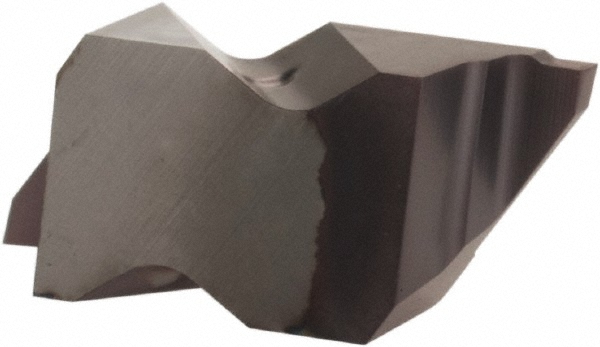

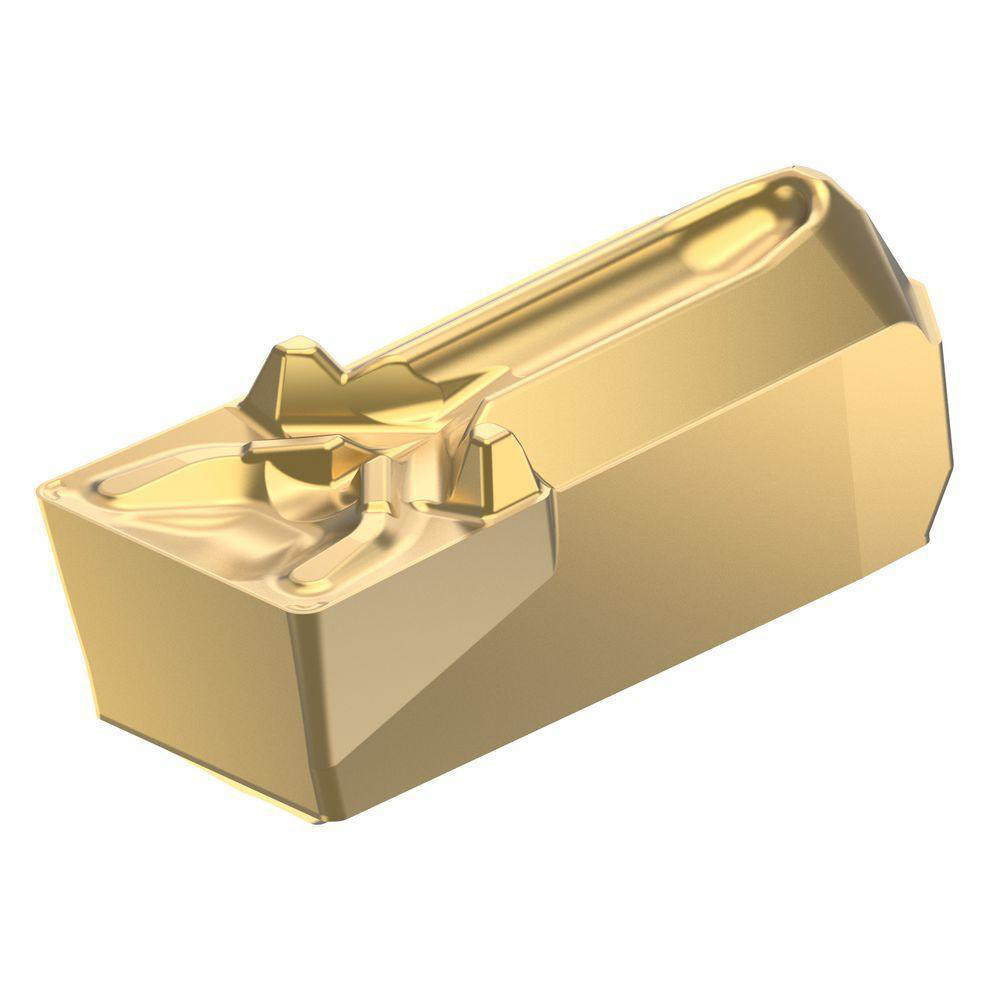

AlTiN Finish, Neutral, 0.1250" Cutting Width, 0.0910" Max Depth, Series Beyond Evolution
| Insert Style | EG |
|---|---|
| Cutting Width (Decimal Inch) | 0.1250 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0910 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Measurement Type | Decimal Inch |
| Insert Size | 3 |
| Cutting Width (Inch) | 1/8 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.1580 |
| Series | Beyond Evolution |
| Coating Process | PVD |
| Rake Angle | 2.25 |
| Insert Thickness (Decimal Inch) | 0.1580 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUN |
| Coating/Finish | AlTiN |
| Country of Origin | Canada |
| MSC Number | MSC# 31680796 |
