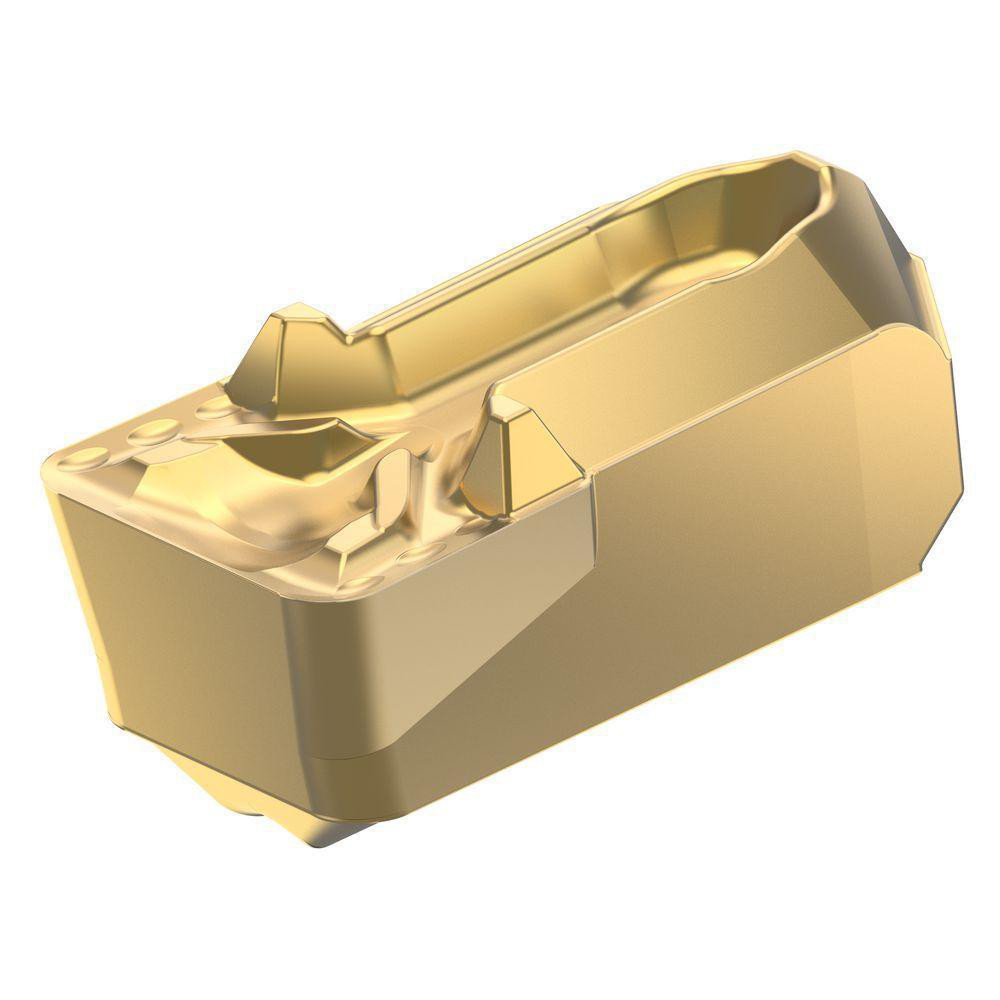

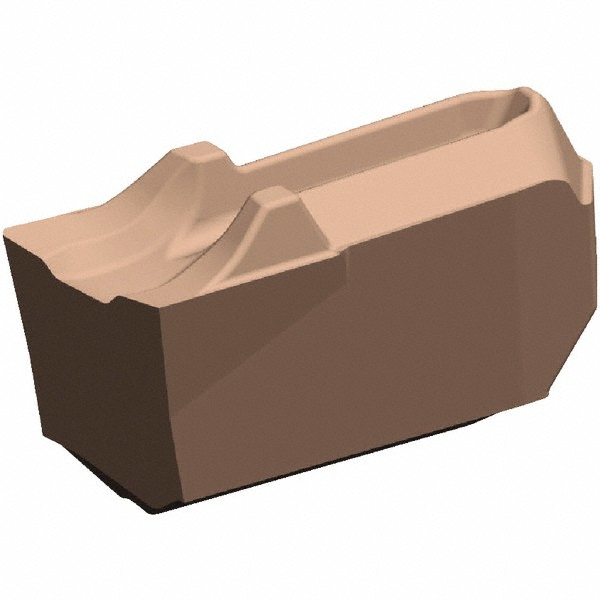

AlTiN Finish, Neutral, 4.88 mm Cutting Width, 2.75 mm Max Depth, Series Beyond Evolution
| Insert Style | EG-U |
|---|---|
| Cutting Width (Decimal Inch) | 0.1920 |
| Cutting Width (mm) | 4.88 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1080 |
| Maximum Depth of Cut (mm) | 2.75 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Size | 4 |
| Cutting Height (mm) | 4.43 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.1740 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Beyond Evolution |
| Coating Process | PVD |
| Rake Angle | 27 |
| Overall Length (Decimal Inch) | 0.401 |
| Insert Thickness (Decimal Inch) | 0.1740 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUP |
| Insert Seat Size | 4 |
| Overall Width (mm) | 4.88 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.192 |
| Coating/Finish | AlTiN |
| Country of Origin | Germany |
| MSC Number | MSC# 54446547 |
