AlTiN Finish, Neutral, 3.18 mm Cutting Width, 1.50 mm Max Depth, Series Beyond Evolution
| Insert Style | ER |
|---|---|
| Insert Size Code | 3 |

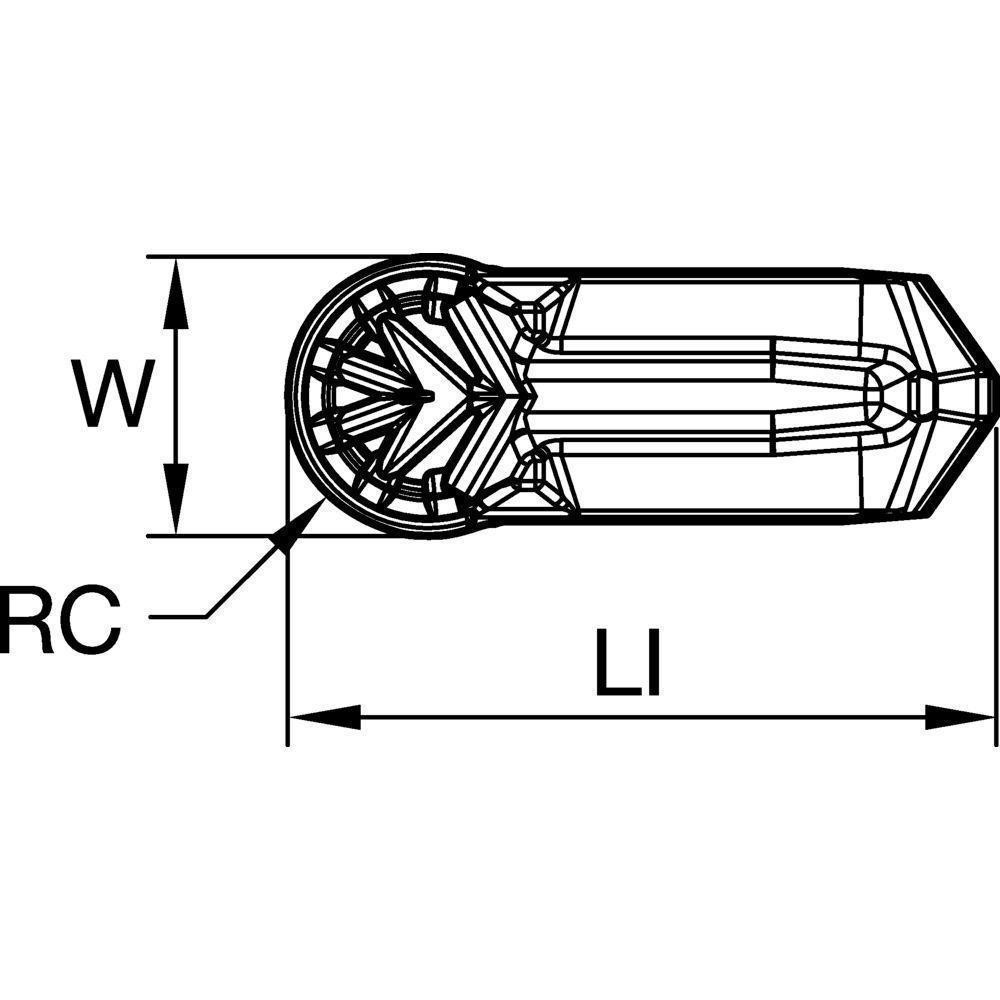

| Cutting Width (Decimal Inch) | 0.1250 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10B |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0620 |
| Corner Radius (mm) | 1.59 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Holding Method | Clamp |
| Insert Size | 3 |
| Lead Angle | 0.000 |
| Multi-use Tool | Yes |
| Series | Beyond Evolution |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3760 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUP |
| Insert Seat Size | 3 |
| Coating Classification | PVD |
| Coating/Finish | AlTiN |
| Single Or Double End | Double End |
| Insert Thickness | 3.18 |
| MSC Number | MSC# 74097403 |
