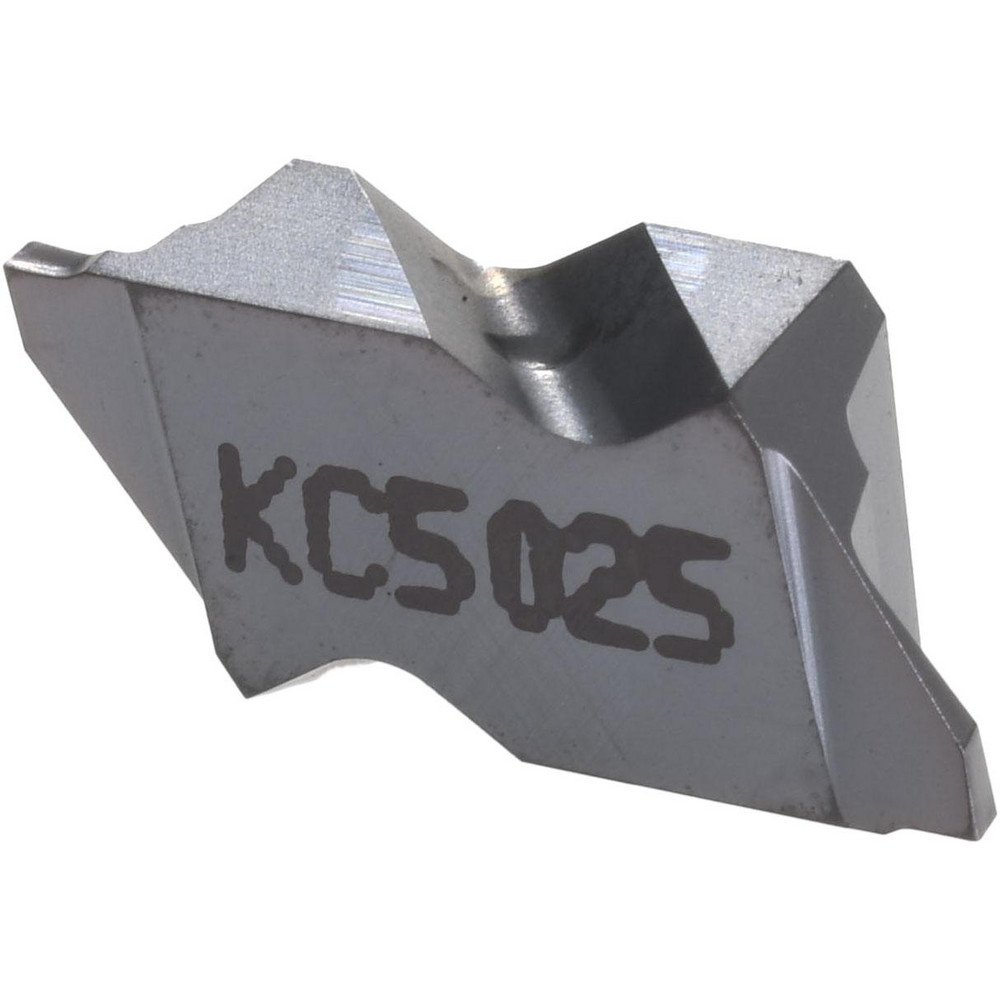

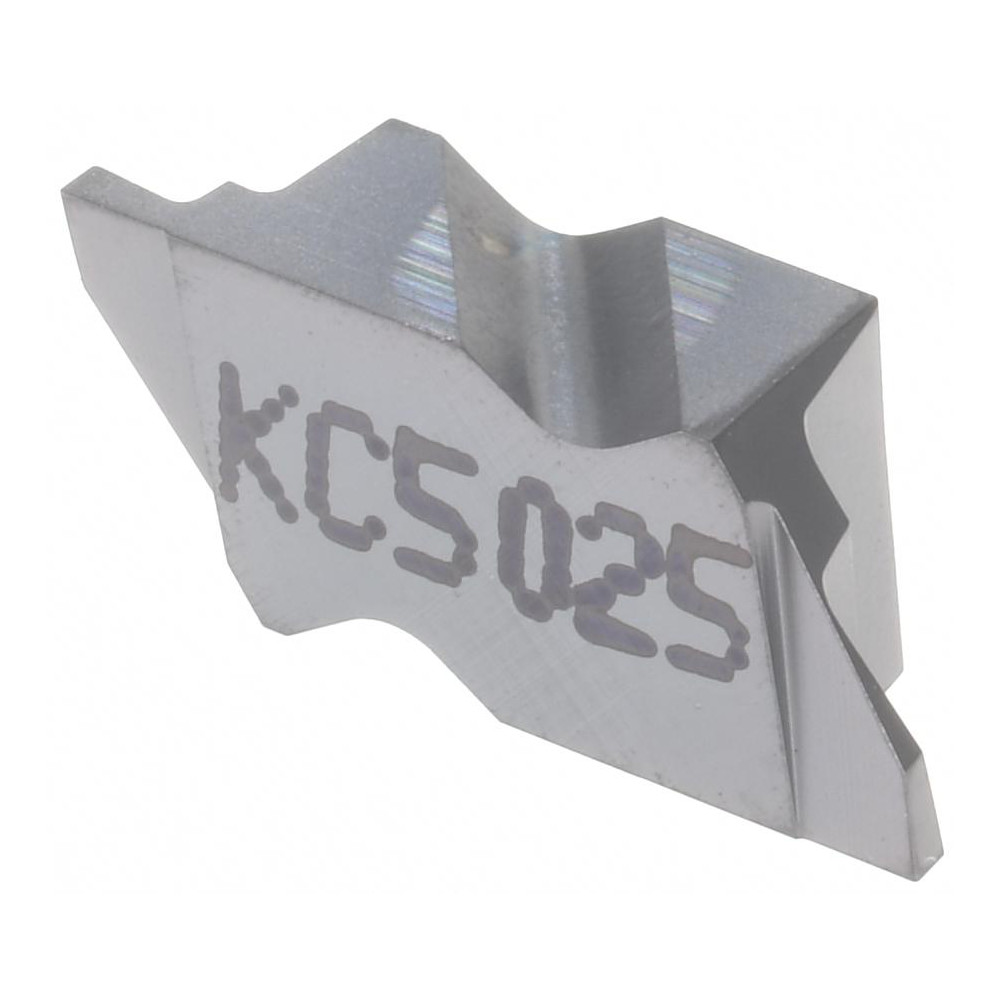

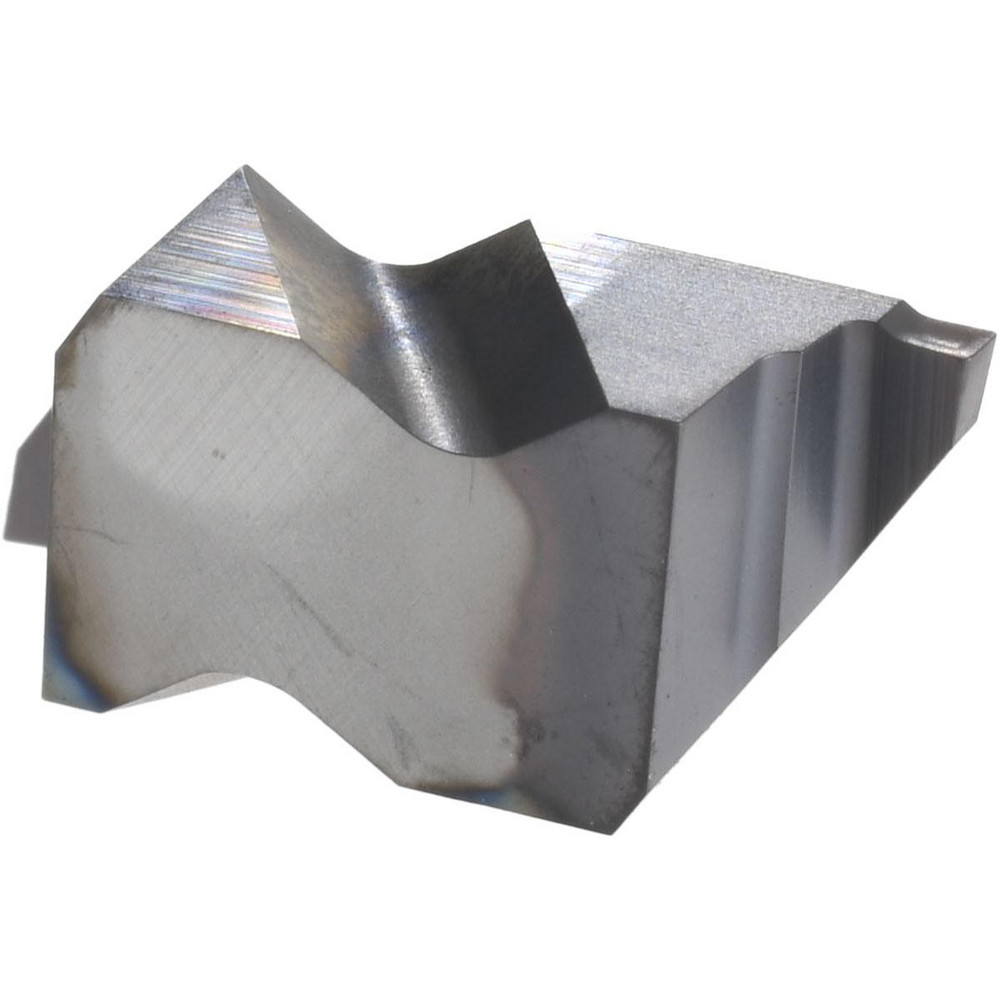

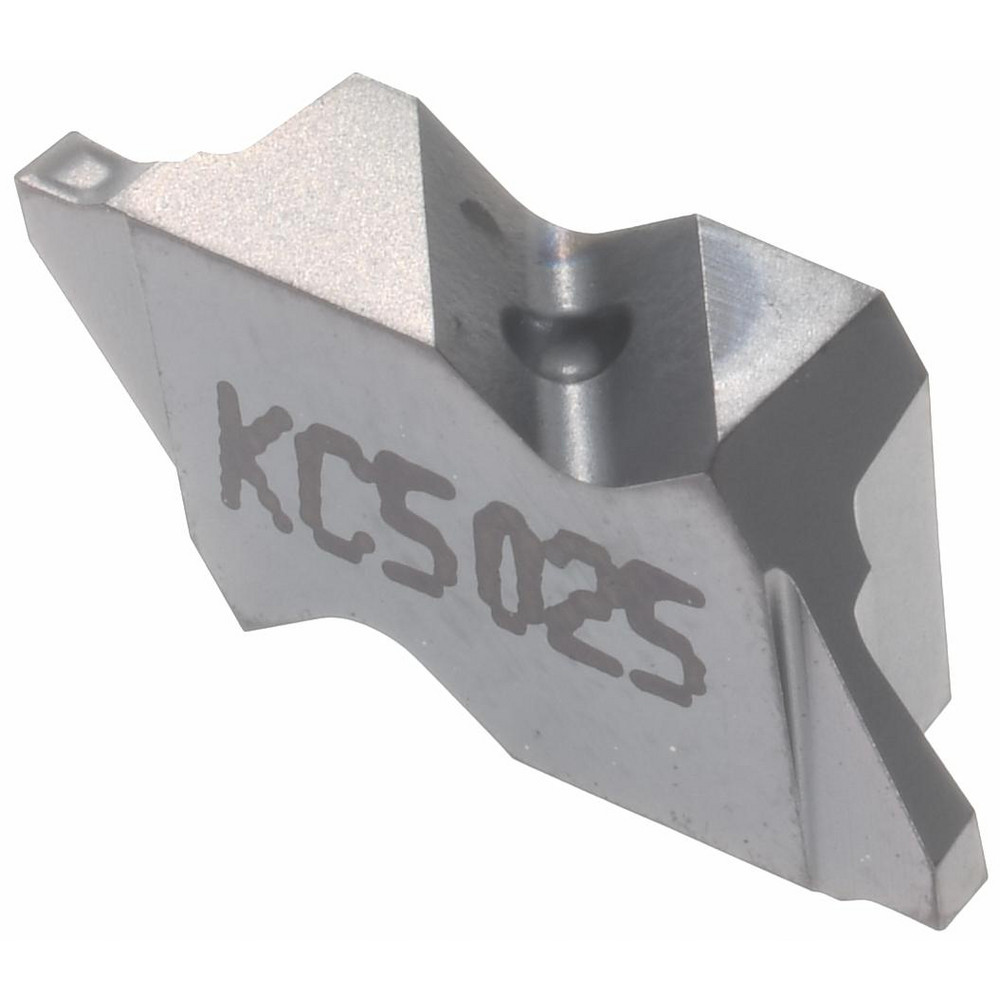

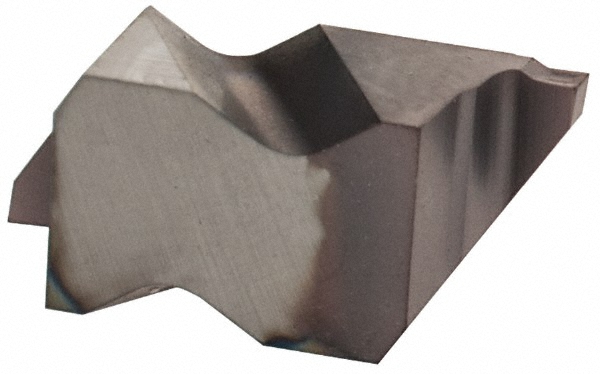

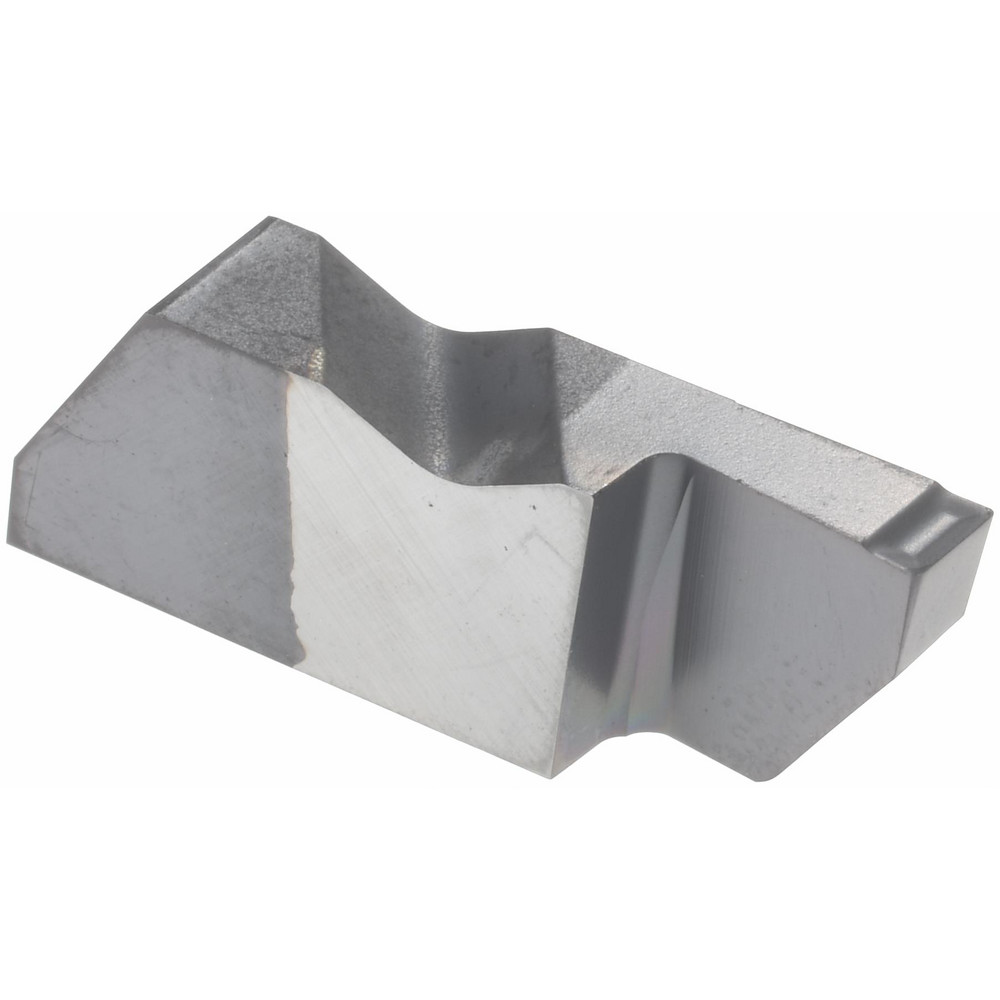

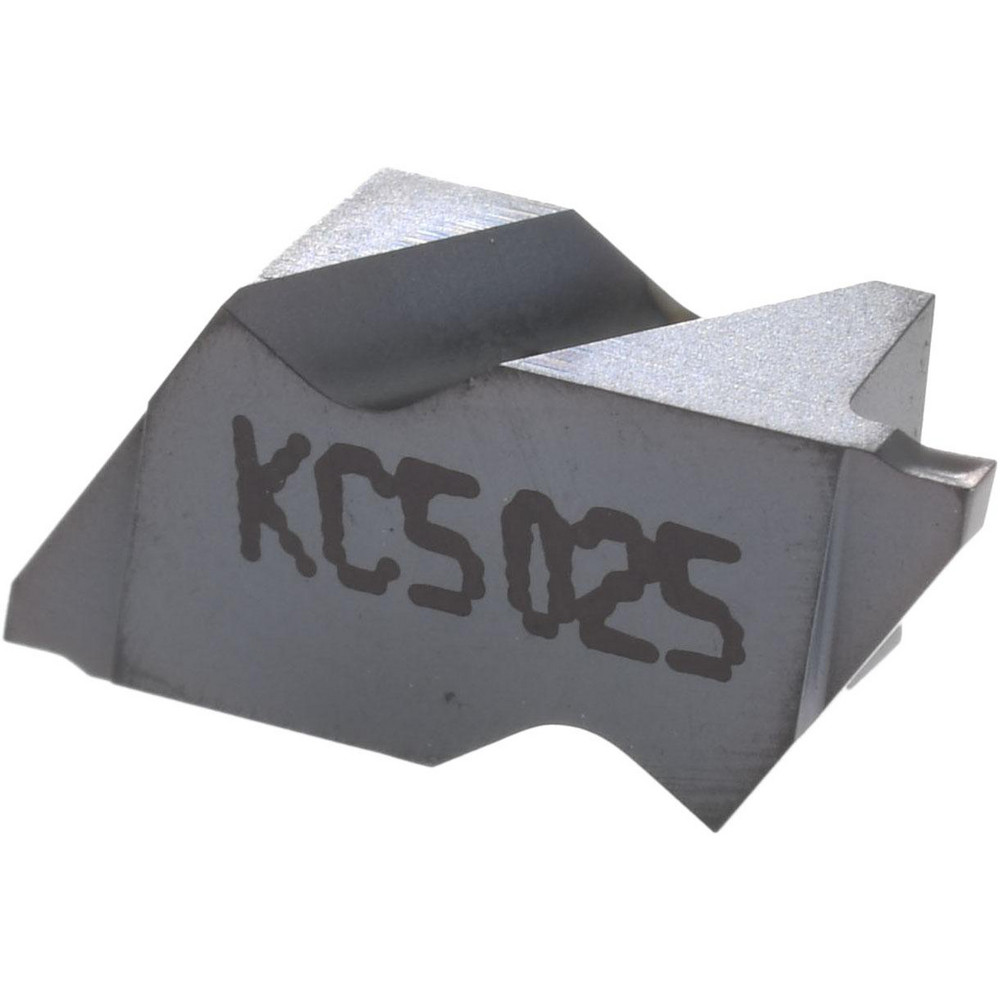

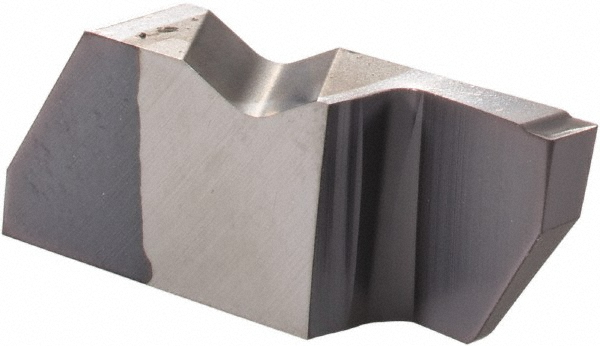

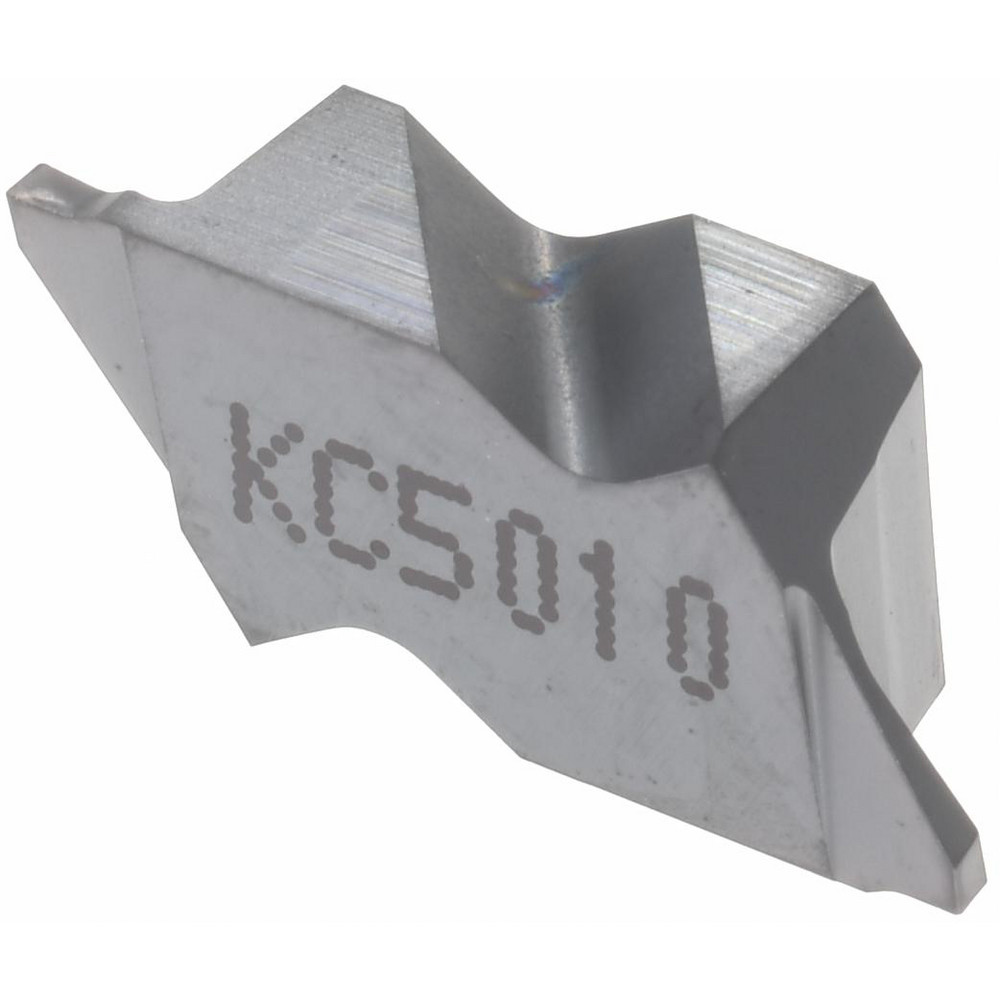

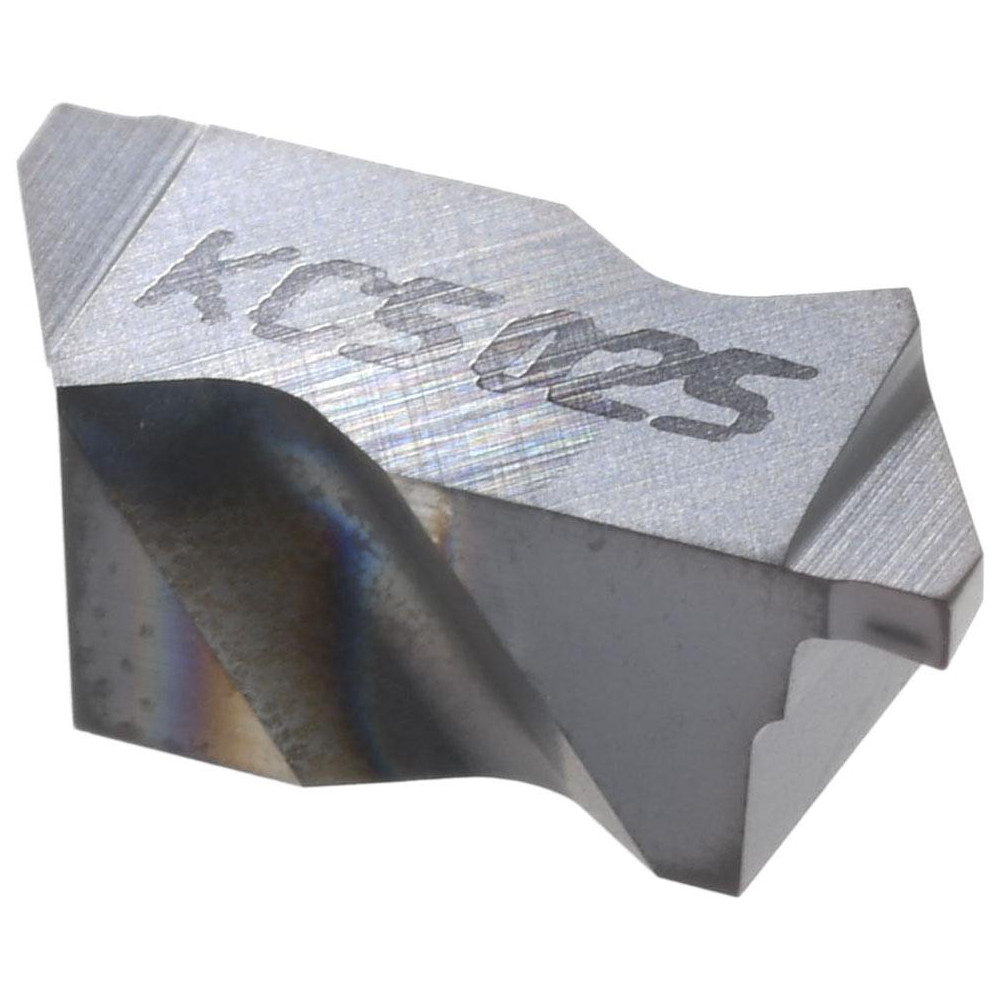

TiAlN Finish, Right Hand, 0.79 mm Cutting Width, 1.27 mm Max Depth, Series Top Notch
| Insert Style | NG |
|---|---|
| Cutting Width (Decimal Inch) | 0.0311 |
| Cutting Width (mm) | 0.79 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Maximum Depth of Cut (mm) | 1.27 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5025 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0035 |
| Corner Radius (mm) | 0.09 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Size | 2031 |
| Material Grade | C6; C2 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Rake Angle | 10 |
| UNSPSC Code | 23242105 |
| Chip Breaker | K |
| MSC/Manufacturer Number | NG2031R/LK |
| Insert Height (Decimal Inch) | 0.2190 |
| Included Angle Degree | 55 |
| Coating/Finish | TiAlN |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 08446171 |
