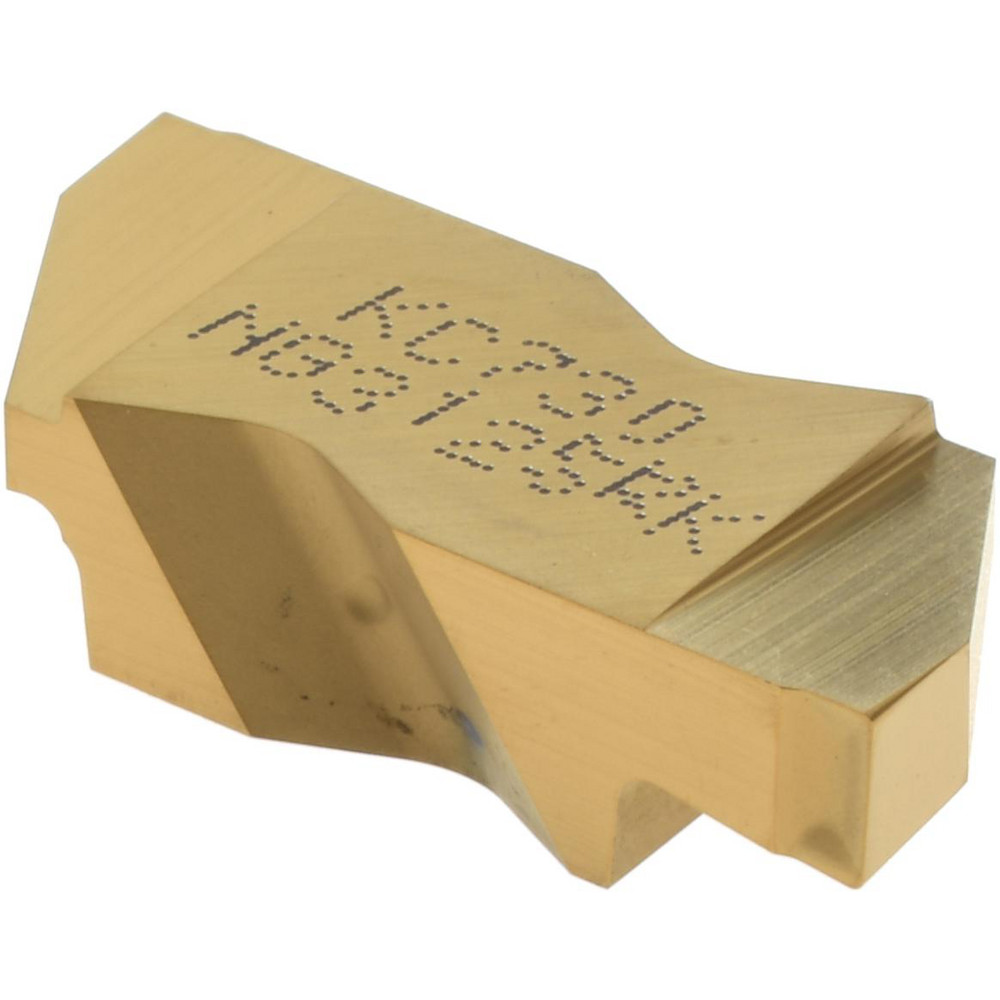

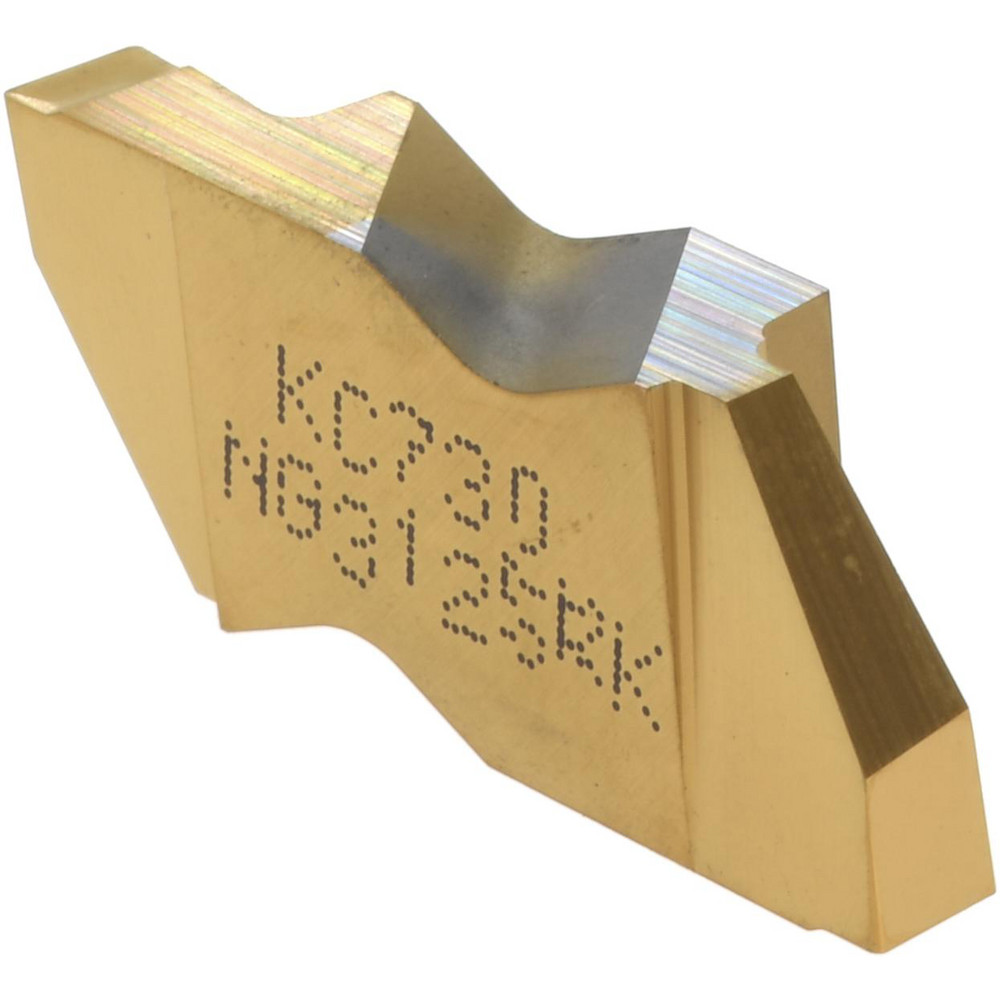

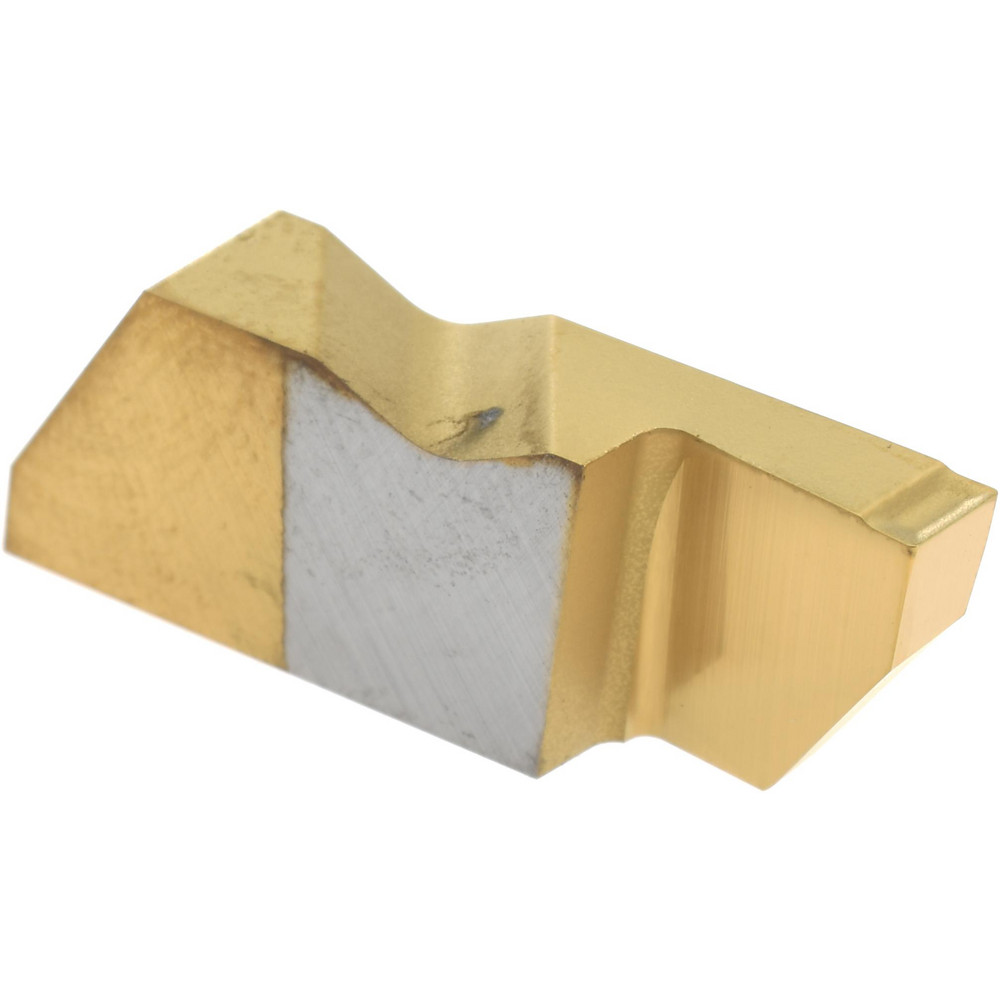

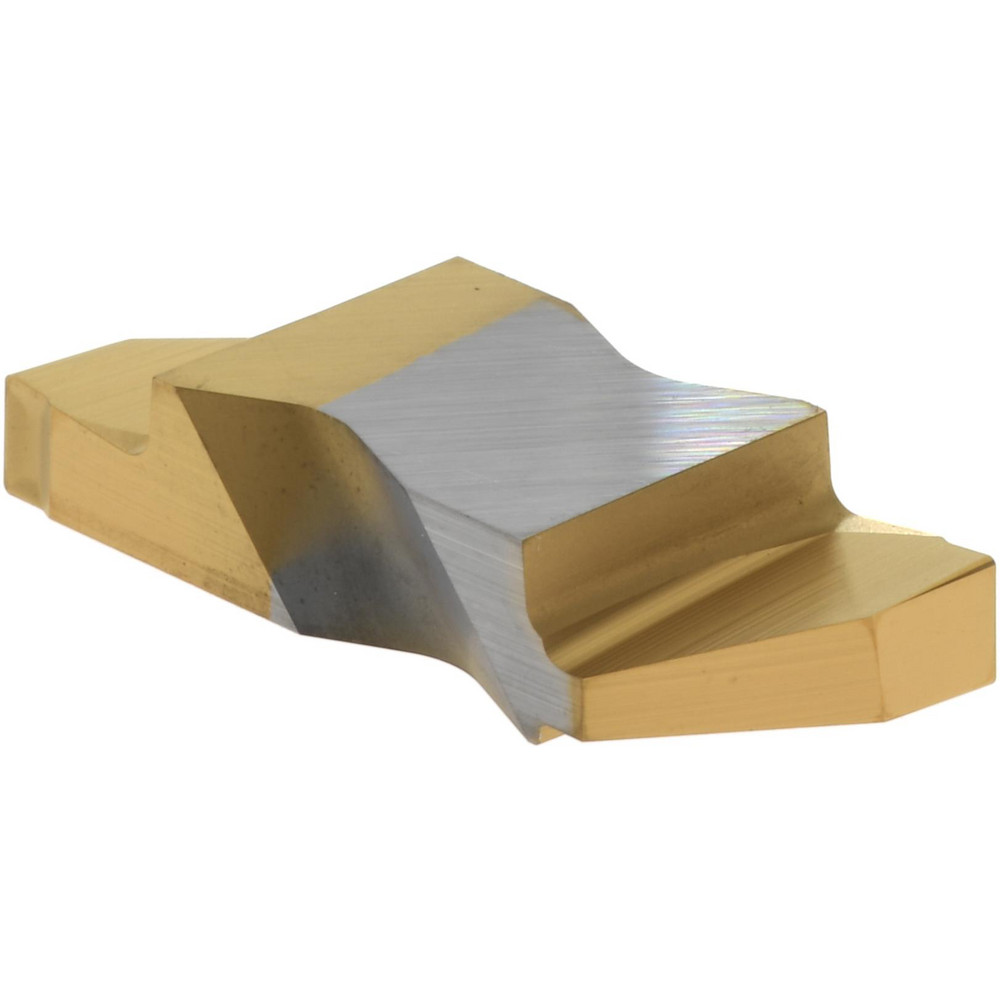

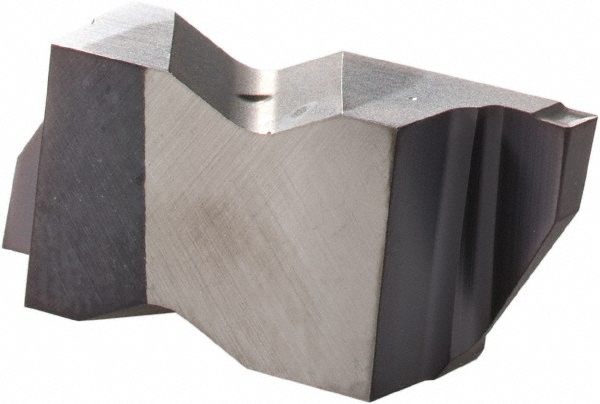

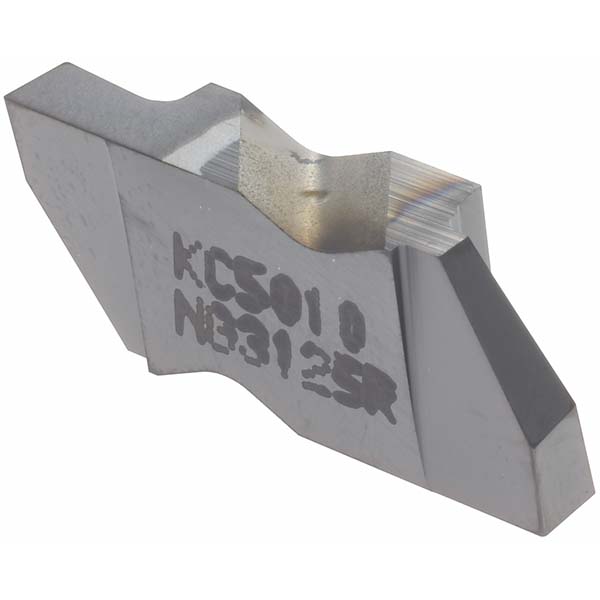

TiN Finish, Right Hand, 3.18 mm Cutting Width, 3.81 mm Max Depth, Series Top Notch
| Insert Style | NG |
|---|---|
| Cutting Width (Decimal Inch) | 0.1252 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 3.81 |
| Insert Material | Carbide |
| Manufacturer Grade | KC730 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Size | 3125 |
| Material Grade | C3; C4; C2 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Rake Angle | 10 |
| UNSPSC Code | 23242105 |
| Chip Breaker | K |
| MSC/Manufacturer Number | NG3125R/LK |
| Insert Height (Decimal Inch) | 0.3440 |
| Included Angle Degree | 55 |
| Coating/Finish | TiN |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 08445397 |
