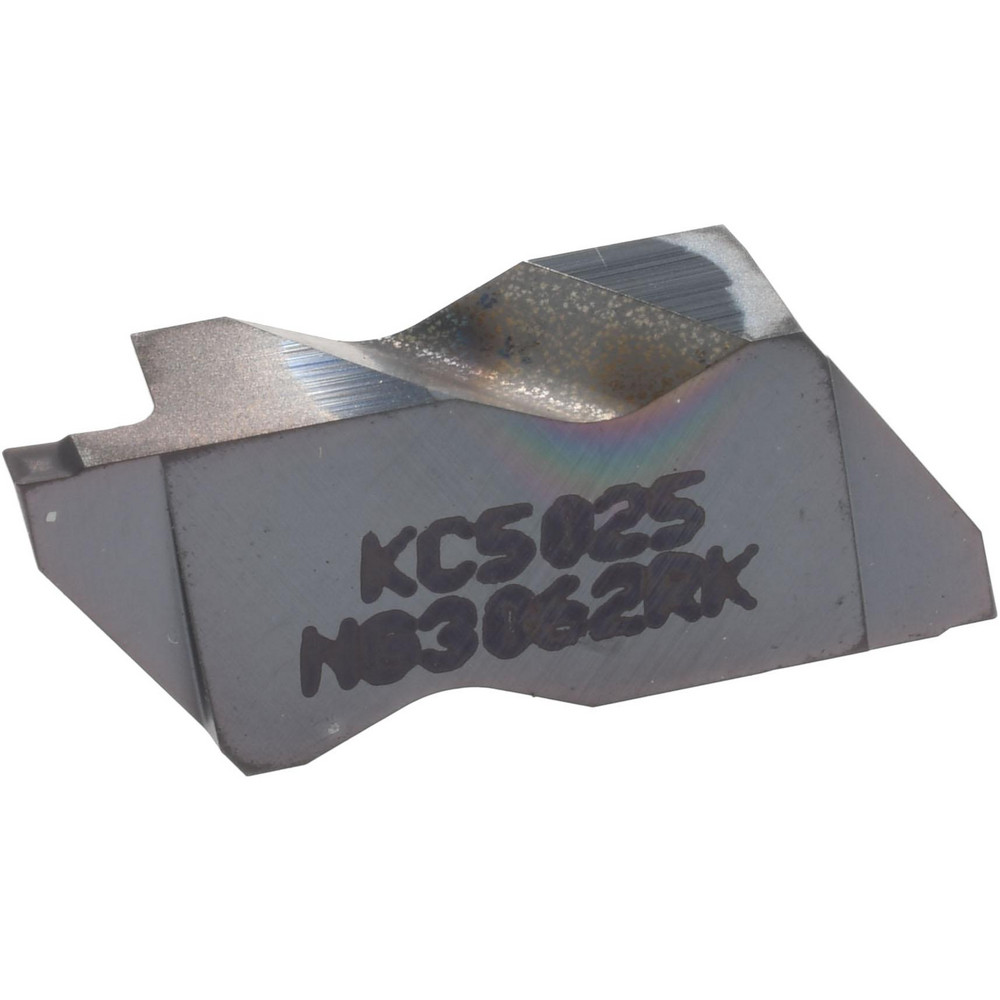

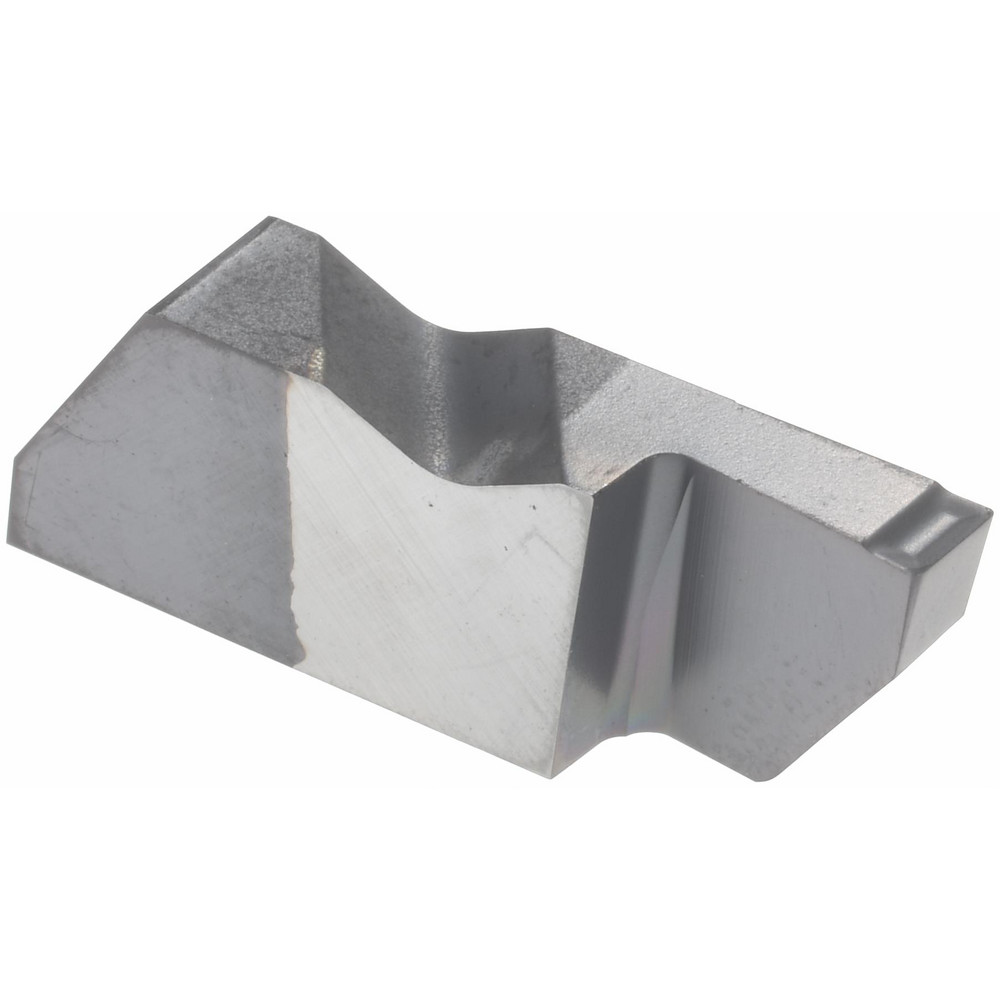

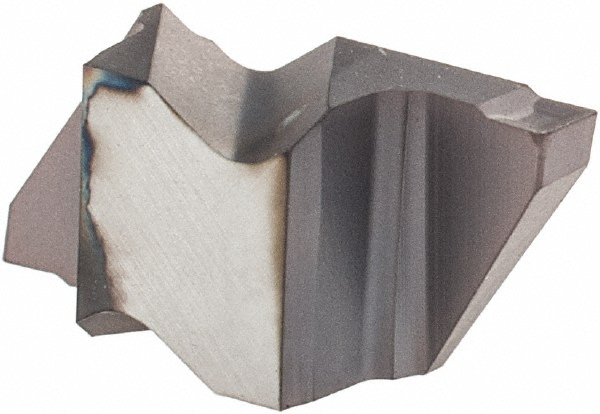

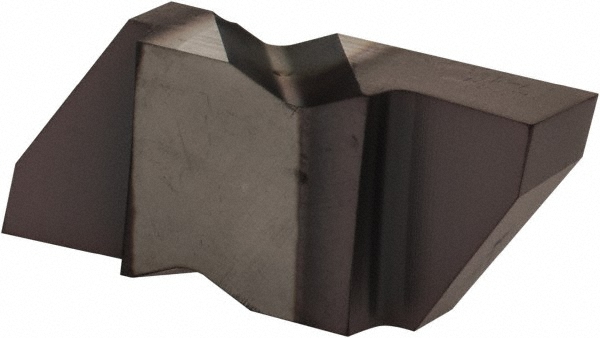

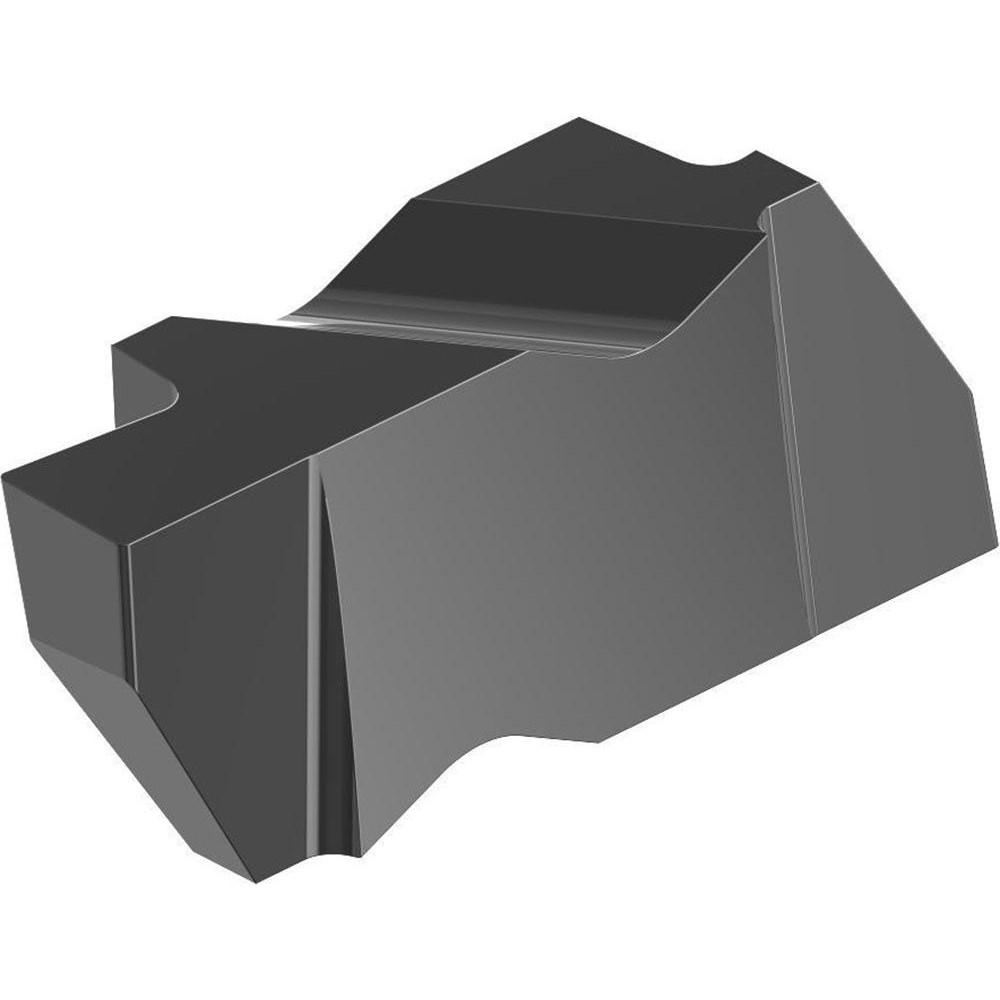

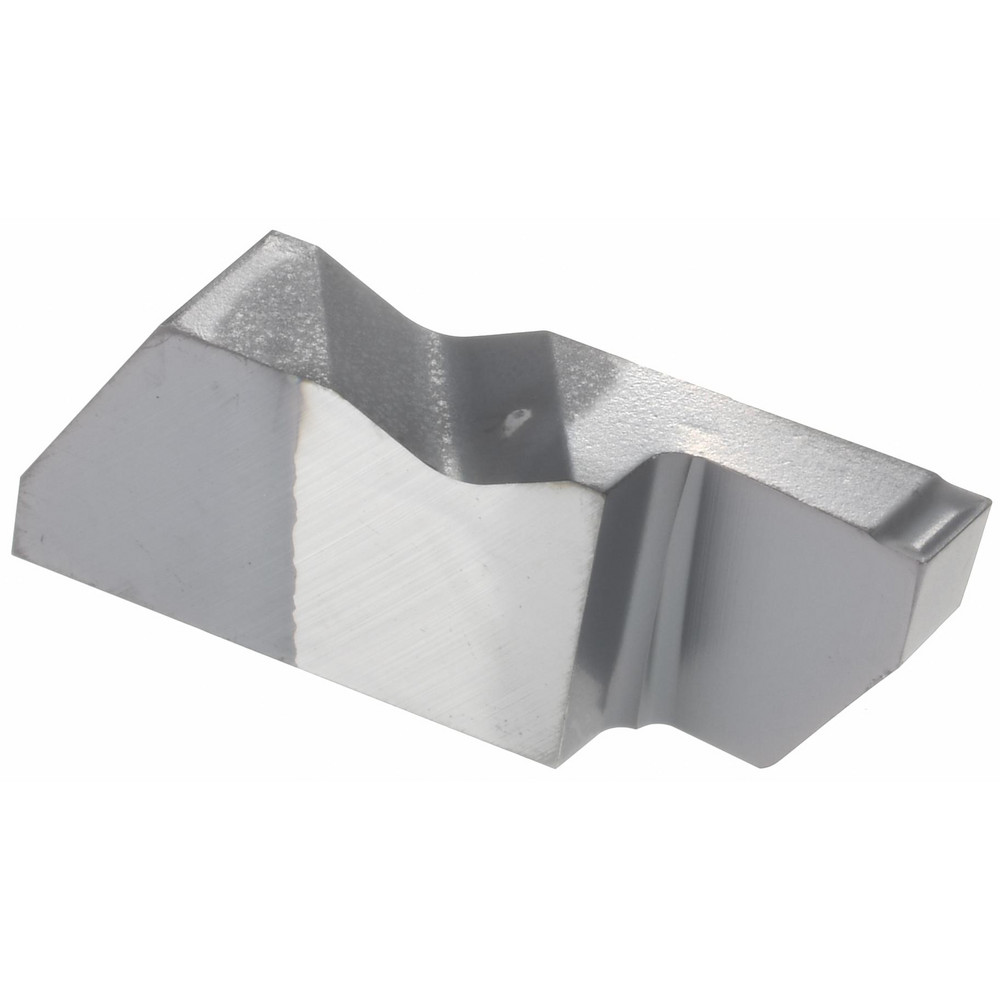

AlTiN Finish, Right Hand, 5.41 mm Cutting Width, 6.35 mm Max Depth, Series Top Notch
| Insert Style | NG |
|---|---|
| Cutting Width (Decimal Inch) | 0.2130 |
| Cutting Width (mm) | 5.41 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU25 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Measurement Type | Metric |
| Insert Holding Method | Clamp |
| Insert Size | 4213 |
| Material Grade | C6; C2 |
| Cutting Height (mm) | 11.51 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Cutting Height (Decimal Inch) | 0.4530 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| UNSPSC Code | 23242105 |
| Insert Seat Size | 4 |
| MSC/Manufacturer Number | NG4213R |
| Overall Width (mm) | 6.50 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.256 |
| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 42192864 |
