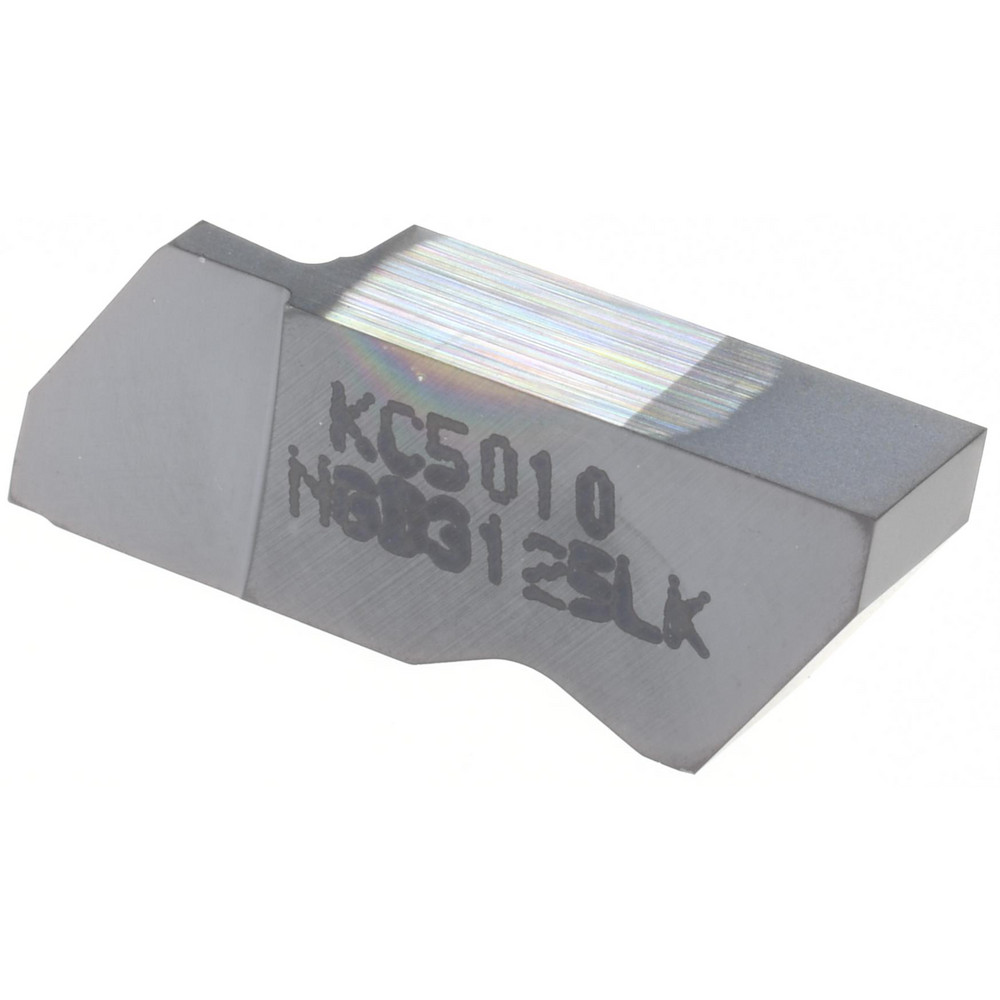

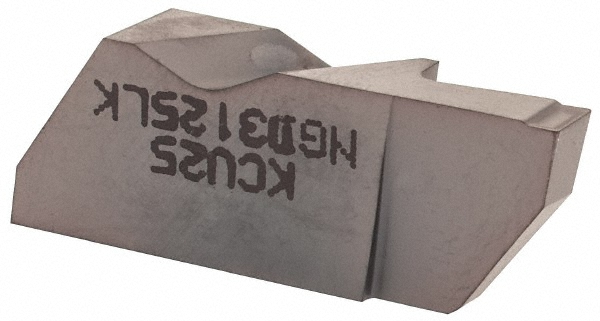

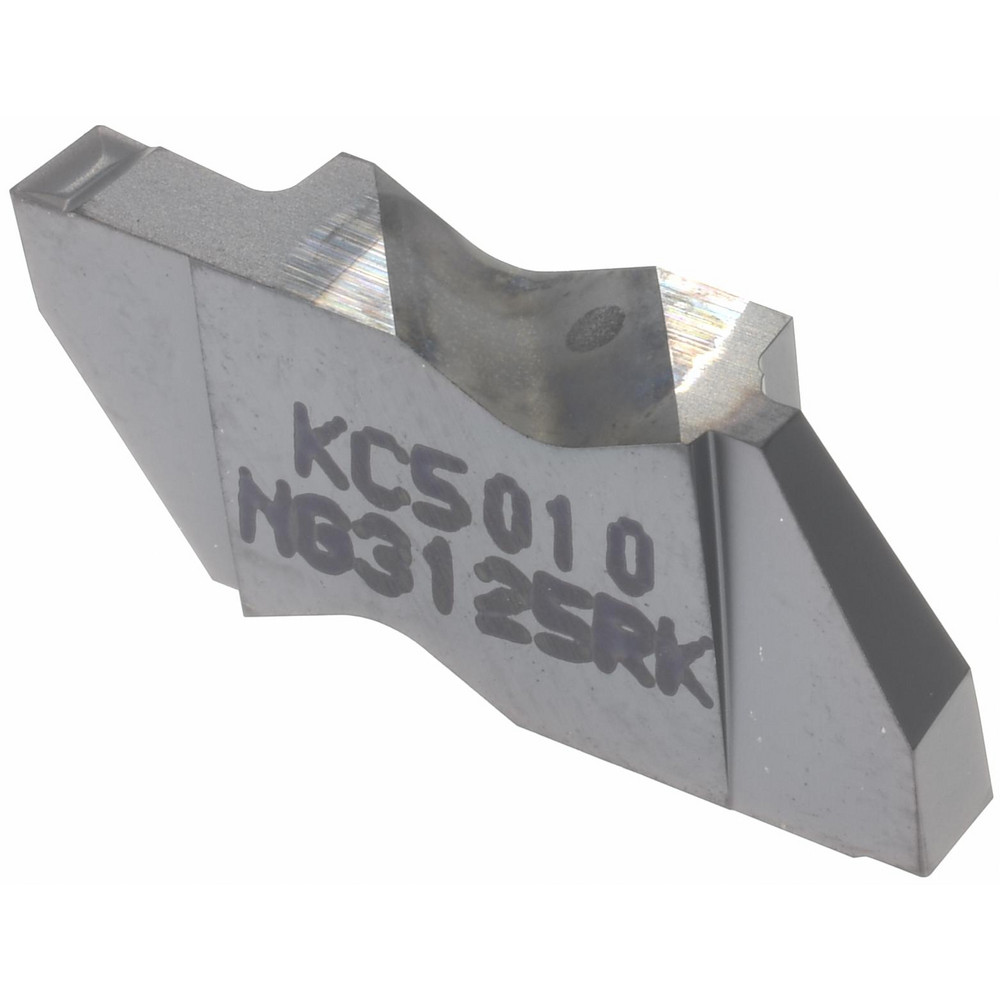

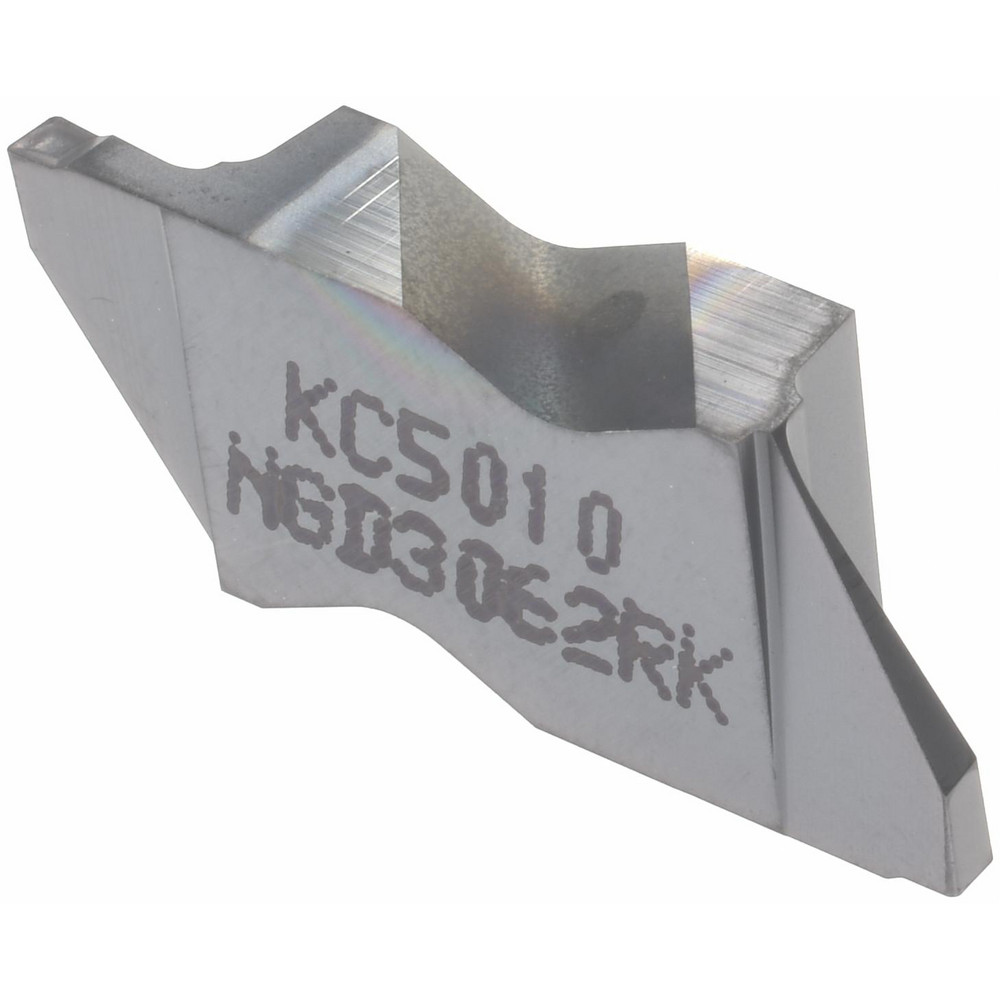

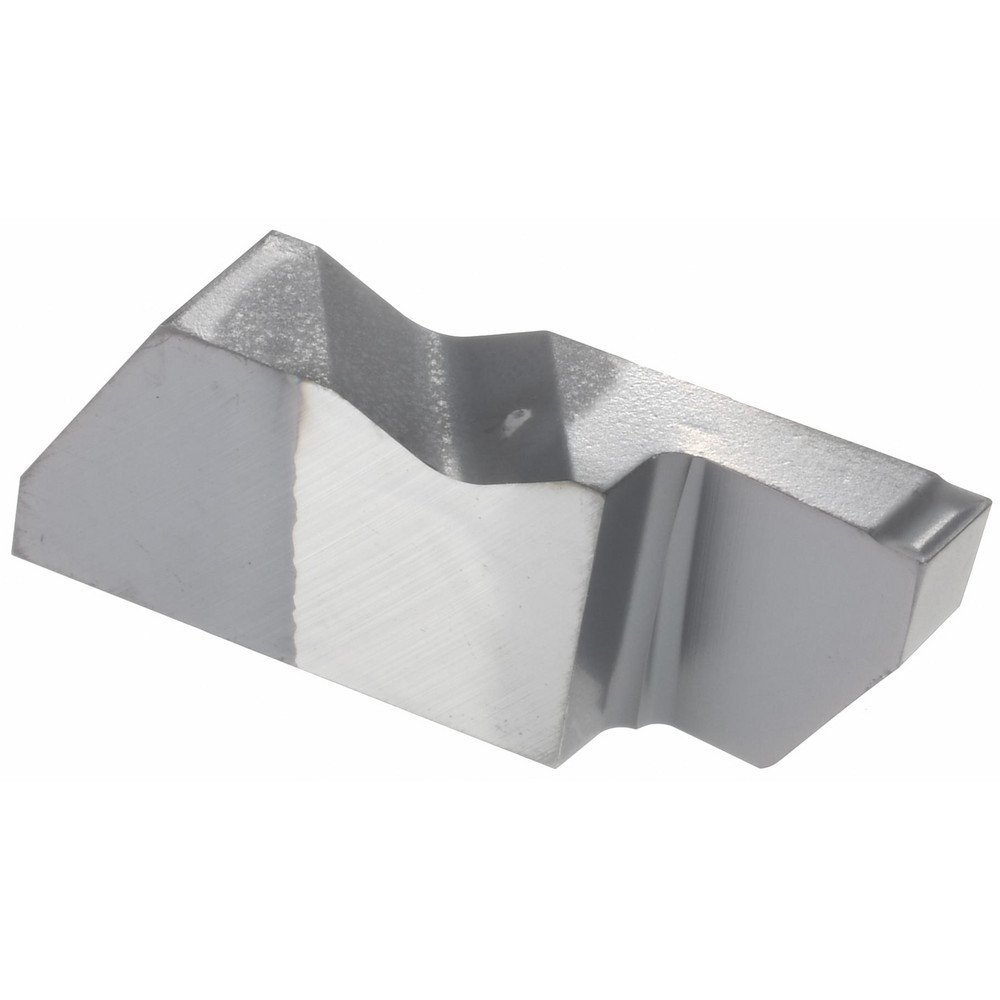

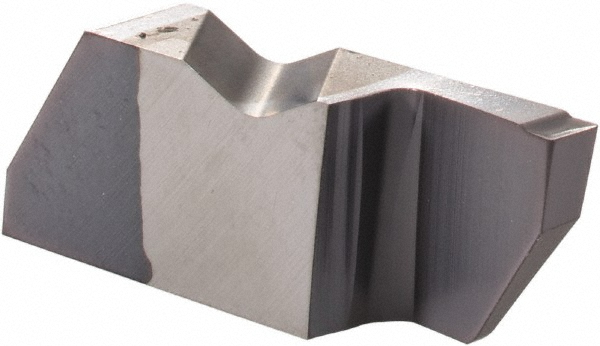

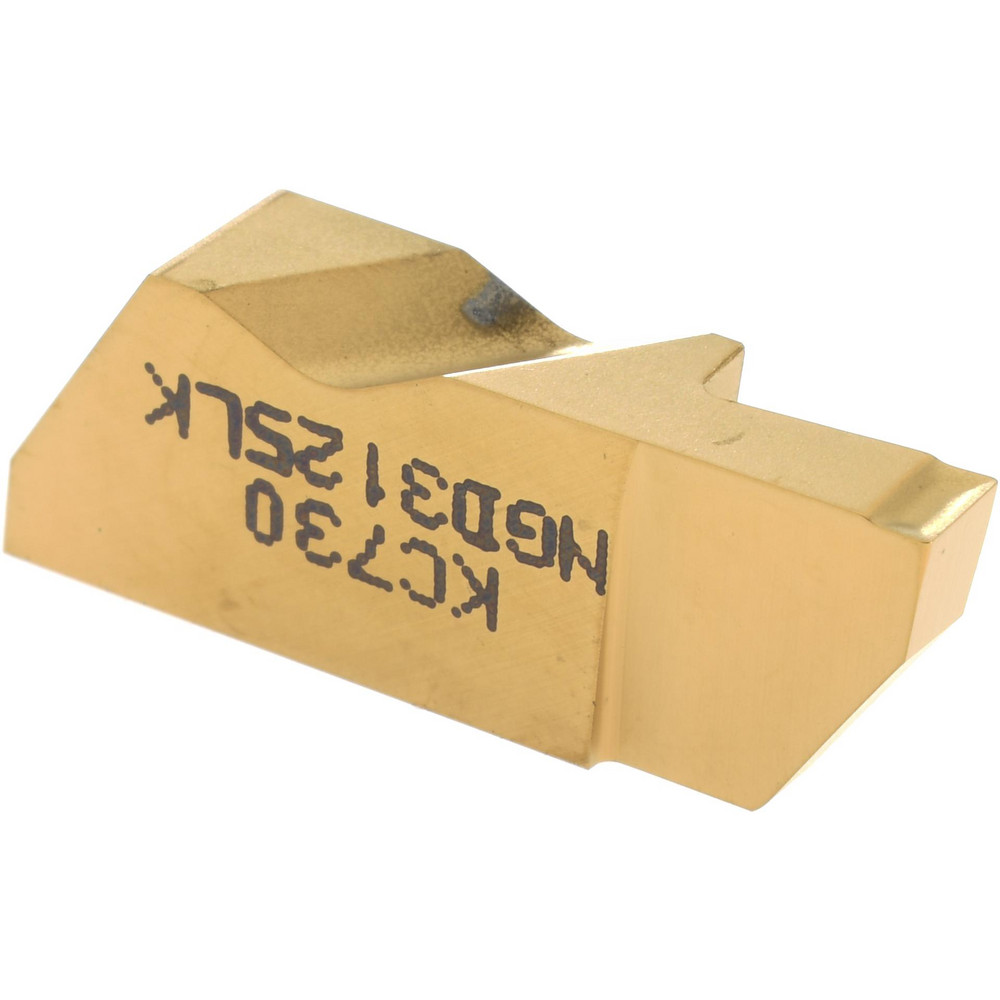

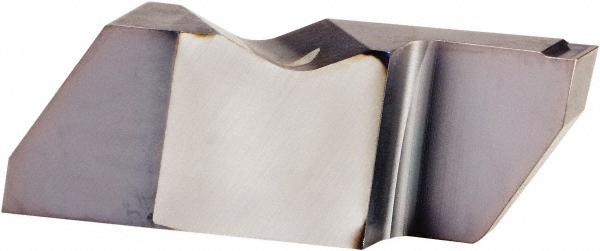

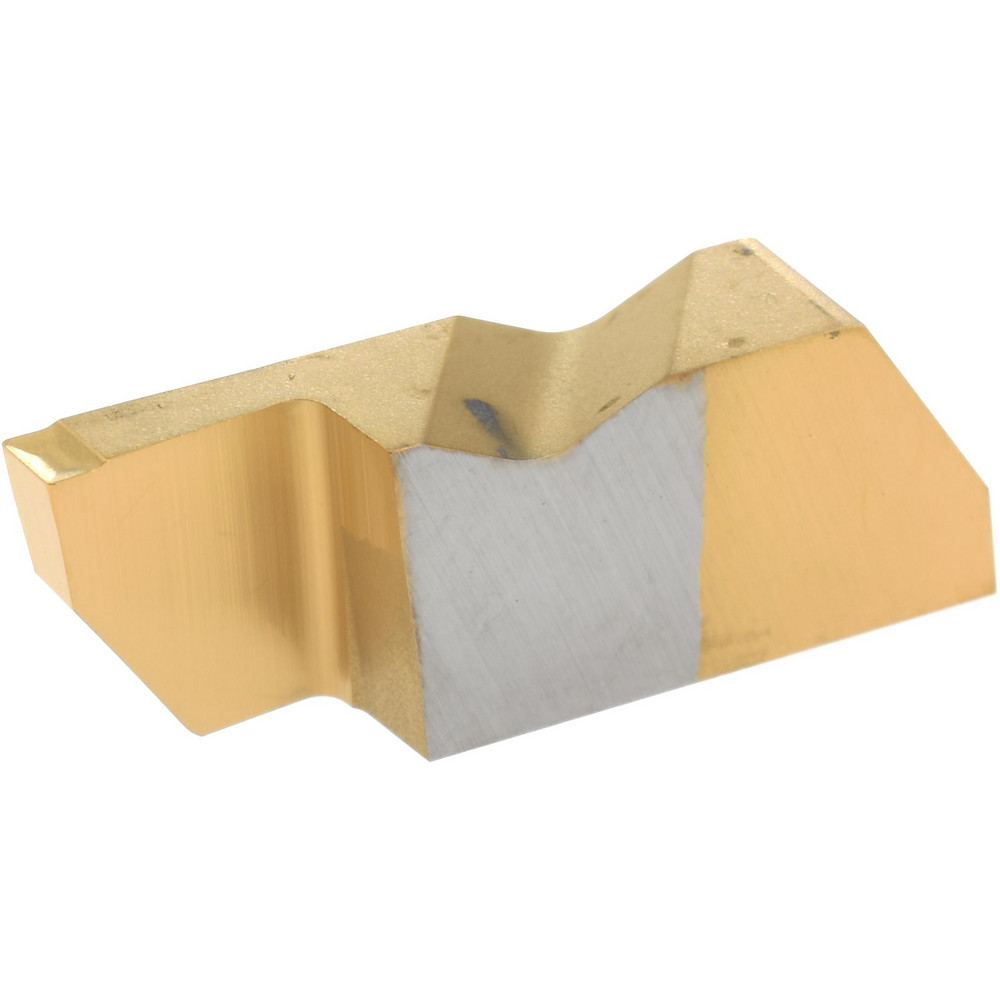

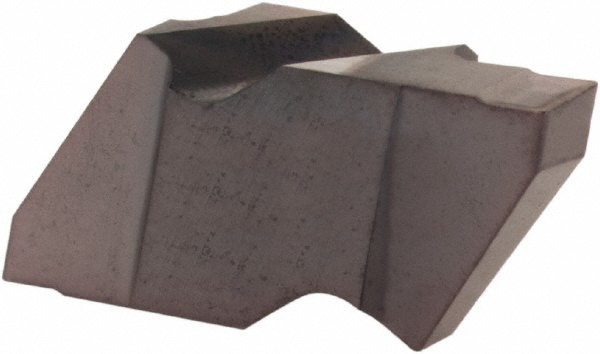

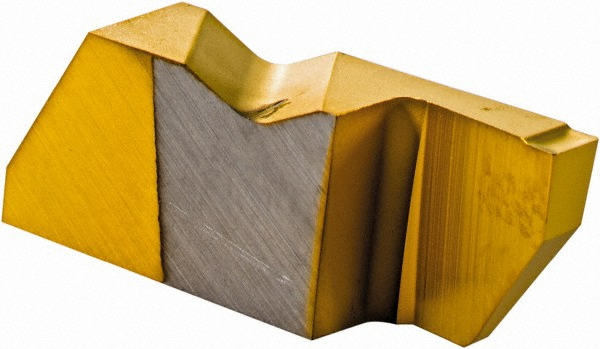

AlTiN Finish, Right Hand, 0.1252" Cutting Width, 0.2500" Max Depth, Series Top Notch
| Insert Style | NGD |
|---|---|
| Cutting Width (Decimal Inch) | 0.1252 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU25 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Rake | Neutral |
| Measurement Type | Decimal Inch |
| Insert Size | 3125 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Rake Angle | 0 |
| UNSPSC Code | 23242105 |
| Chip Breaker | K |
| MSC/Manufacturer Number | NGD3125R/LK |

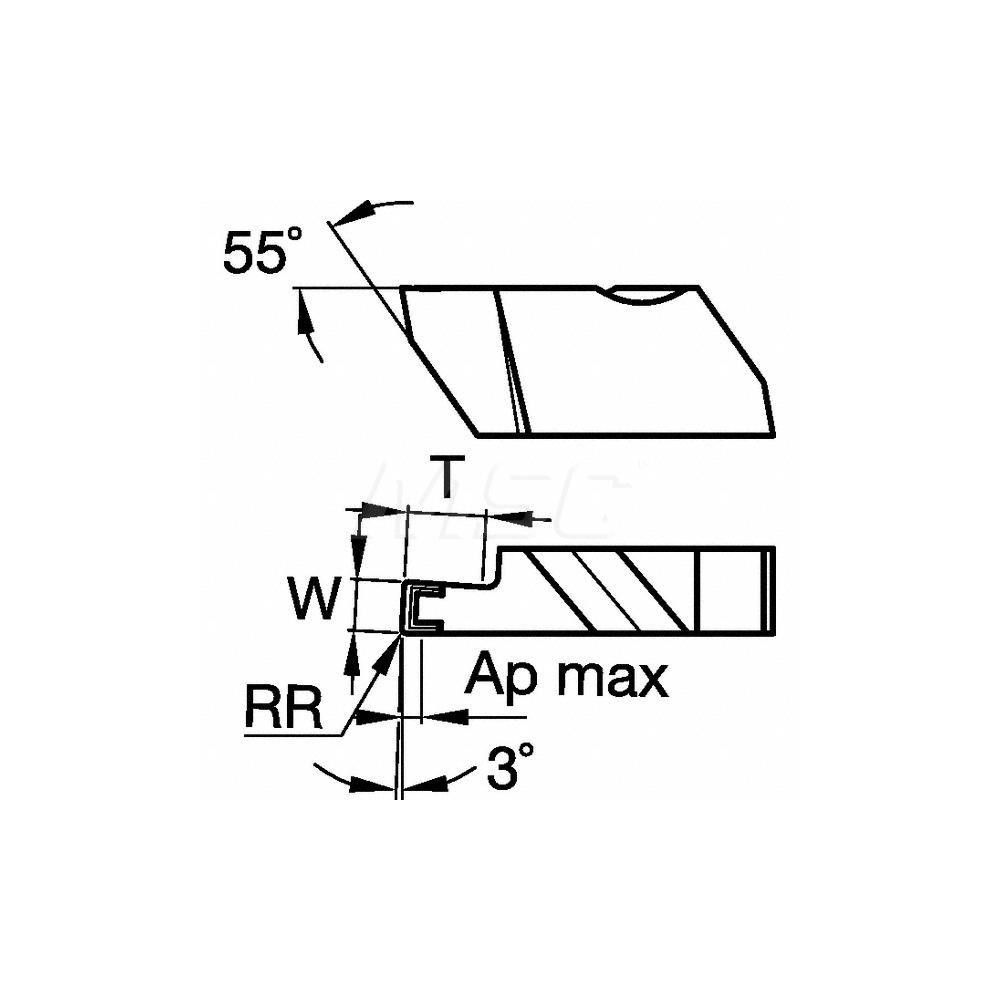

| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 54594858 |
