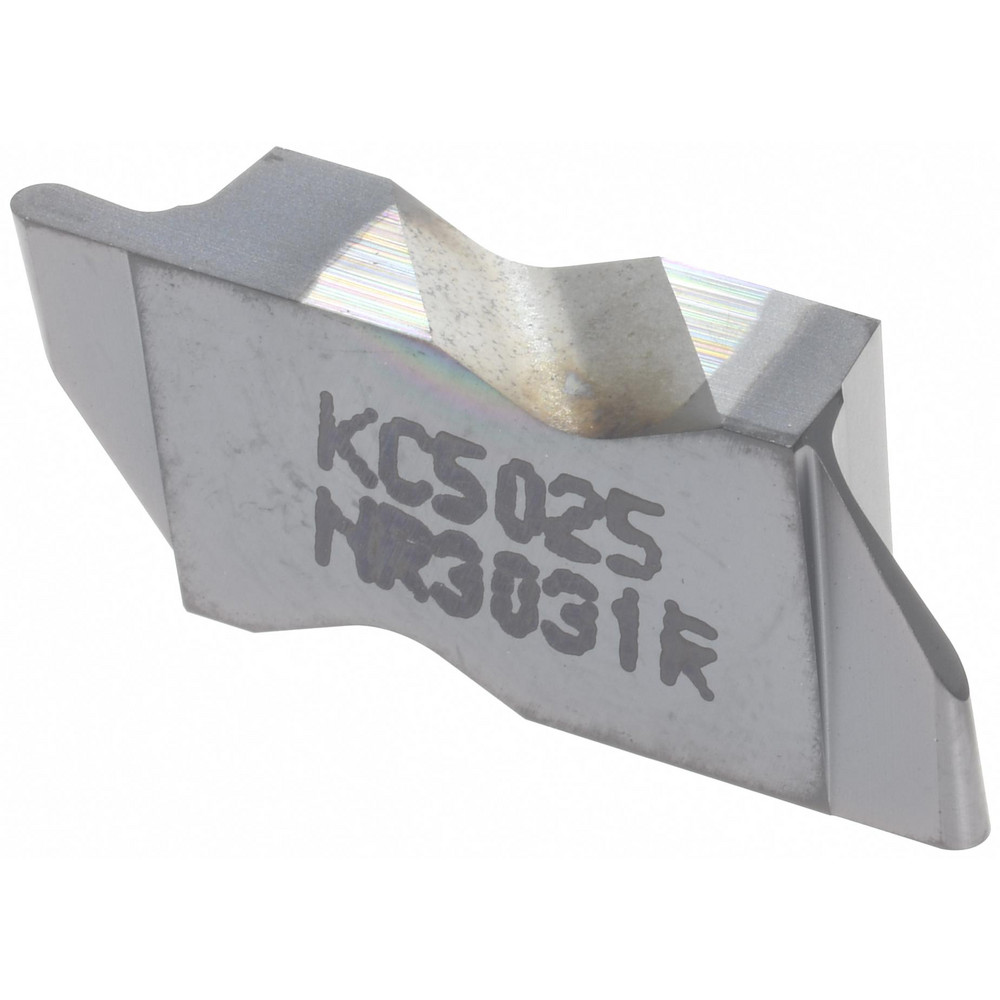

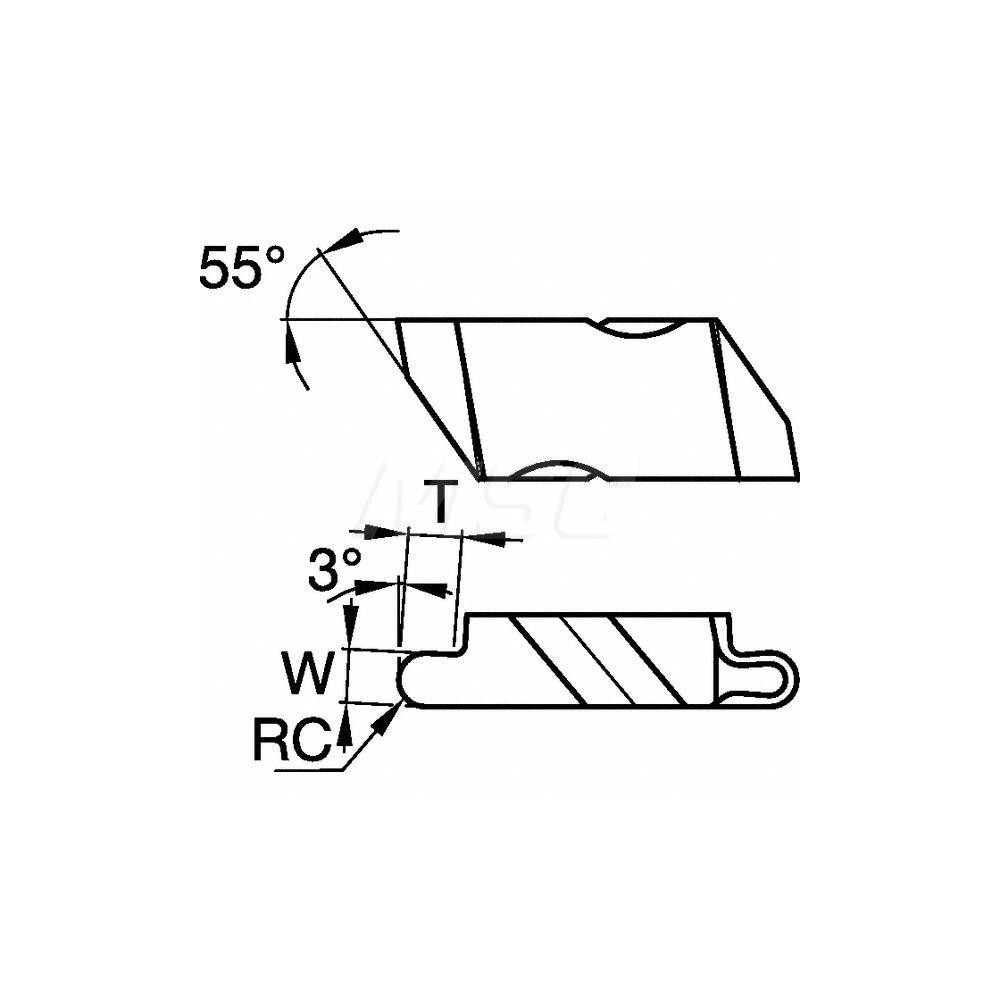

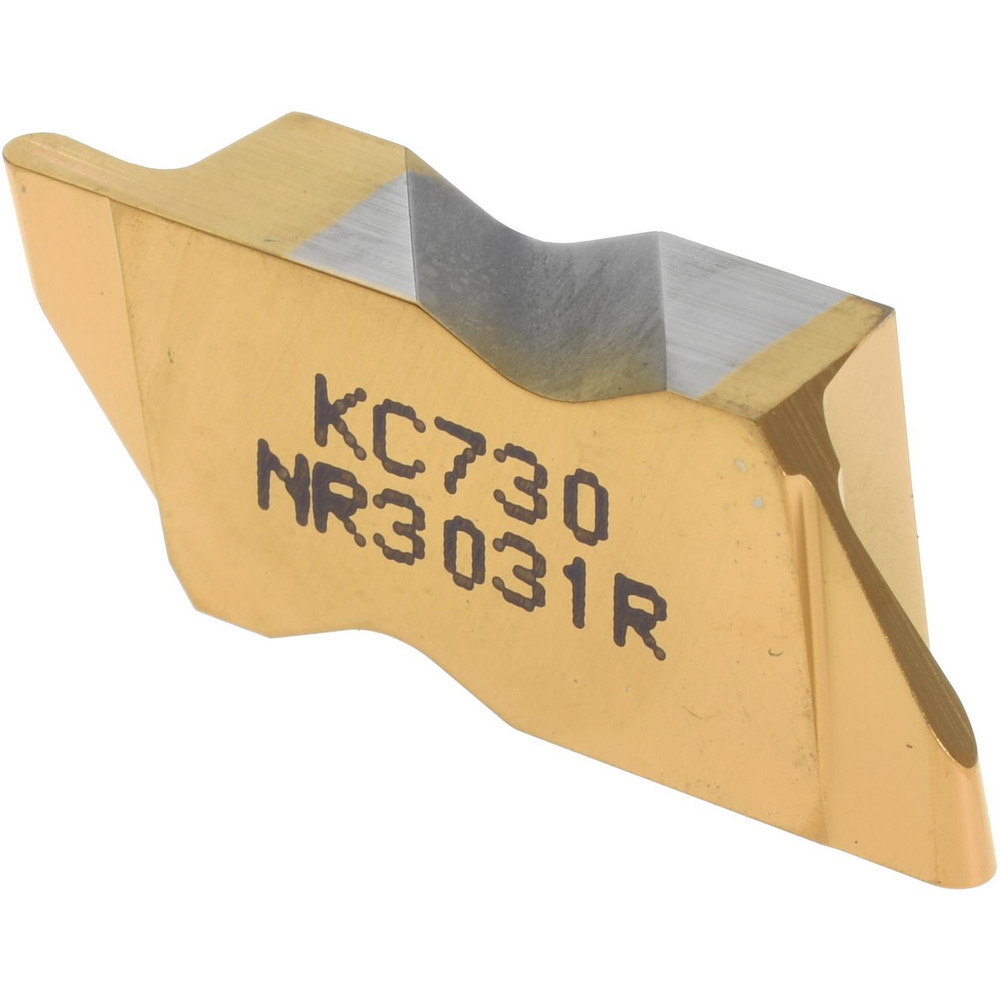

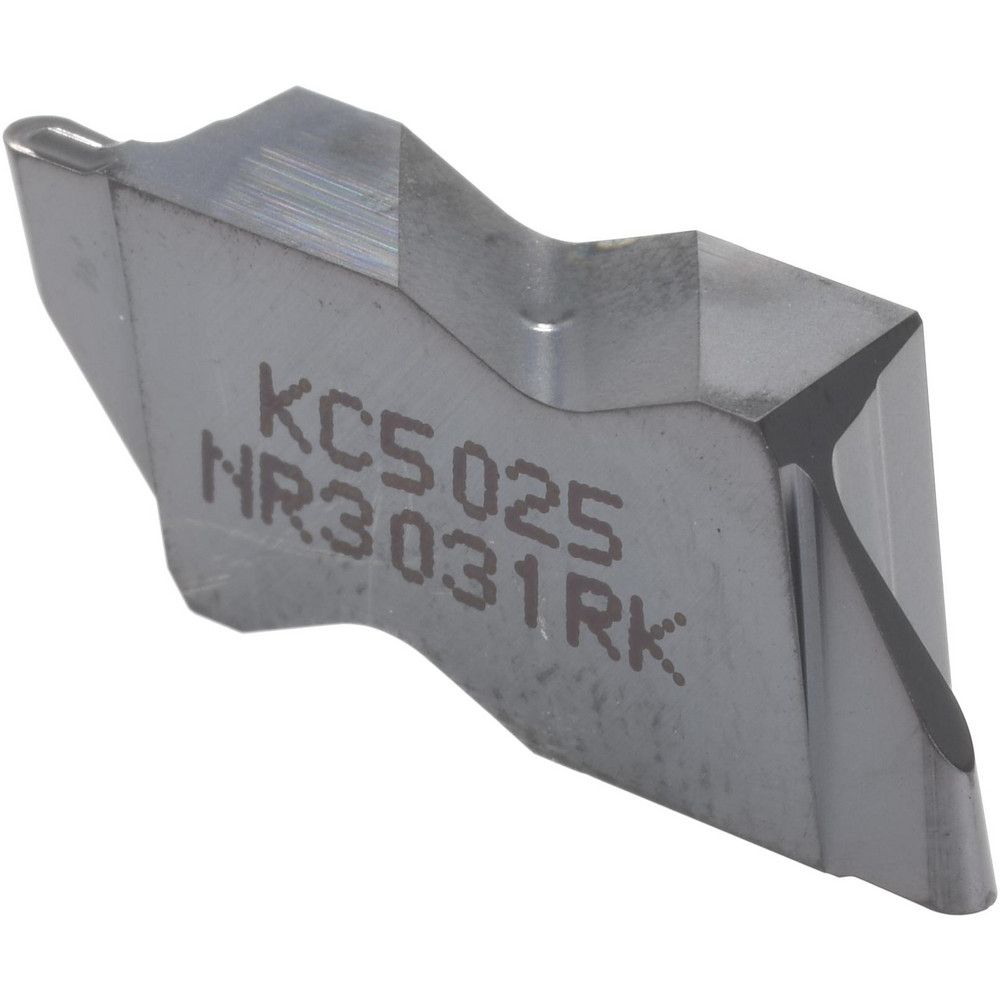

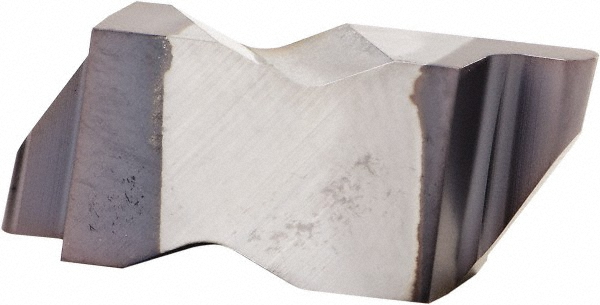

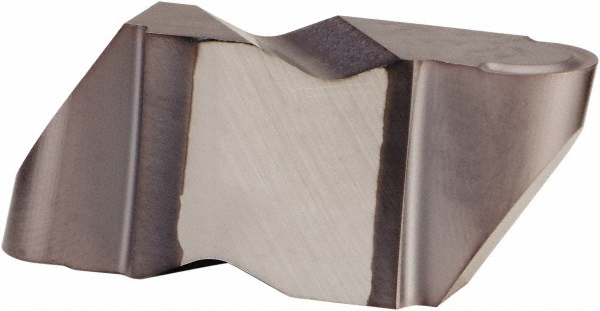

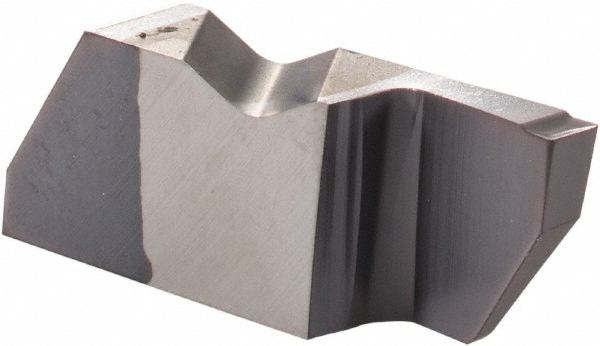

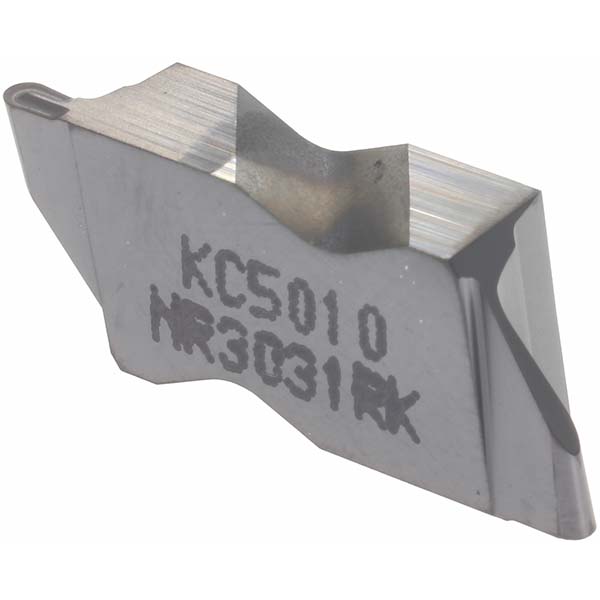

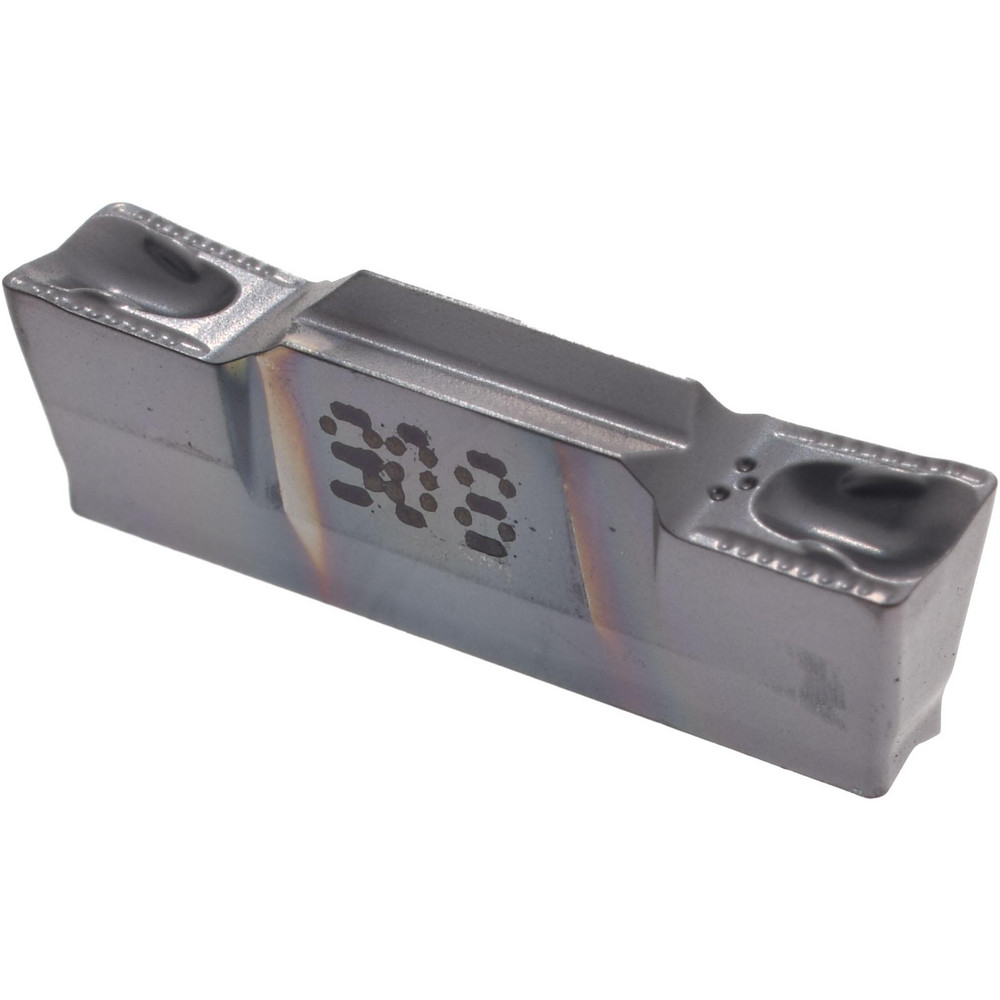

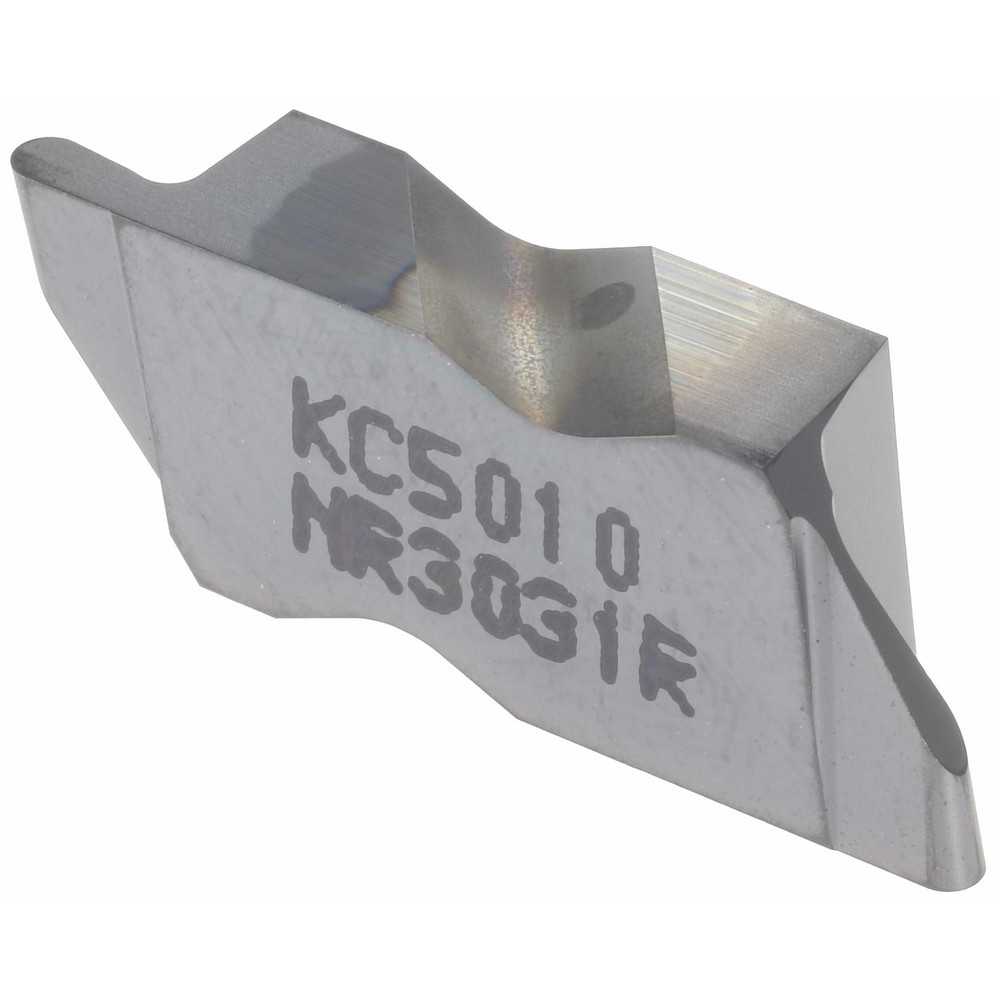

AlTiN Finish, Right Hand, 1.58 mm Cutting Width, 2.39 mm Max Depth, Series Top Notch
| Insert Style | NR |
|---|---|
| Cutting Width (Decimal Inch) | 0.0622 |
| Cutting Width (mm) | 1.58 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Maximum Depth of Cut (mm) | 2.39 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0311 |
| Corner Radius (mm) | 0.79 |
| Measurement Type | Metric |
| Insert Holding Method | Clamp |
| Insert Size | 3031 |
| Material Grade | C3; C4 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.8867 |
| UNSPSC Code | 23242105 |
| MSC/Manufacturer Number | NR3031R/L |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.196 |
| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 92534940 |
