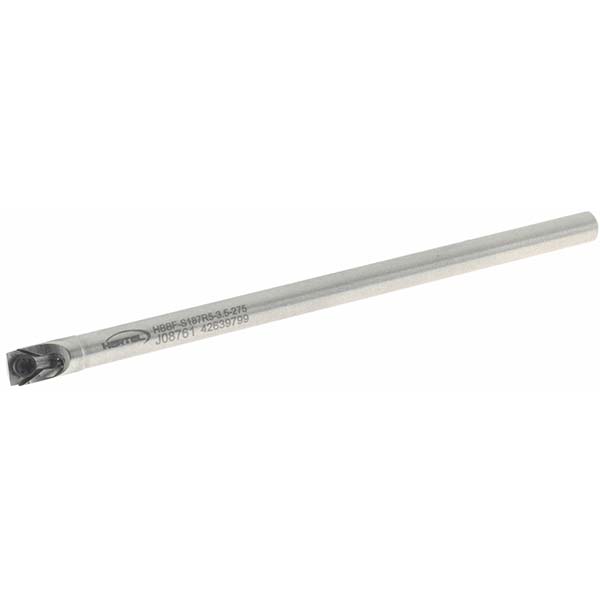

3.5000" OAL, Screw, Uses TD.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.2750 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Maximum Bore Depth (Inch) | 3/4 |
| Toolholder Style | FSBI |
| Tool Material | Steel |
| Insert Compatibility | TD.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 5 |
| Series | F |
| Insert Inscribed Circle (Decimal Inch) | 0.1600 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.1230 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0470 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Manufacturers Catalog Number | A03GSTLDR128 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 59868992 |
