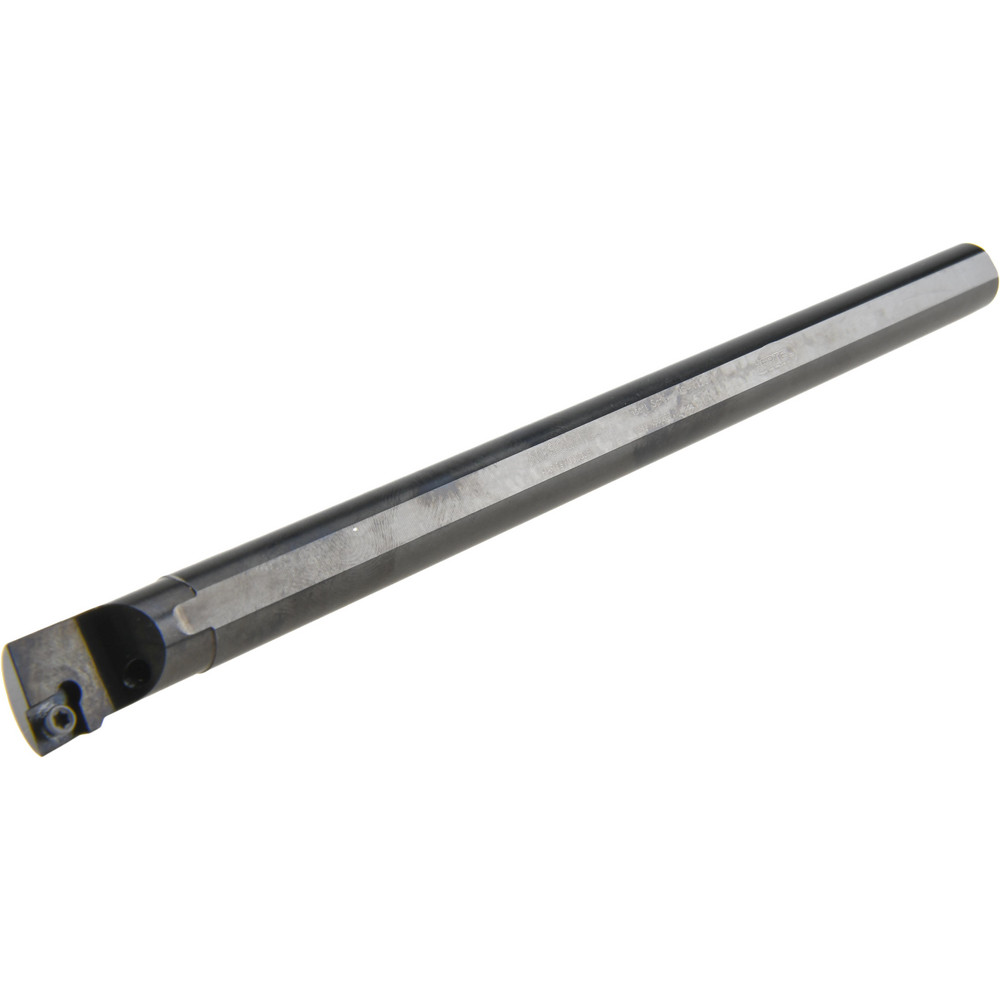

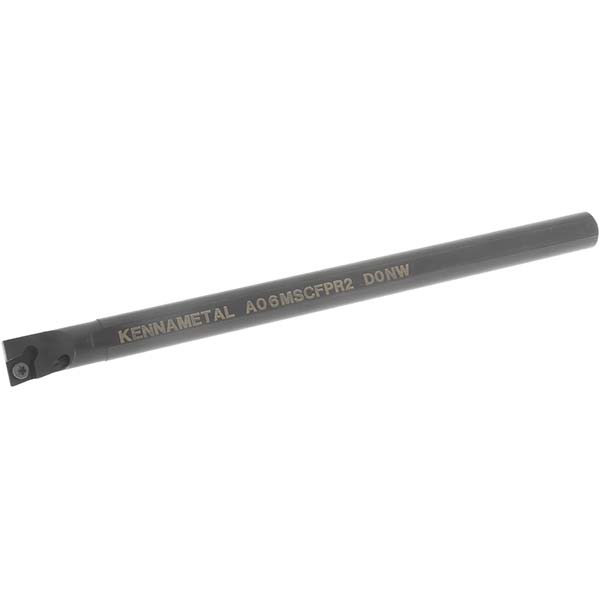

127.00 mm OAL, Screw, Uses CP.. Inserts
| Minimum Bore Diameter (mm) | 10.54 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.4150 |
| Toolholder Style | A-SCLP |
| Tool Material | Steel |

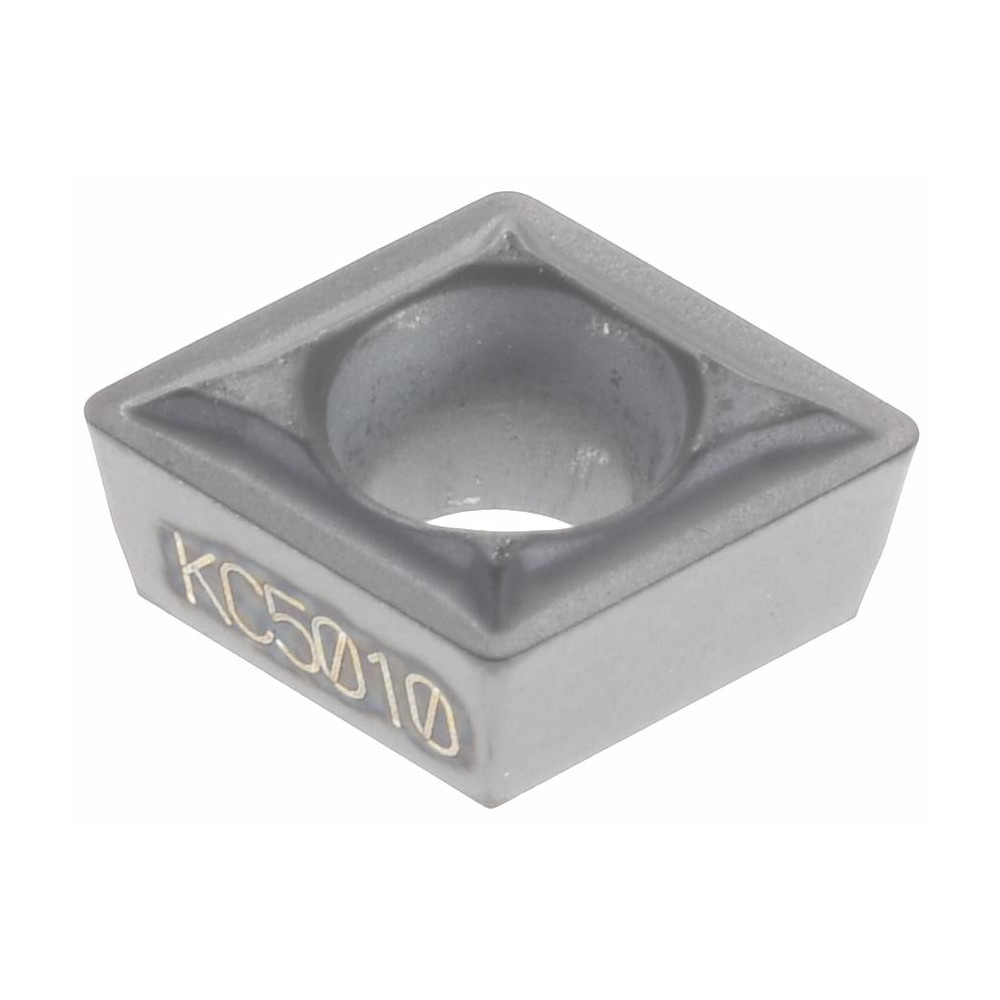

| Insert Compatibility | CP.. |
| Shank Diameter (mm) | 9.53 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 7/32 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.2190 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.0900 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 52982956 |
