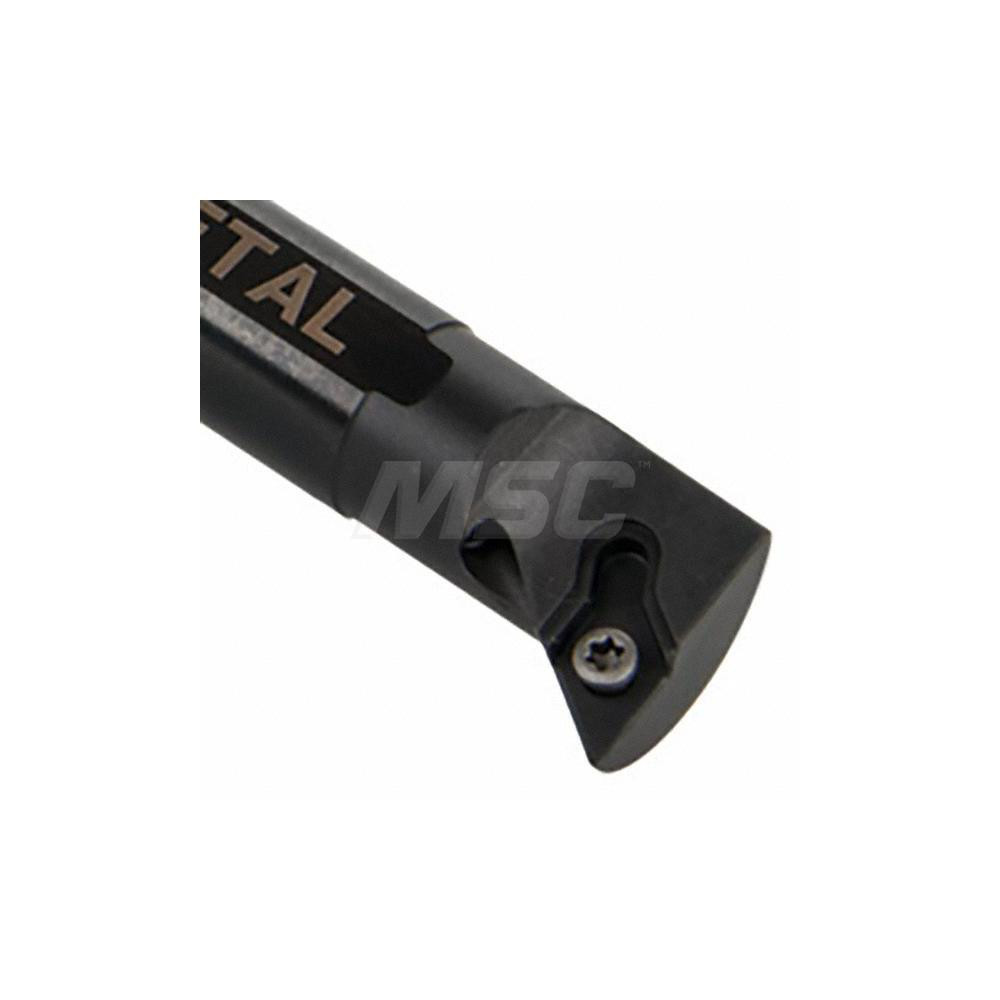

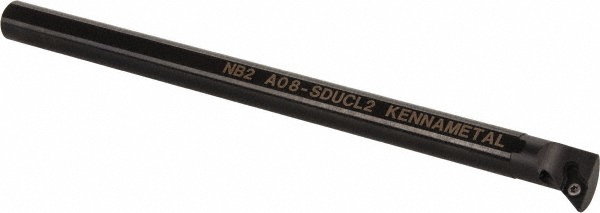

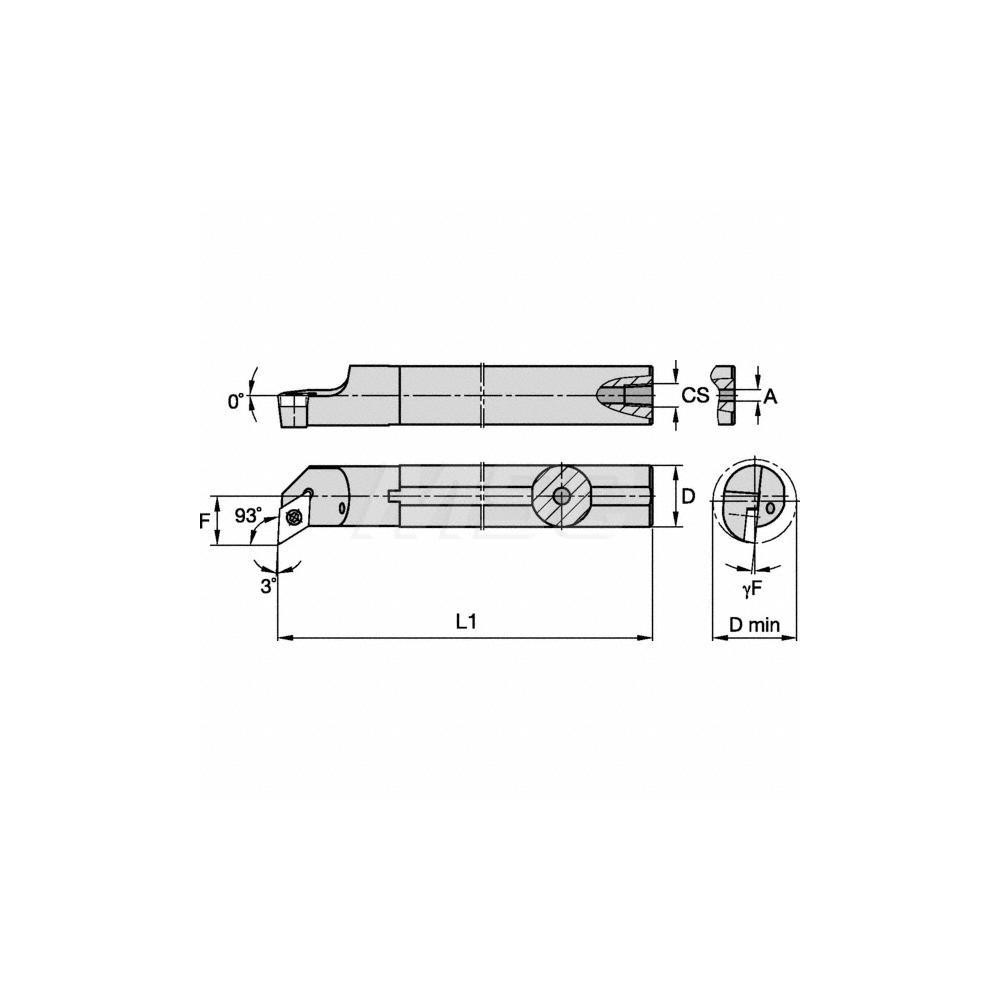

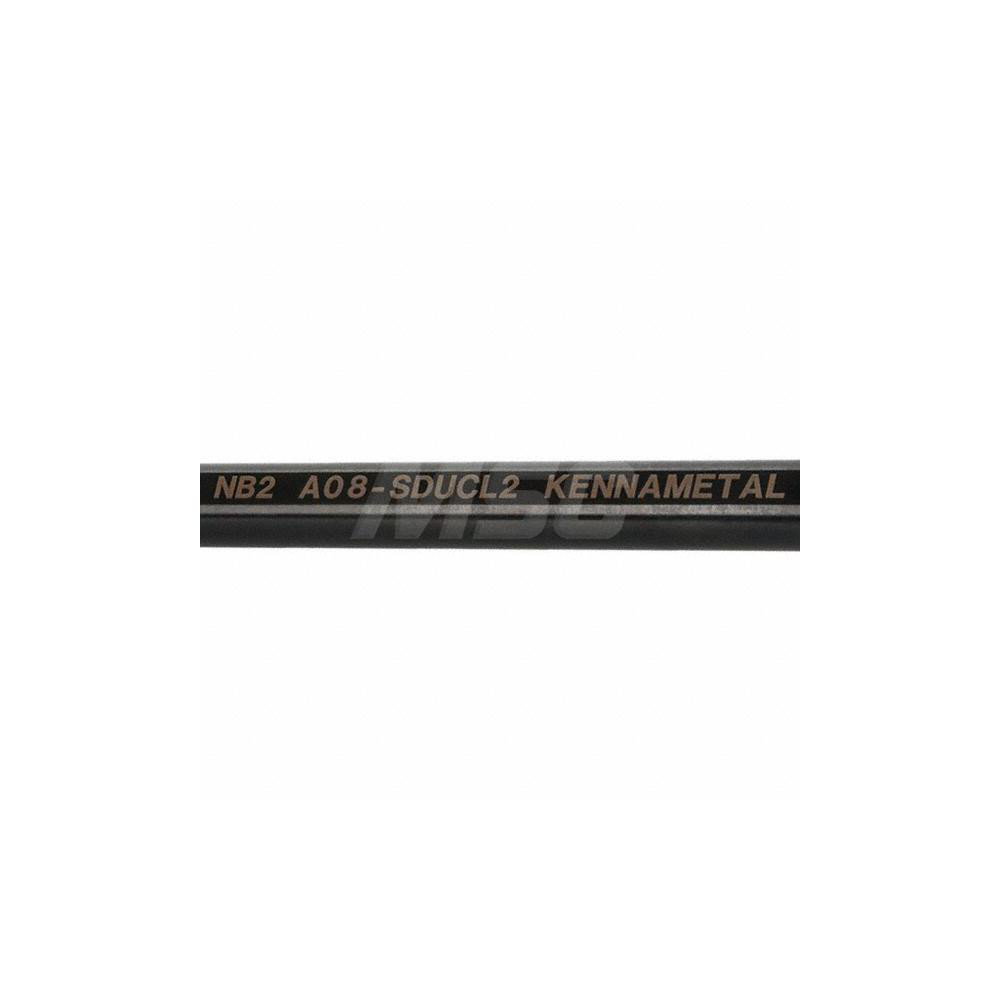

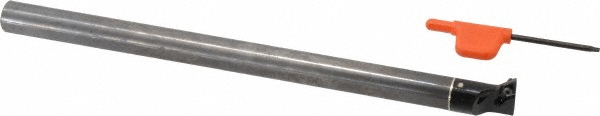

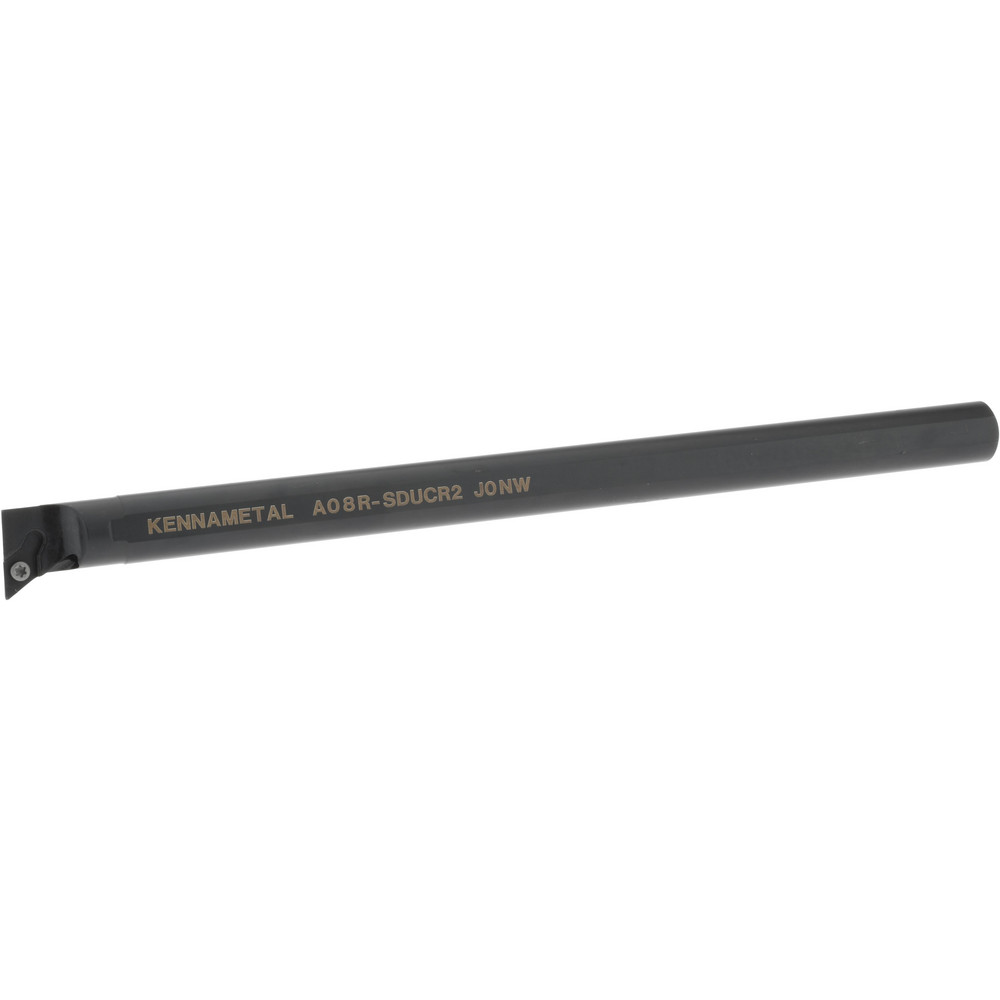

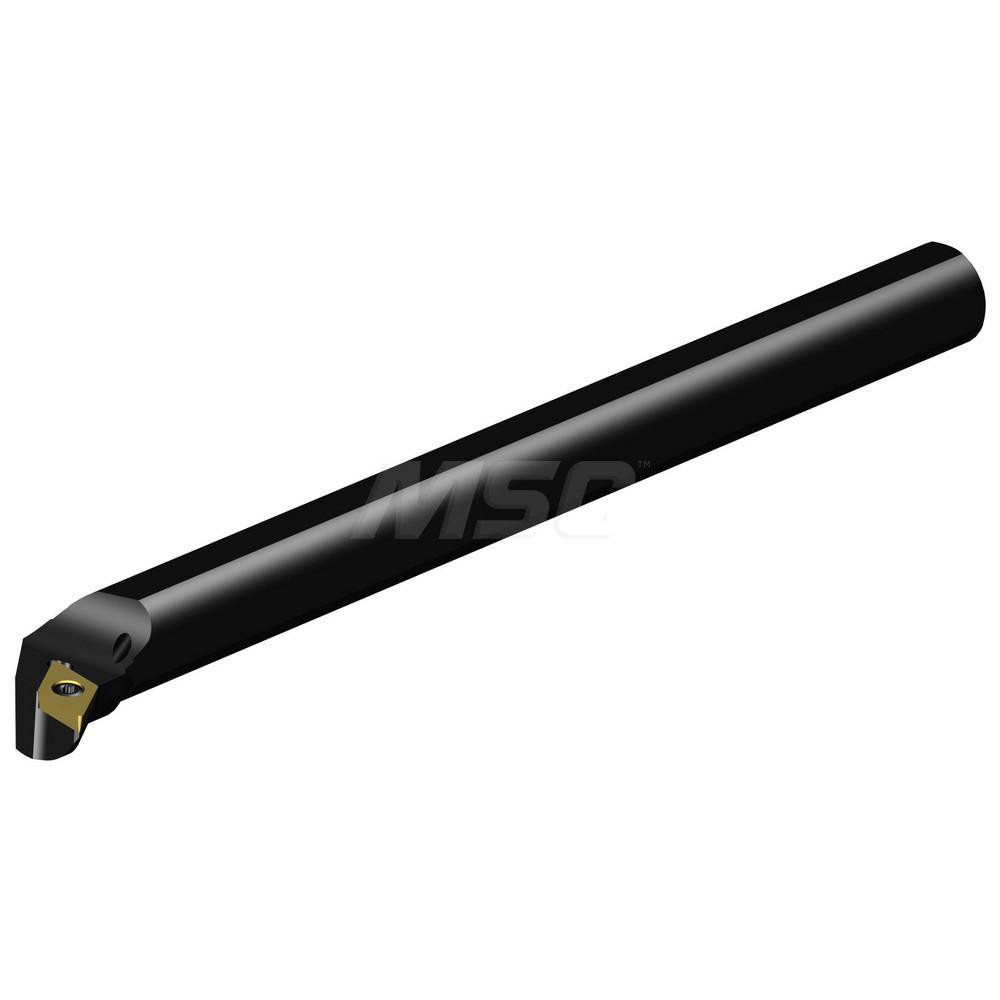

203.20 mm OAL, Screw, Uses DC.. Inserts
| Minimum Bore Diameter (mm) | 18.54 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.7300 |

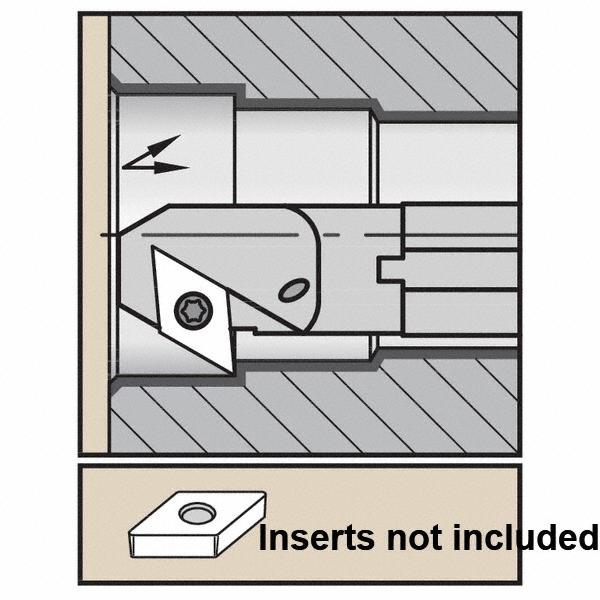

| Toolholder Style | A-SDUC |
| Tool Material | Steel |

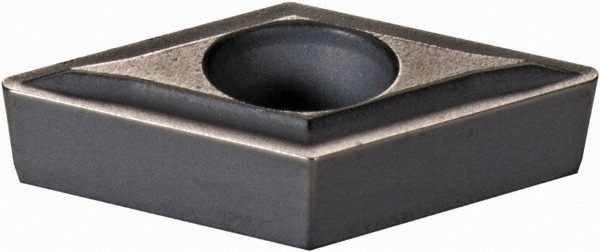

| Insert Compatibility | DC.. |
| Shank Diameter (mm) | 12.70 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (mm) | 203.20 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -3 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.4370 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 86462074 |
