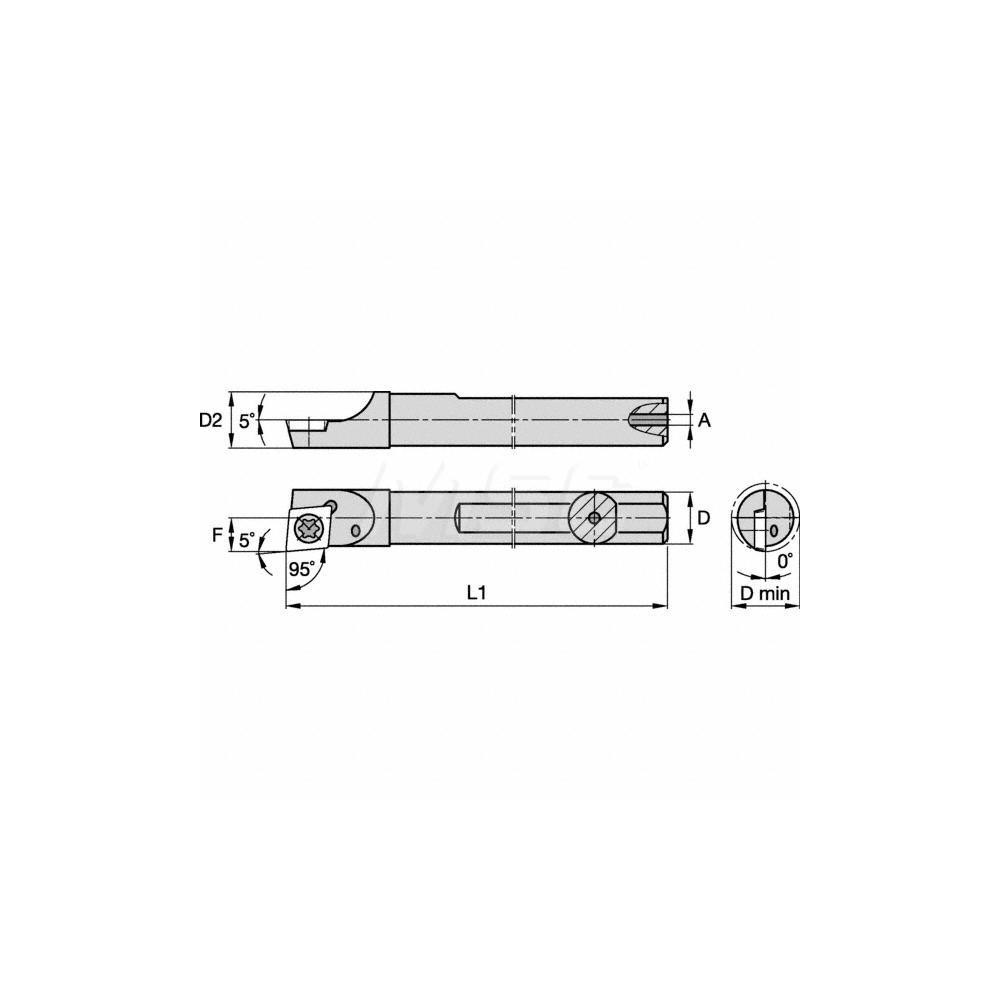

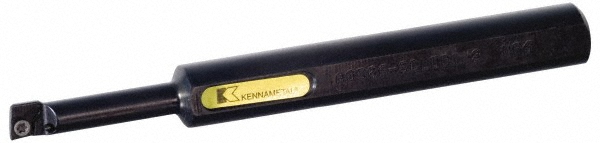

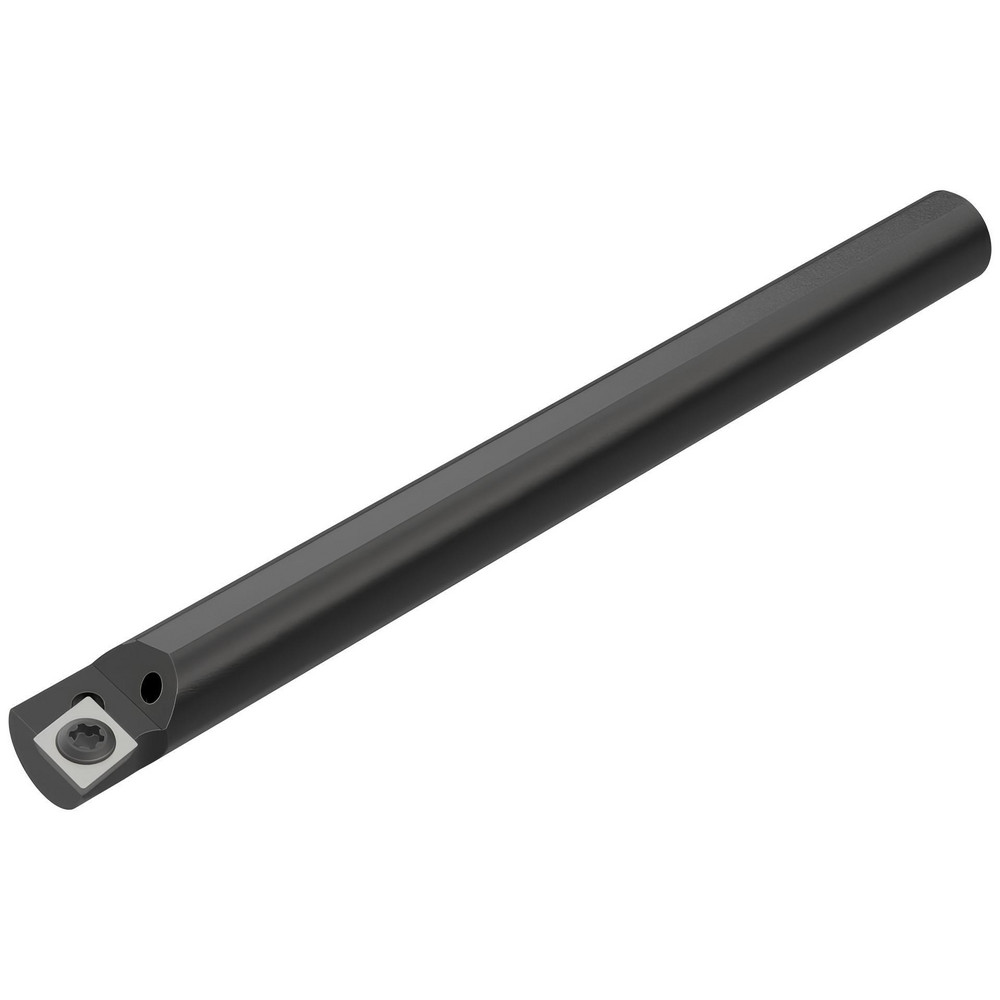

76.00 mm OAL, Screw, Uses CD.. S4T002 Inserts
| Minimum Bore Diameter (mm) | 9.05 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3563 |
| Toolholder Style | A-SCLD |
| Tool Material | Steel |
| Insert Compatibility | CD.. S4T002 |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 2.9921 |
| Overall Length (mm) | 76.00 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.1850 |
| Center to Cutting Edge (mm) | 4.70 |
| UNSPSC Code | 23241601 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Coolant Hole Diameter (mm) | 2.00 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 46889135 |
