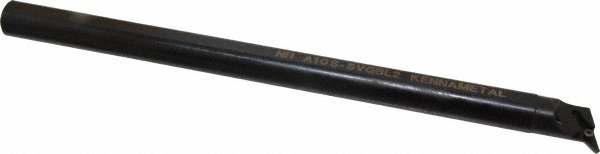

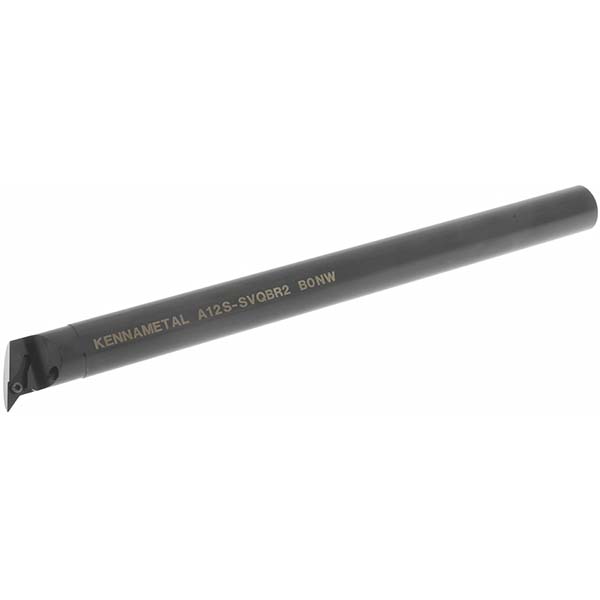

254.00 mm OAL, Screw, Uses VB.. Inserts
| Minimum Bore Diameter (mm) | 21.59 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.8500 |
| Toolholder Style | A-SVQB |
| Tool Material | Steel |
| Insert Compatibility | VB.. |
| Shank Diameter (mm) | 15.88 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -17.5 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01584945 |
