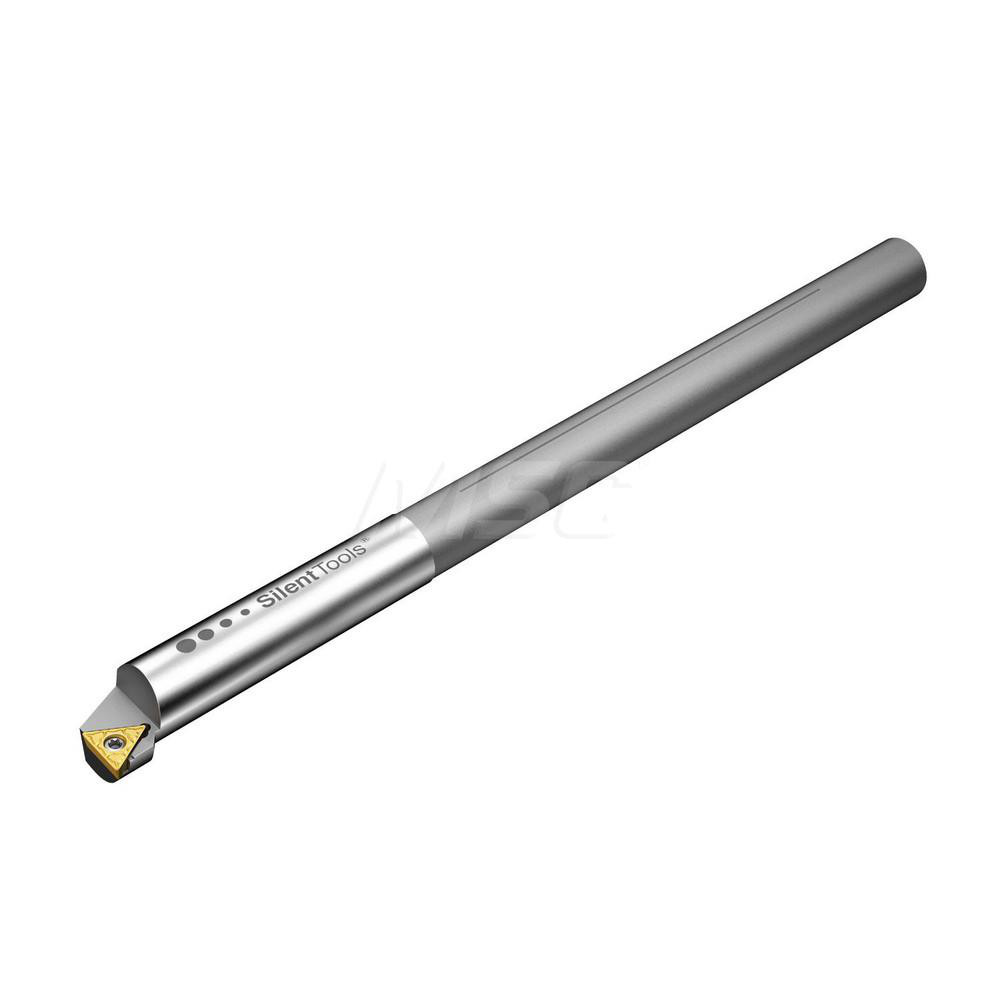

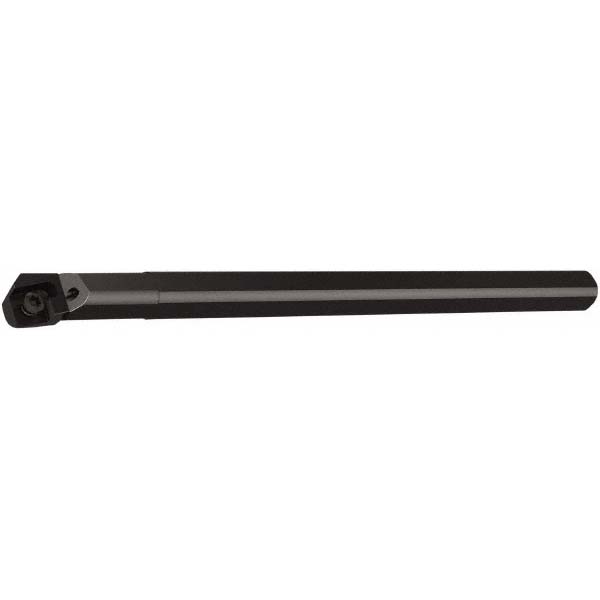

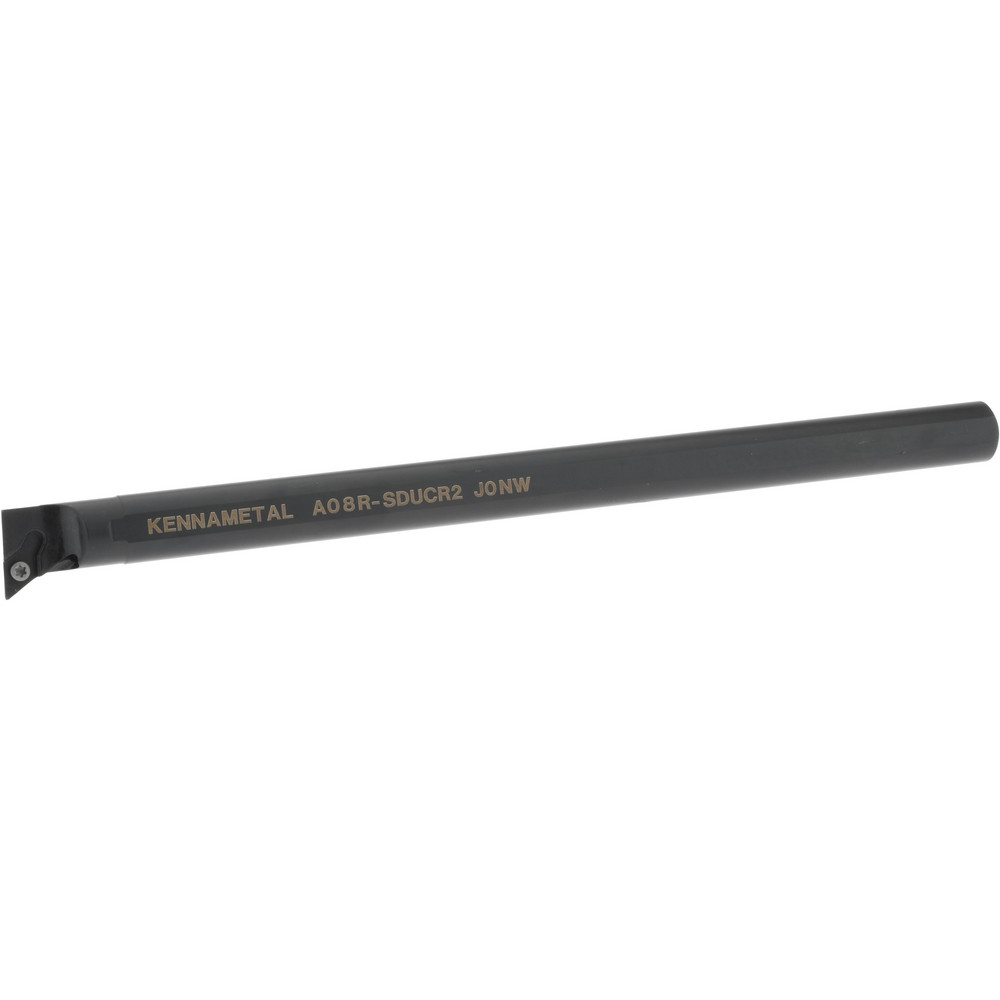

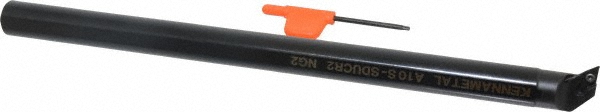

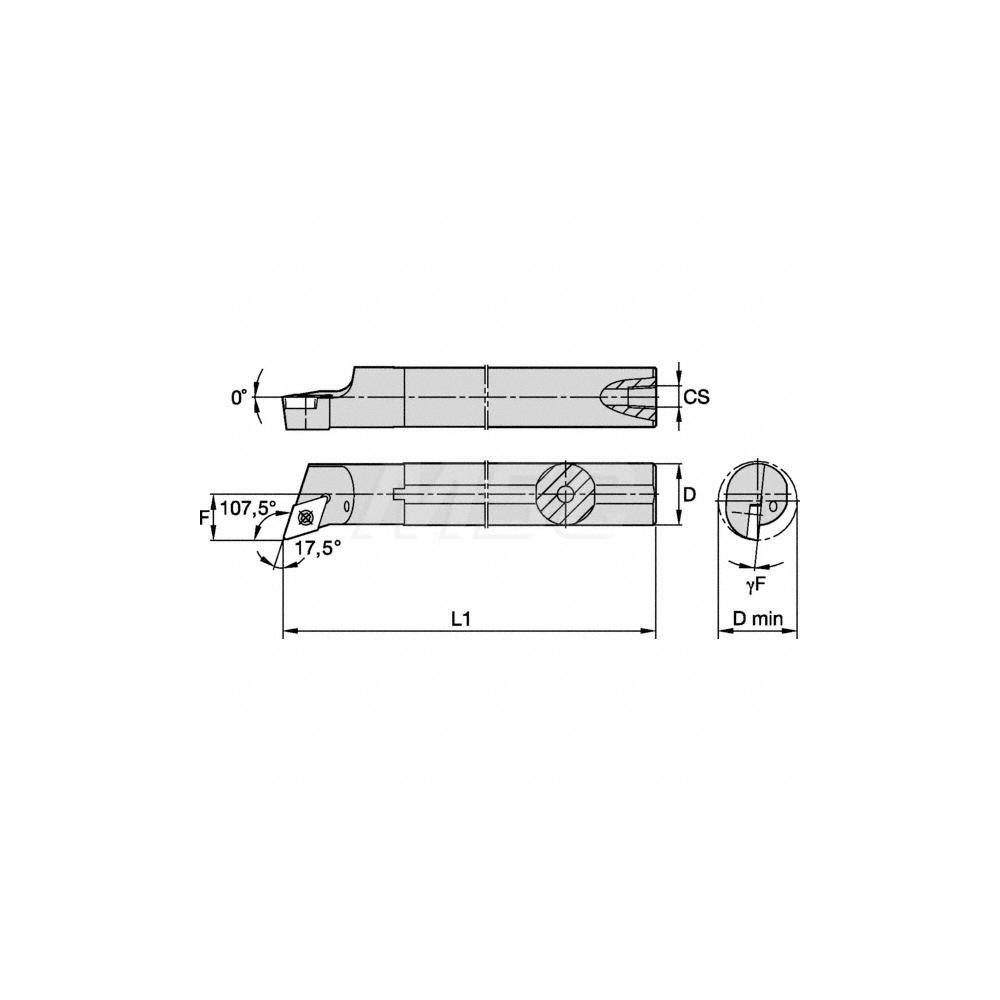

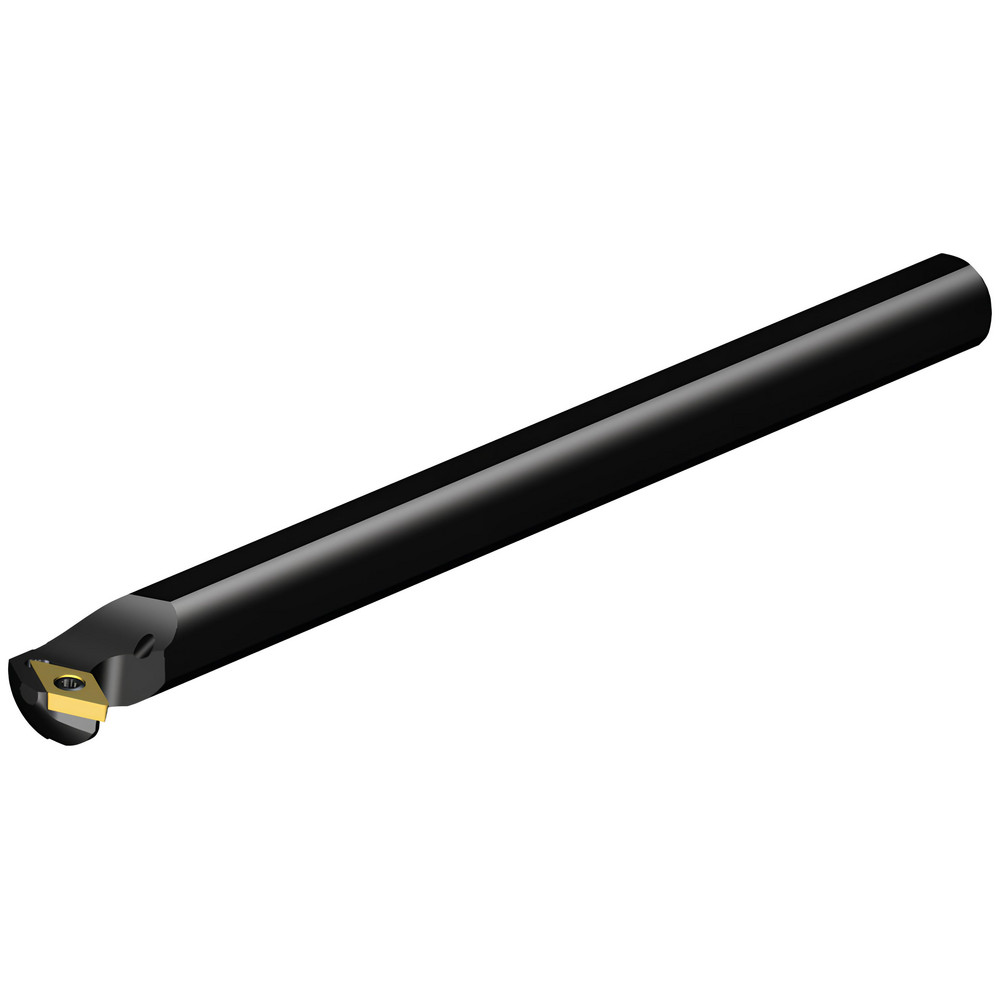

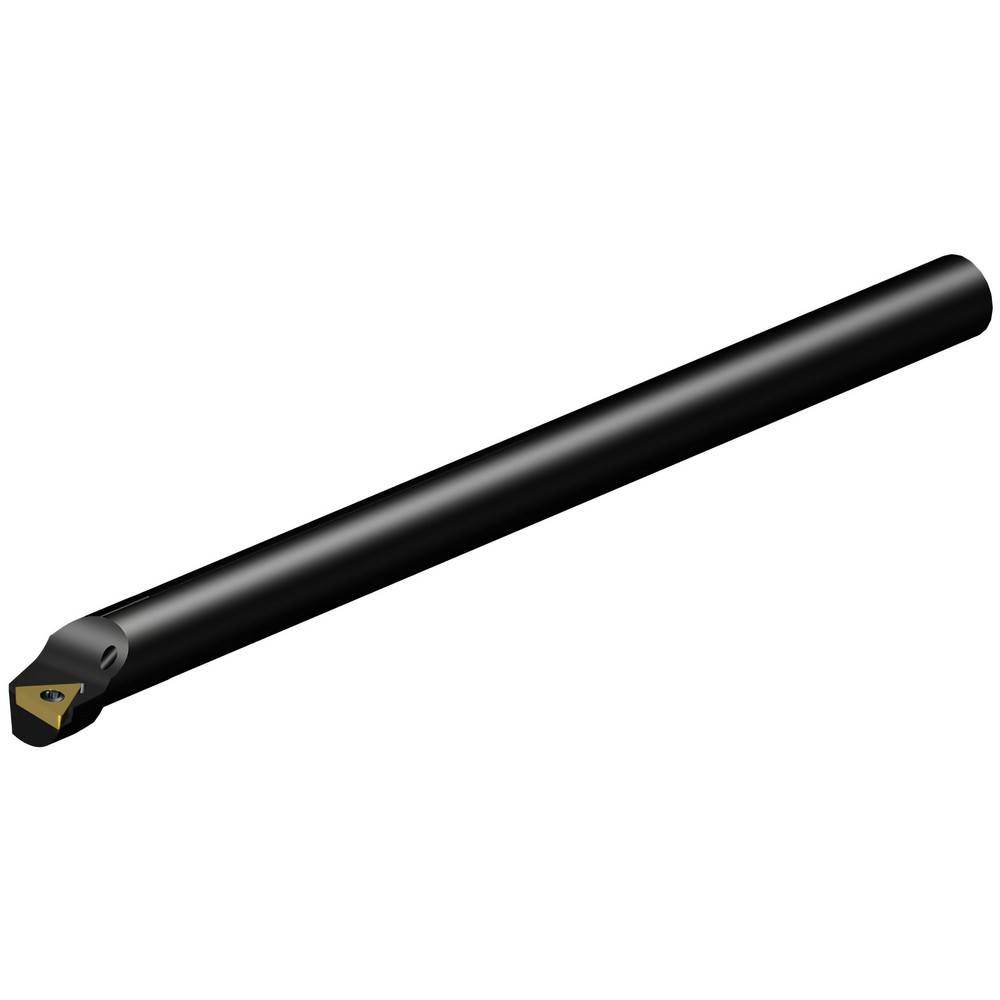

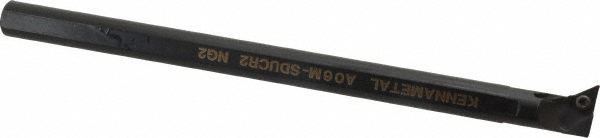

150.00 mm OAL, Screw, Uses DC.. Inserts
| Minimum Bore Diameter (mm) | 16.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | A-SDQC |
| Tool Material | Steel |
| Insert Compatibility | DC.. |
| Shank Diameter (mm) | 12.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 17.5 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Multi-use Tool | No |
| Center to Cutting Edge (mm) | 9.00 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 62180740 |
