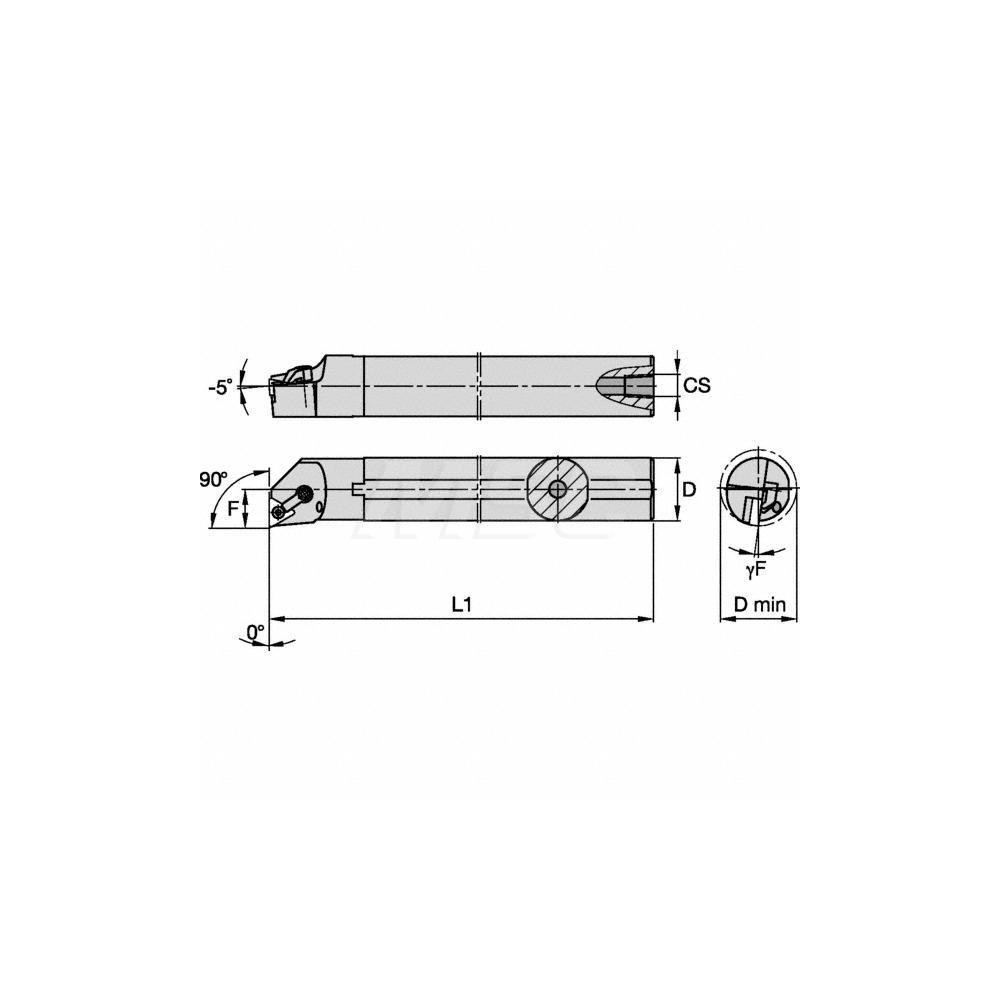

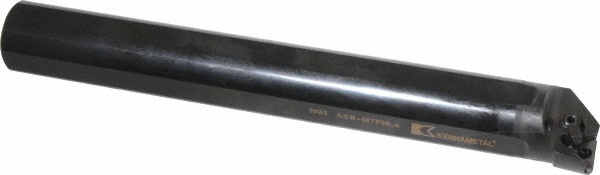

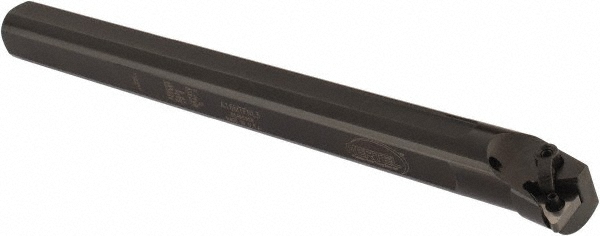

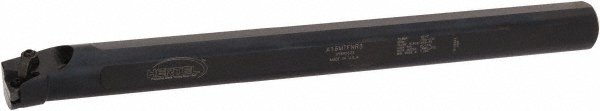

304.80 mm OAL, Screw & Clamp, Uses TN.. Inserts
| Minimum Bore Diameter (mm) | 30.99 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.2200 |
| Toolholder Style | A-MTFN |
| Tool Material | Steel |
| Insert Compatibility | TN.. |
| Shank Diameter (mm) | 25.40 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Insert Holding Method | Screw; Clamp |
| Rake | Negative |
| Rake Angle | 5.00 |
| Series | Kenloc |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (mm) | 16.26 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 64926082 |
