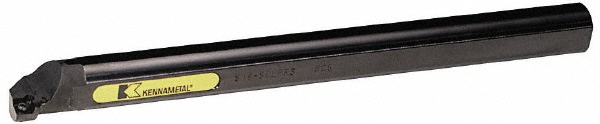

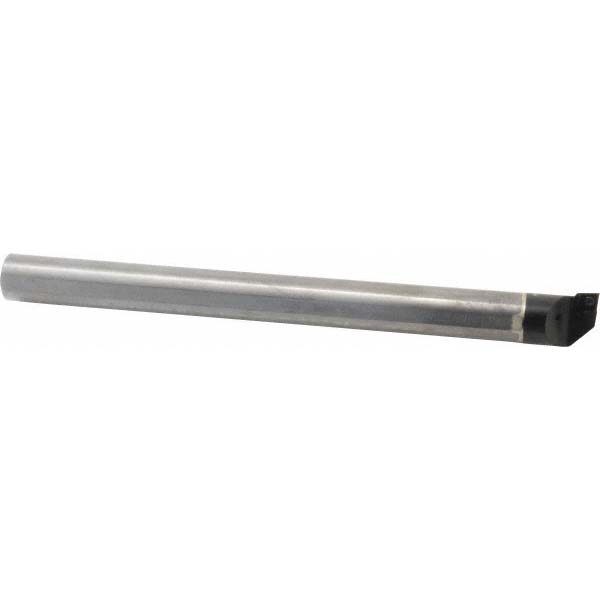

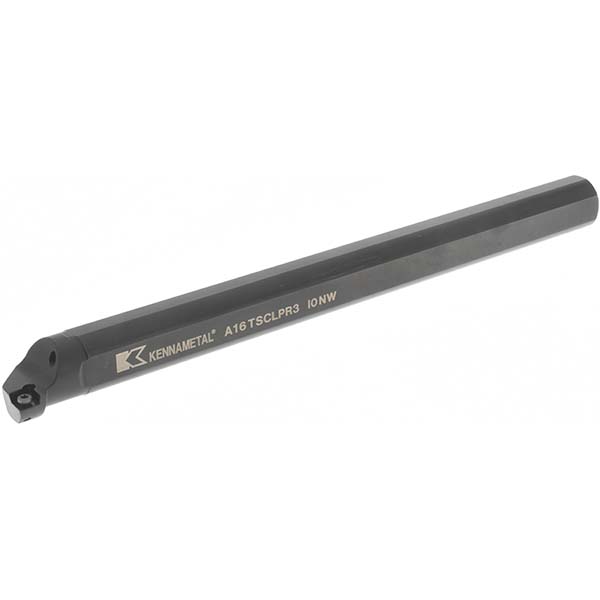

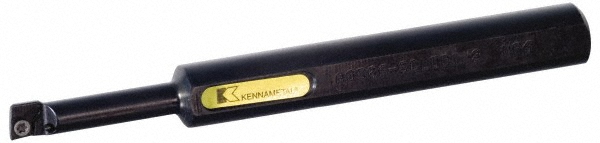

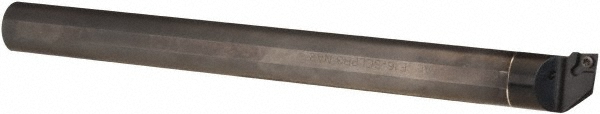

304.80 mm OAL, Screw, Uses CP.. Inserts
| Minimum Bore Diameter (mm) | 30.23 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.1900 |
| Toolholder Style | A-SCLP-AP |
| Tool Material | Steel |
| Insert Compatibility | CP.. |
| Shank Diameter (mm) | 25.40 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 304.80 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 5 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Center to Cutting Edge (Decimal Inch) | 0.6250 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 5/32 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01585272 |
