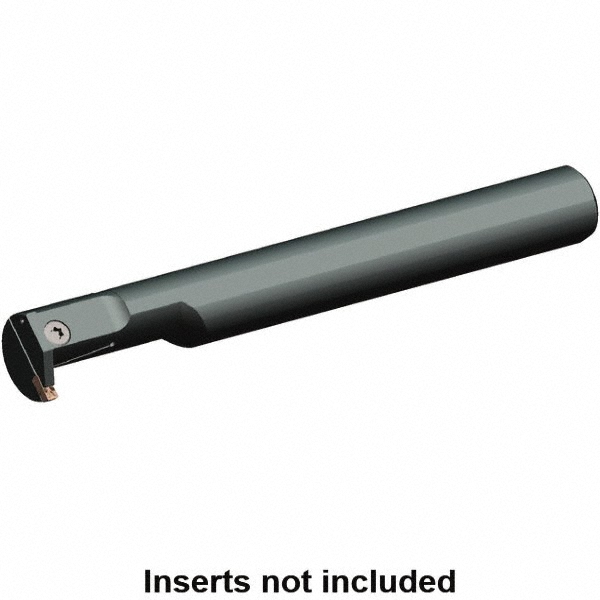

250 mm OAL, Clamp, Uses EG0300M03P02 Inserts

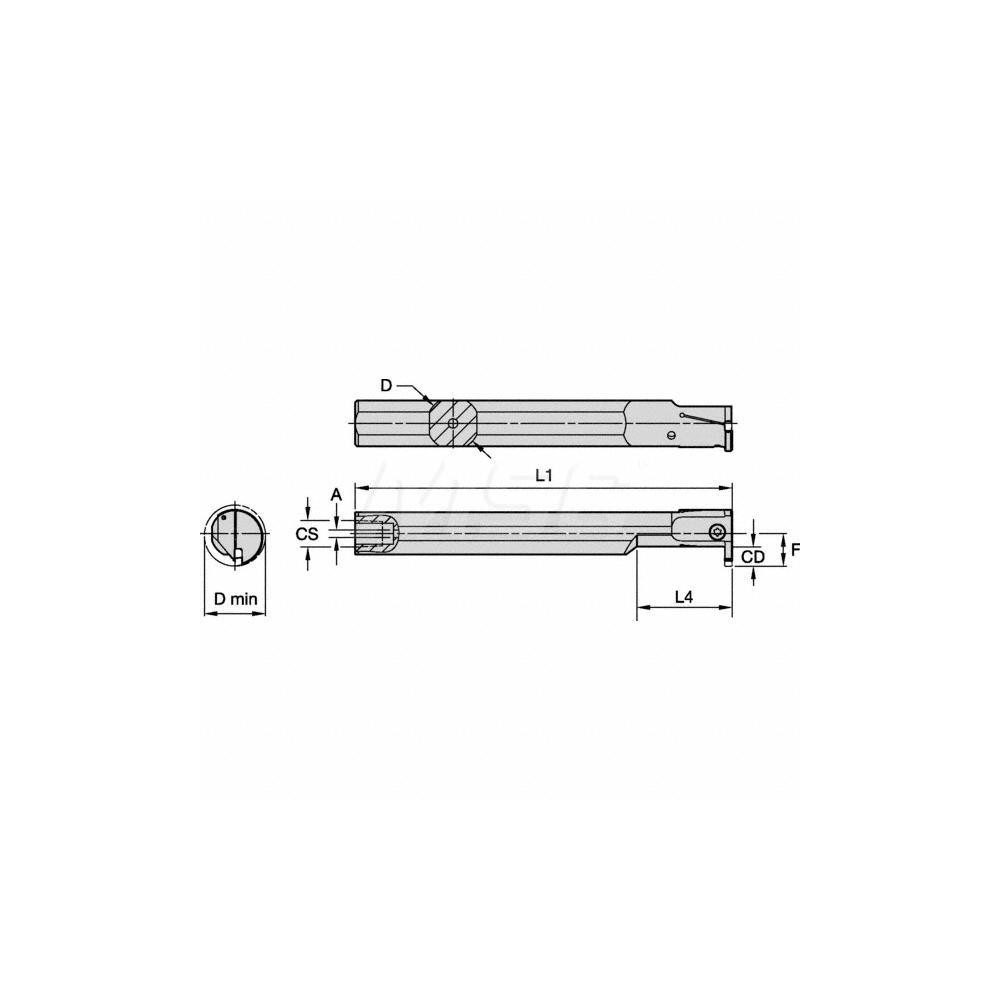

| Minimum Bore Diameter (mm) | 38.10 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
| Maximum Bore Depth (Decimal Inch) | 2.4960 |
| Maximum Bore Depth (mm) | 63.40 |
| Toolholder Style | A-EVE |
| Insert Compatibility | EG0300M03P02 |
| Shank Diameter (mm) | 31.75 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 9.8430 |
| Overall Length (mm) | 250.00 |
| Insert Holding Method | Clamp |
| Lead Angle | 0 |
| Series | Beyond Evolution |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8430 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8320 |
| Center to Cutting Edge (mm) | 21.13 |
| UNSPSC Code | 23153308 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Coolant Hole Diameter (mm) | 6.40 |
| Body Diameter | 1.2500 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 69571982 |
