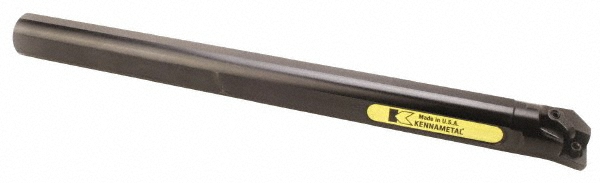

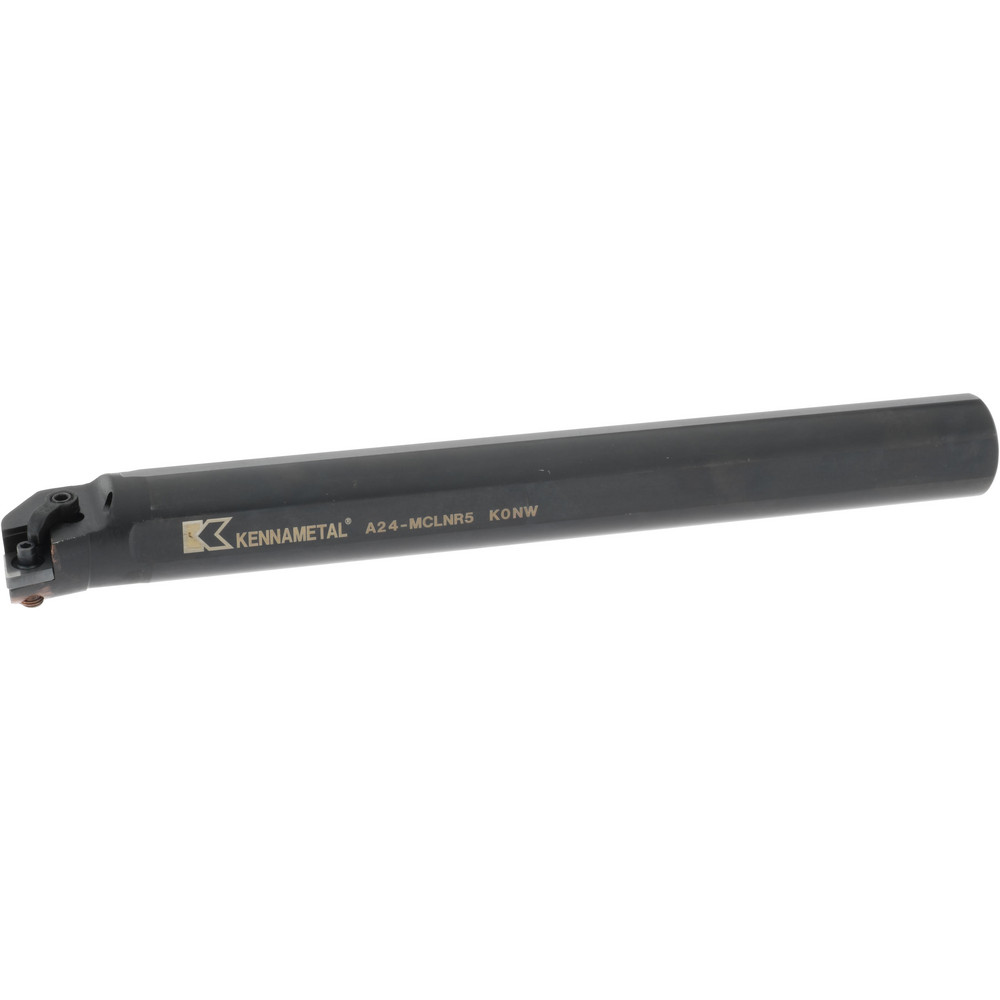

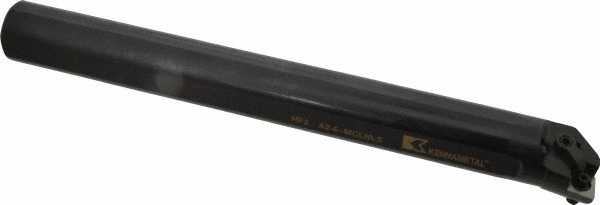

355.60 mm OAL, Screw & Clamp, Uses CN.. Inserts
| Minimum Bore Diameter (mm) | 44.70 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
| Toolholder Style | A-MCFN |
| Tool Material | Steel |
| Insert Compatibility | CN.. |
| Shank Diameter (mm) | 38.10 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 355.60 |
| Insert Holding Method | Screw; Clamp |
| Rake | Negative |
| Rake Angle | 5.00 |
| Series | Kenloc |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 35425172 |
