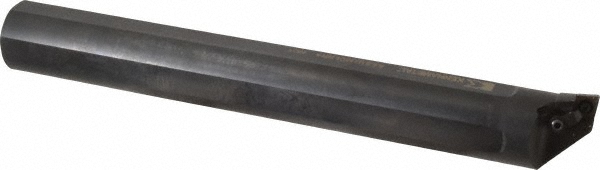

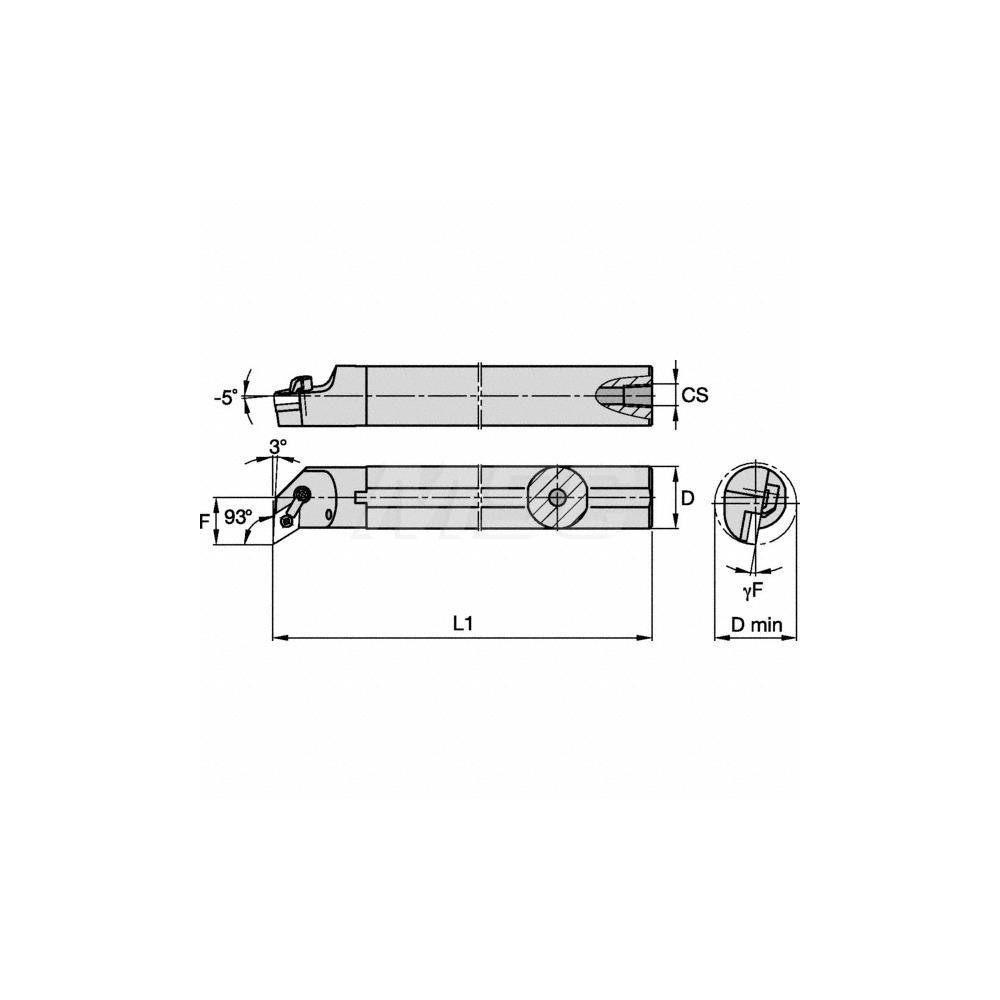

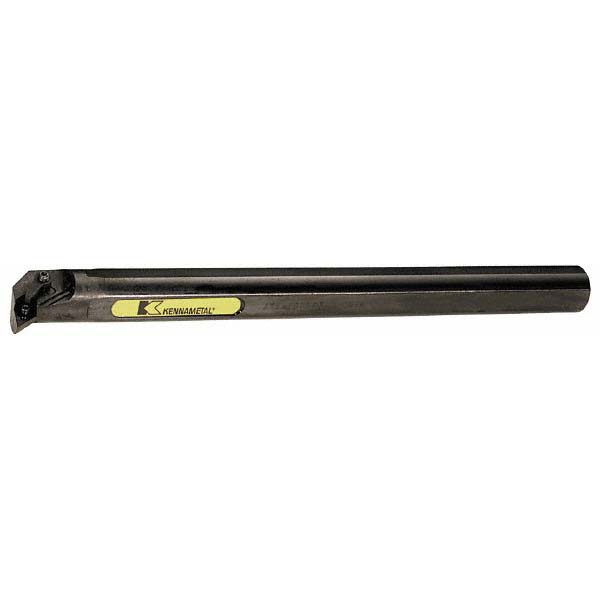

14.0000" OAL, Screw & Clamp, Uses DN.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
|---|---|
| Toolholder Style | A-MDUN |
| Tool Material | Steel |

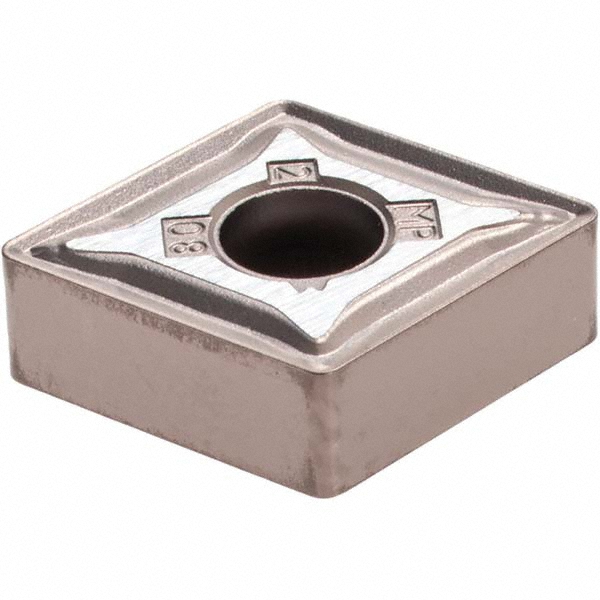

| Insert Compatibility | DN.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Insert Holding Method | Screw; Clamp |
| Rake | Negative |
| Rake Angle | 5.00 |
| Lead Angle | -3 |
| Series | Kenloc |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 48475982 |
