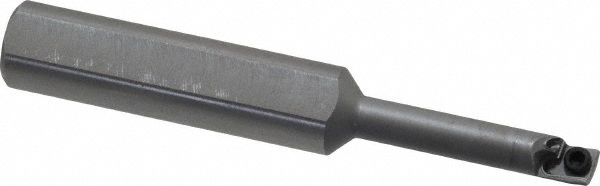

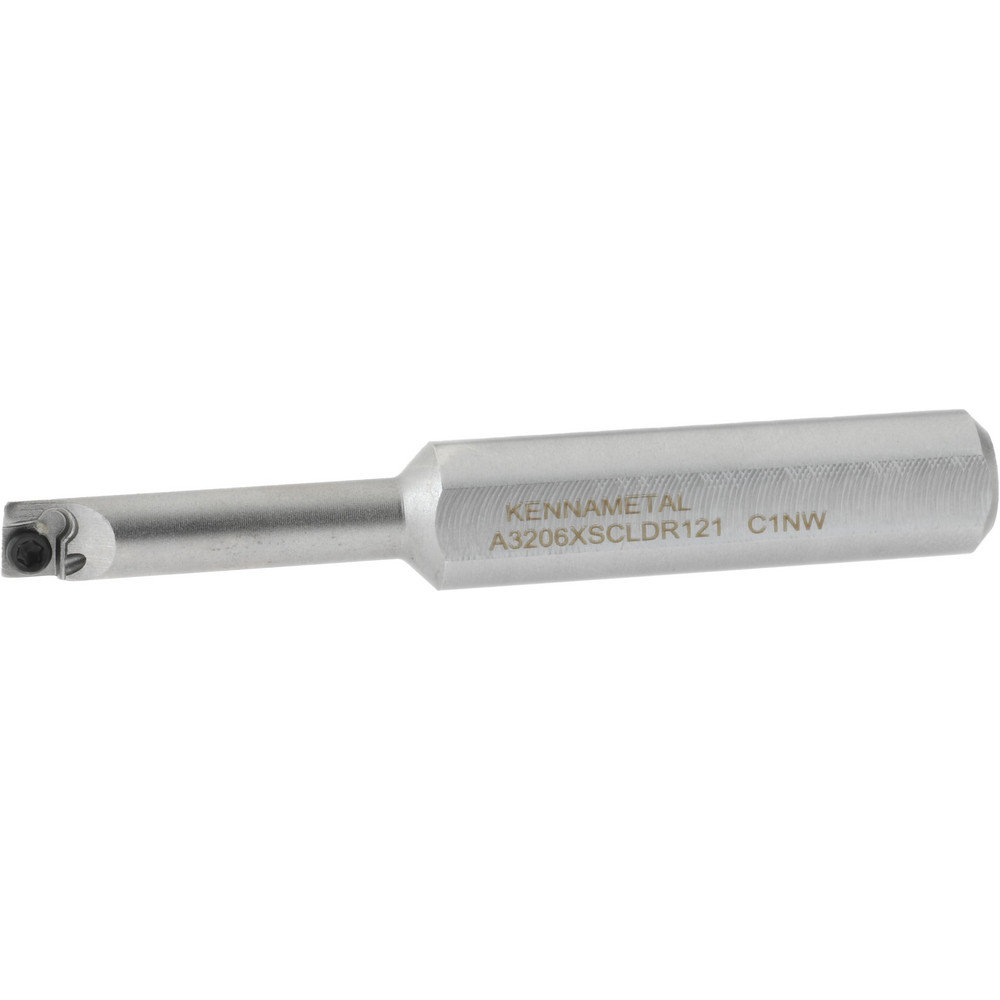

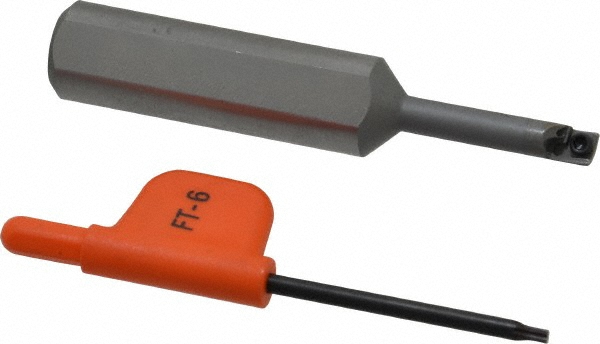

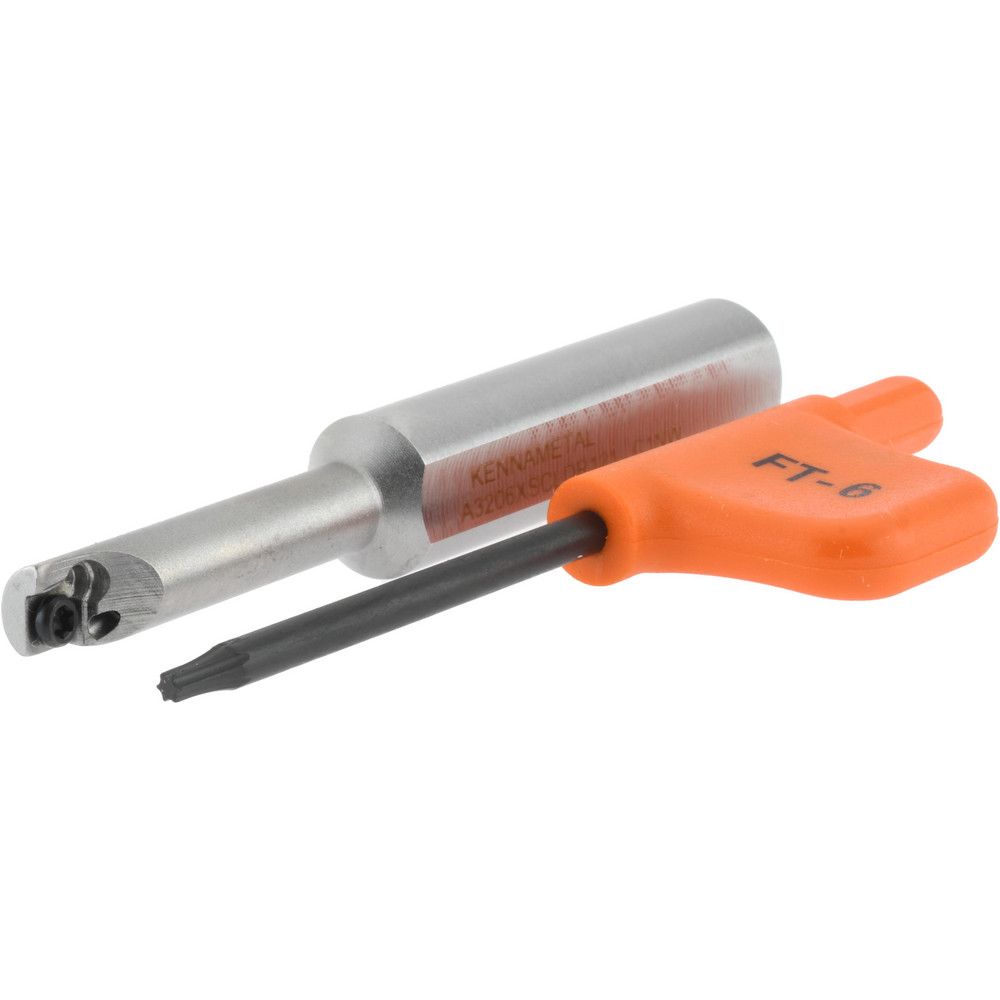

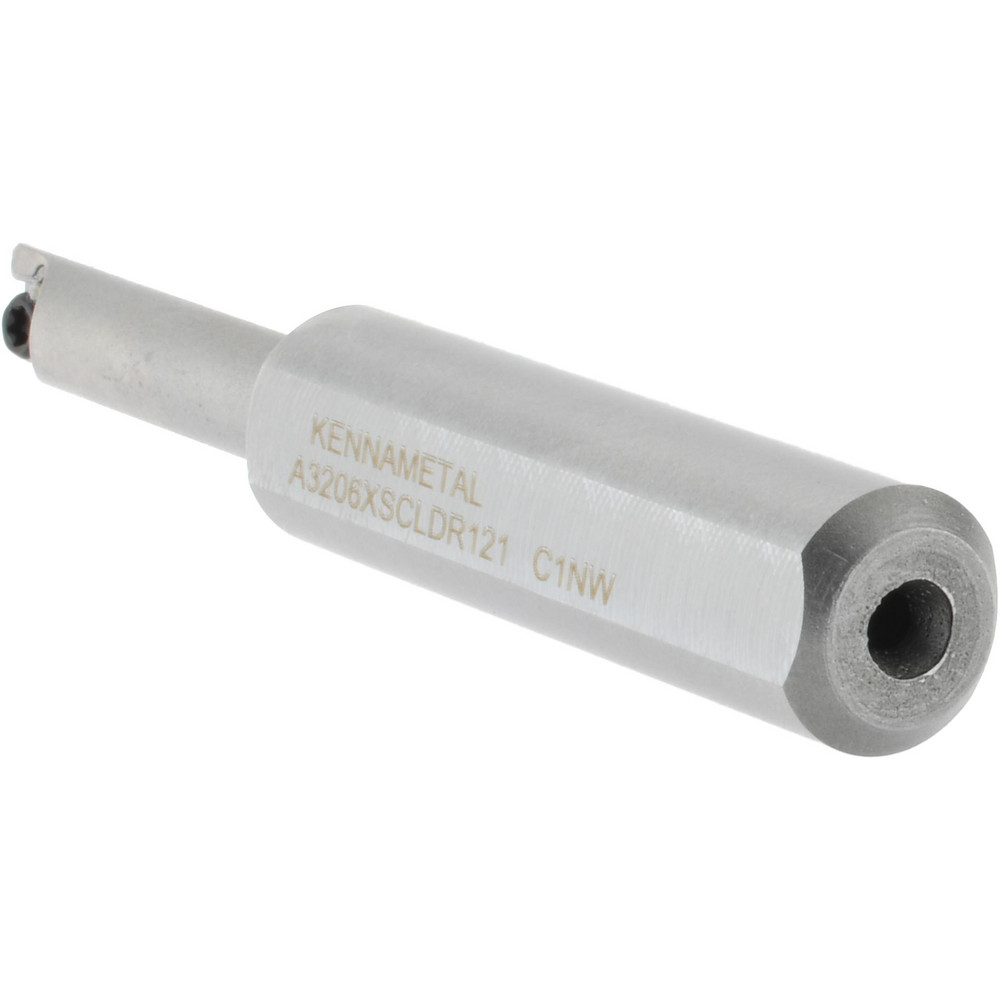

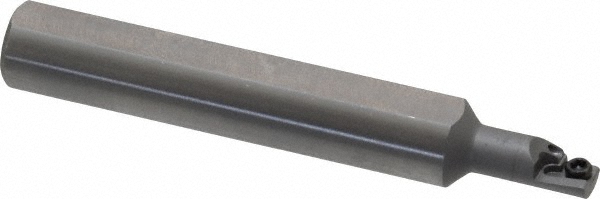

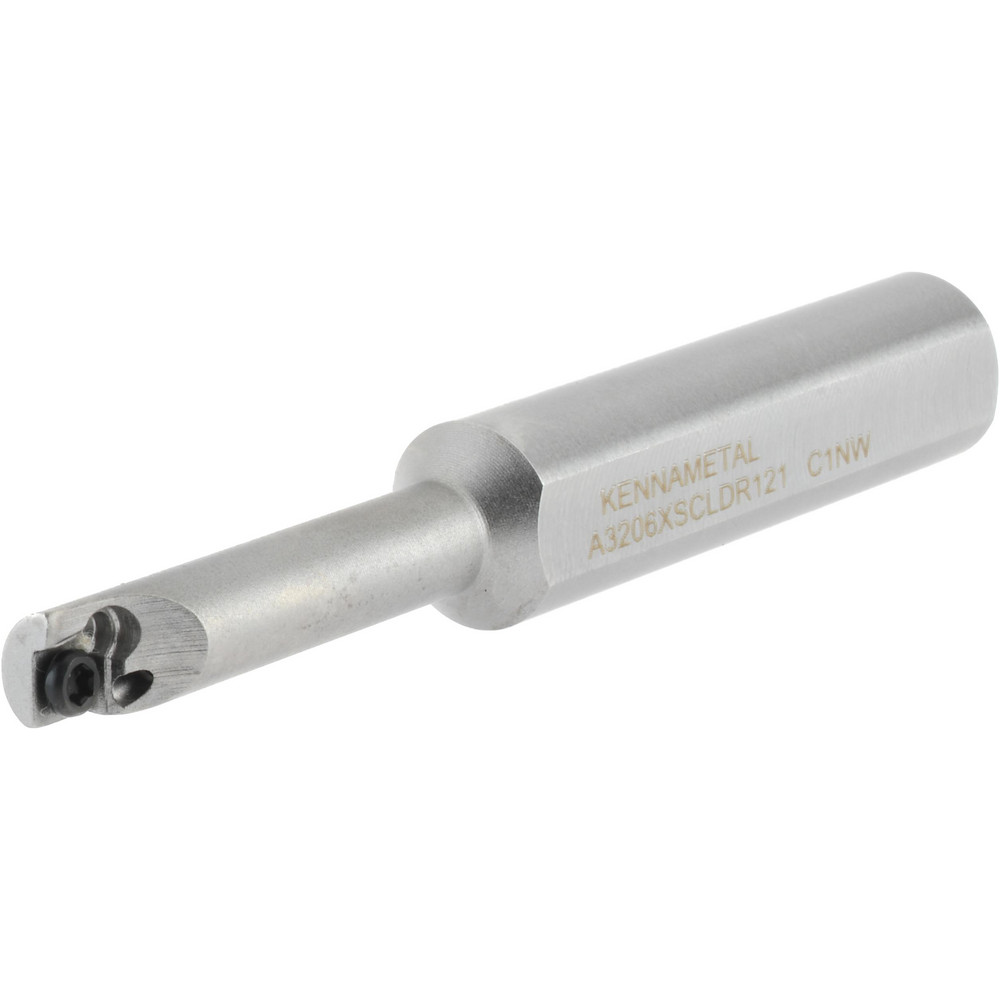

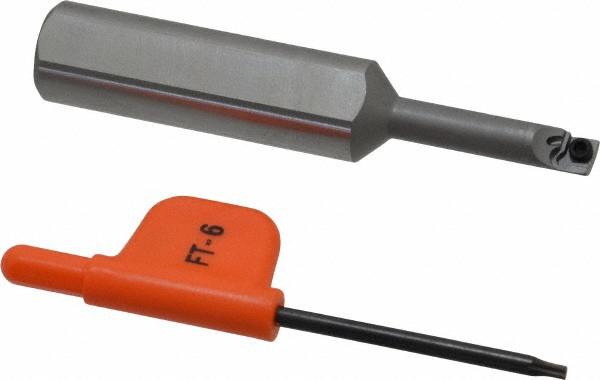

2.5000" OAL, Screw, Uses CDC Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.2300 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Maximum Bore Depth (Inch) | 1 |
| Toolholder Style | CSBI |
| Tool Material | Steel |
| Insert Compatibility | CDC |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |

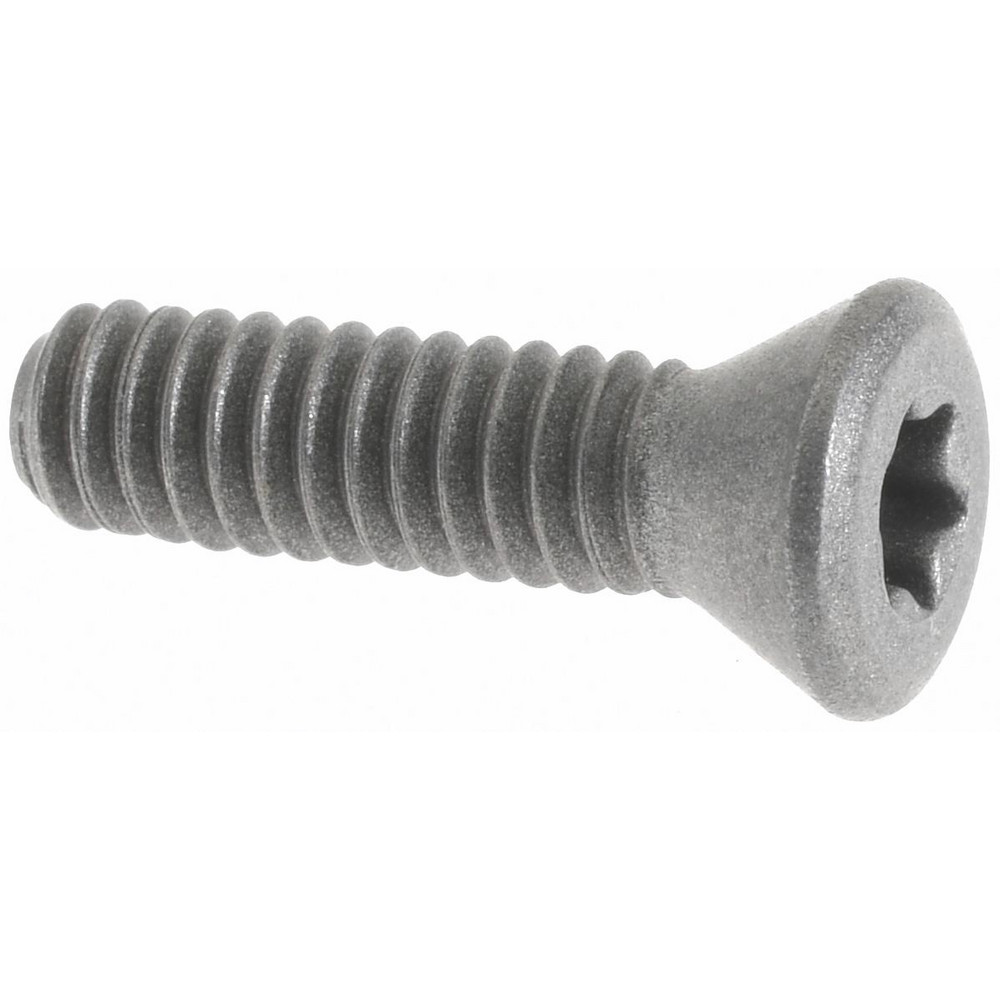

| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 5 |
| Series | C |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.1160 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Manufacturers Catalog Number | A3206XSCLDR121 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 59868208 |
