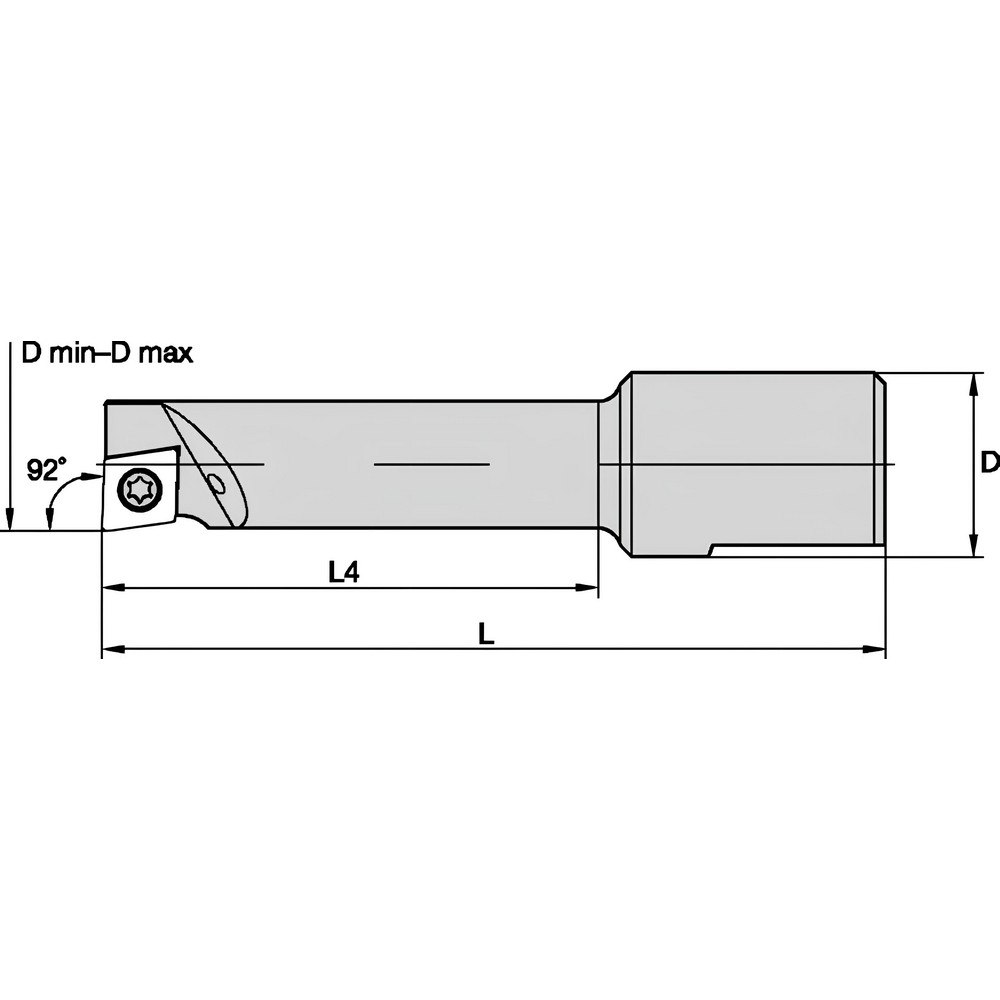

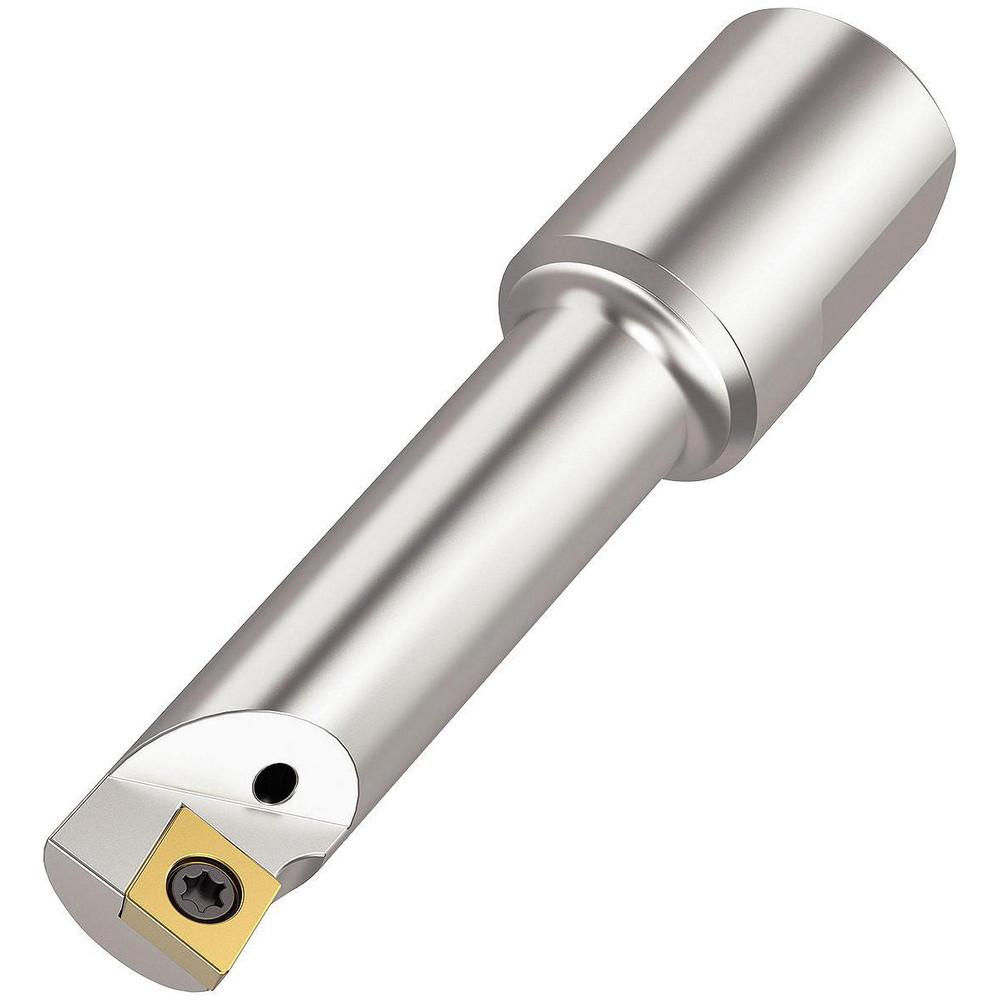

82.99 mm OAL, Screw Clamping, Uses CC..0602.. Inserts
| Minimum Bore Diameter (mm) | 15.00 |
|---|---|
| Maximum Bore Depth (mm) | 20.00 |
| Toolholder Style | BB |
| Insert Compatibility | CC..0602.. |
| Shank Diameter (mm) | 16.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 82.99 |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 92 |
| Series | eBore |
| Back of Bar to Cutting Edge (mm) | 82.99 |
| Number of Inserts Used on Toolholder | 1 |
| Maximum Bore Diameter (mm) | 20.00 |
| UNSPSC Code | 23241601 |
| Manufacturers Catalog Number | BB1560CC06 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 12256491 |
