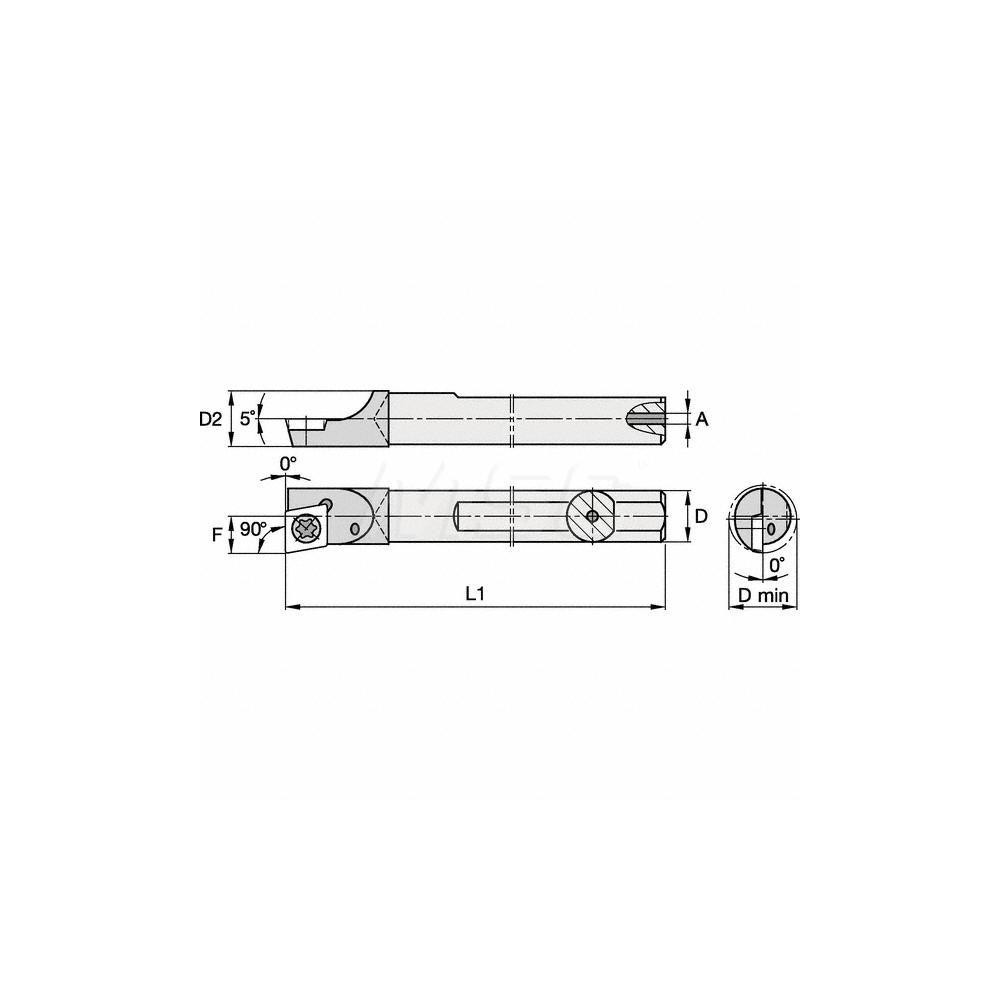

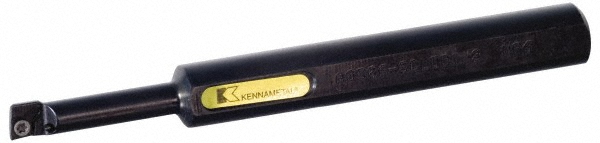

152.40 mm OAL, Screw, Uses CD.. Inserts
| Minimum Bore Diameter (mm) | 9.04 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3560 |
| Toolholder Style | E-SCFD |
| Tool Material | Solid Carbide |
| Insert Compatibility | CD.. |
| Shank Diameter (mm) | 7.93 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 5.00 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.1850 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.0930 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 86462702 |
