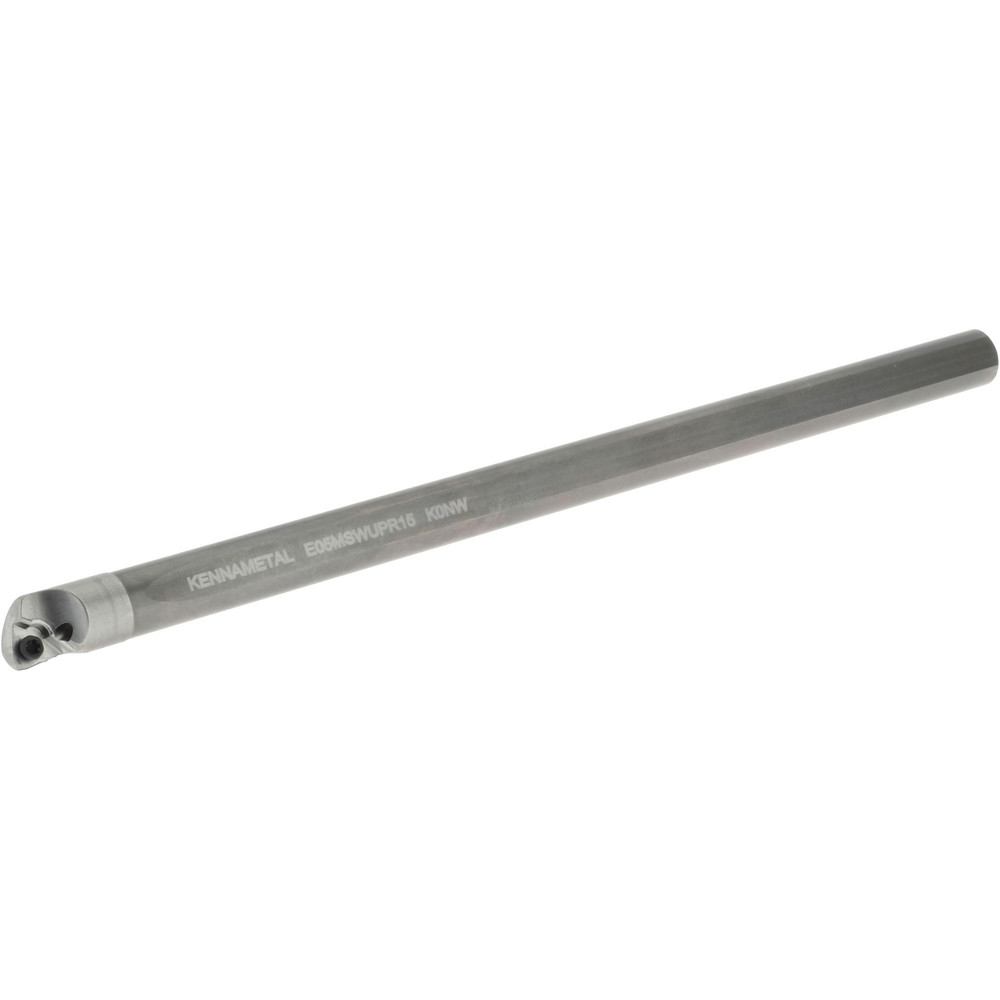

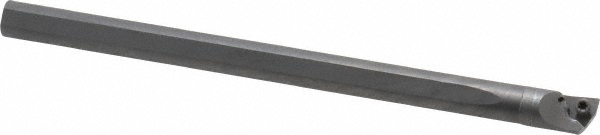

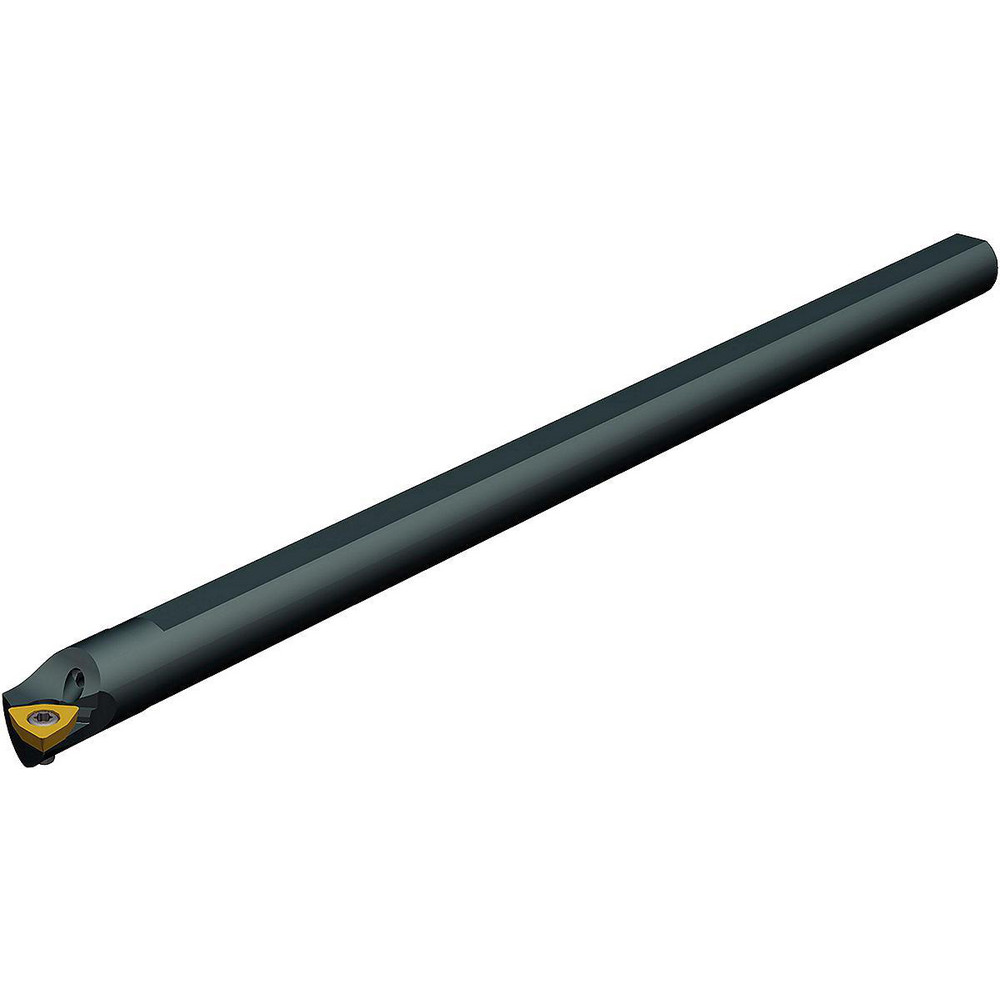

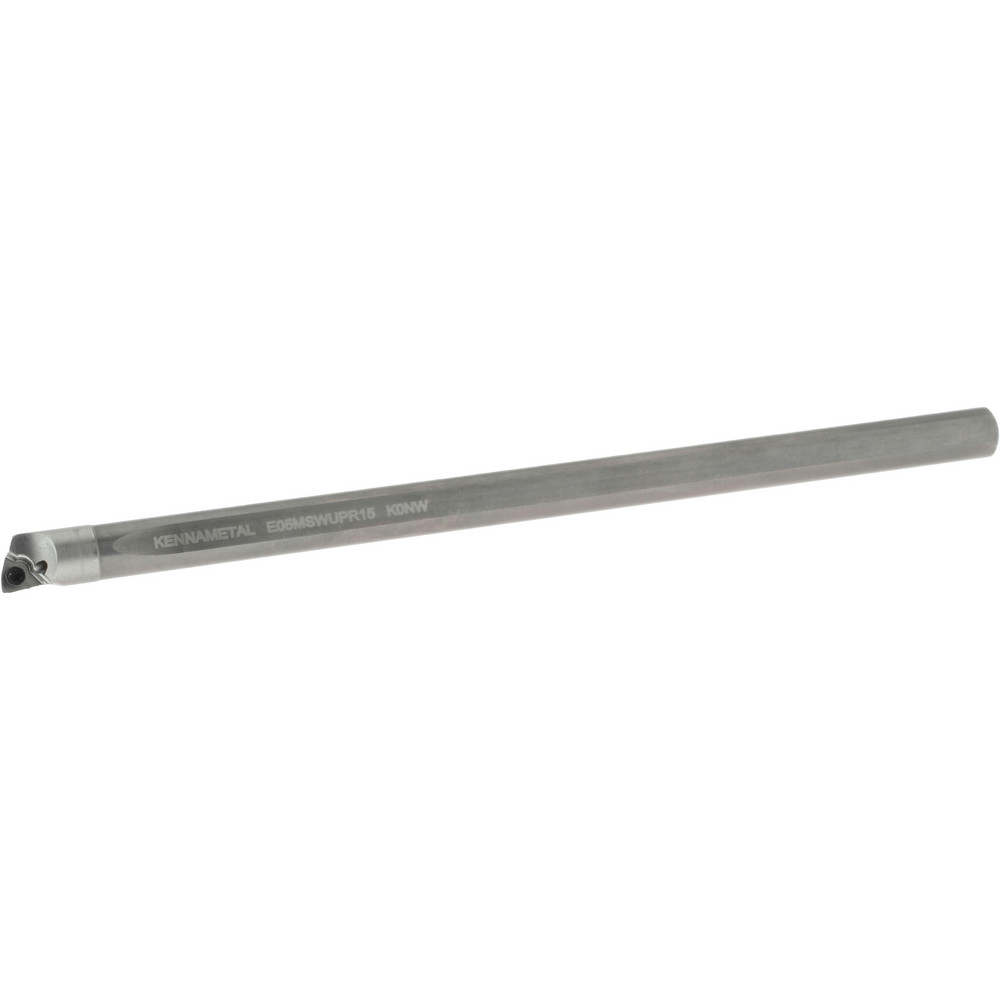

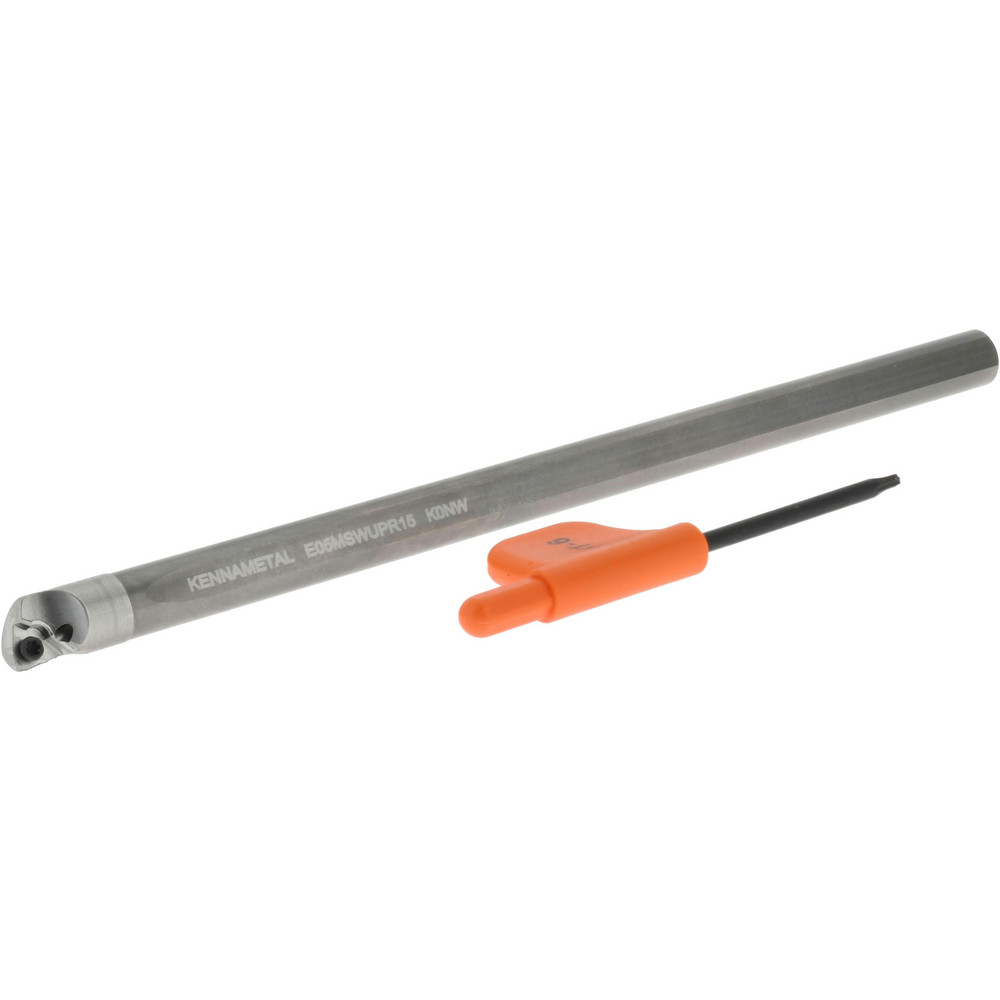

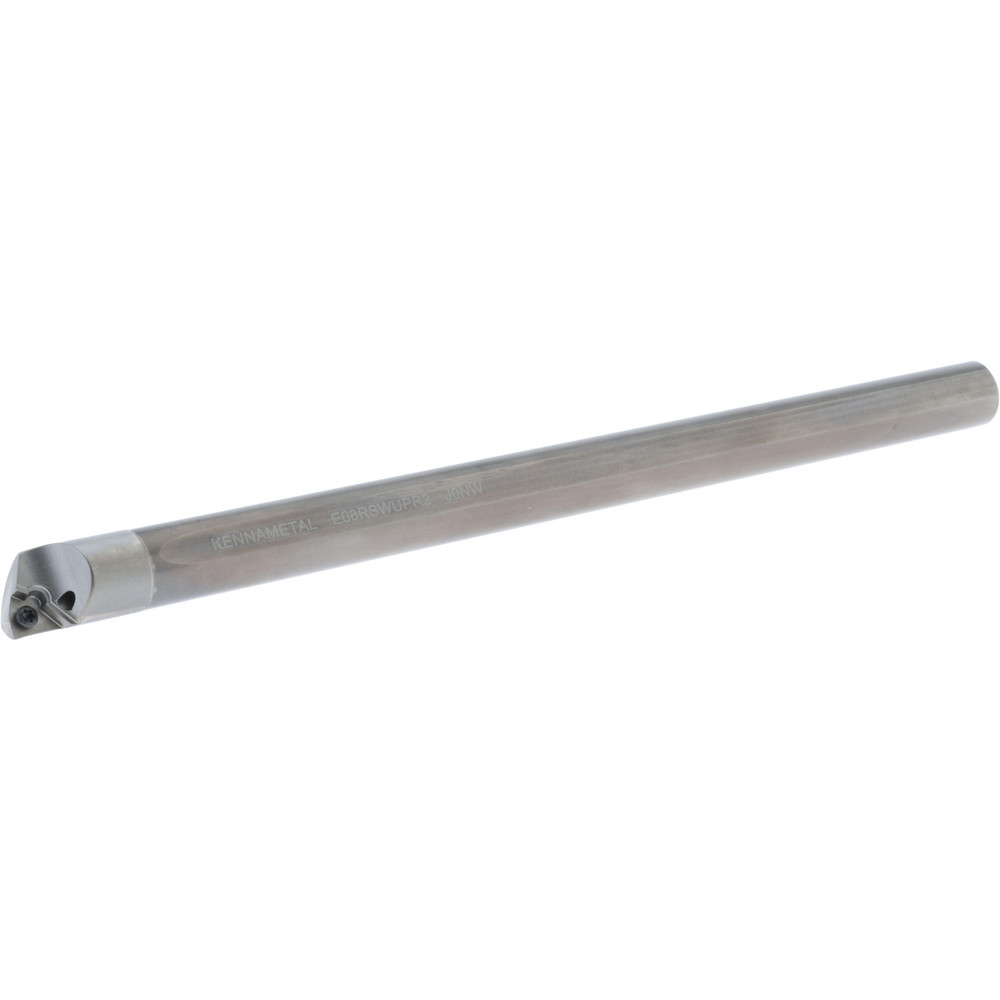

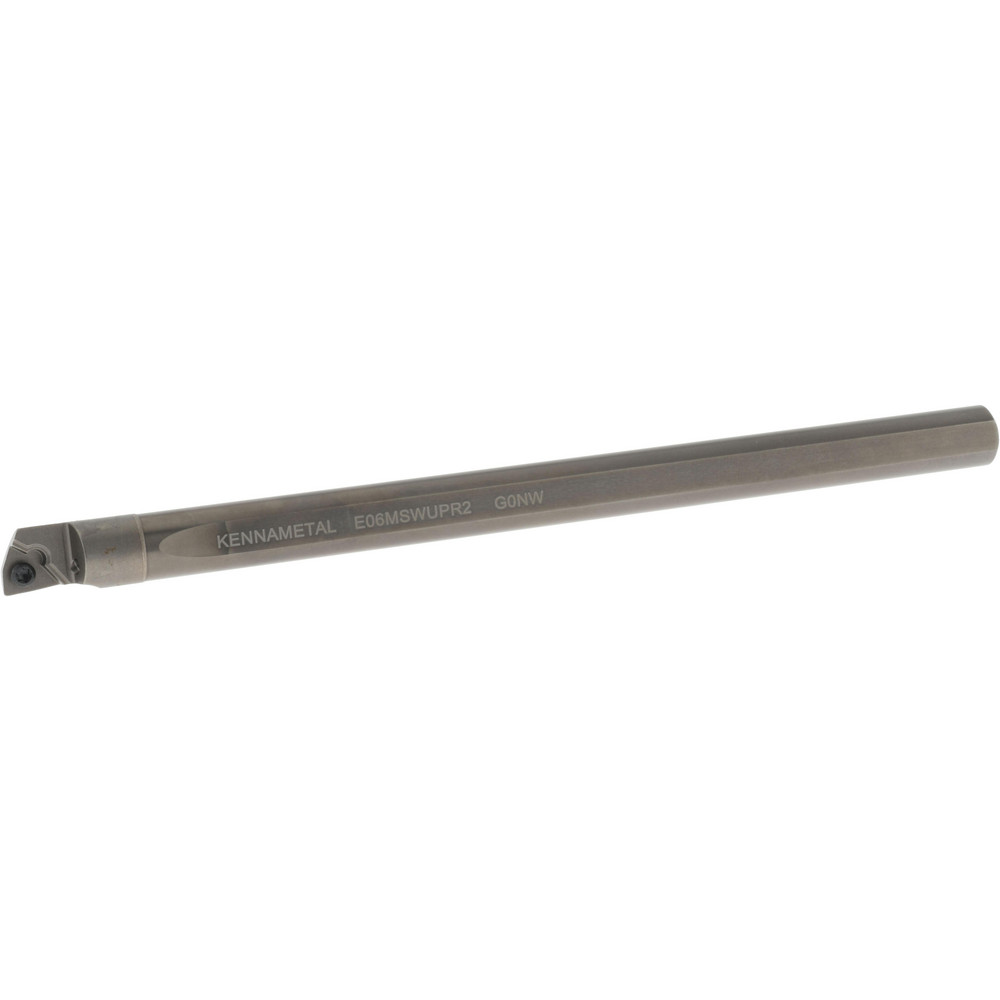

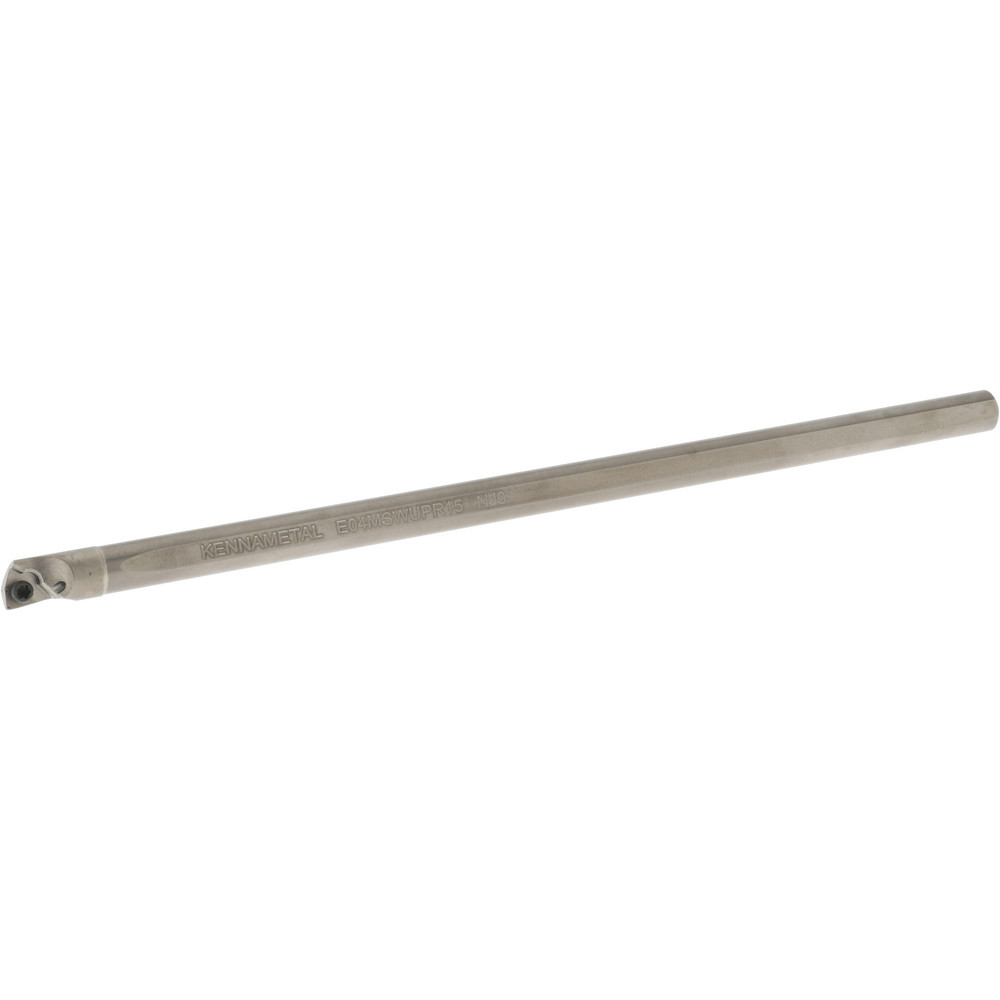

6.0000" OAL, Screw, Uses WP.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.3470 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 3.1200 |
| Toolholder Style | GCBIW |
| Tool Material | Steel (Head); Solid Carbide (Shank) |

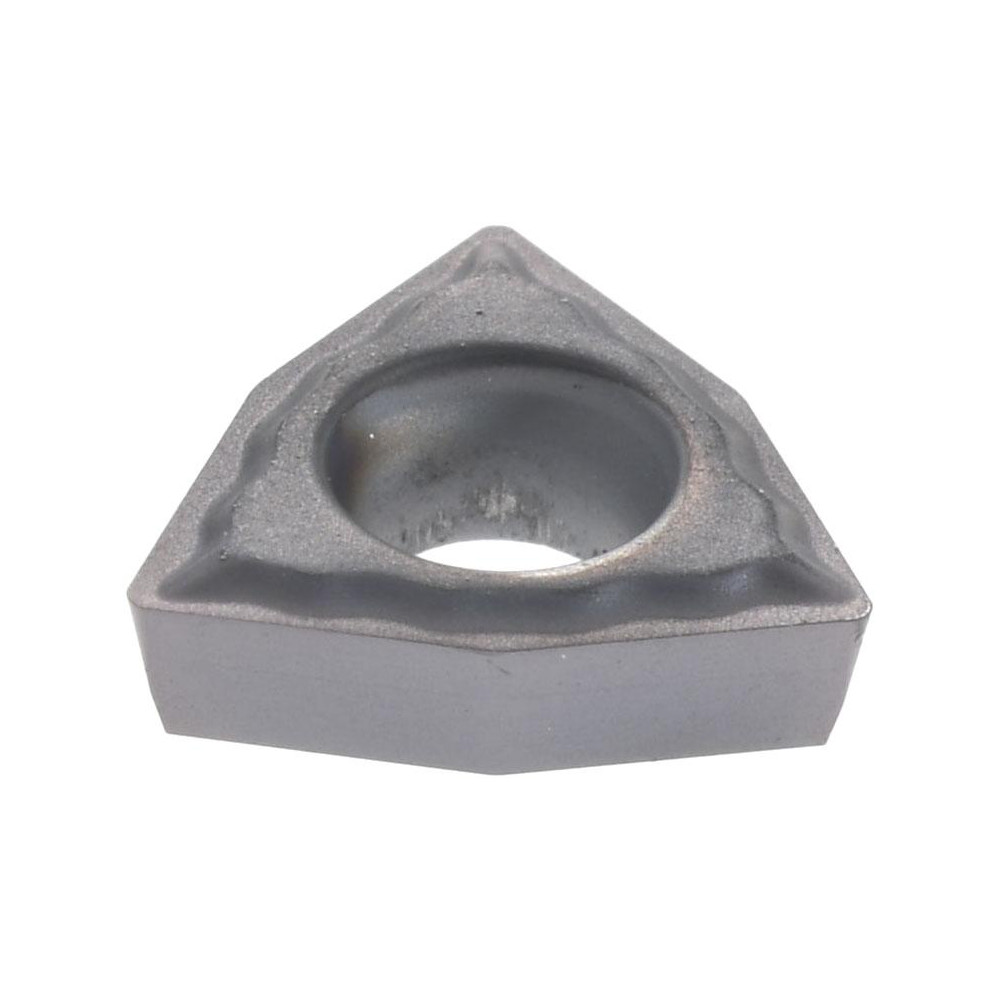

| Insert Compatibility | WP.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 3 |
| Series | G |
| Insert Inscribed Circle (Decimal Inch) | 0.1870 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.1740 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0620 |
| Coolant Hole Diameter (Decimal Inch) | 0.0930 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 08614844 |
