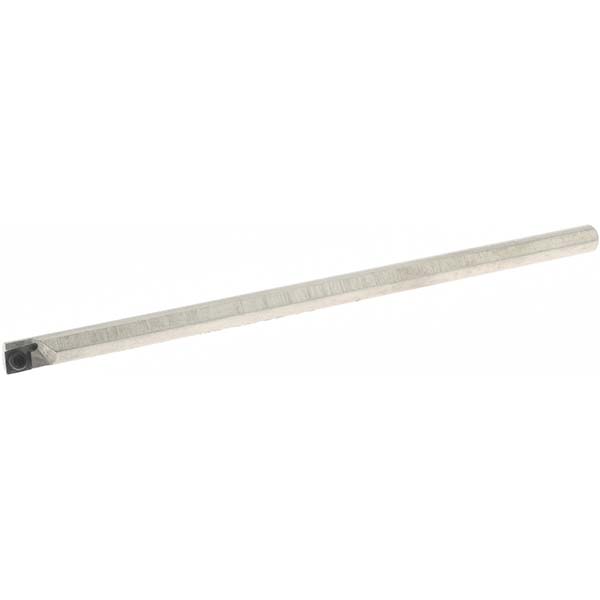

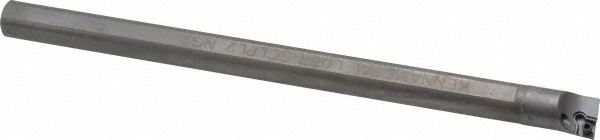

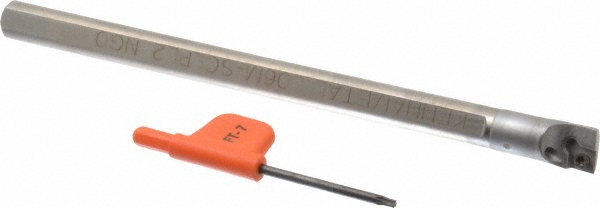

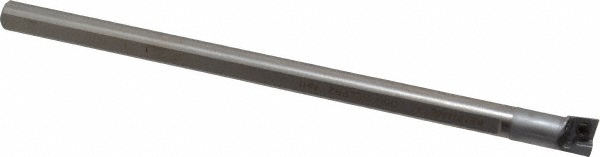

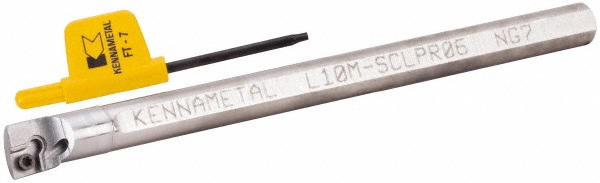

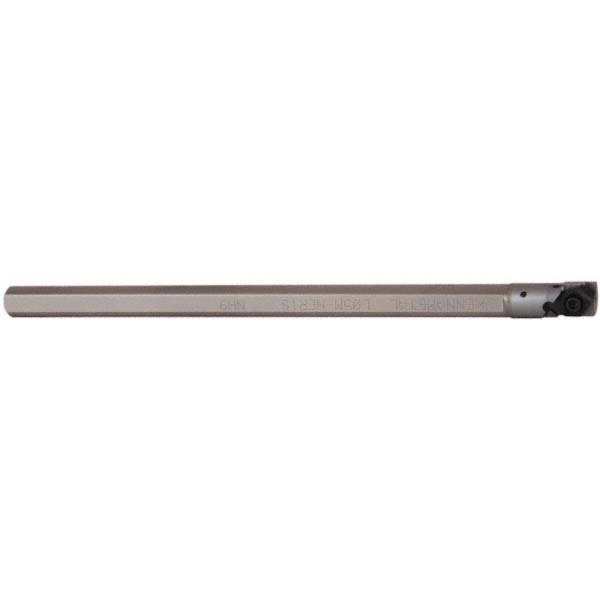

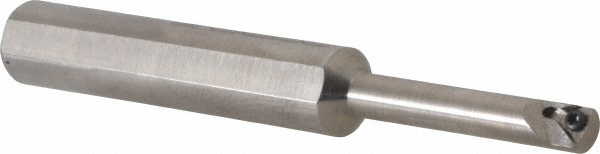

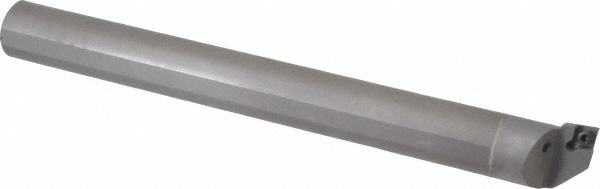

149.20 mm OAL, Screw, Uses CP.. 060204 Inserts
| Minimum Bore Diameter (mm) | 13.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Maximum Bore Depth (Decimal Inch) | 0.8524 |
| Maximum Bore Depth (mm) | 21.65 |
| Toolholder Style | L-SCLP |
| Tool Material | Heavy Metal |
| Insert Compatibility | CP.. 060204 |
| Shank Diameter (mm) | 10.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 5.8740 |
| Overall Length (mm) | 149.20 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Center to Cutting Edge (mm) | 7.00 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.1252 |
| Coolant Hole Diameter (mm) | 3.18 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 00774489 |
