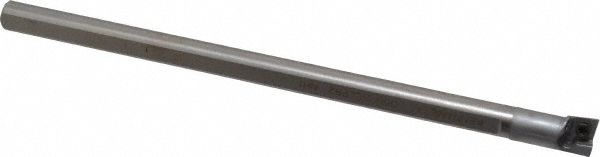

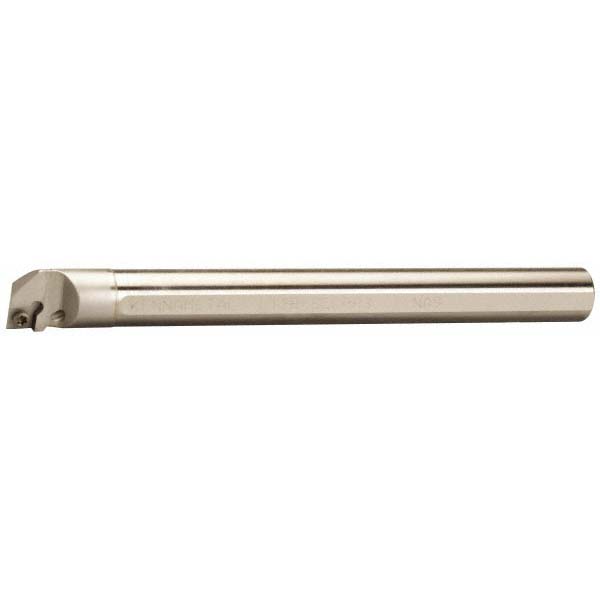

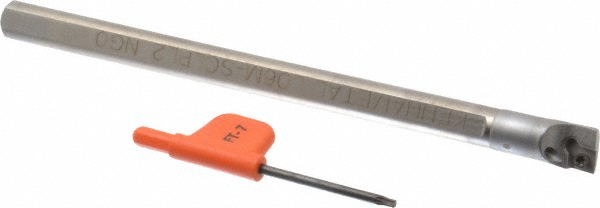

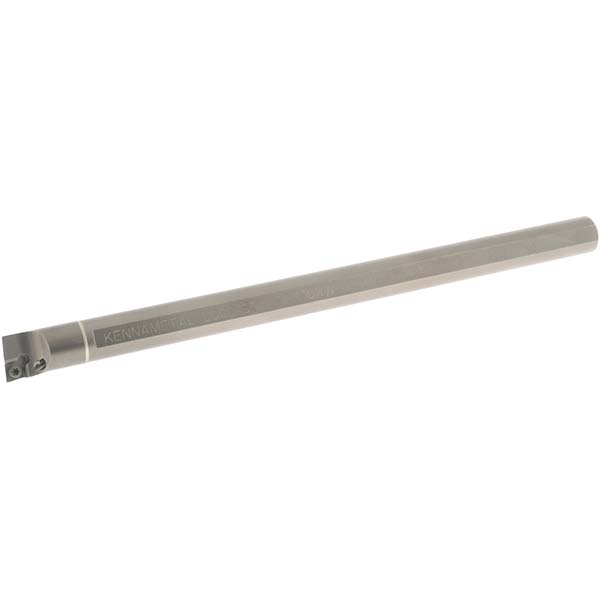

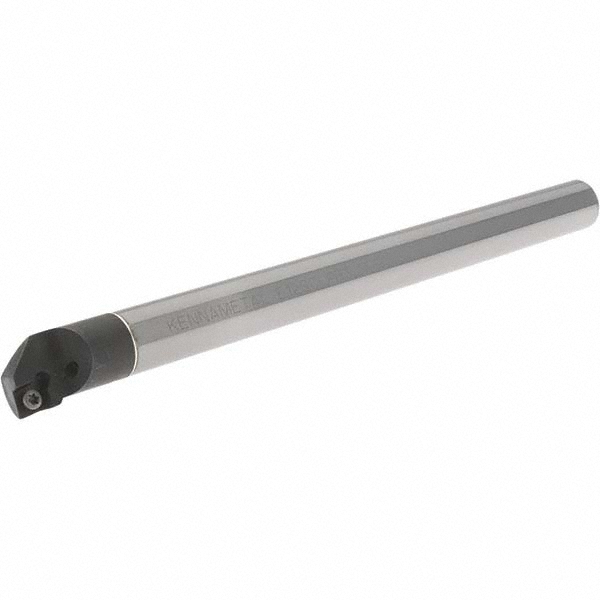

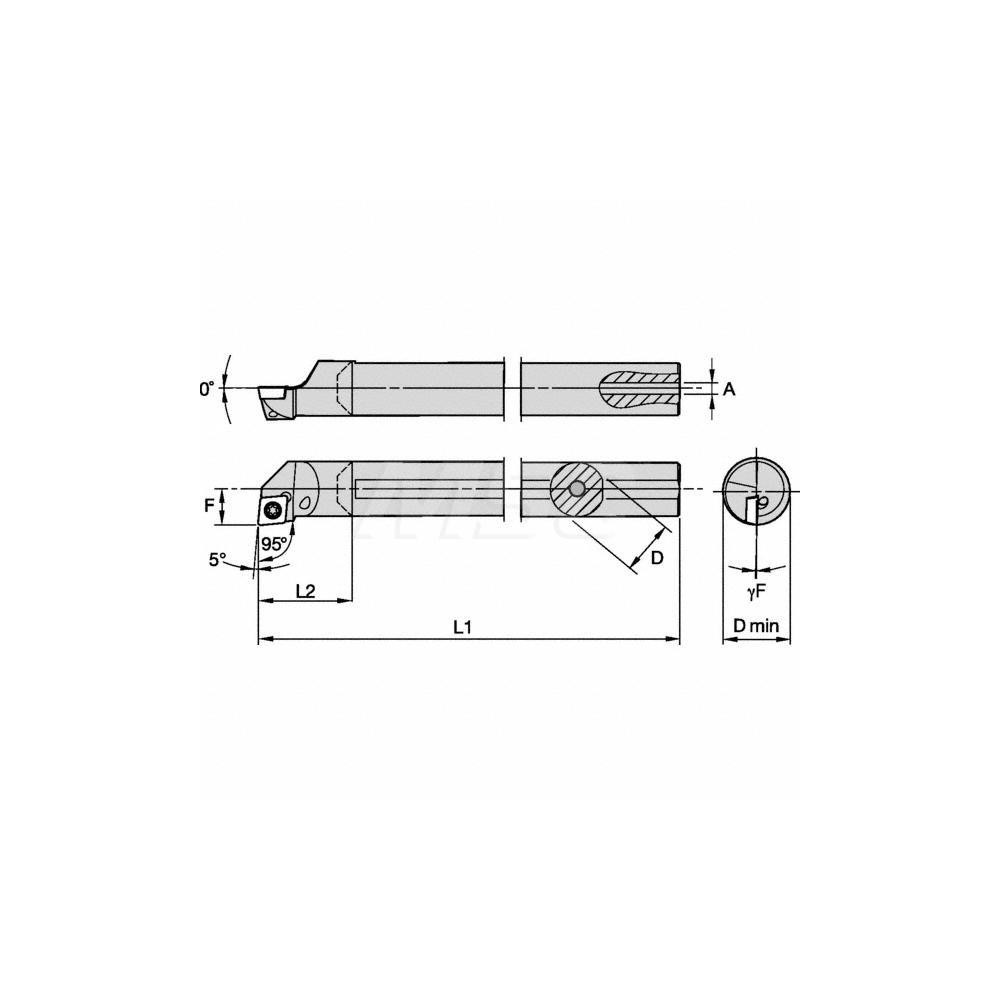

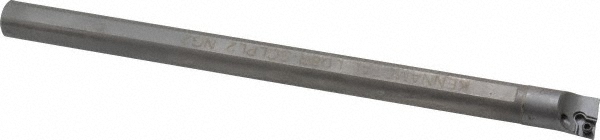

7.9600" OAL, Screw, Uses CP.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.9300 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.3000 |
| Toolholder Style | L-SCLP |
| Tool Material | Heavy Metal |

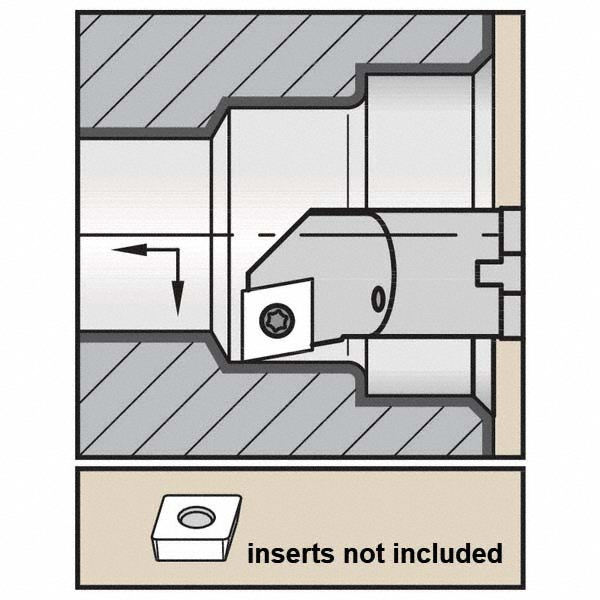

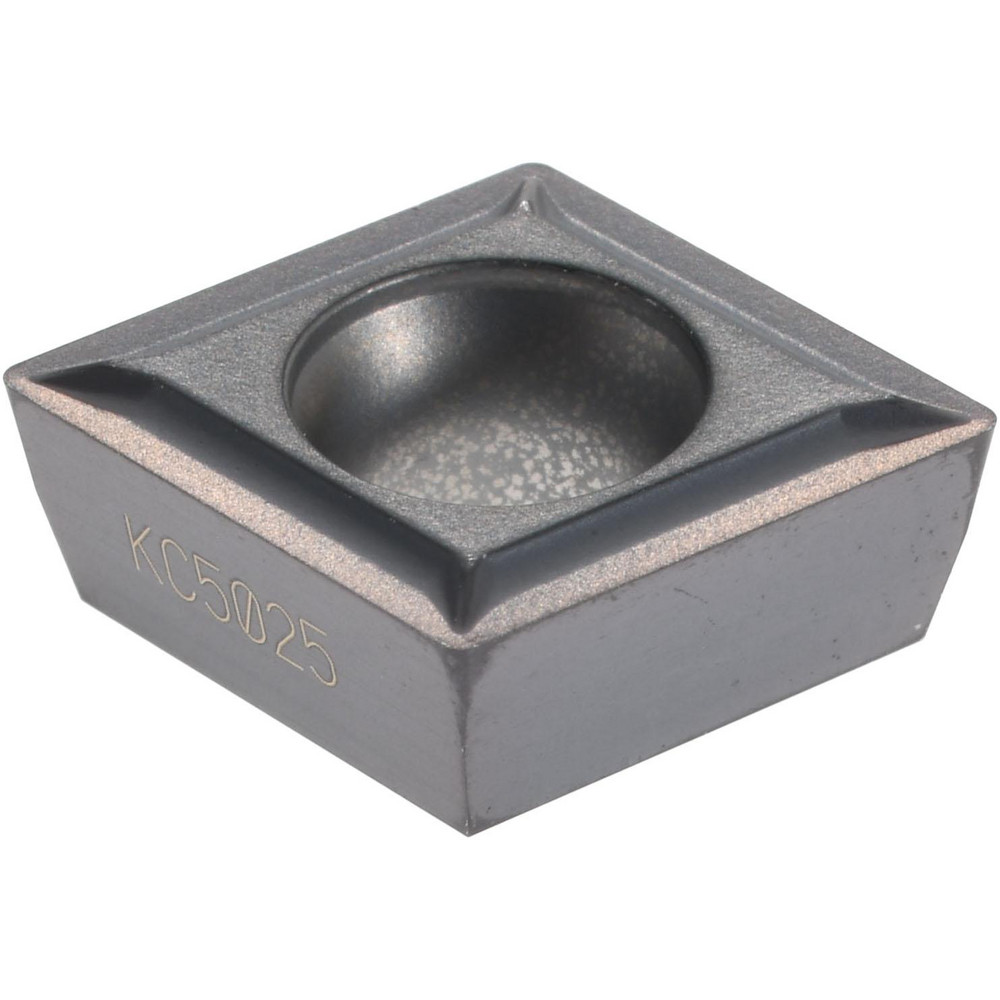

| Insert Compatibility | CP.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 7.9600 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 5/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 93755817 |
