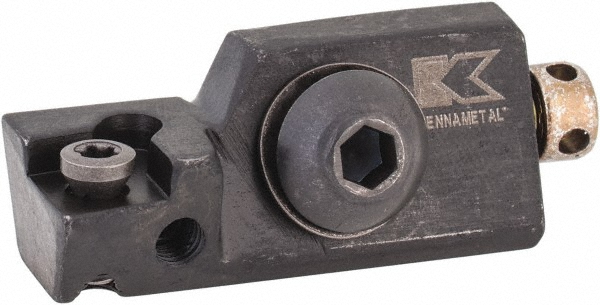

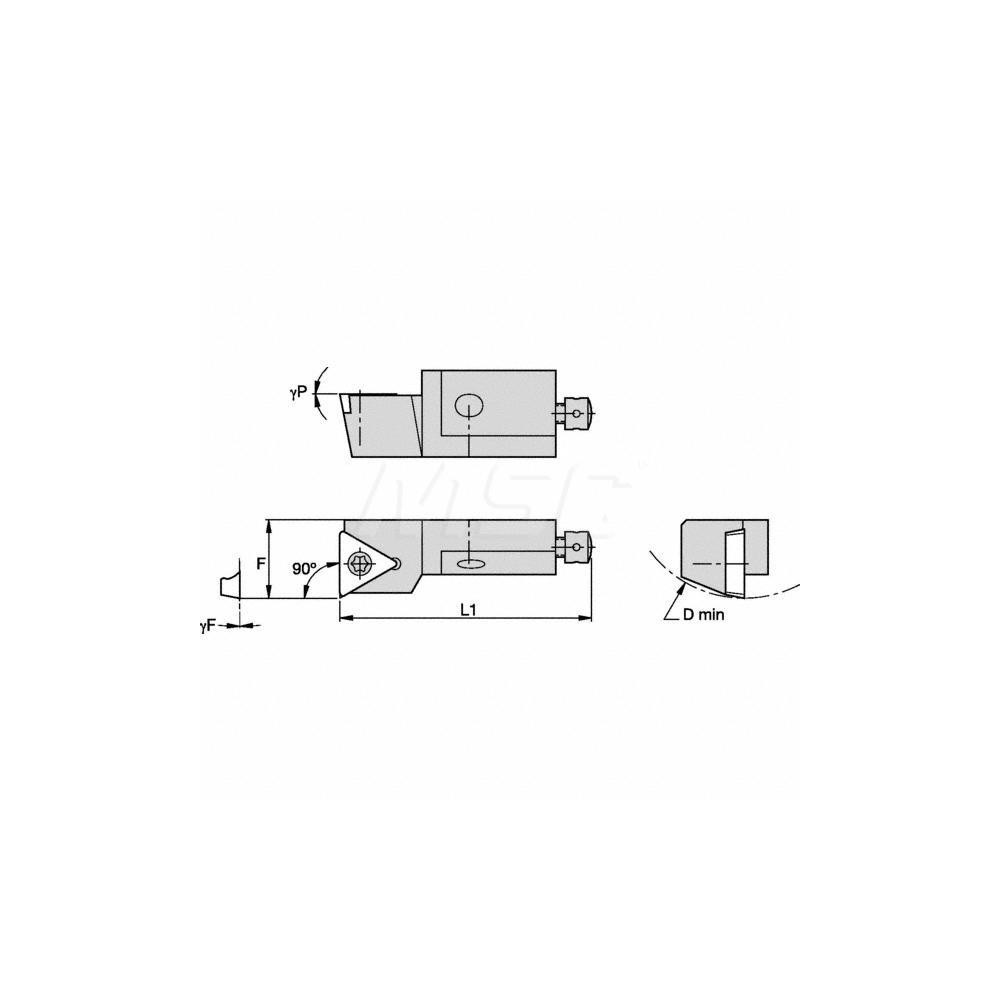

Cartridge Size 8, Uses TP.. Inserts
| Minimum Bore Diameter (mm) | 25.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.9840 |
| Compatible Insert Style | TP.. |
| Cutting Direction | Right Hand |
| Cartridge Size | 08 |
| Mount Bars | Angular |
| Series | Screw-On |
| Overall Length (Decimal Inch) | 1.2600 |
| Back Of Bar To Cutting Edge | 0.3940 in |
| Complete Insert Compatibility | TP.. 090204; TP.. 18151 |
| UNSPSC Code | 23291900 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 57116519 |
