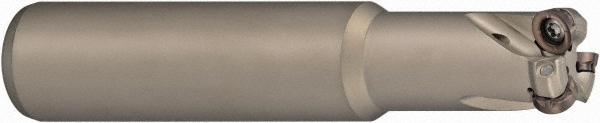

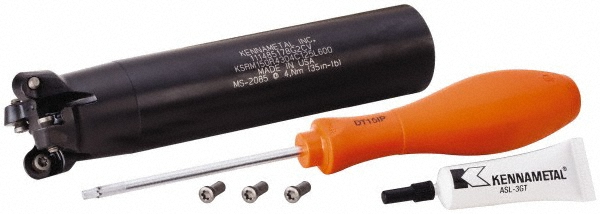

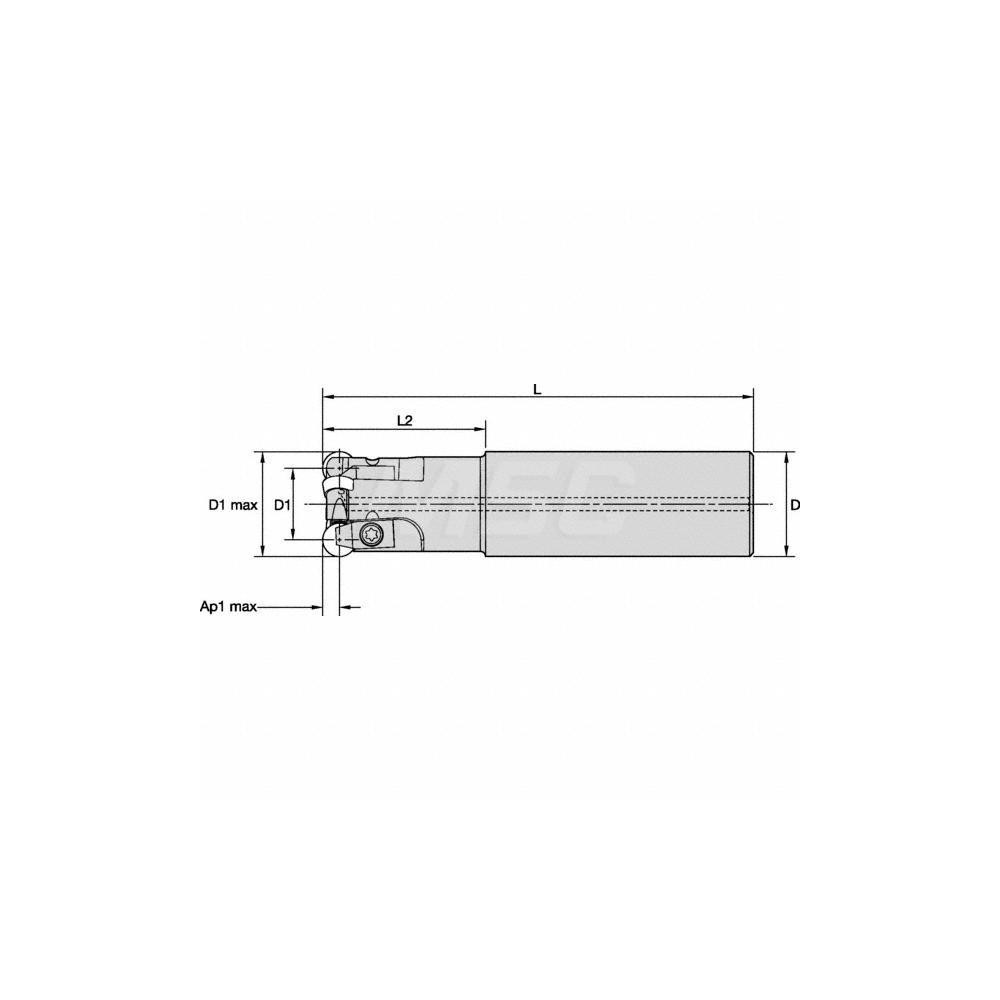

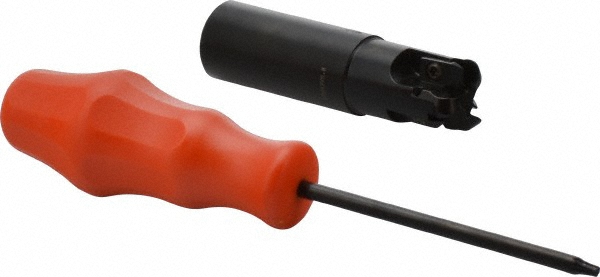

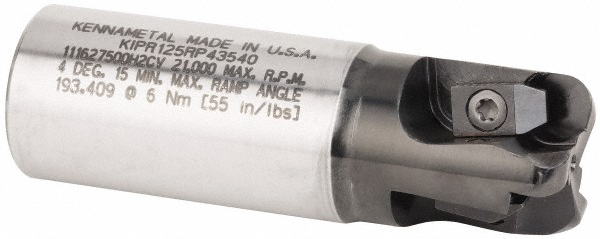

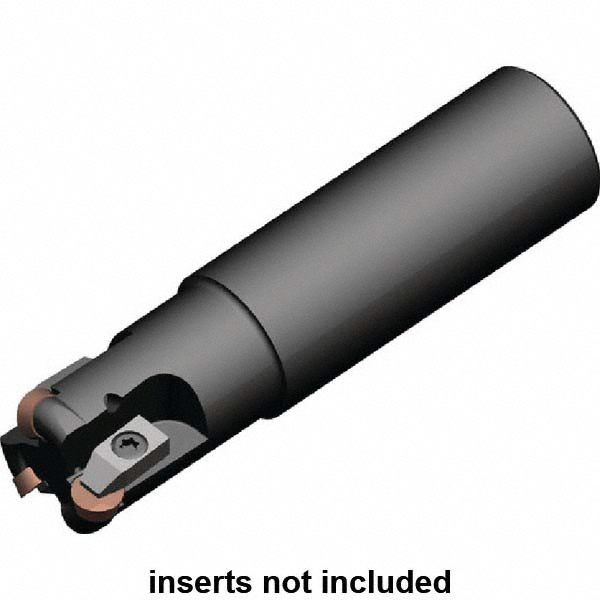

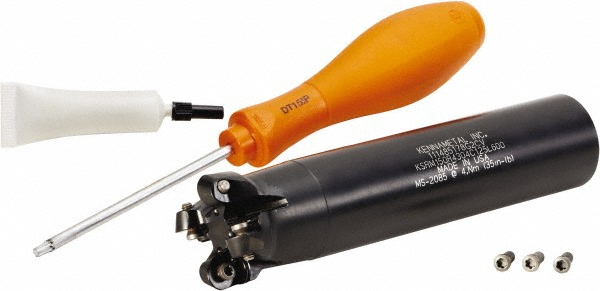

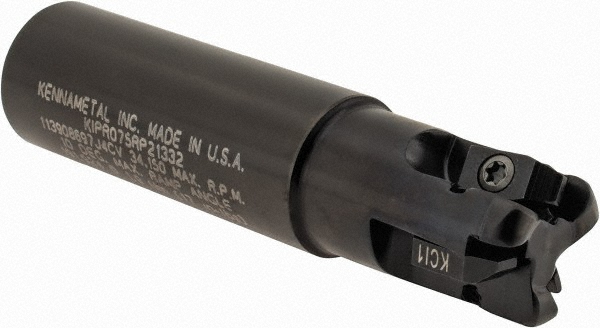

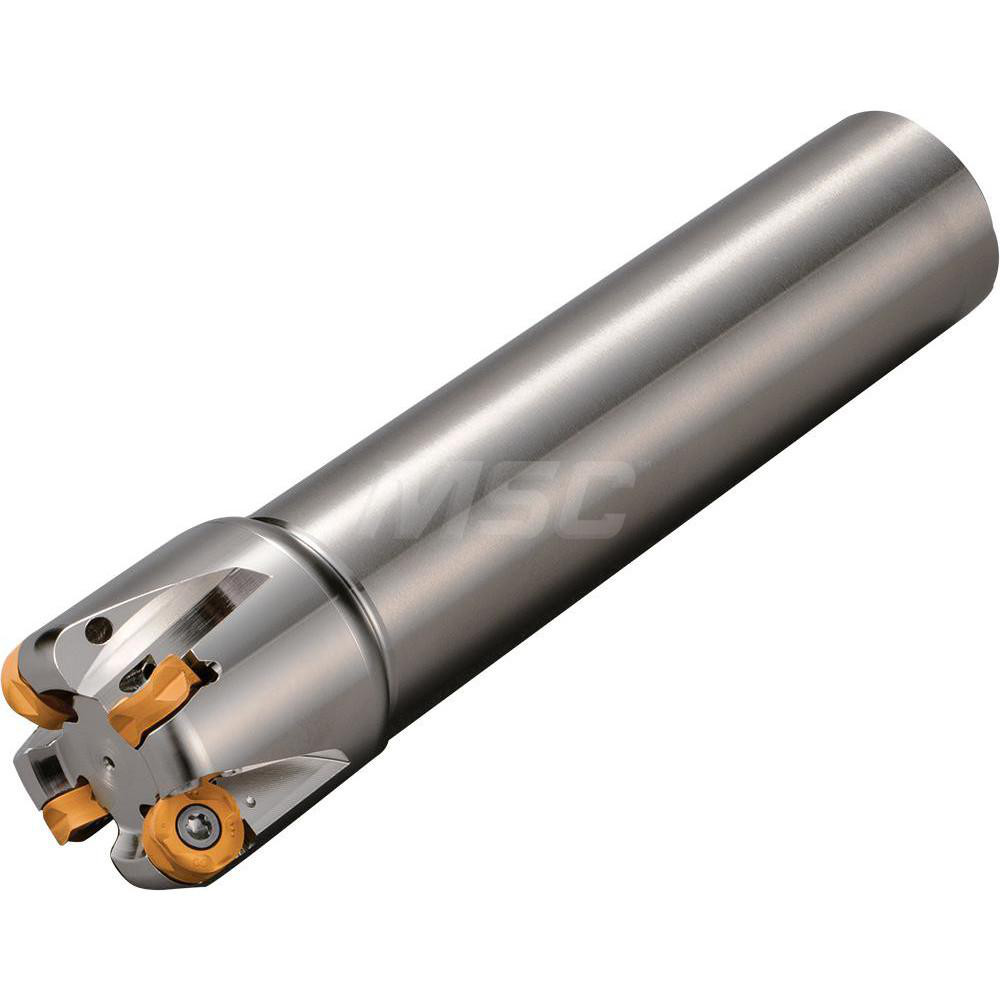

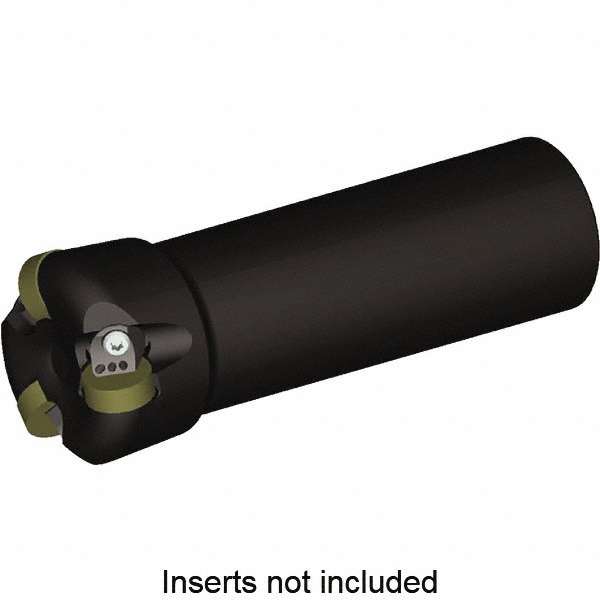

Uses 3 RP.. 43.. Inserts, Cylindrical Shank, 5" OAL
| Cutting Diameter (mm) | 38.10 |
|---|---|
| Minimum Cutting Diameter (mm) | 25.63 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.2490 |
| Maximum Depth of Cut (mm) | 6.32 |
| Toolholder Style | KIPR |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 38.10 |
| Compatible Insert Style | RP.. 43.. |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 3 |
| Overall Length (Inch) | 5 |
| Overall Length (mm) | 139.70 |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | KIPR |
| Maximum Rpm | 19500 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Head Length (mm) | 88.90 |
| Head Length (Decimal Inch) | 3.5000 |
| Insert Diameter (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 1-1/2 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 40116253 |
