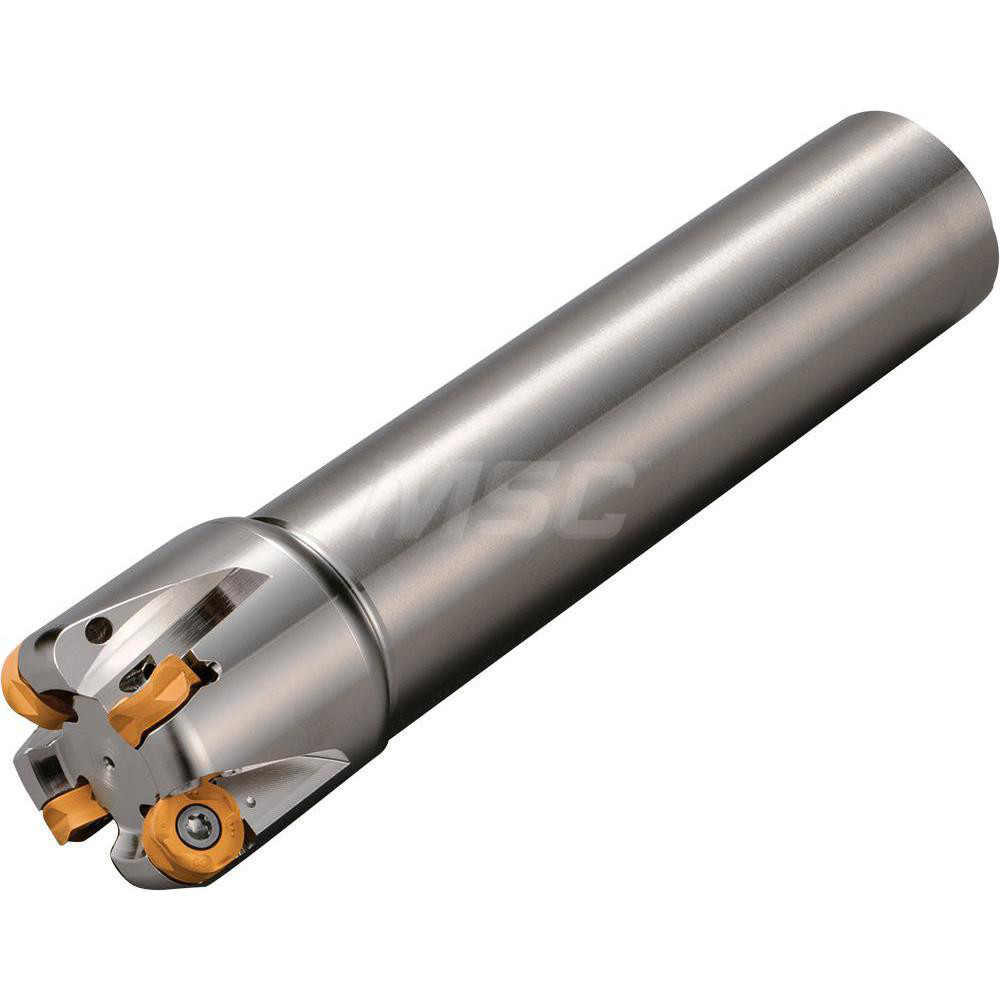

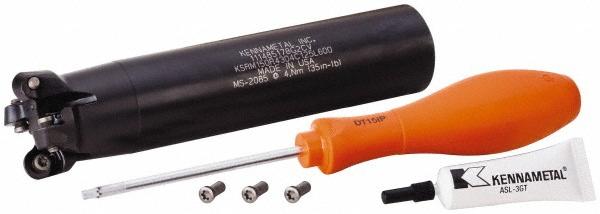

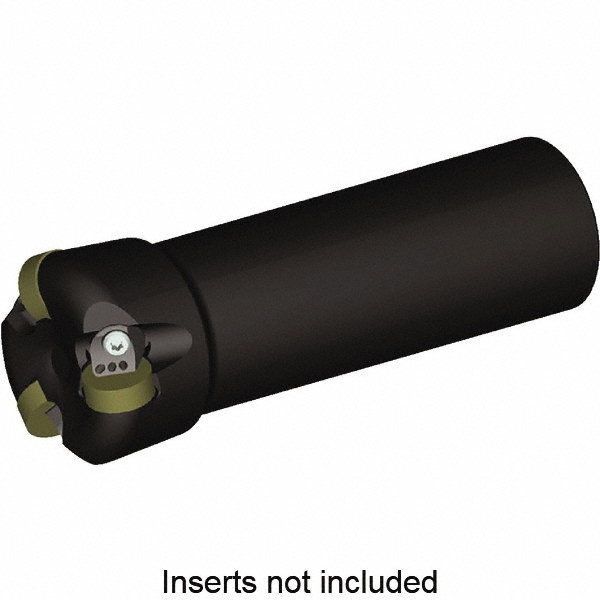

Uses 4 RP.T 43.. Inserts, Cylindrical Shank, 10" OAL
| Cutting Diameter (mm) | 38.10 |
|---|---|
| Minimum Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Toolholder Style | KSRM |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.75 |
| Compatible Insert Style | RP.T 43.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Inch) | 10 |
| Overall Length (mm) | 254.00 |
| Overall Length (Decimal Inch) | 10.0000 |
| Series | KSRM |
| Maximum Rpm | 38600 |
| Shank Length (mm) | 215.90 |
| Shank Length (Decimal Inch) | 8.5000 |
| Head Length (Inch) | 1-1/2 |
| Head Length (mm) | 38.10 |
| Head Length (Decimal Inch) | 1.5000 |
| Insert Diameter (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 1-1/2 |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 46866315 |
