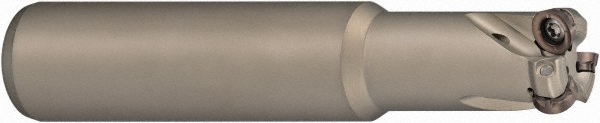

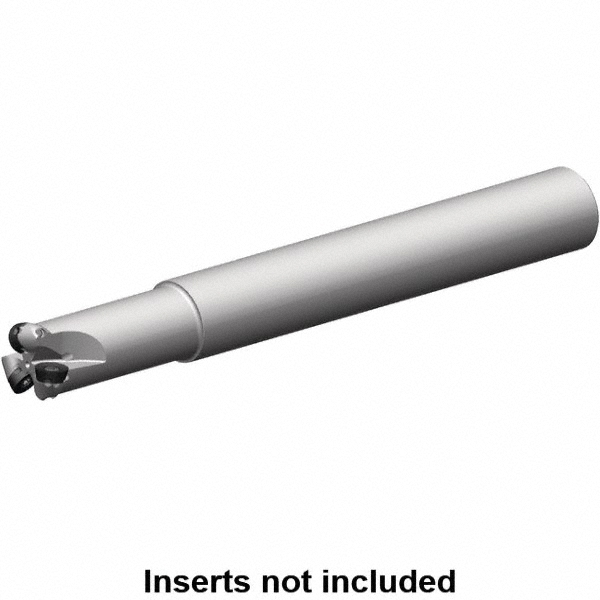

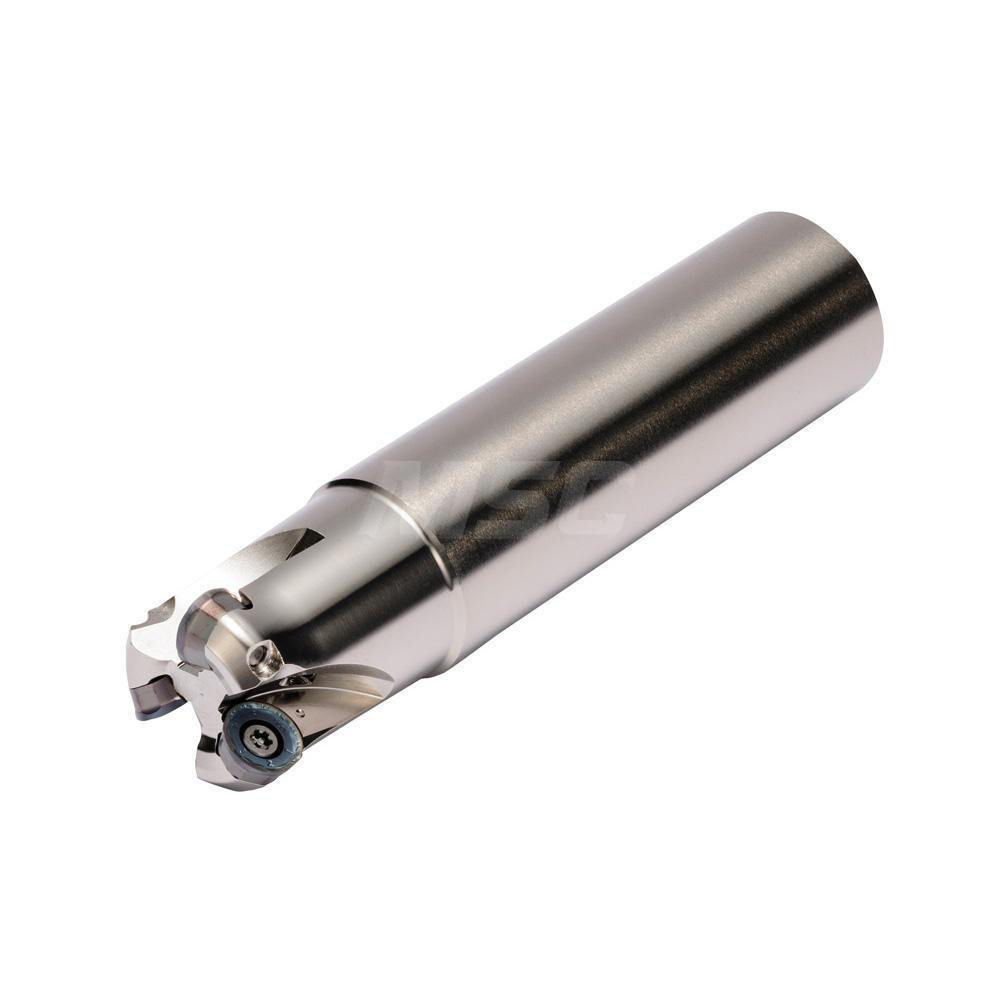

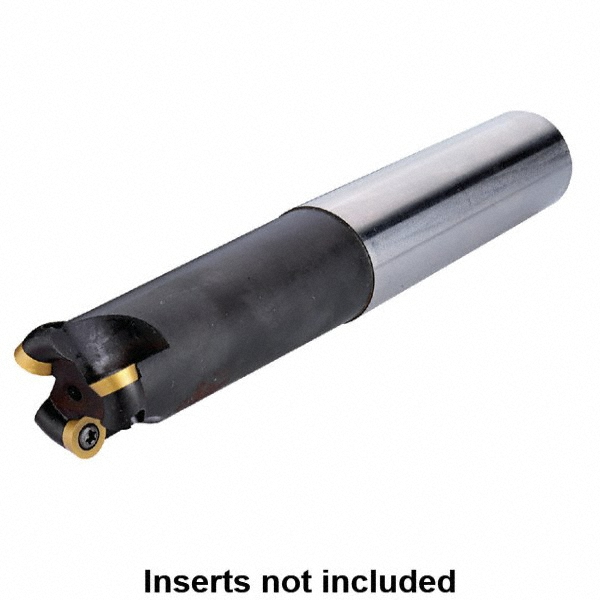

Uses 3 RD.X 10.. Inserts, Weldon Shank

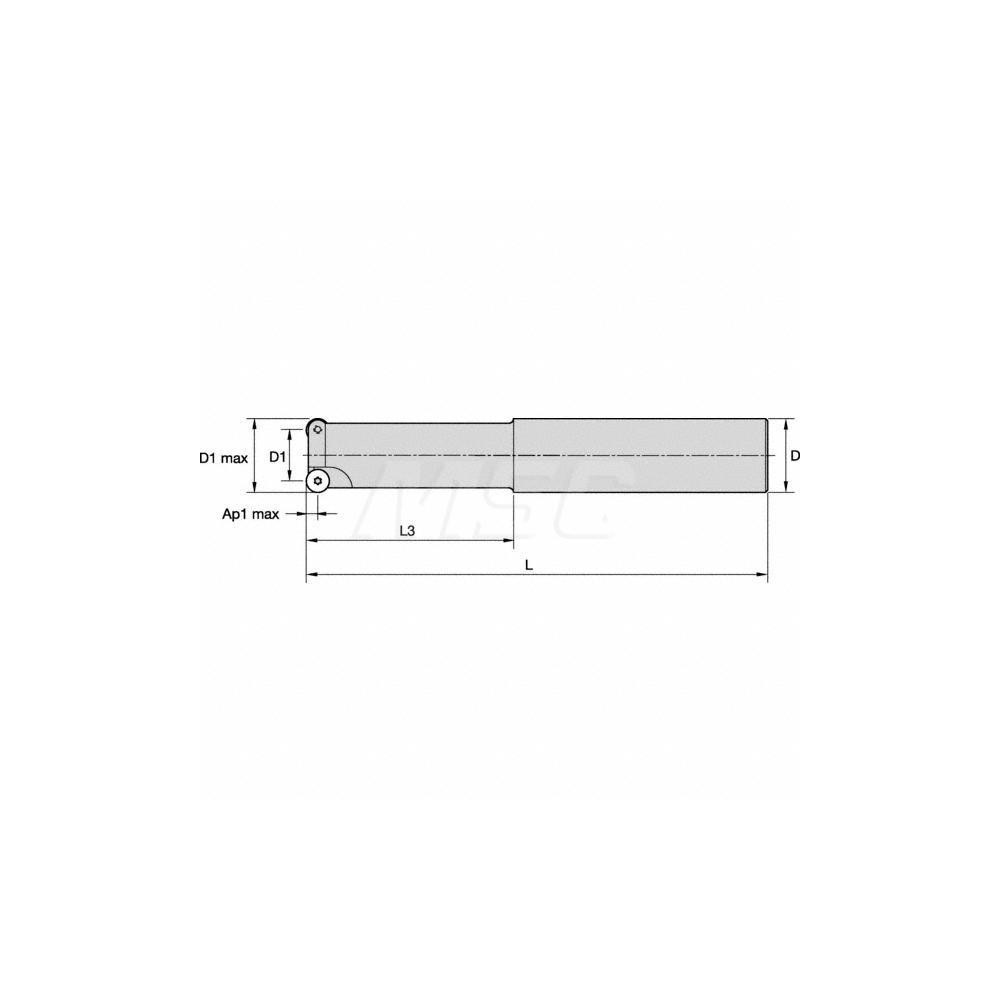

| Cutting Diameter (mm) | 31.75 |
|---|---|
| Minimum Cutting Diameter (mm) | 21.74 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.1968 |
| Maximum Depth of Cut (mm) | 5.00 |
| Toolholder Style | KDM |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 31.75 |
| Compatible Insert Style | RD.X 10.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 178.56 |
| Overall Length (Decimal Inch) | 7.0300 |
| Series | KDM |
| Shank Length (mm) | 57.91 |
| Shank Length (Decimal Inch) | 2.2800 |
| Head Length (Inch) | 4-3/4 |
| Head Length (mm) | 120.65 |
| Head Length (Decimal Inch) | 4.7500 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Diameter (mm) | 10.00 |
| Weldon Flat | Yes |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Country of Origin | Spain |
| undefined | undefined |
| MSC Number | MSC# 53447678 |
