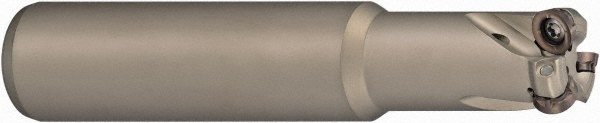

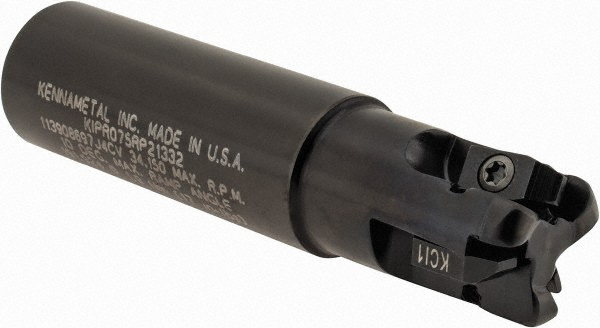

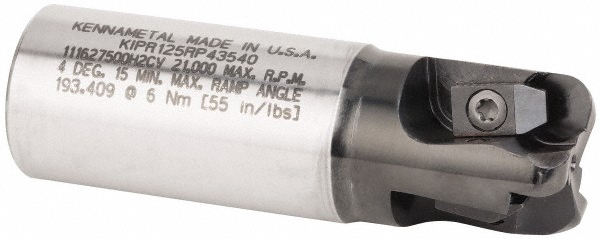

Uses 3 RP.. 32.. Inserts, Cylindrical Shank
| Cutting Diameter (mm) | 25.40 |
|---|---|
| Minimum Cutting Diameter (mm) | 15.88 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Maximum Depth of Cut (mm) | 4.76 |
| Toolholder Style | KIPR |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Compatible Insert Style | RP.. 32.. |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 96.52 |
| Overall Length (Decimal Inch) | 3.8000 |
| Series | KIPR |
| Maximum Rpm | 20450 |
| Shank Length (mm) | 57.00 |
| Shank Length (Decimal Inch) | 2.2441 |
| Head Length (mm) | 39.52 |
| Head Length (Decimal Inch) | 1.5559 |
| Insert Diameter (Decimal Inch) | 0.3750 |
| Insert Diameter (mm) | 9.53 |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 1 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 79661708 |
