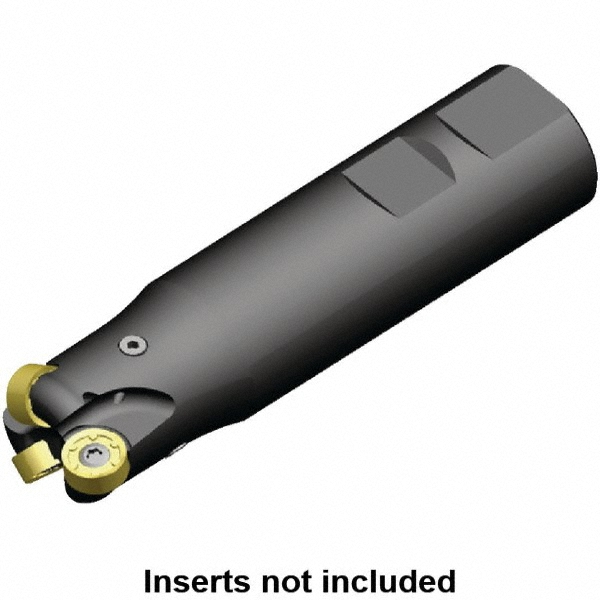

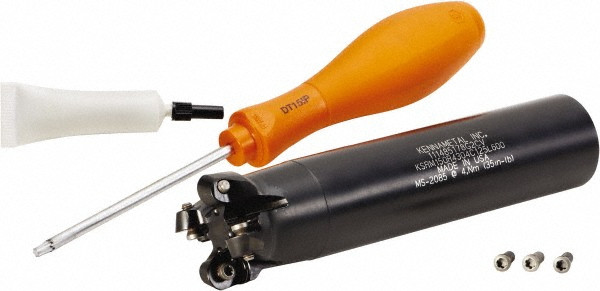

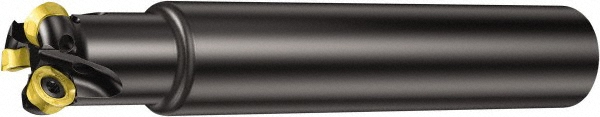

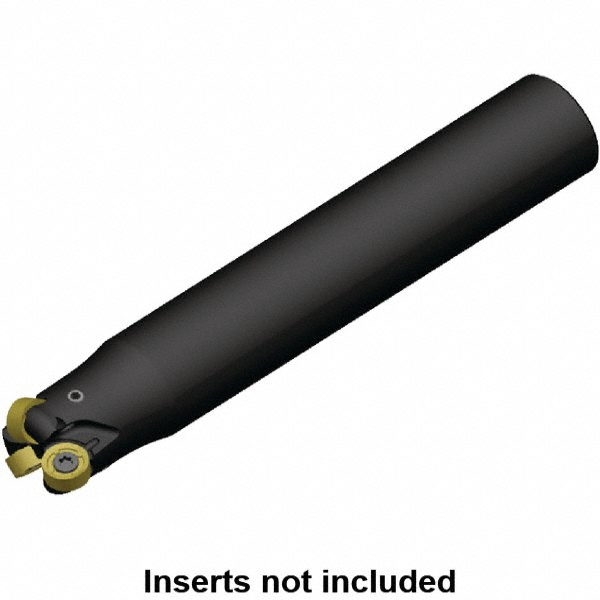

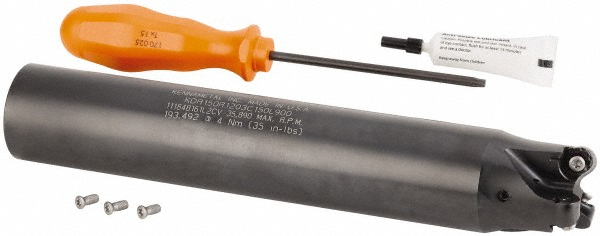

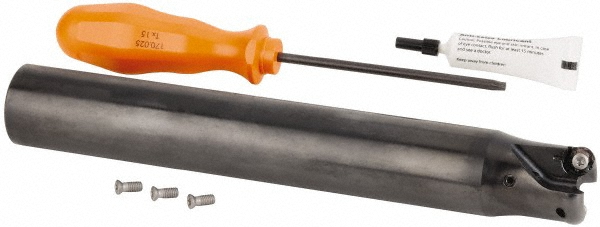

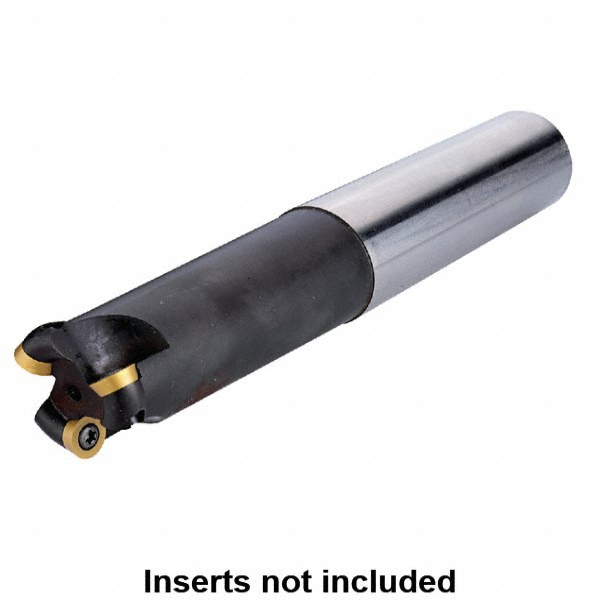

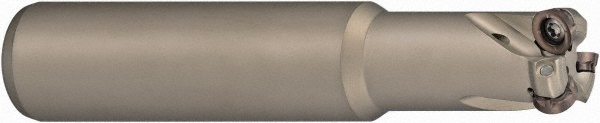

Uses 4 RN.J 10T3M0.N.. Inserts, Cylindrical Shank
| Cutting Diameter (mm) | 32.00 |
|---|---|
| Minimum Cutting Diameter (mm) | 22.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Toolholder Style | KDR |
| Shank Type | Cylindrical |
| Shank Diameter (Inch - 0 Decimals) | 1.2600 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |

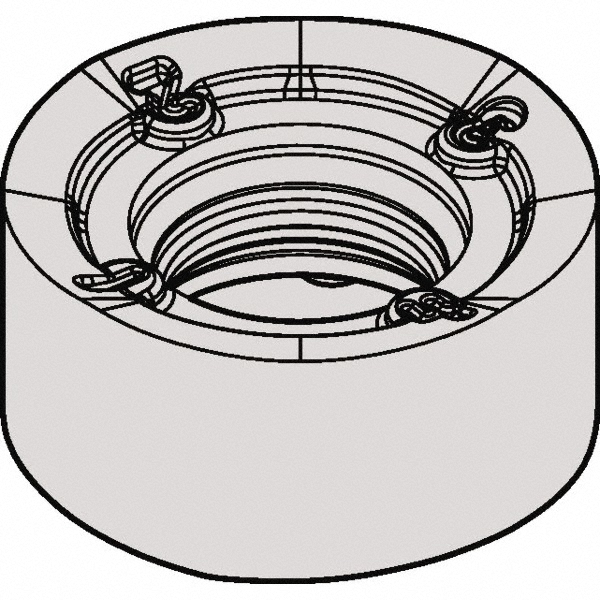

| Compatible Insert Style | RN.J 10T3M0.N.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Series | Rodeka |
| Shank Length (mm) | 160.00 |
| Shank Length (Decimal Inch) | 6.2992 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Diameter (mm) | 10.00 |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 4 |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 46888343 |
