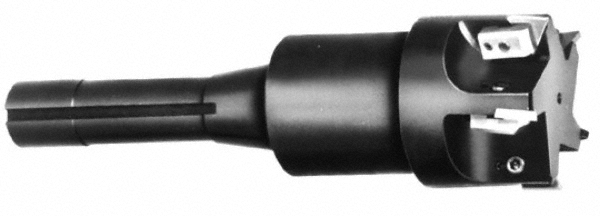

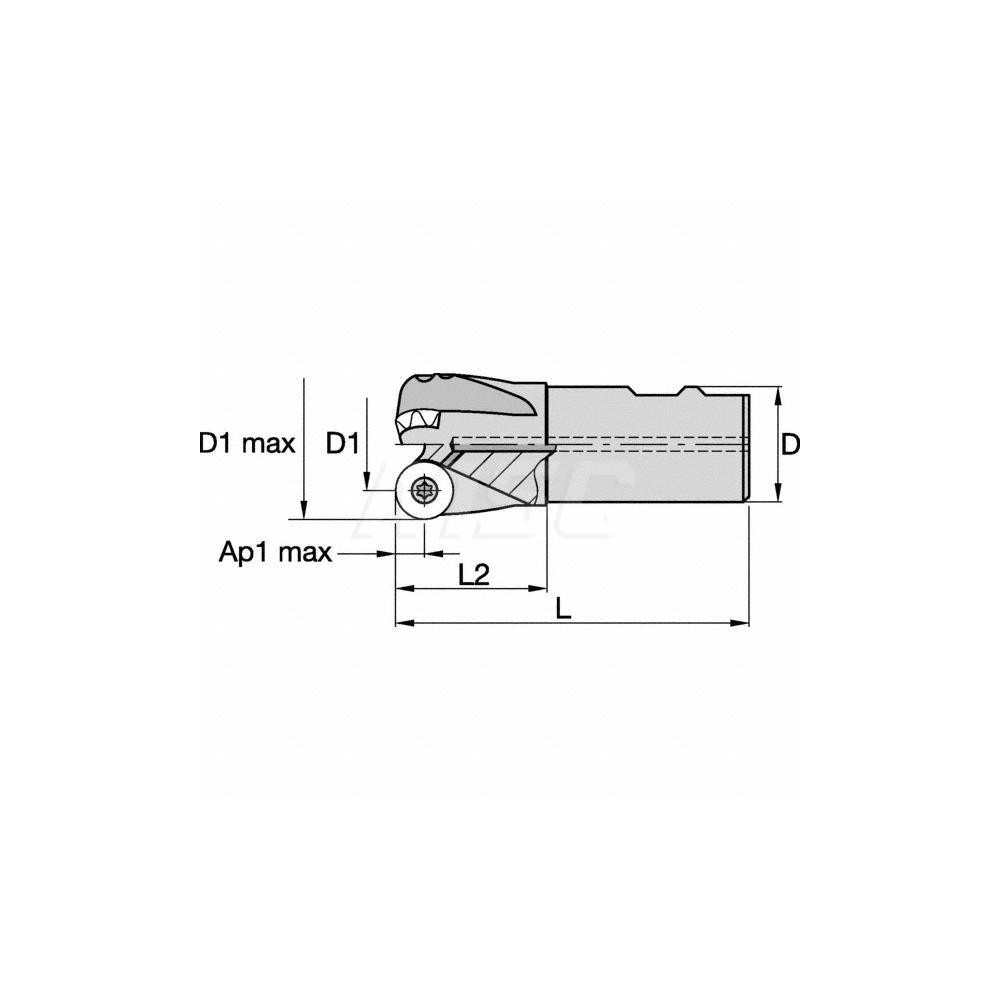

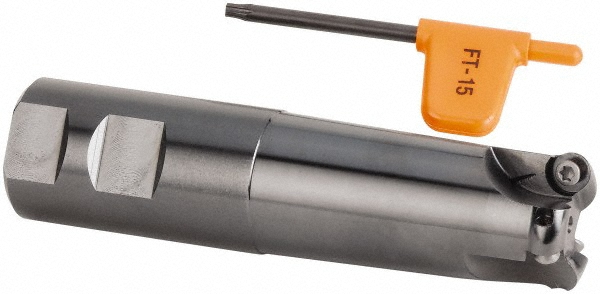

Uses 3 RCG. 64.. Inserts, Weldon Shank
| Cutting Diameter (mm) | 50.80 |
|---|---|
| Minimum Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (mm) | 9.53 |
| Toolholder Style | BMD |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 31.75 |
| Compatible Insert Style | RCG. 64.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 108.71 |
| Overall Length (Decimal Inch) | 4.2800 |
| Series | KSRM |
| Shank Length (mm) | 57.91 |
| Shank Length (Decimal Inch) | 2.2800 |
| Head Length (Inch) | 2 |
| Head Length (mm) | 50.80 |
| Head Length (Decimal Inch) | 2.0000 |
| Insert Diameter (Decimal Inch) | 0.7500 |
| Insert Diameter (mm) | 19.05 |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 2 |
| Number Of Flutes | 3 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 58444381 |
