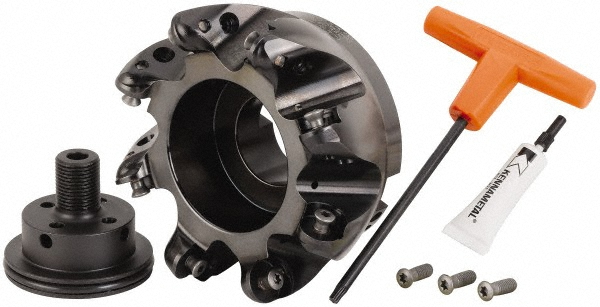

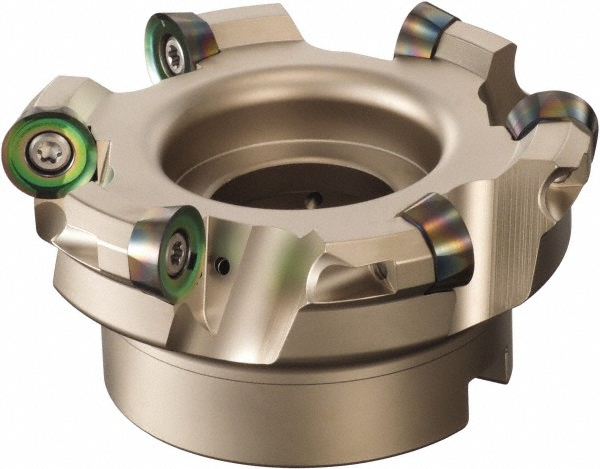

Takes (6) RCGT 86... Inserts, 0.5" Max Depth

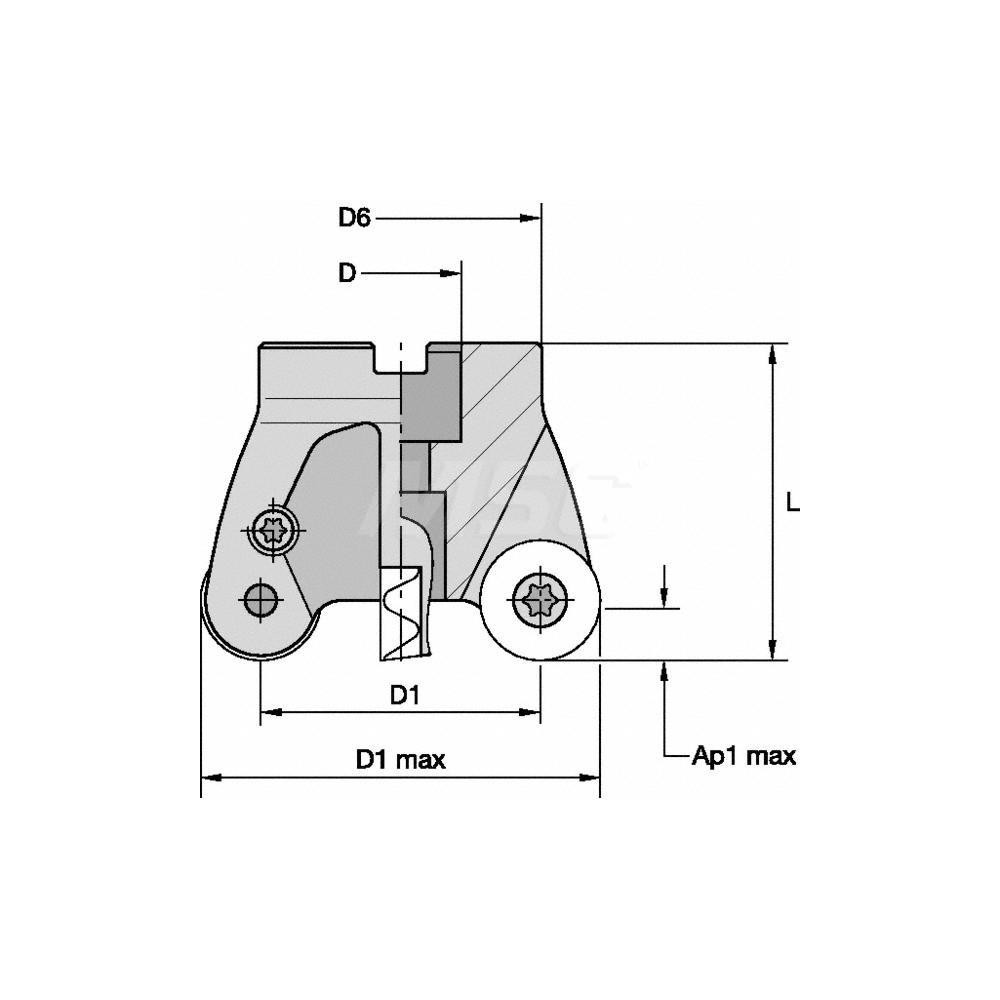

| Cutting Diameter (Decimal Inch) | 5.0000 |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 127.00 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | RCGT 86... |
| Cutter Style | BMD500 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | KSRM |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Overall Height (Inch) | 2-1/2 |
| Overall Height (Decimal Inch) | 63.50 |
| Maximum RPM | 9000 |
| Insert Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 1 |
| Complete Insert Compatibility | RCGT 86ELF |
| Number Of Cutter Inserts | 6 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 84890318 |
