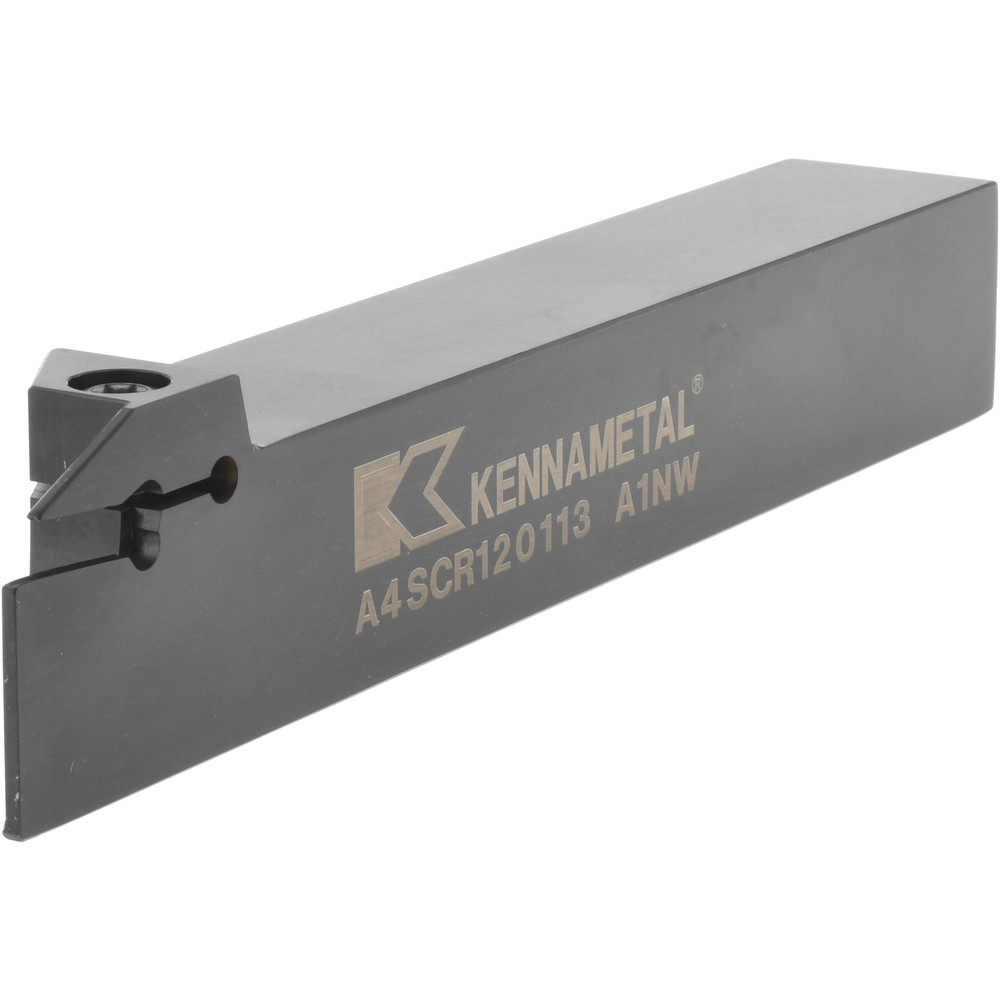

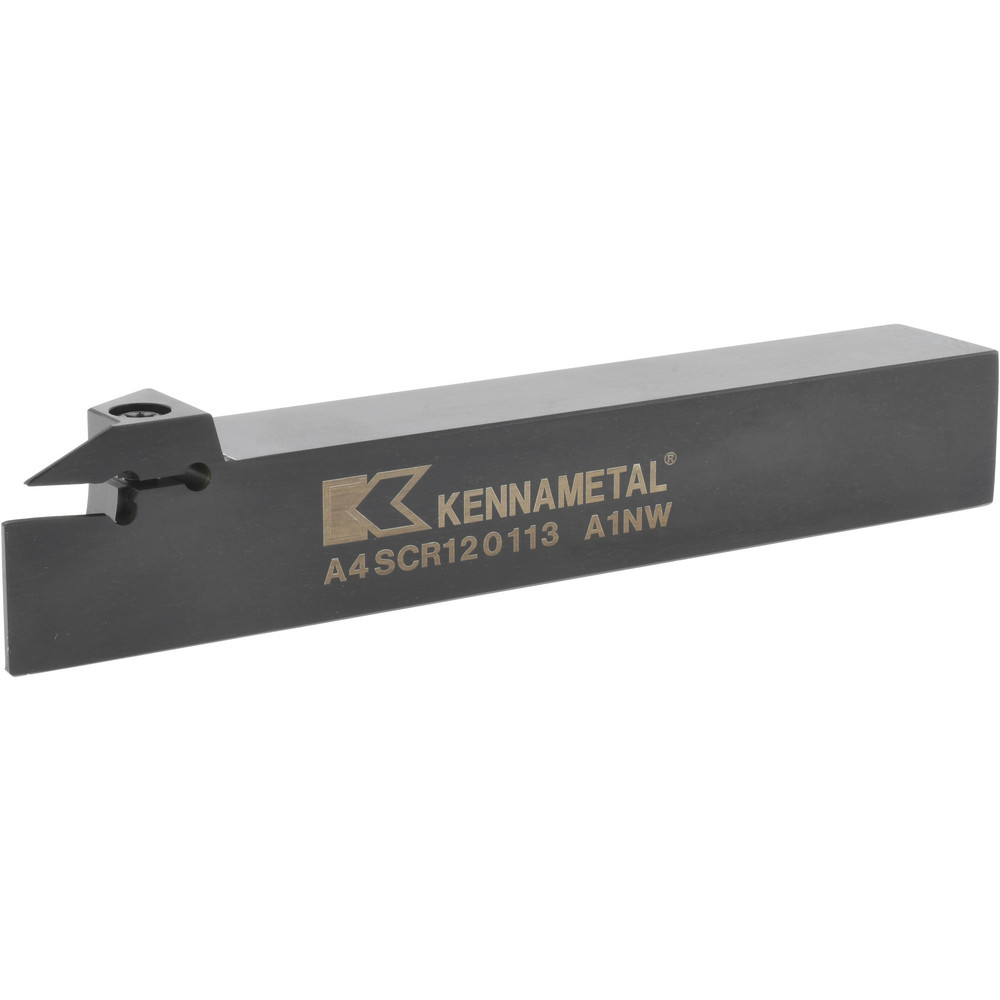

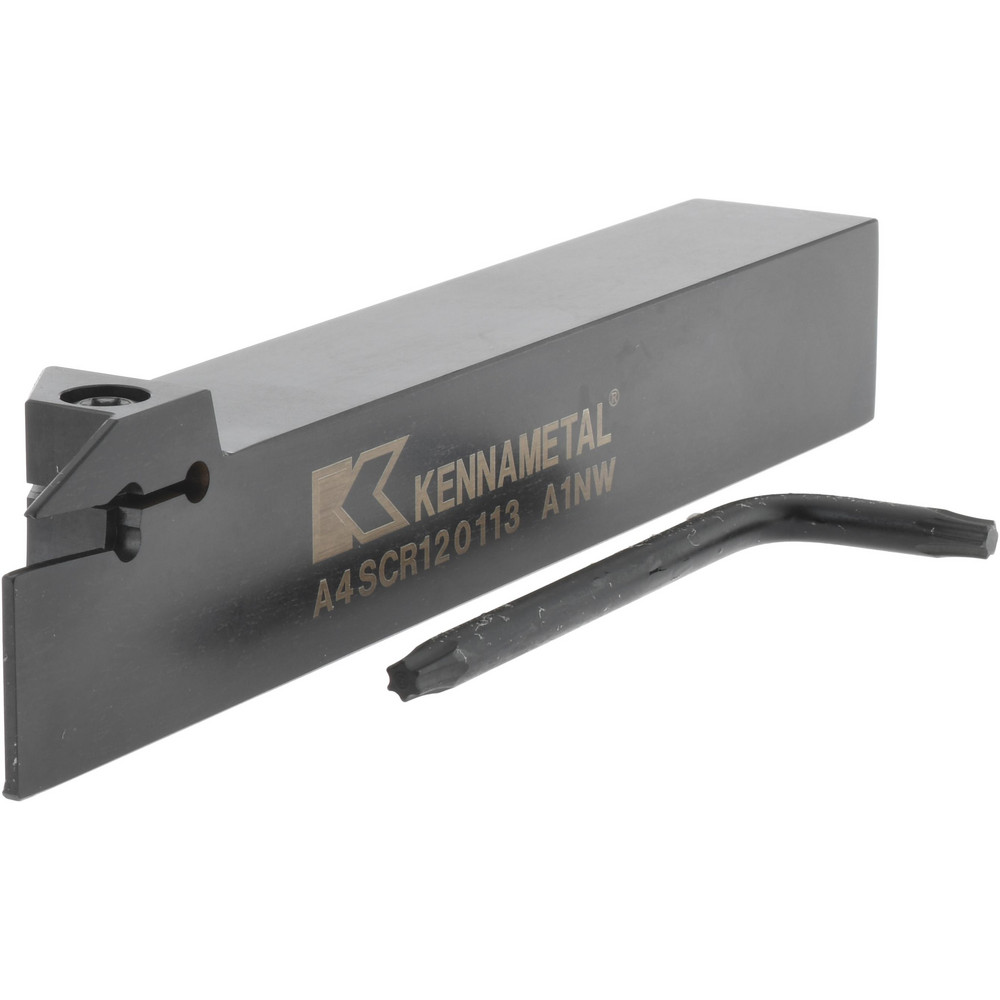

19 x 19 mm Shank, Uses A4C0155.. Inserts, Series A4
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.5320 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0630 |
| Toolholder Style | A4SC |
| Compatible Insert Size Code | A4C0155.. |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Insert Holding Method | Screw |
| Shank Width/Diameter (Decimal Inch) | 0.7480 |
| Shank Width/Diameter (mm) | 19.00 |
| Shank Height (Decimal Inch) | 0.7480 |
| Shank Height (mm) | 19.00 |
| Shank Length (mm) | 102.00 |
| Shank Length (Decimal Inch) | 4.0157 |
| Series | A4 |
| Head Height (mm) | 24.00 |
| Head Height (Decimal Inch) | 0.9449 |
| Head Length (Decimal Inch) | 0.9843 |
| Head Length (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7197 |
| Back of Bar to Cutting Edge (mm) | 18.28 |
| Insert Seat Size | 1.5 |
| Minimum Insert Width (Decimal Inch) | 0.0591 |
| Minimum Insert Width (mm) | 1.50 |
| Maximum Insert Width (Decimal Inch) | 0.0591 |
| Maximum Insert Width (mm) | 1.50 |
| UNSPSC Code | 23153308 |
| MSC/Manufacturer Number | A4SCR/L120113 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 54126099 |
