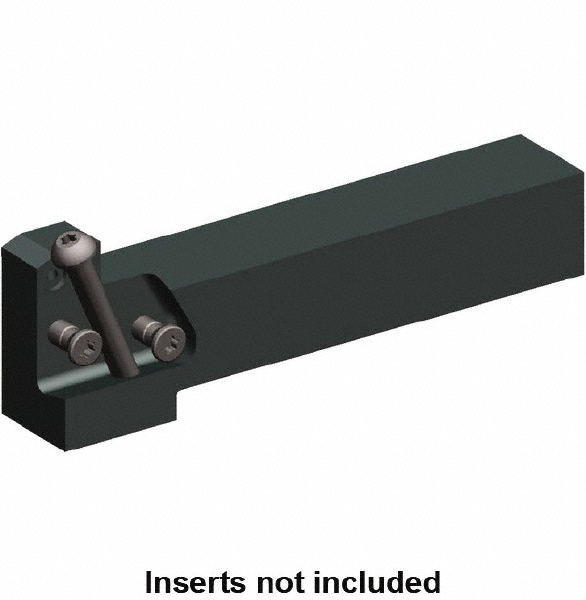

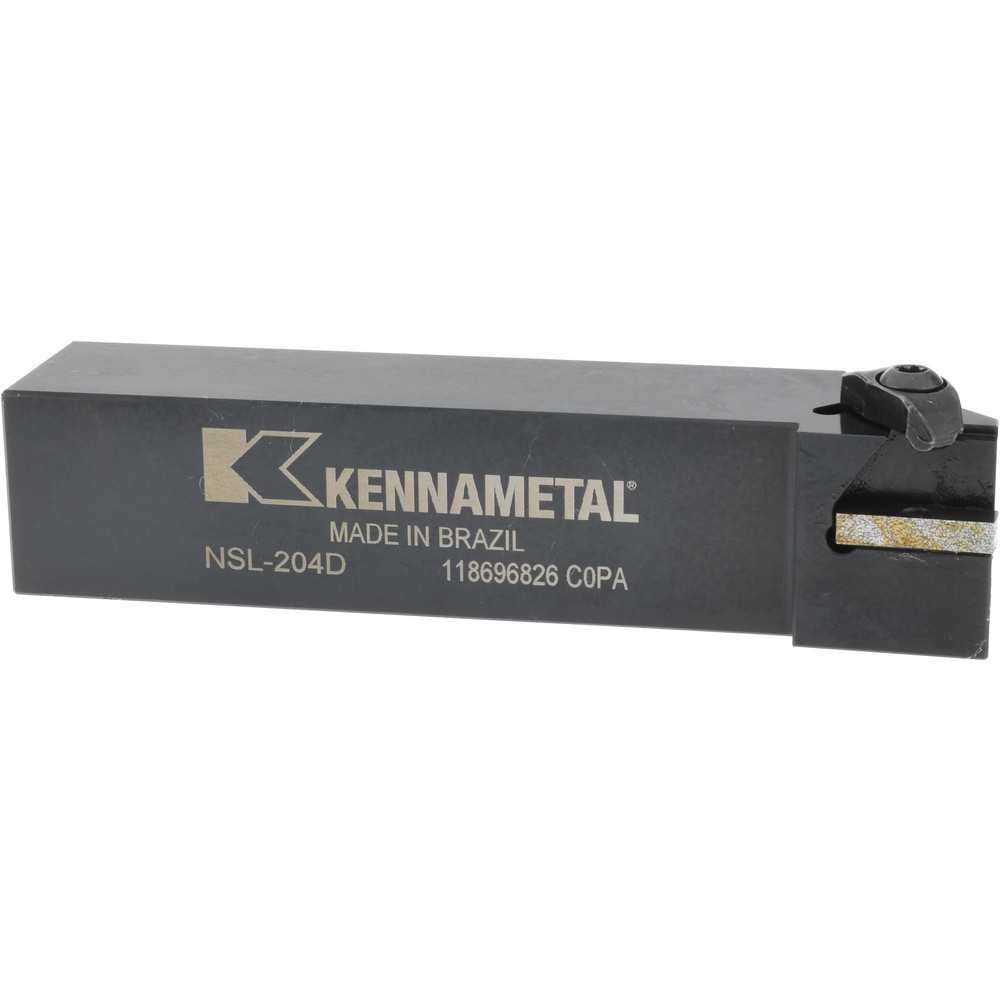

1-1/4 x 1-1/4" Shank, Uses Beyond Evolution Blades Inserts, Series Beyond Evolution
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Inch) | 1-1/4 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2500 |
| Maximum Workpiece Diameter (Inch) | 1-1/4 |
| Toolholder Style | KGMS |
| Compatible Insert Size Code | Beyond Evolution Blades |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Length (mm) | 124.00 |
| Shank Length (Decimal Inch) | 4.8820 |
| Series | Beyond Evolution |
| Head Length (mm) | 28.40 |
| Height to Shank Top (Decimal Inch) | 1.2500 |
| UNSPSC Code | 23153308 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 38038824 |
