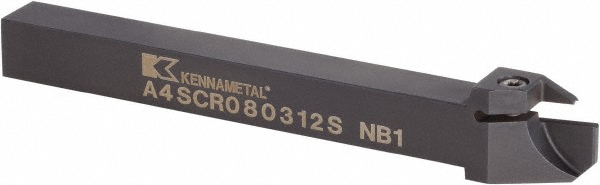

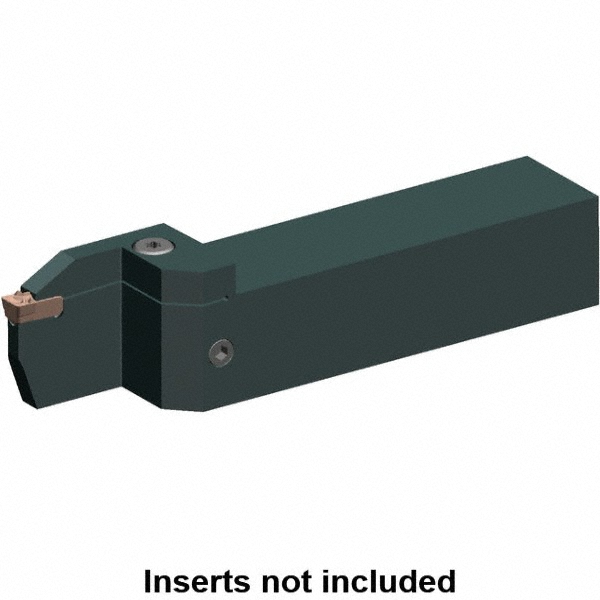

1/2 x 1/2" Shank, Uses A4 G0300.., A4G0300M03P02GMP Inserts, Series A4
| Hand of Holder | Right Hand |
|---|---|

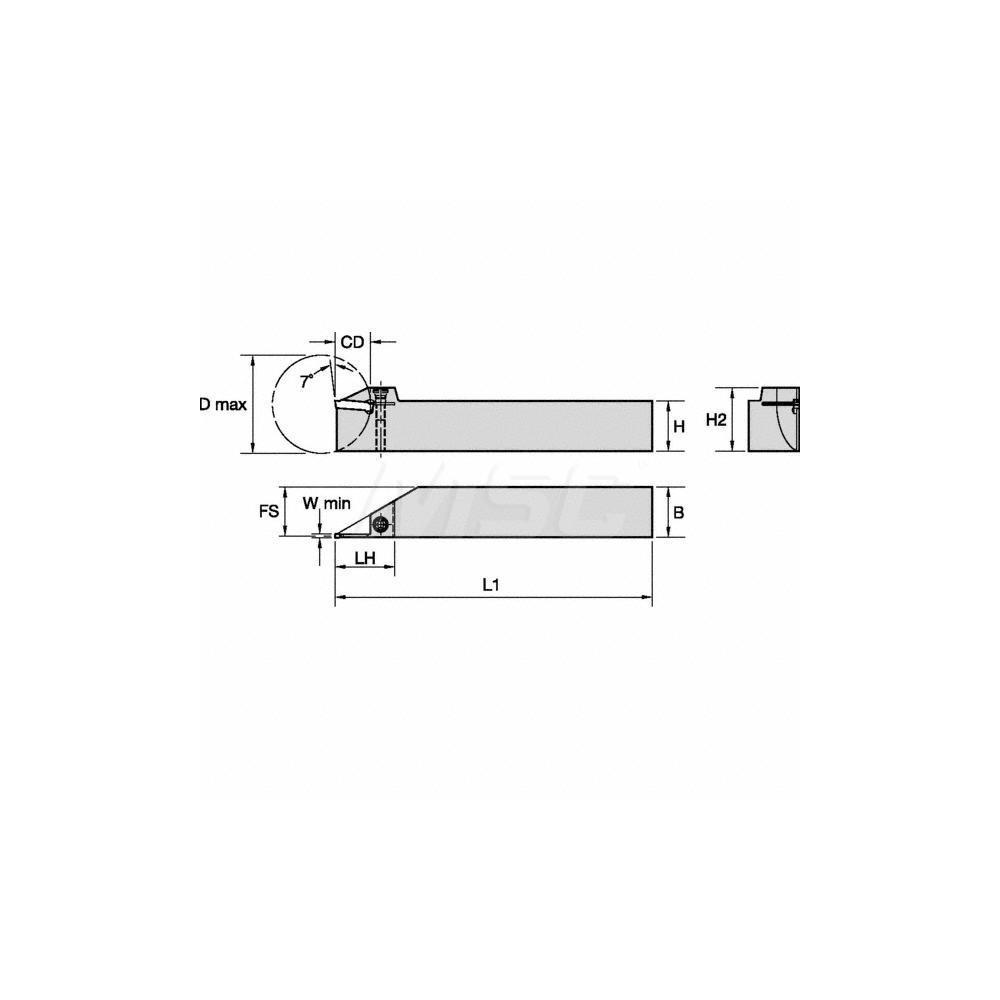

| Maximum Depth of Cut (Decimal Inch) | 0.5709 |
| Maximum Depth of Cut (mm) | 14.50 |
| Maximum Workpiece Diameter (mm) | 28.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1024 |
| Toolholder Style | A4SC |
| Compatible Insert Size Code | A4G0300M03P02GMP; A4 G0300.. |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (mm) | 114.30 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Width/Diameter (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Height (mm) | 12.70 |
| Shank Height (Inch) | 1/2 |
| Shank Length (mm) | 84.30 |
| Shank Length (Decimal Inch) | 3.3189 |
| Series | A4 |
| Head Height (mm) | 22.88 |
| Head Height (Decimal Inch) | 0.9008 |
| Head Length (Decimal Inch) | 1.1810 |
| Head Length (mm) | 30.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4468 |
| Back of Bar to Cutting Edge (mm) | 11.35 |
| Insert Seat Size | 3 |
| Minimum Insert Width (Decimal Inch) | 0.1181 |
| Minimum Insert Width (mm) | 3.00 |
| Maximum Insert Width (Decimal Inch) | 0.1181 |
| Maximum Insert Width (mm) | 3.00 |
| Height to Shank Top (mm) | 15.88 |
| Height to Shank Top (Decimal Inch) | 0.6250 |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | A4G0300M03P02GMP |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 51076040 |
