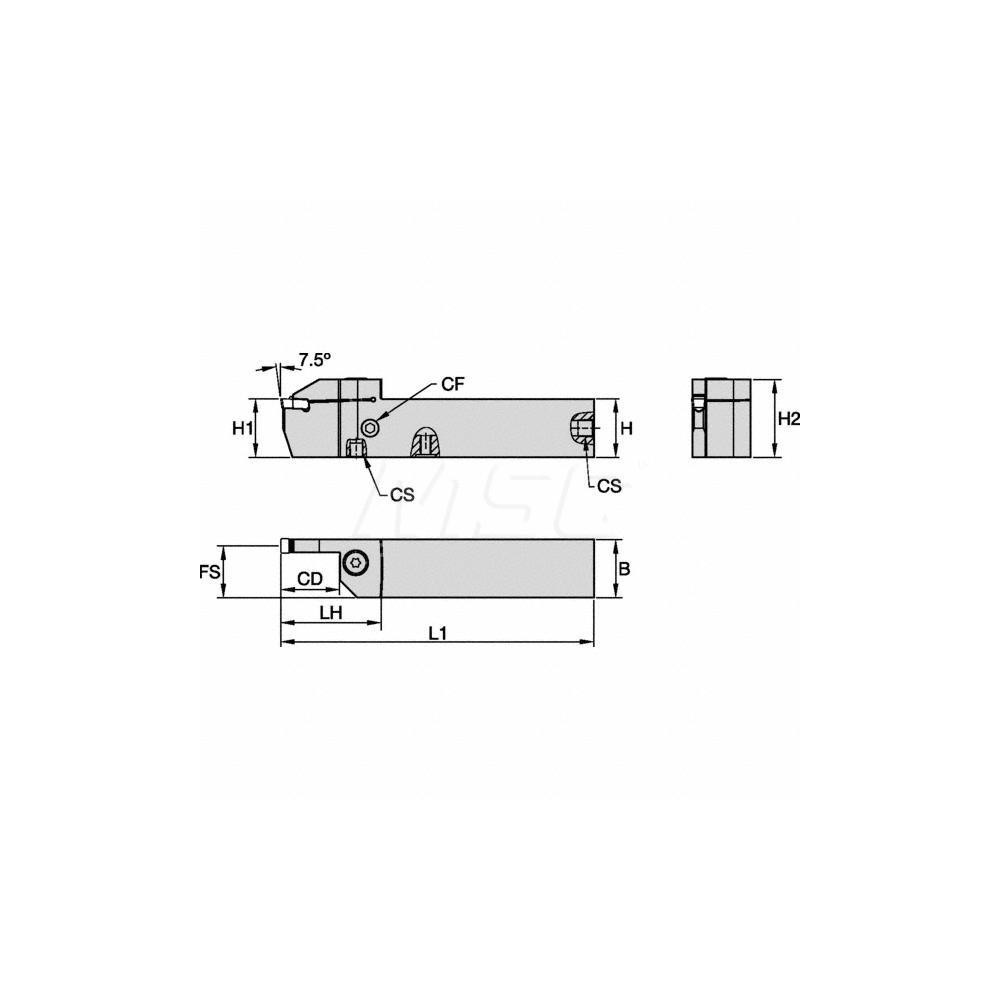

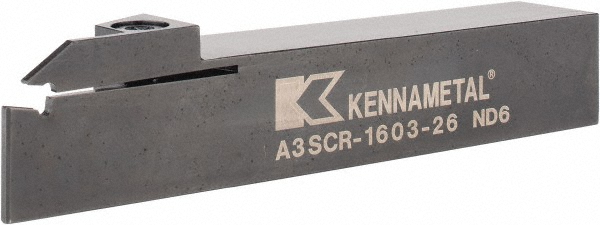

1 x 1" Shank, Uses EG0600M06P04 Inserts, Series Beyond Evolution
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Workpiece Diameter (mm) | 32.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2600 |
| Toolholder Style | EVSM |
| Compatible Insert Size Code | EG0600M06P04 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Length (mm) | 115.40 |
| Shank Length (Decimal Inch) | 4.5430 |
| Series | Beyond Evolution |
| Head Height (mm) | 33.90 |
| Head Height (Decimal Inch) | 1.3350 |
| Head Length (Decimal Inch) | 1.4570 |
| Head Length (mm) | 37.00 |
| Insert Seat Size | 6 |
| Maximum Insert Width (Decimal Inch) | 0.2070 |
| Maximum Insert Width (mm) | 5.25 |
| UNSPSC Code | 23153308 |
| Blade Width (mm) | 5.25 |
| Blade Width (Decimal Inch) | 0.2070 |
| Complete Insert Compatibility | EG0600M06P04 |
| Coating Classification | Kennametal |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 54319223 |
