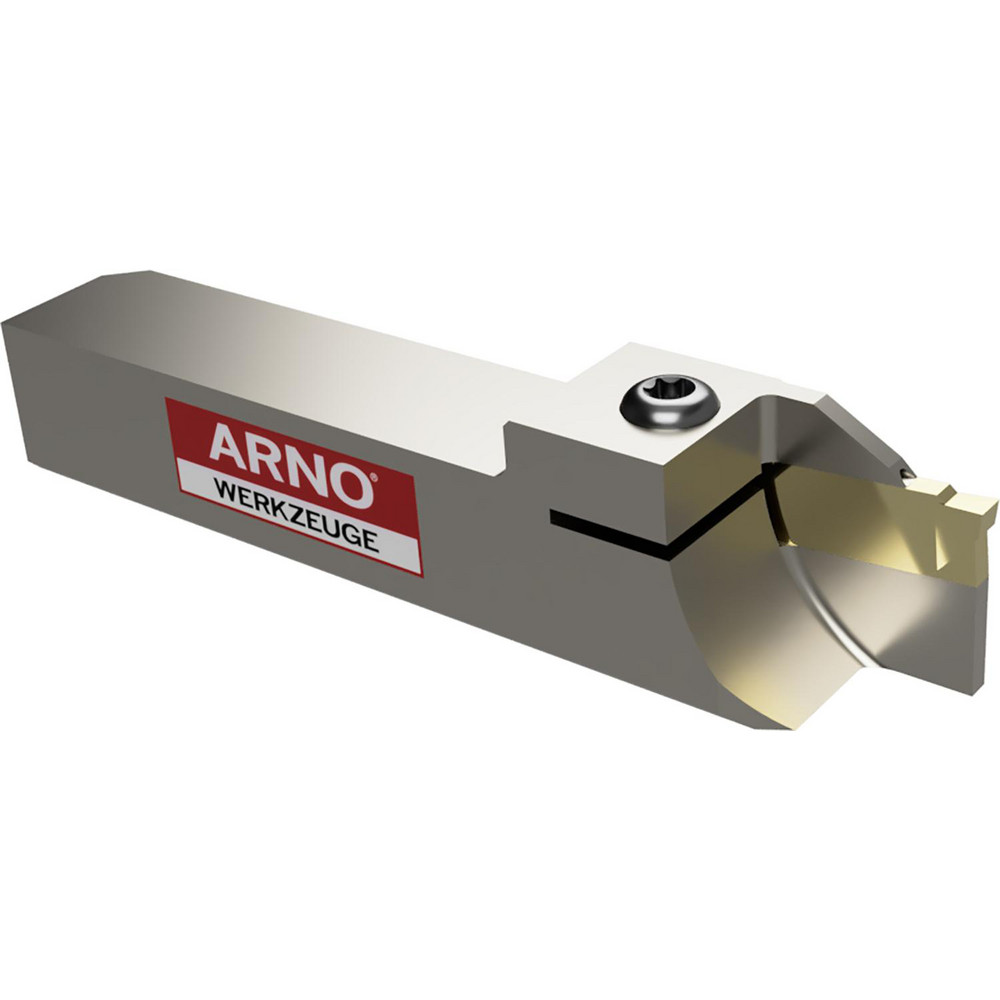

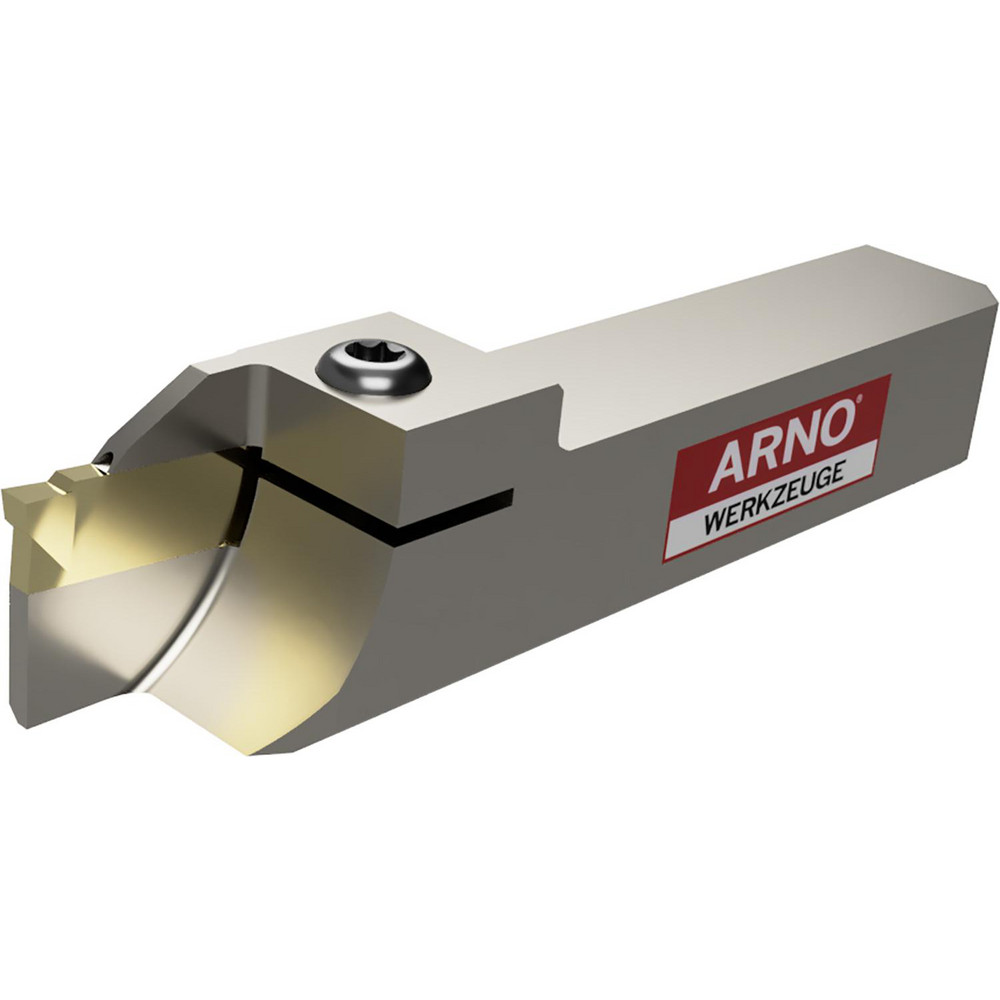

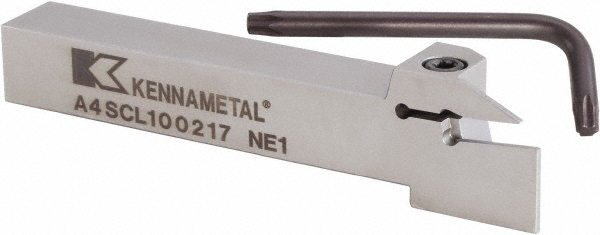

16 x 16 mm Shank, Uses A4 G0200.., A4G0200M02P02B Inserts, Series A4

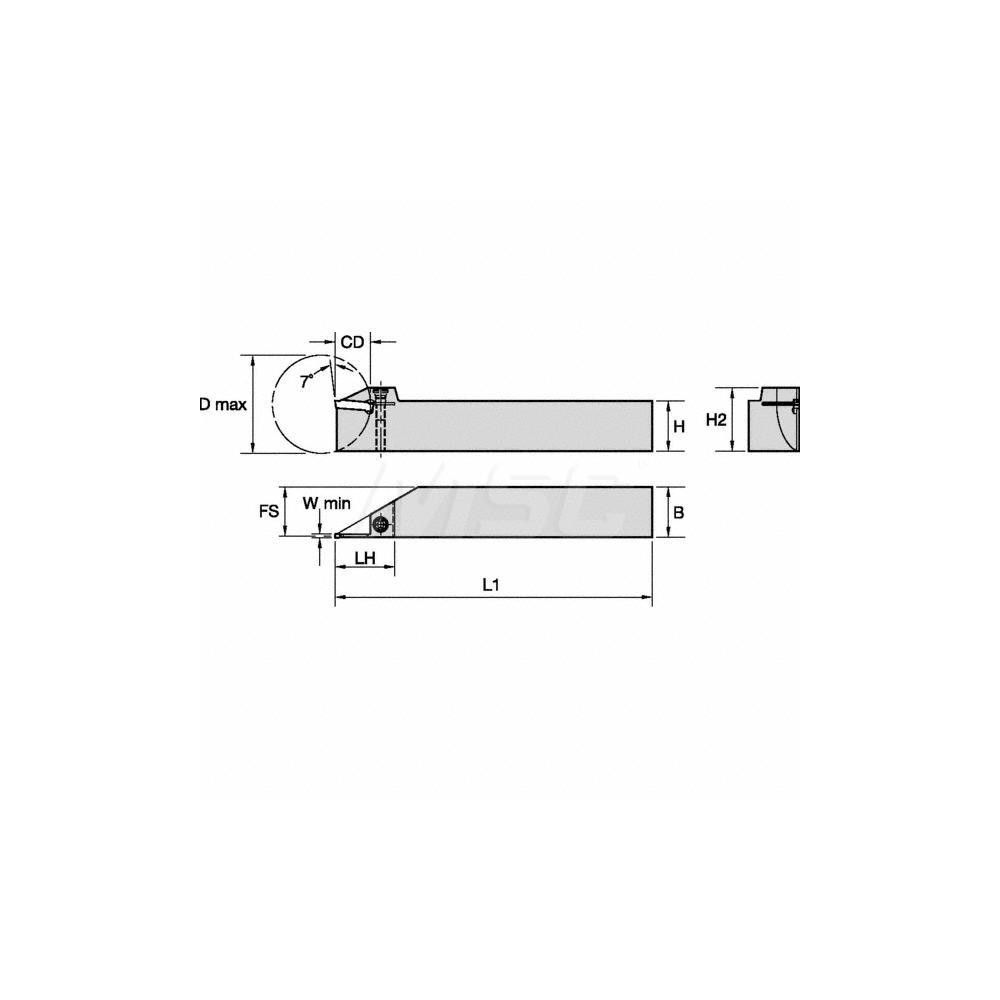

| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Workpiece Diameter (mm) | 34.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3386 |
| Toolholder Style | A4SC |
| Compatible Insert Size Code | A4 G0200..; A4G0200M02P02B |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Length (mm) | 94.00 |
| Shank Length (Decimal Inch) | 3.7008 |
| Series | A4 |
| Head Height (mm) | 26.00 |
| Head Height (Decimal Inch) | 1.0236 |
| Head Length (Decimal Inch) | 1.0236 |
| Head Length (mm) | 26.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5984 |
| Back of Bar to Cutting Edge (mm) | 15.20 |
| Insert Seat Size | 2 |
| Minimum Insert Width (Decimal Inch) | 0.0787 |
| Minimum Insert Width (mm) | 2.00 |
| Maximum Insert Width (Decimal Inch) | 0.0787 |
| Maximum Insert Width (mm) | 2.00 |
| Height to Shank Top (mm) | 20.00 |
| Height to Shank Top (Decimal Inch) | 0.7874 |
| UNSPSC Code | 23153308 |
| Blade Width (mm) | 1.56 |
| Blade Width (Decimal Inch) | 0.0614 |
| Complete Insert Compatibility | A4G0200M02P02B |
| Coolant Through | No |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 58467283 |
