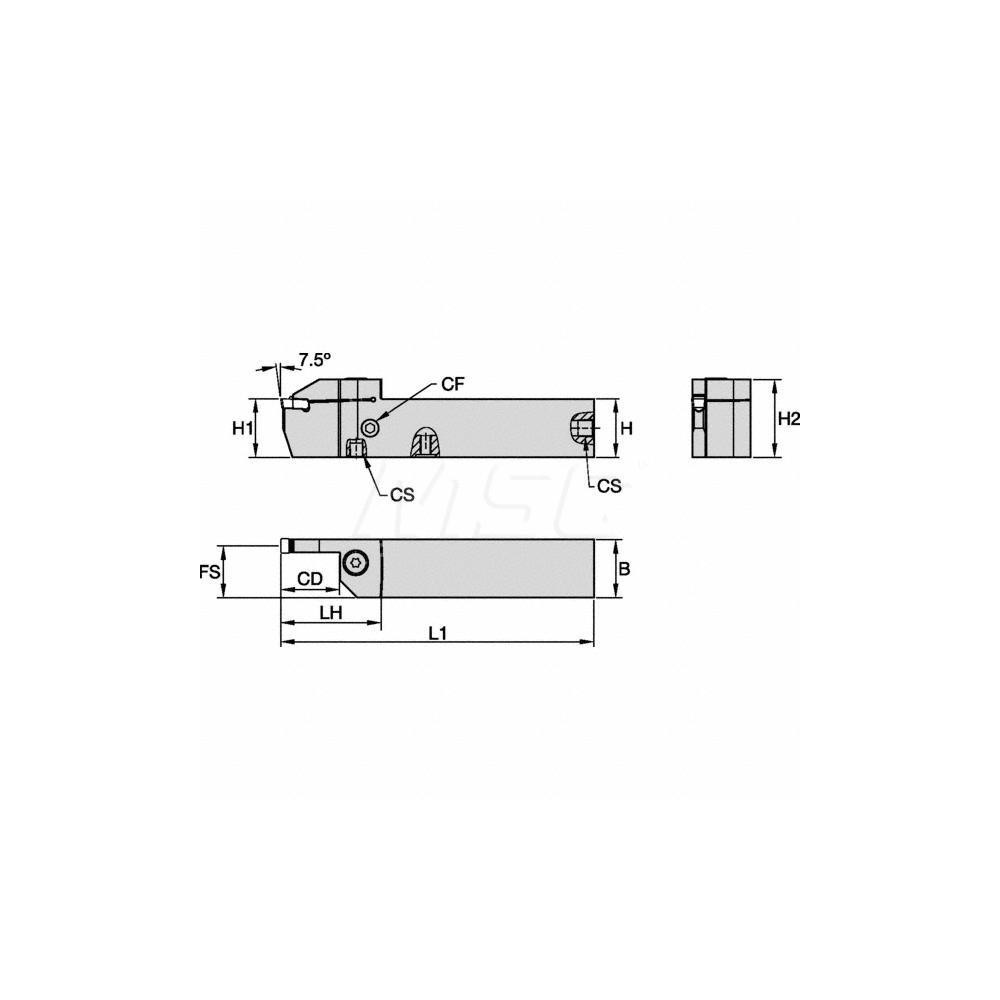

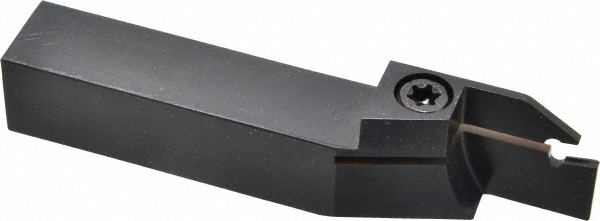

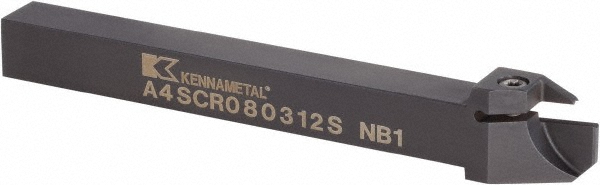

3/4 x 3/4" Shank, Uses EG0200M02P02 Inserts, Series Beyond Evolution
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Workpiece Diameter (mm) | 44.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.7320 |
| Toolholder Style | EVSM |
| Compatible Insert Size Code | EG0200M02P02 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (mm) | 114.30 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Length (mm) | 76.30 |
| Shank Length (Decimal Inch) | 3.0040 |
| Series | Beyond Evolution |
| Head Height (mm) | 28.05 |
| Head Height (Decimal Inch) | 1.1040 |
| Head Length (Decimal Inch) | 1.4960 |
| Head Length (mm) | 38.00 |
| Insert Seat Size | 2 |
| Maximum Insert Width (Decimal Inch) | 0.0610 |
| Maximum Insert Width (mm) | 1.55 |
| UNSPSC Code | 23153308 |
| Blade Width (mm) | 1.55 |
| Blade Width (Decimal Inch) | 0.0610 |
| Complete Insert Compatibility | EG0200M02P02 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 54319058 |
