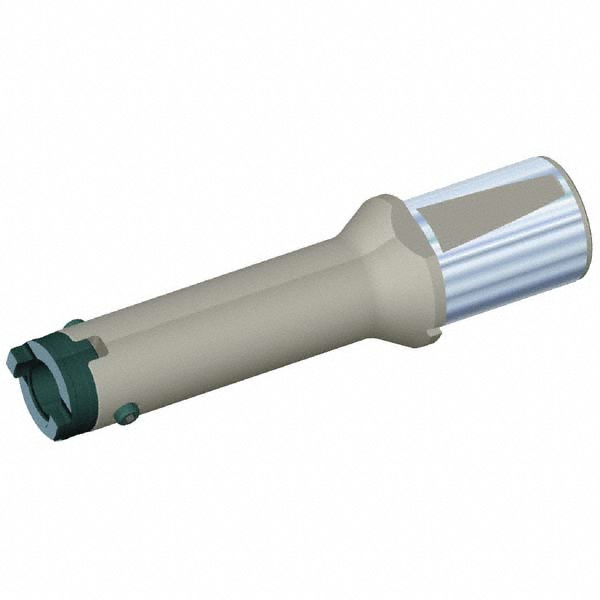

Series HTS
| Head Connection Size | 16 |
|---|---|
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Drill Body Length to Flange (mm) | 120.00 |
| Toolholder Style | 5.34 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.2598 |
| Nose Diameter (Mm) ( - 2 Decimals) | 32.00 |
| Overall Length (Decimal Inch) | 7.5984 |
| Overall Length (mm) | 193.00 |
| Through Coolant | Yes |
| Series | HTS |
| Shank Length (mm) | 58.00 |
| Gage Length (mm) | 135.00 |
| Gage Length (Decimal Inch) | 5.3150 |
| Includes | Clamping Screw; Side Pipe Plug; Drive Ring |
| Coating Classification | Kennametal |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 64102965 |
