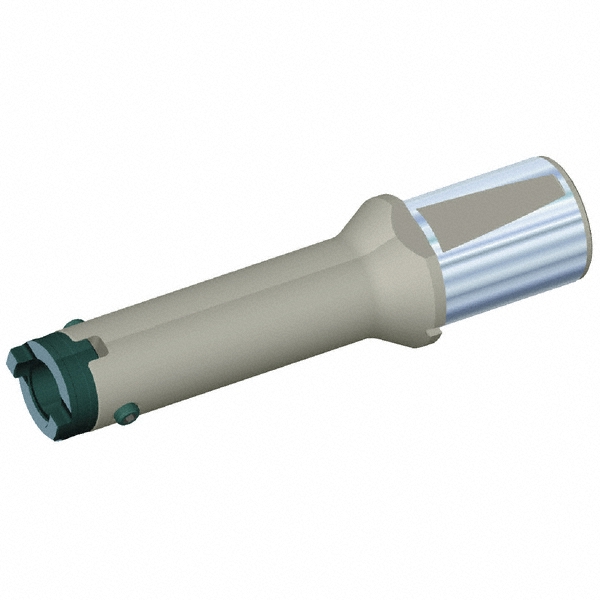

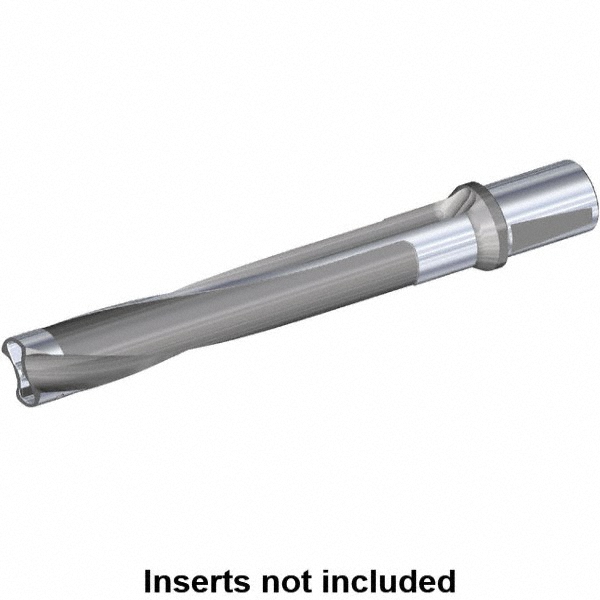

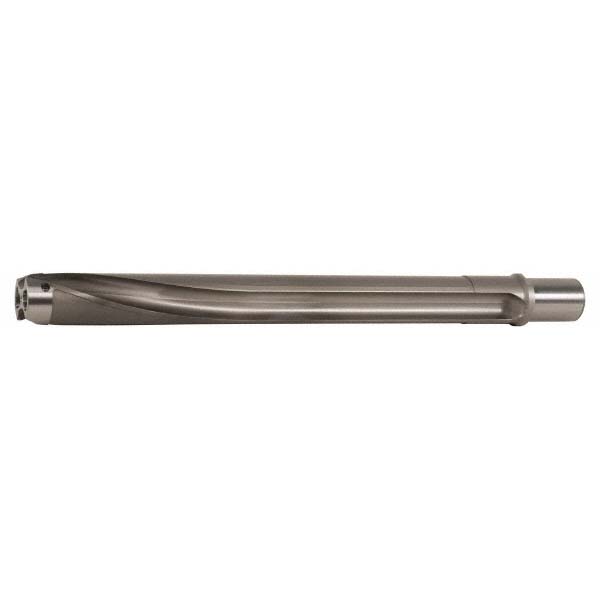

Series HTS
| Head Connection Size | 13A |
|---|---|
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 420.00 |
| Toolholder Style | 5.34 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9843 |
| Nose Diameter (Mm) ( - 2 Decimals) | 25.00 |
| Overall Length (Decimal Inch) | 20.7874 |
| Overall Length (mm) | 528.00 |
| Through Coolant | Yes |
| Series | HTS |
| Shank Length (mm) | 68.00 |
| Gage Length (mm) | 460.00 |
| Gage Length (Decimal Inch) | 18.1102 |
| Includes | Clamping Screw; Side Pipe Plug; Drive Ring |
| Coating Classification | Kennametal |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 64103088 |
