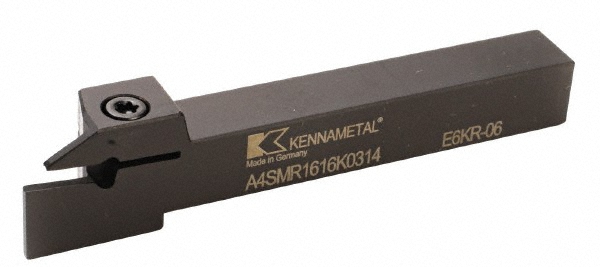

Uses A4..03.. Inserts, 16 x 16 mm Shank, Series A4
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Maximum Depth of Cut (mm) | 14.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..03.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Length (mm) | 90.00 |
| Shank Length (Decimal Inch) | 3.5433 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | A4 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.0630 |
| Head Height (mm) | 27.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Head Length (mm) | 35.00 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Germany |
| MSC Number | MSC# 01708916 |
