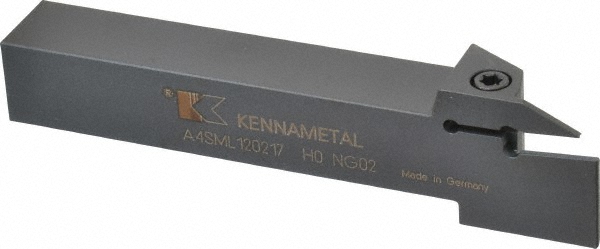

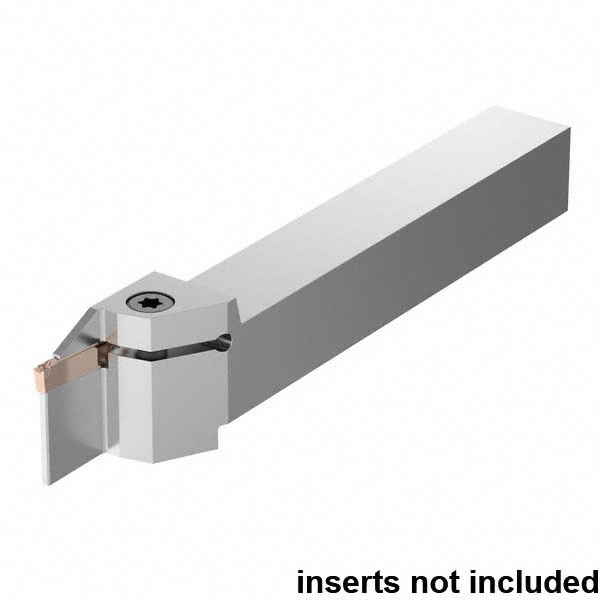

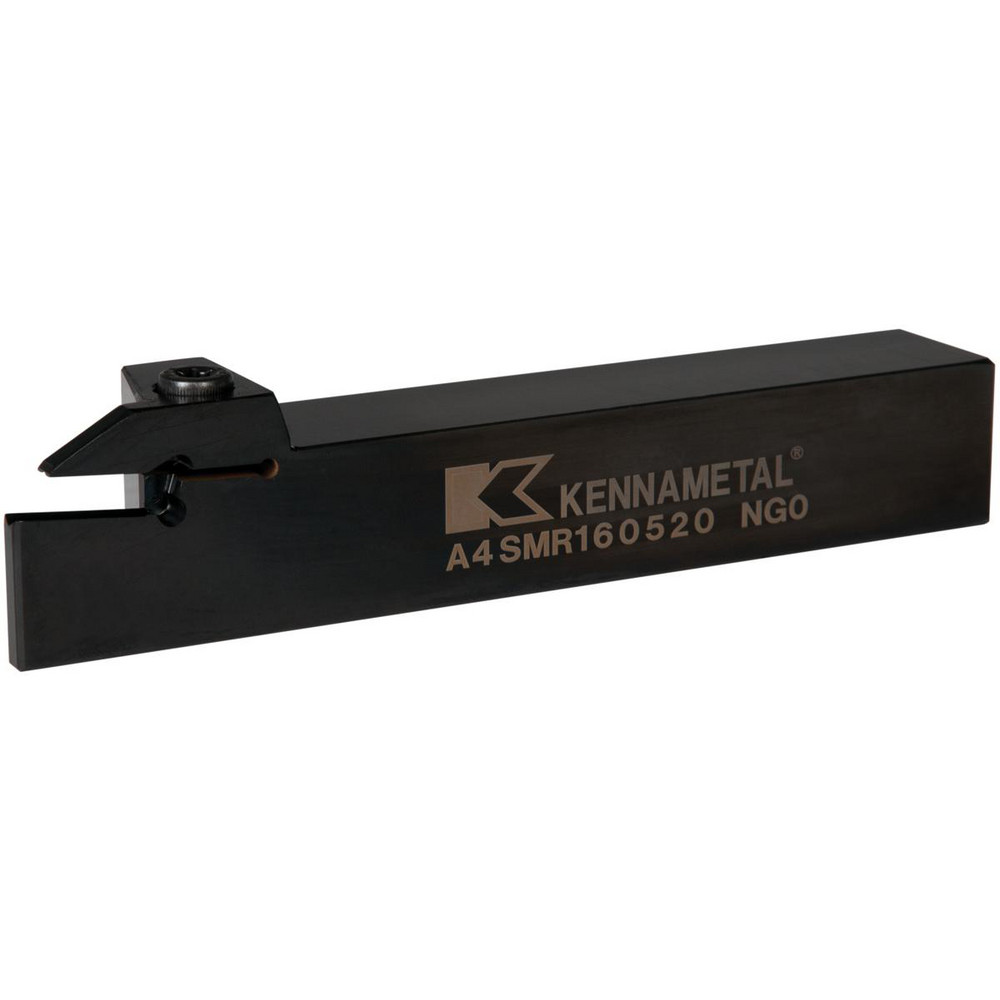

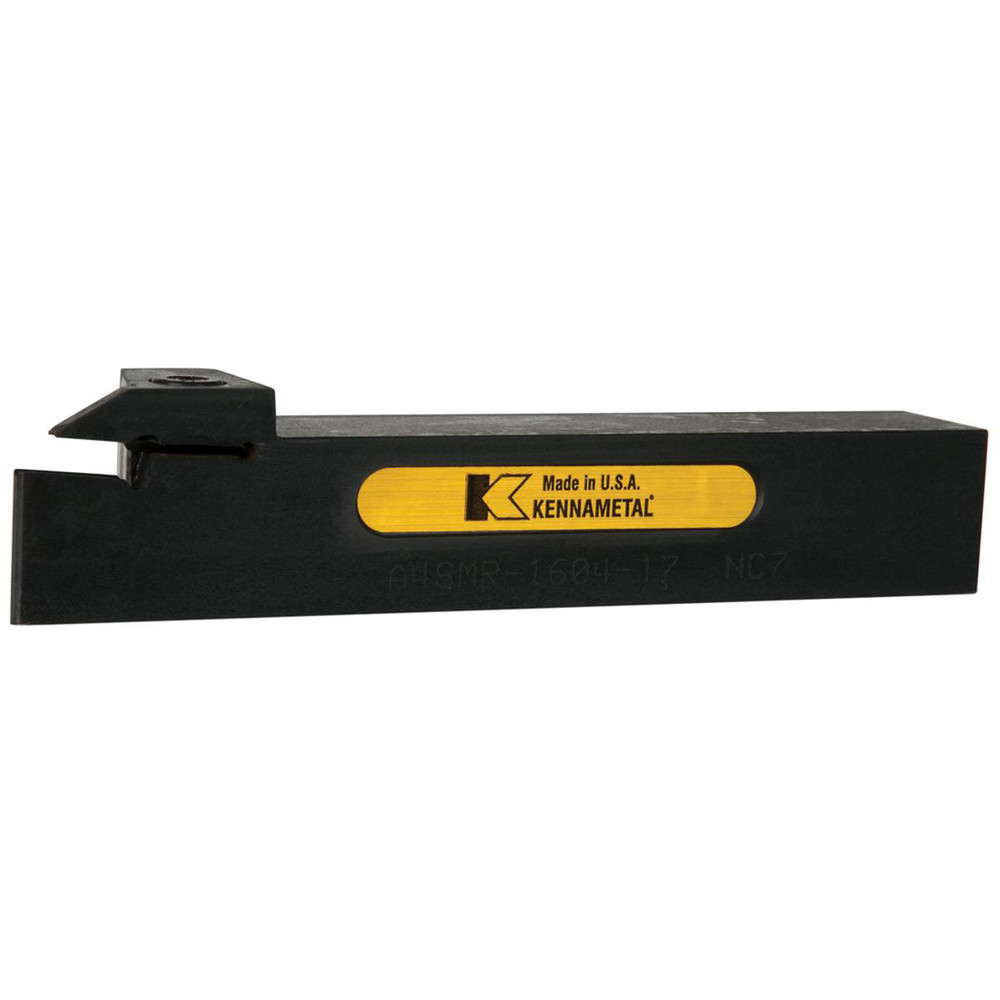

Uses A4G0200M02P02B Inserts, 20 x 20 mm Shank, Series A4
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |

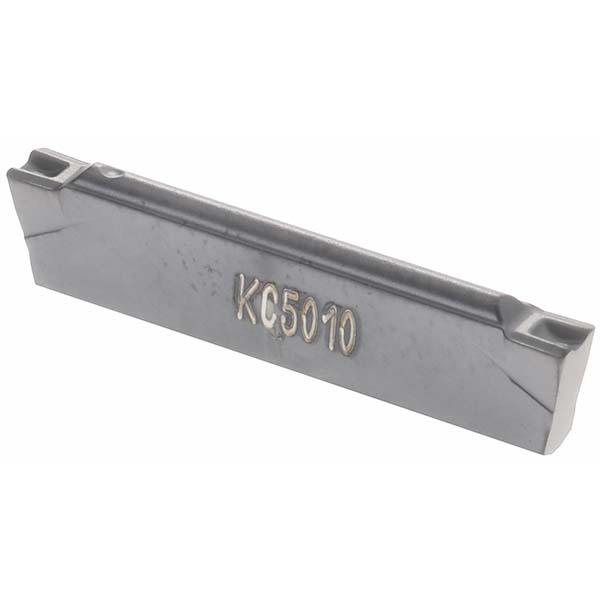

| Insert Compatibility | A4G0200M02P02B |

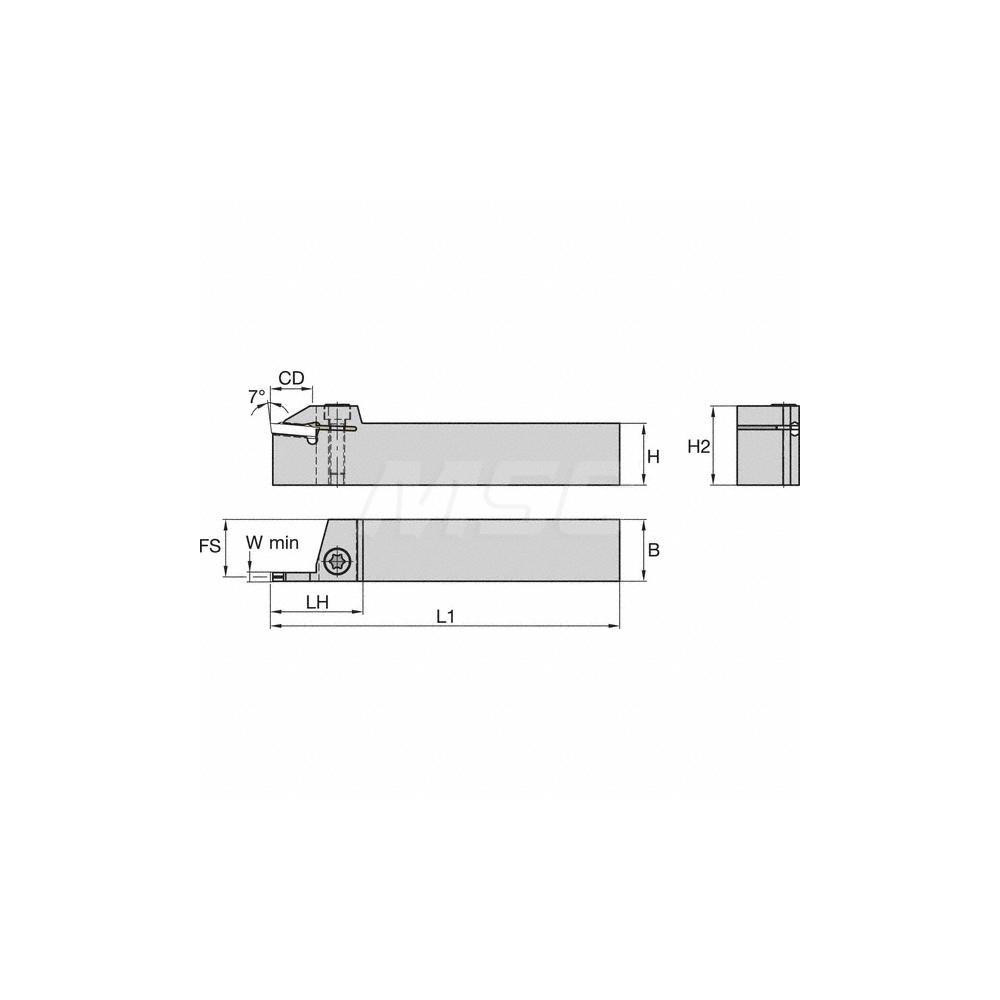

| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Length (mm) | 97.30 |
| Shank Length (Decimal Inch) | 3.8307 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | A4 |
| Overall Length (mm) | 125.30 |
| Overall Length (Decimal Inch) | 4.9331 |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7953 |
| Head Height (Decimal Inch) | 0.9449 |
| Head Height (mm) | 24.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Head Length (mm) | 26.00 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 51620458 |
