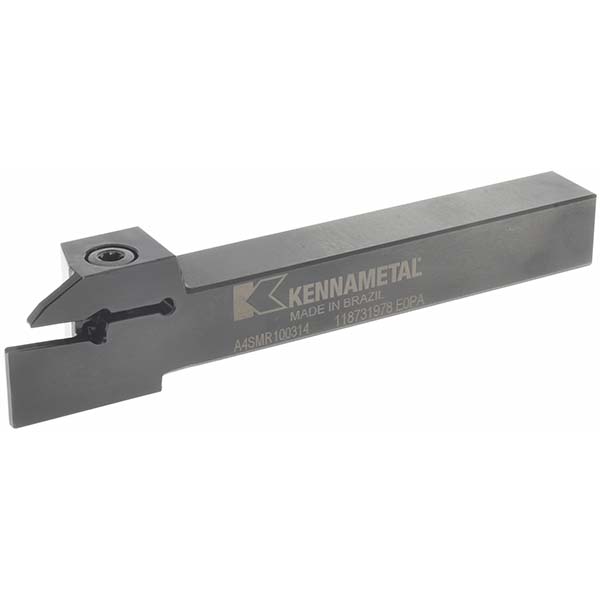

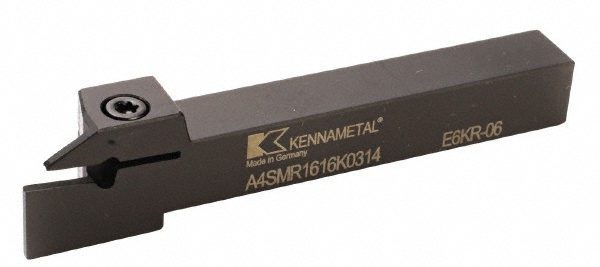

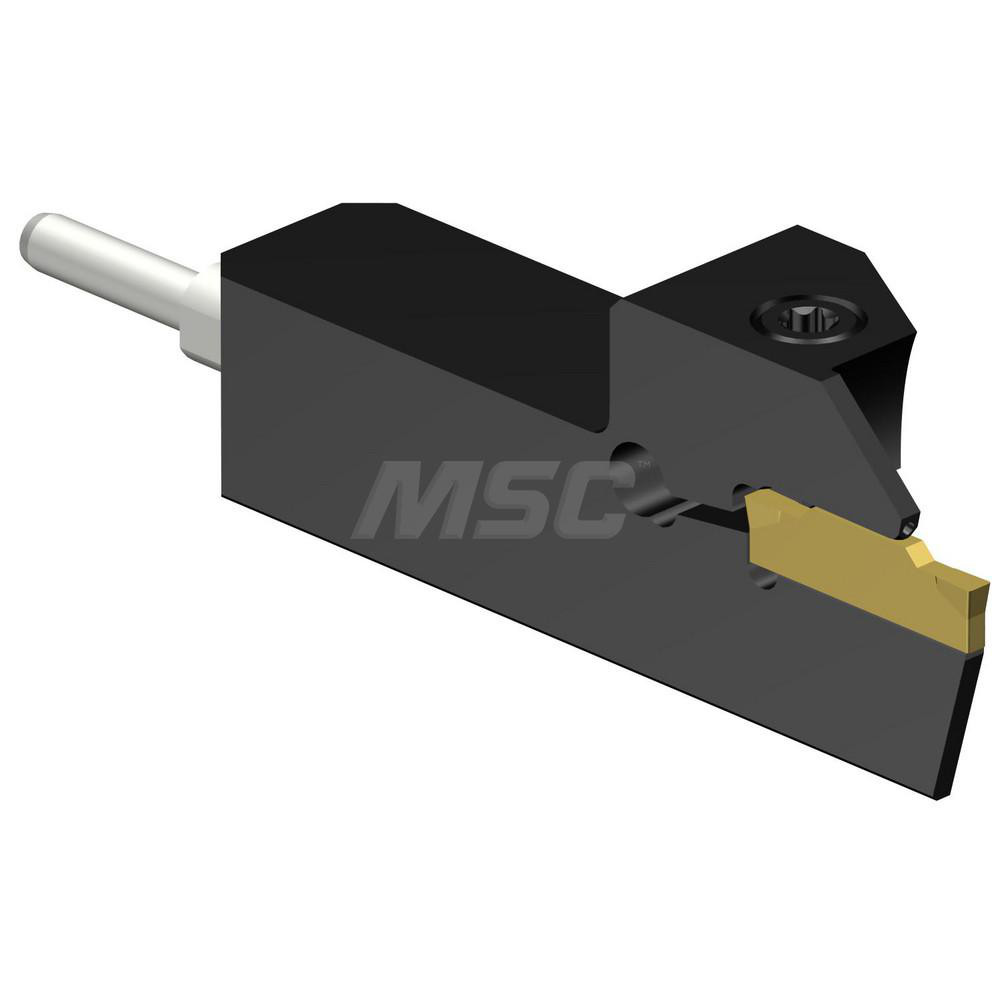

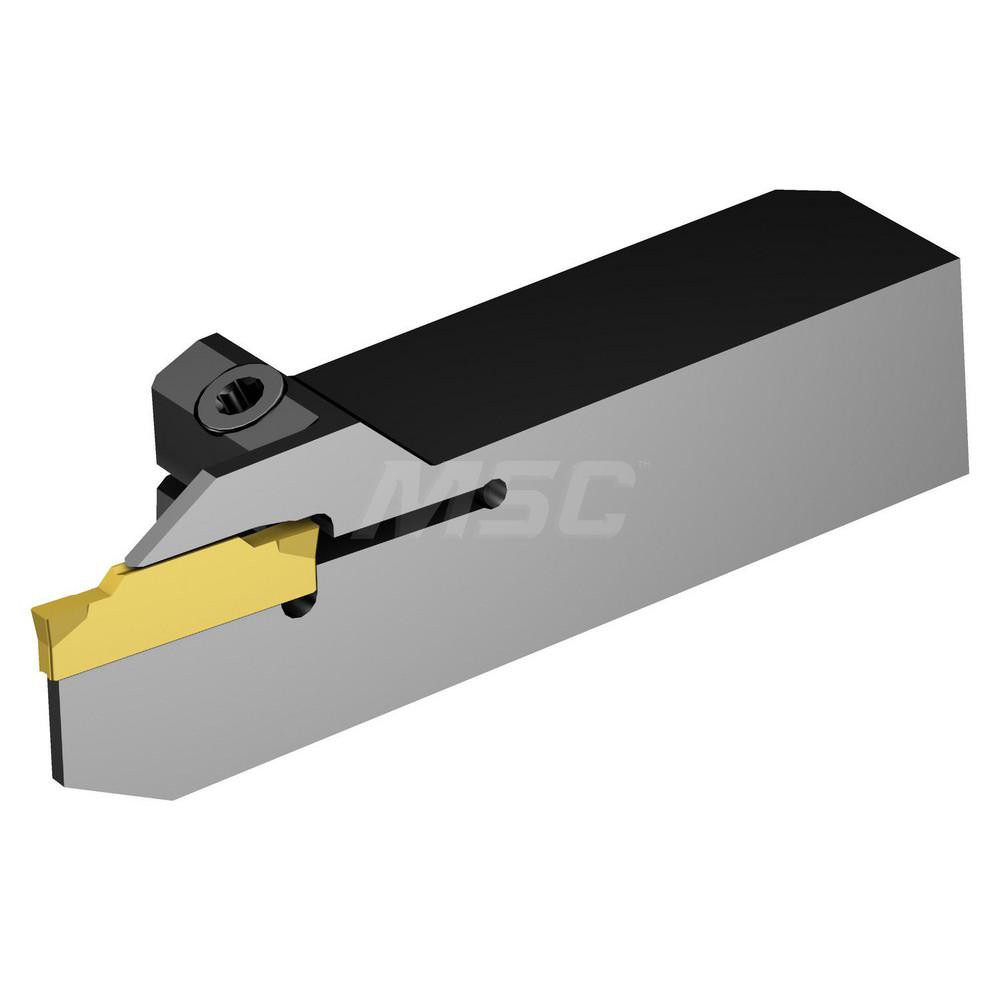

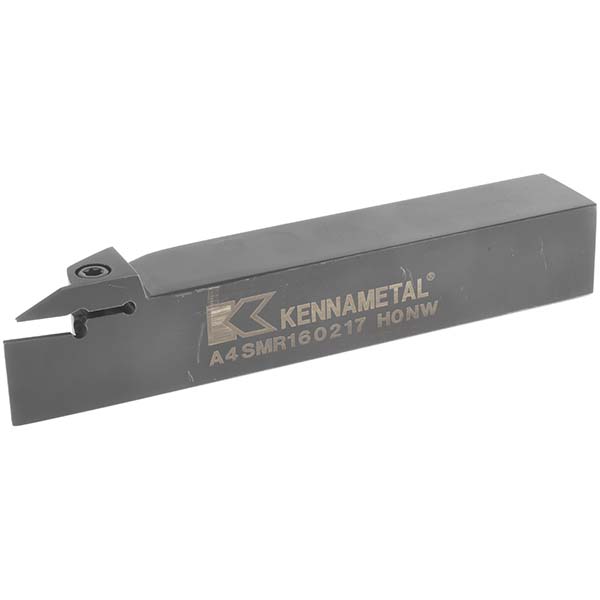

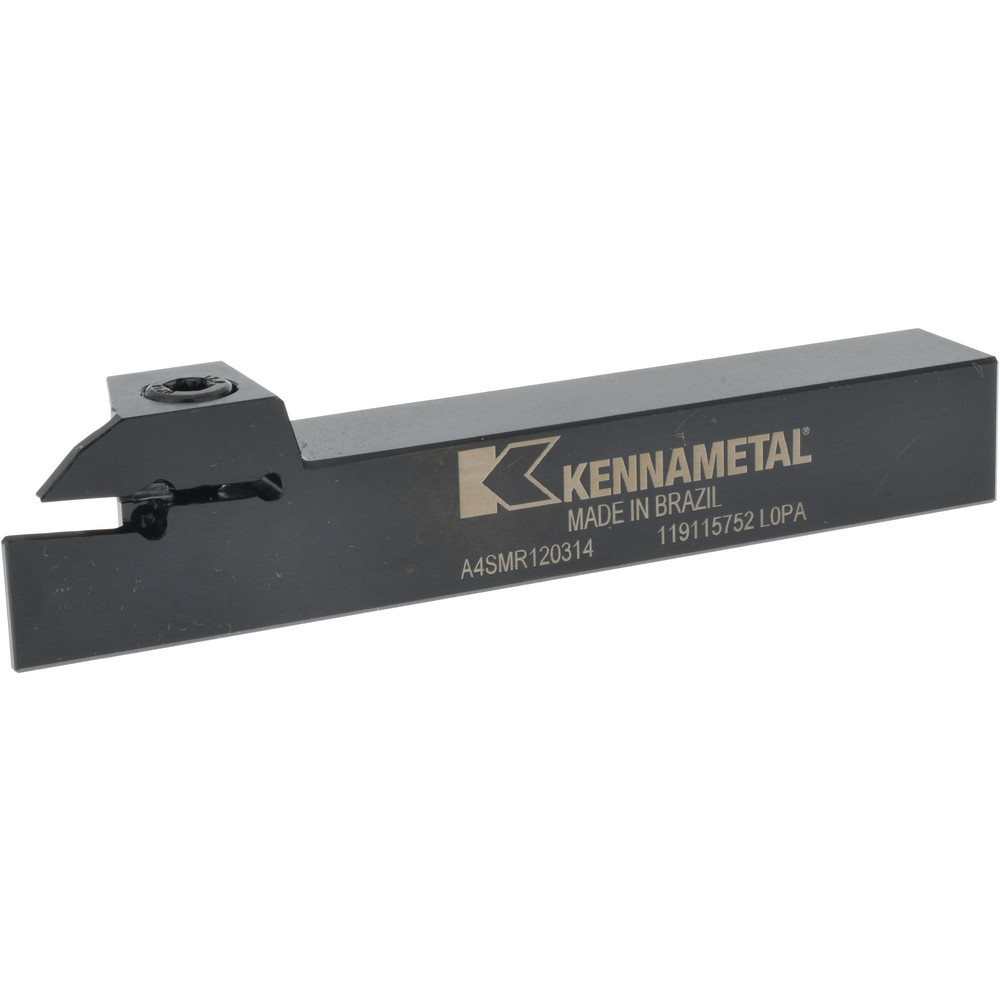

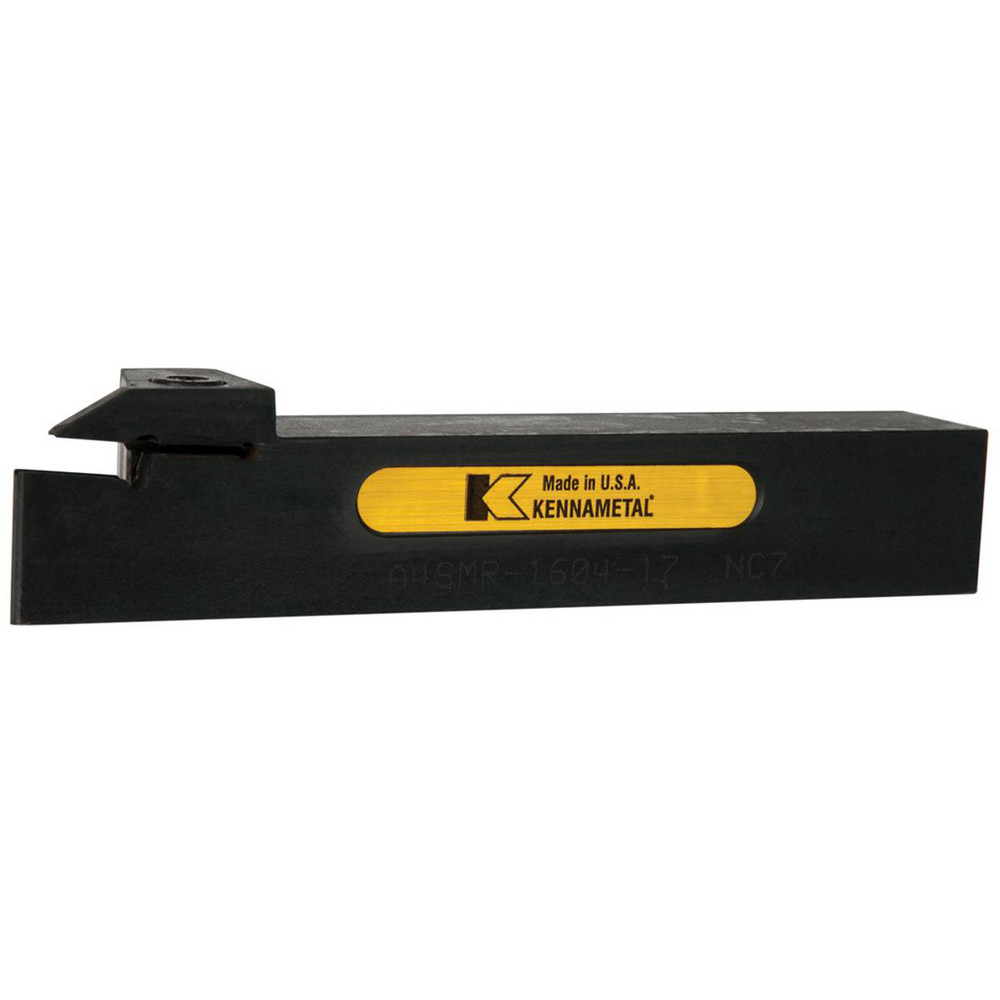

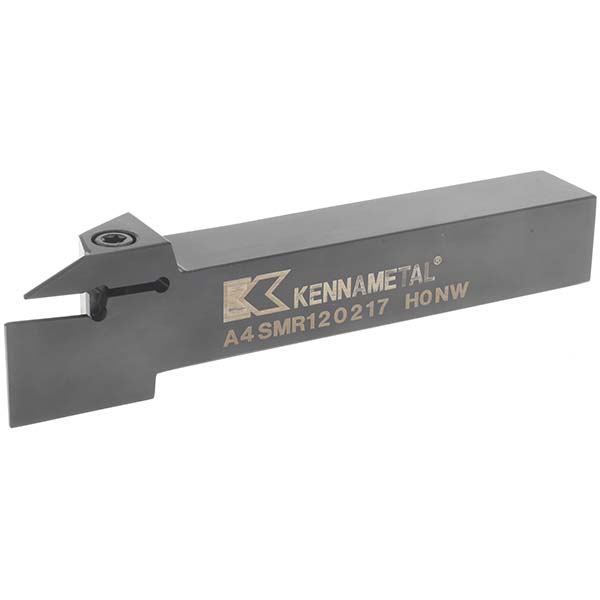

Uses A4..03.. Inserts, 25 x 25 mm Shank, Series A4
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Depth of Cut (mm) | 17.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..03.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 113.30 |
| Shank Length (Decimal Inch) | 4.4606 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | A4 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.2598 |
| Head Height (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.4567 |
| Head Length (mm) | 37.00 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Germany |
| MSC Number | MSC# 01708957 |
