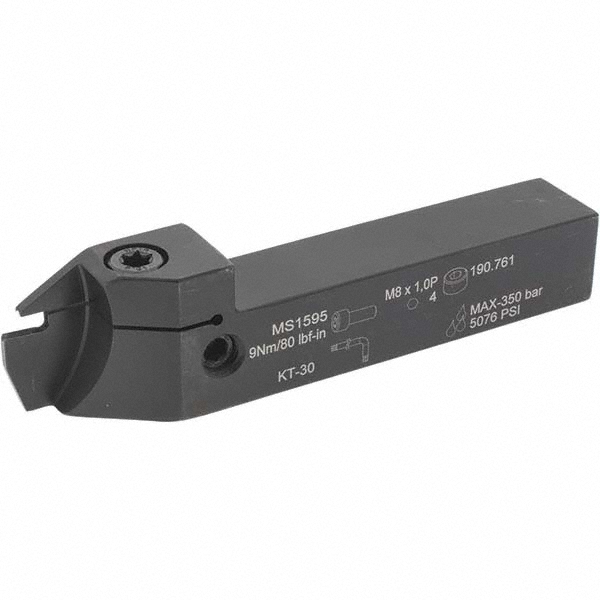

Uses EG0200M02P02 Inserts, 1 x 1" Shank, Series Beyond Evolution
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | EVSC-T |
| Insert Holding Method | Clamp |

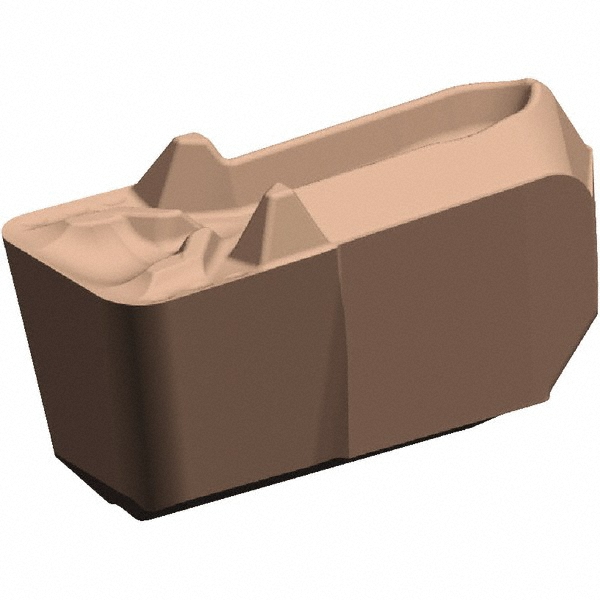

| Insert Compatibility | EG0200M02P02 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 121.40 |
| Shank Length (Decimal Inch) | 4.7800 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Beyond Evolution |
| Overall Length (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (Decimal Inch) | 1.2760 |
| Head Height (mm) | 32.40 |
| Head Length (Decimal Inch) | 1.2200 |
| Head Length (mm) | 31.00 |
| Mount Size | 1616 |
| Complete Insert Compatibility | EG0200M02P02 |
| Insert Seat Size | 2.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 69577138 |
