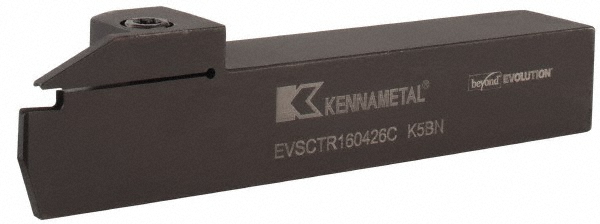

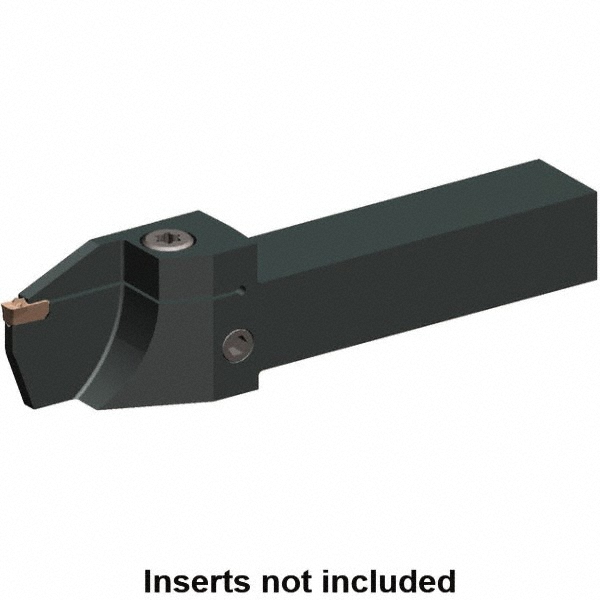

Uses EG0500M05P04 Inserts, 1 x 1" Shank, Through Coolant, Series Beyond Evolution
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Maximum Groove Width (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | EVSC-T |
| Insert Holding Method | Clamp |

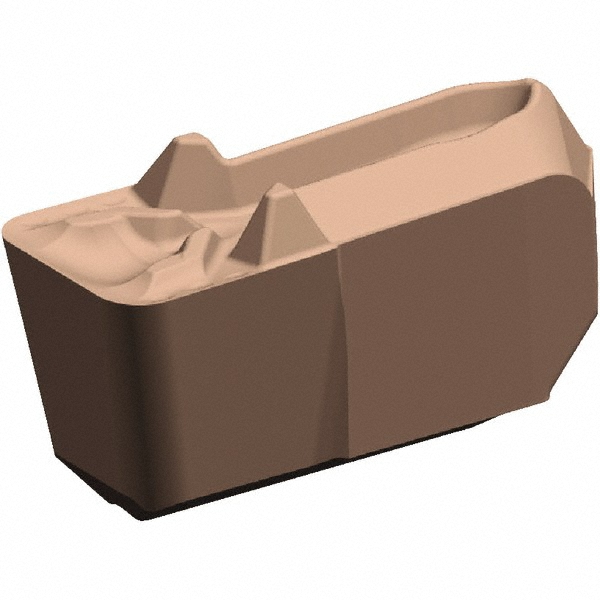

| Insert Compatibility | EG0500M05P04 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 99.40 |
| Shank Length (Decimal Inch) | 3.9130 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Beyond Evolution |
| Overall Length (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (Decimal Inch) | 1.5310 |
| Head Height (mm) | 38.90 |
| Head Length (Decimal Inch) | 2.0870 |
| Head Length (mm) | 53.00 |
| Mount Size | 1616 |
| Complete Insert Compatibility | EG0500M05P04 |
| Insert Seat Size | 5.0 |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 69577252 |
