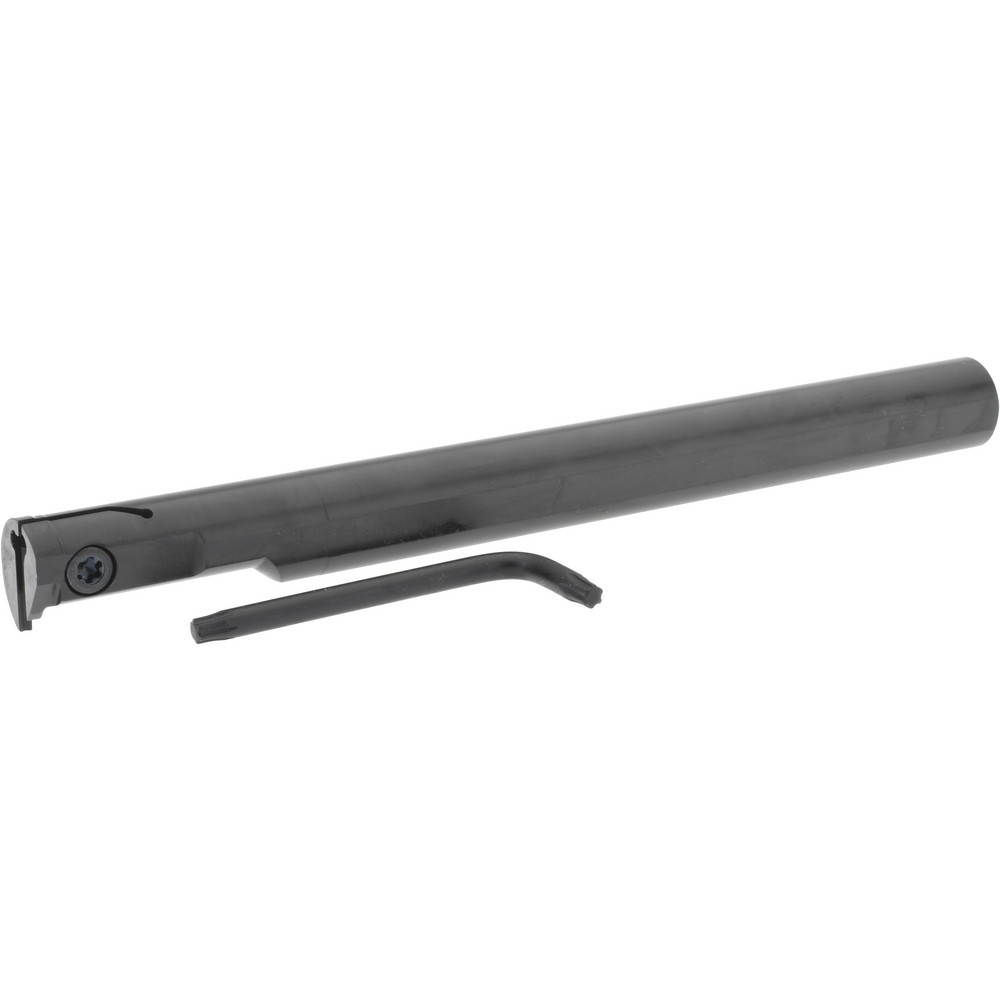

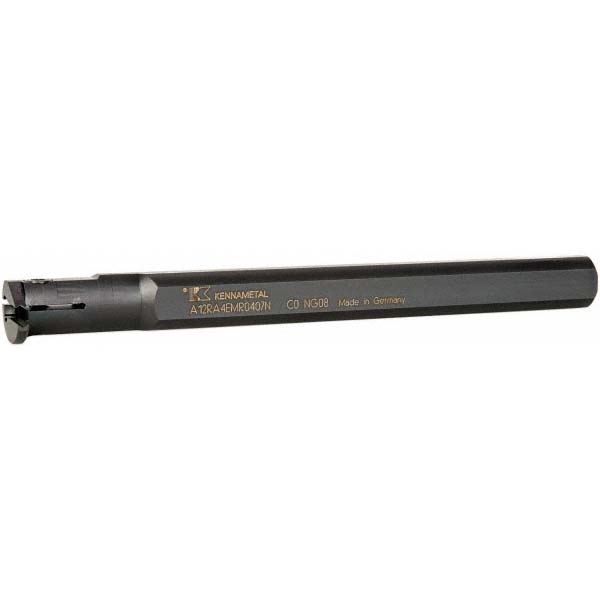

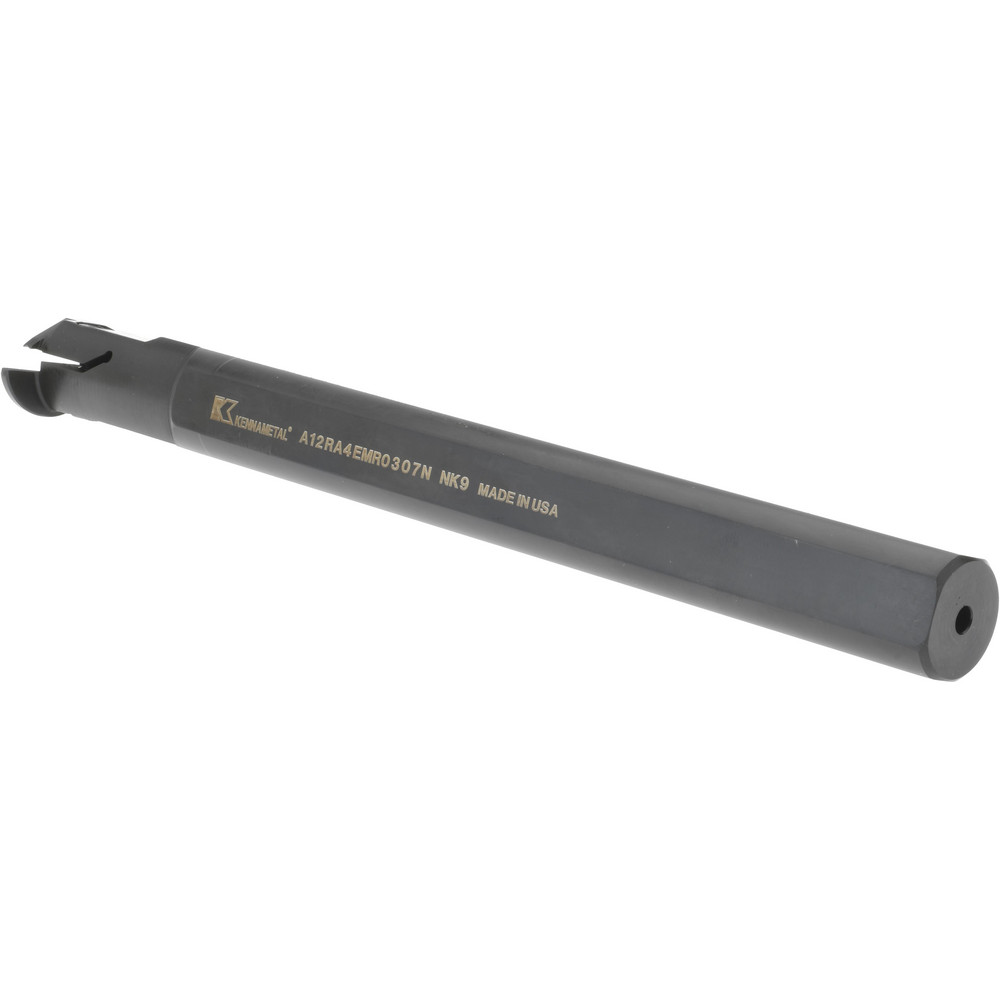

0.276" Max Depth of Cut, 19.05 mm Shank Dia, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | A-A4E |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..03.. |
| Series | A4 |
| Overall Length (mm) | 203.2 |
| Overall Length (Decimal Inch) | 8 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (mm) | 13.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5118 |
| Center to Cutting Edge (Decimal Inch) | 0.5120 |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9840 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 1.5700 |
| Toolholder Material | Steel |
| MSC/Manufacturer Number | A12RA4EMR/L0307N |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| Pros | No Pros |
| Cons | No Cons |
| MSC Number | MSC# 08429490 |
