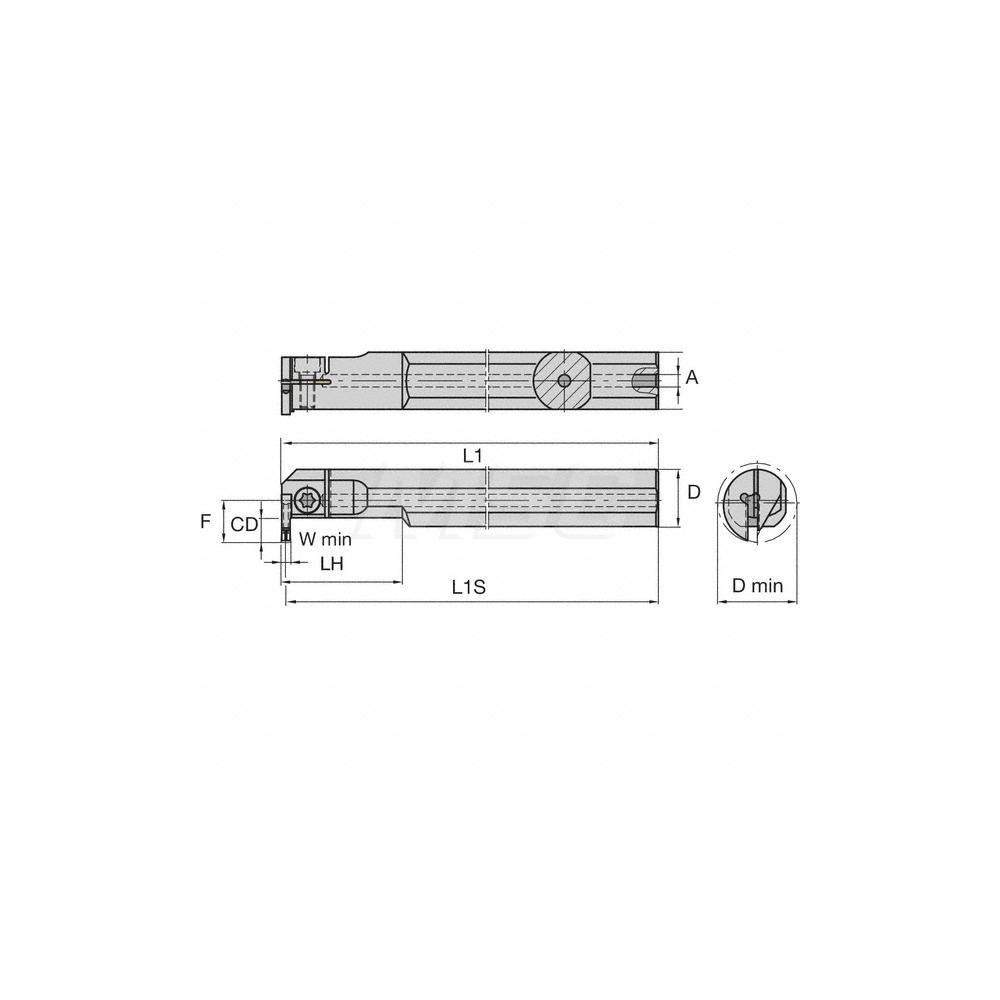

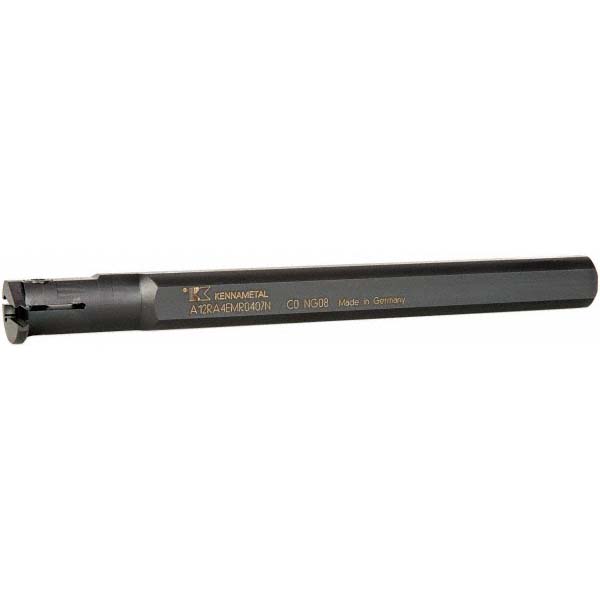

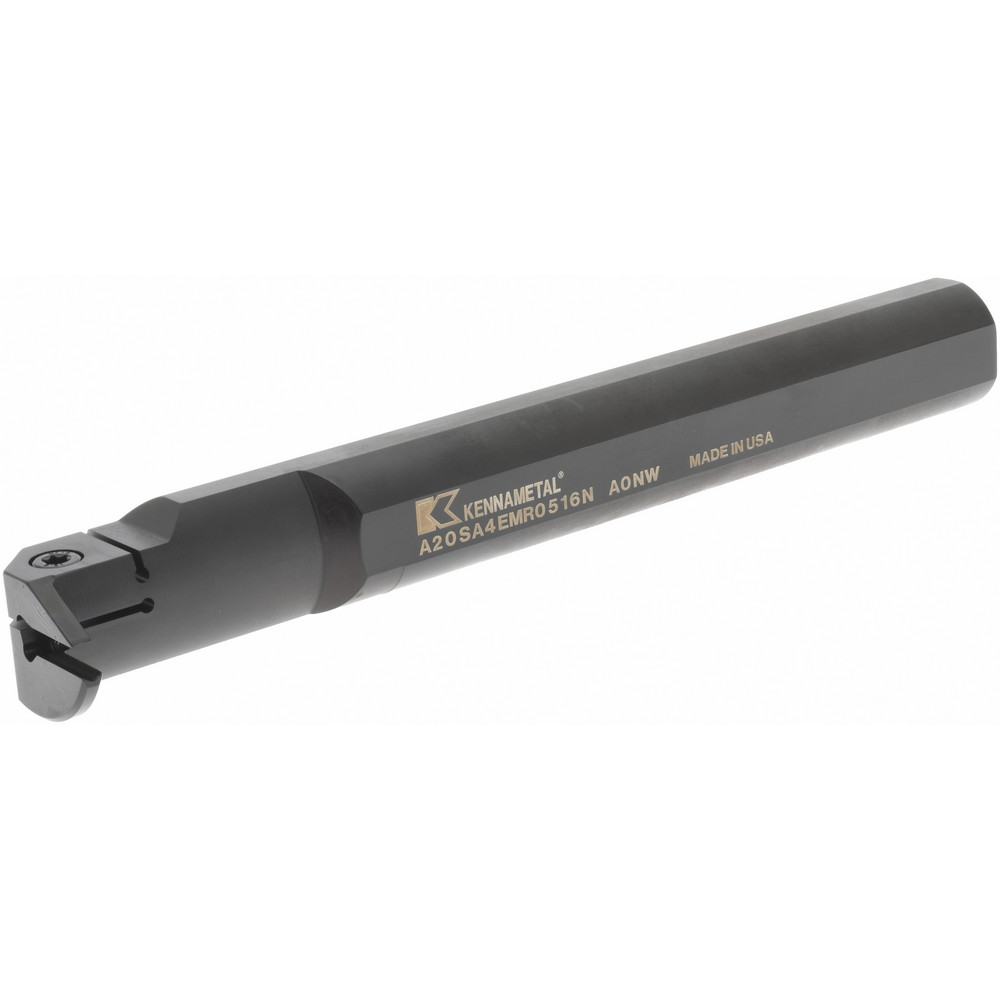

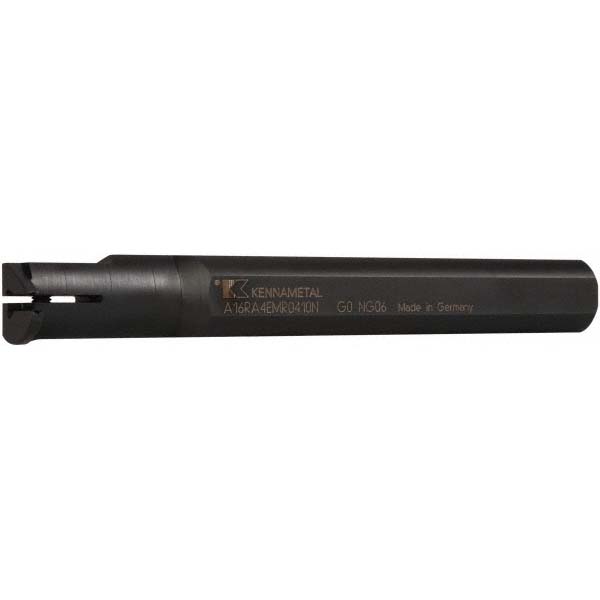

0.394" Max Depth of Cut, 25.4 mm Shank Dia, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | A-A4E |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..03.. |
| Series | A4 |
| Overall Length (Decimal Inch) | 8.02 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (mm) | 17.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6693 |
| Center to Cutting Edge (Decimal Inch) | 0.6690 |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2600 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 1.9700 |
| Toolholder Material | Steel |
| MSC/Manufacturer Number | A16RA4EMR/L0310N |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 64926454 |
